Алюминиевый сплав пользовательские радиатор экструзии
US $4.00-$10.00
CXB3590 алюминиевый светодиодный радиатор/cxb3590 cob и
- Категории: Теплоотводы >>>
- Поставщик: Dongguan,Renxin-Seiko,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Feature
Excellent thermal conductivity due to special aluminum pin fin heatsink feature improved Faster heat conduction due to their almost pure aluminum alloy (Al 99.5; 210-236 W/mK) and high material density from forging. Heat evenly dissipates in the base and the pin material for free or forced convection.Streamlined omnidirectional fin geometries, Suitable for free and forced convection, no direction bounded installation position, Flat semiconductor mounting surfaces, contour also as milled parts according to your demands
Material | 1070 (99.5%) Aluminum |
Surface | Anodize (Colors available) |
Base Diameter | 133 mm (5.24 inch) |
Base Height | 10 mm (0.39inch) |
Pin Height | 60 mm (2.36 inch) |
Pin Count | 253 Pieces |
Weight | 684 g |
Thermal resistance | < 0.73 ℃/W |
Volumen(mm3) | 246230.1 |
Surface(mm2) | 178608.97 |
LED Module applicable watt | 65-75 Watts |
Drawing
Heatsink provides 45-85 Watts passive cooling for CXA/CXB 3590, Luminus CXM-22 COB, Bridgelux Vero 29, V22, Vero 18, Vero 13, Zhaga 3, 35mm, CLU048-1212,CLU048-1812, CLU048-1818 .Recommended max current 2.1 amps for 36V-40V Cobs and 1.4 amps for 52V Cobs. 'Cree CXB/CXA 3070 and Citizen CLU048 option comes with standard 35mm spacing for COB holders.
Thermal Parameters
The measurements quoted in the heatsink were obtained in Renxin.Thermal laboratories under the following conditionsm,Heatsink anodised matt black and arranged vertically,One heat source(CXB3590) in the centre of heatsink, Temperature measured between the adjacent ,
surface of LED Source and heatsink,
Surrounding temperature measured at a distance of 1 metre (cabinet 1m ) from object , The measurements are stated as temperature increases resulting from power input for different watts . The thermal resistance for the relevant power input is calculated and summarised in an
adjoining curveThese curve demonstrate how the thermal resistance depends on the level of power input.
Details Images
About the performance of the LED Grow lightening products, besides the LED source chip , the heatsink count most. Heatsink of superior quality must be specially designed by the thermal engineers who are responsible for thermal technology and fabricated according to advanced procedures, as well as strictly controlled within quality system requirements and tested according to relevant procedures, so as to ensure superior quality and customer satisfaction. We have accumulated lots of data and Solutions for all of our heatsink during various Solutions, from design to CFD simulating calculation, thermal analysis and optimization. The products can be verified and tested in our own laboratory. All processes including manufacture, testing, packing, and delivering are controlled according to quality system ISO9001:2018.
At present, suppliers on B2B have many small business workshops and Traders , causing malicious competition and bad product quality. Now our products are sold online to ensure the customers can order goods from professional and standard factory. Besides, customers are welcomed to visit our factory.
At present, suppliers on B2B have many small business workshops and Traders , causing malicious competition and bad product quality. Now our products are sold online to ensure the customers can order goods from professional and standard factory. Besides, customers are welcomed to visit our factory.

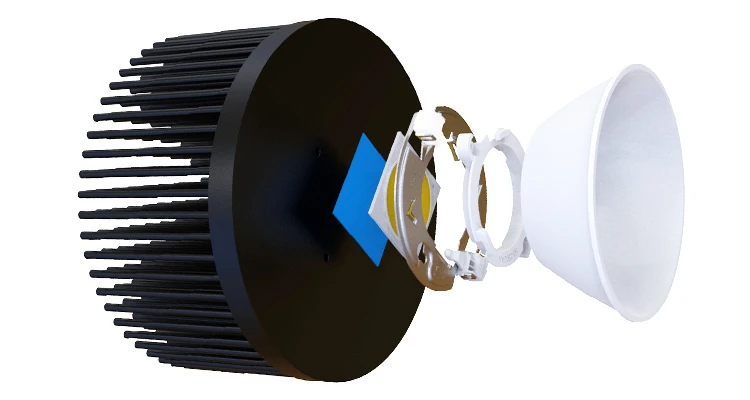

Installation Instructions
Installation Instruction
To address the complexity of handling multiple precision packaging technology (COB) LED modules, the Zhaga International Alliance has standardized a series of external dimensions in its new specifications, We believe that those needs are best served by having a varied line of offerings ratherthan try to make something for everyone, Special focus has been put on developing a high quality range of grow light and LED lamp design , which we offer in a wide range of thermal solutionCOB grow lights can be compounded freely according to plants' different needs, In a word, we will take our advantage to provide the best Heatsink and thermal solutioin and services as per yourvarious requests
Application
Our complete 2' x 4' grow light comes pre-built with everything needed to light a 2' x 4' grow space. This is the same version as our 2' x 4' kit except it's pre-assembled. Simply take out of the box and hang the light for amazing, full spectrum coverage of your grow space.
Packing
Single Box
Renxin.Thermal Pin Heatsink are packaged in small carton of 1 Pieces
Carton
20 pieces samll carton placed inside a big carton, for a total of 20 Pin Heatsink per carton. Each carton contains 20 Pin Heatsink from the same performance .
Certifications
Quality
According to the statistics and fault analysis of the LED light industrial association, 63% of the quality issues with lights are related to improper cooling. Choosing a reliable LED chip and Heatsink therefore provides the best guarantee for the service life of LED lights， and also requires discretion of product engineers or product managers. Our professional thermal engineers have more than 10 years' experience in thermal analysis and design, using the world's most advanced LED chips to design and manufacture reasonably priced Heatsink products with the best quality, which have over the years won good reputation and brand image among global customers. Our mission is to enable customers around the world to purchase the best heatsinks directly from our factory via e-commerce platforms, so that their lights will no longer have cooling problems. Customers from all over the world are welcome to visit and inspect our factory.
Contact
Company Profiles
Renxin.Thermal Technology is producing mechanical electronic components such as heatsinks, Extruded cases and ,LED light ODM/OEM , CNC machining OEM since 2004 Our product range contains devices and complete cooling systems for dissipating semi-conductors as well as heatsinks direct from the manufacturer. Furthermore we offer various extruded case for aluminum and Extruded profiles for aluminum in different designs. In the area of cases especially our modern design cases are convincing. Moreover system-independent cases can be found in our programme
