Since 2008Y  Focus on screw barrel









Brief application:

1. Application: PVC
2. Production output: 130kg/h~150kh/h
3. Lifetime: 20,000 hours

4. Old order from: West Europe,East Europe,South America,South Africa,Middle



Features:
1.Accurate size
2.High capacity design

3.Wear resisting material
4.Easy maintenance





Product Photos



Technical Specification

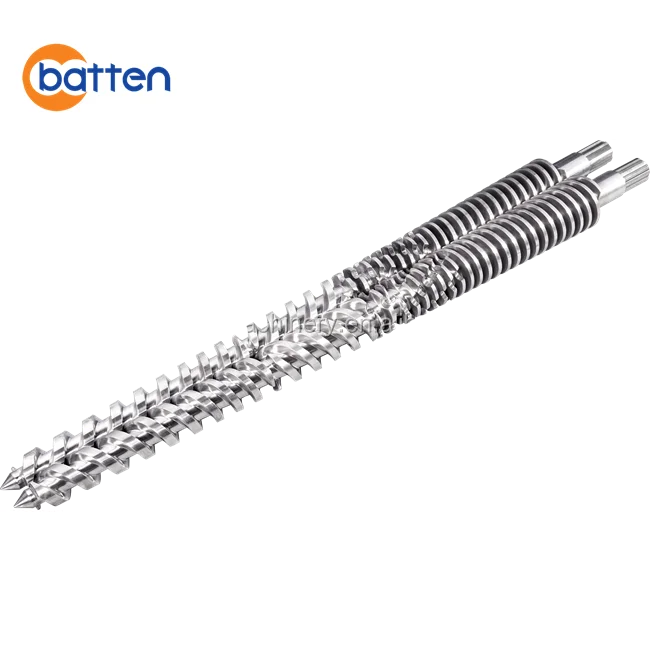

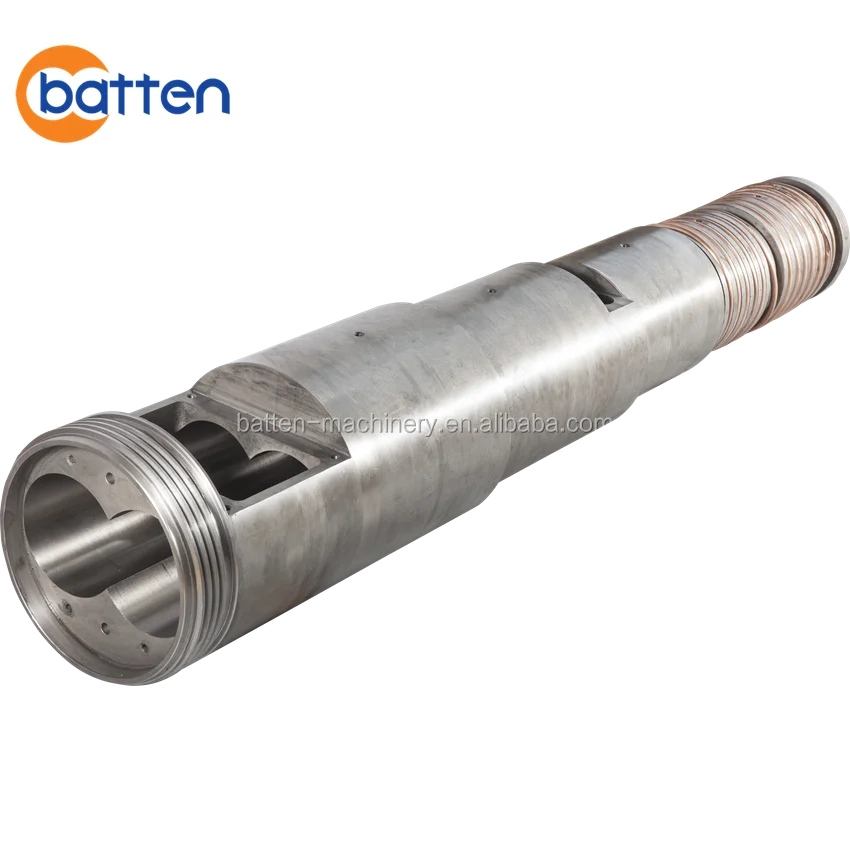

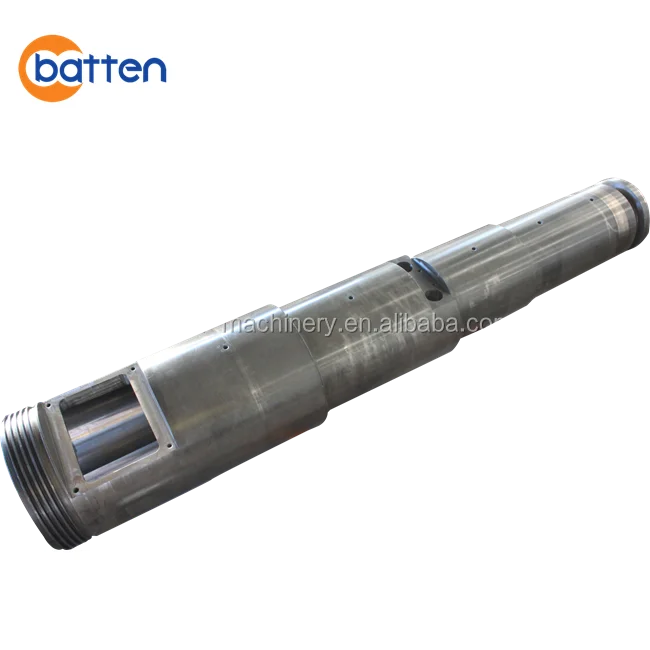

Type	Conical Twin Screw and Barrel
MOQ	1 set (1 pair of screws and 1 pc barrel)
Design Details	Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel  I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system
Accessories	Stop ring+washers to adjust the space between screw and barrel
Technical Specification	Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm



Packaging

Step 1-Rust Preventing Oil

Step 2-Casting Film Wrapped

Step 3-Polywooden Case



Quality Control

Company Information

Batten is location in "China Screw Barrel Home Town",where is 30 years history. We are experts in kinds of screw and barrel design. We understand the needs of your business and have designed our products, from extrusion lines screw and barrel to injection machine screw barrel, to enhance the performance of your polymer processes.



FAQ

1.    What is Batten -Machinery feature goods?

  Batten are leader Producer in:

 -HDPE/LDPE/LLDPE blowing film extruder single screw and barrel:different design to meet client request on production

-PP/PE granulation or recycling screw barrel:New geometry design according experience modify.

-PVC pipe/profile/componds/sheet/foam board:Professional Produce Experiece on both China & Europe extrusion machine.

-HDPE/PPR pipe high capacity single screw barrel:Big L/D design,high speed,high capacity.

-Haitian,ChenHsong brand machine injection screw barrel supplier in China

2.    Batten main market

-Europe / Middle East / South America / South Africa.

3.    Any oversea service or not?

-Oversea service is available if client request. Buyer afford cost.



------------------------------------------------------------------------------

Contact Us

Lily Li Sales manager Mob:+86 186 0580 0326 (whatspp,wechat) Web:www.batten-machinery.com Skype:batten.annxu

Office No.5,1st Branch,Lingang 2nd Road, Shuangqiao Industry Zone, Zhoushan City,China T:+86 580 8015962  F:+86 580 8015961



----------------------------------------------------------------------------------------------------------------------------

Thanks for your visting!



Let's Replace Your Screw Barrel
