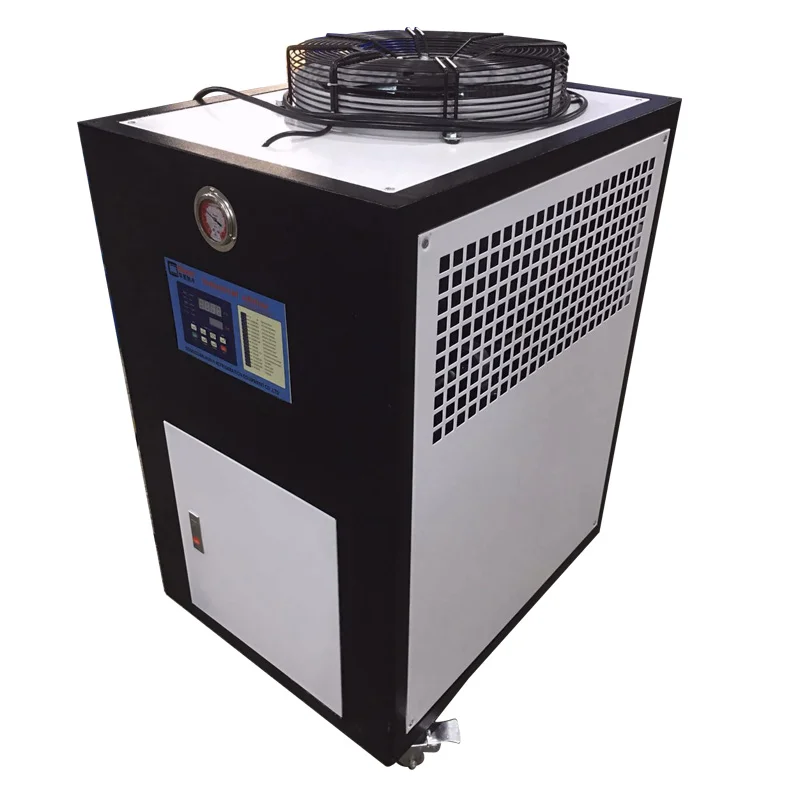

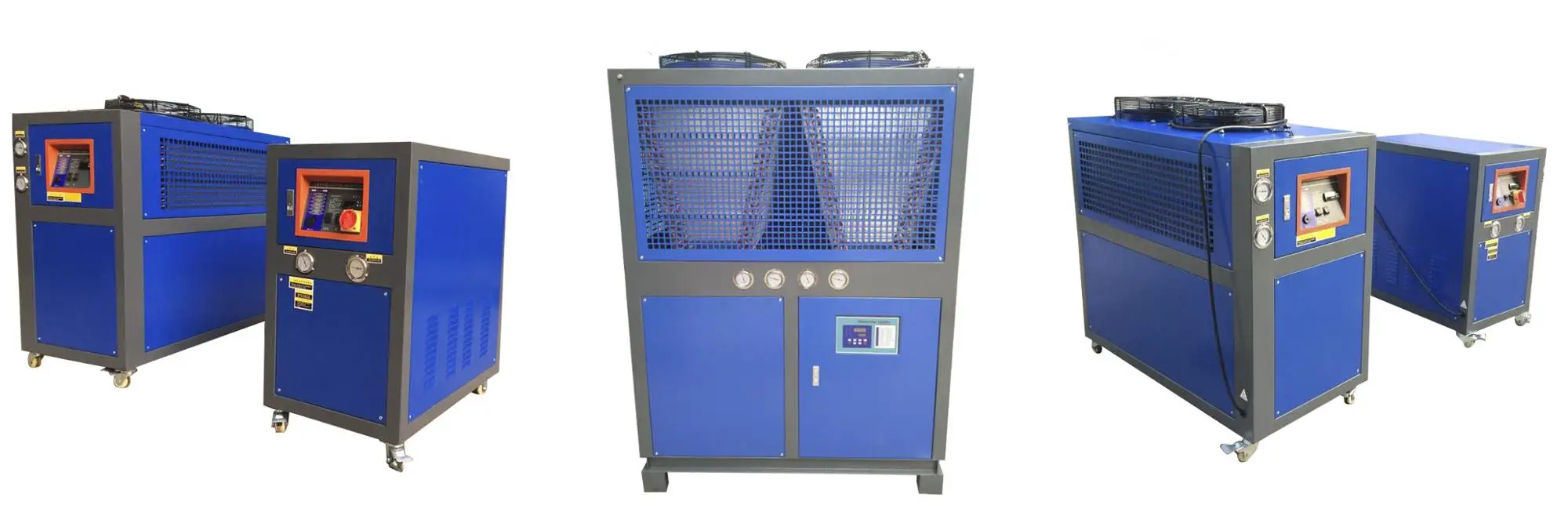

Factory Direct Supplier Air Cooled Industrial Water Chiller Hot Sale
Product Description
Factory Direct Sales To Provide Ultra-low Prices!12 Years China Manufacturer!
Product Detail
Water Chiller
Huani Brand
Cooling form
air-Cooled
Use
Indutrial
Refrigerant
R22 or R410A
Compressor
Scroll
Compressor Brand
Daikin,copeland
Compressor power
2.2~90kw
Flow control device
Thermal Expansion Vale
Cooling capacity
2.73kw-180kw
Safety device
Overload,high/low cut,safety valve,frozen
Product Keywords
air cooled industrial water chiller chilling
Features:
Unit Features (Air-cooled Type):
*Packaged design,cooling tower and pump are not needed.
*Machine room is not needed,chiller water is builtin,so it
Is suitable for outdoor installation to save space
*Large cooling capacity.
Applications:
*Widely applied to plastic,electroplating,hardware,
dyeing and finishing,injection molding,cold bath sauna etc.
Unit Features(Water-Cooled Type):
*Could be installed in machine room
*Chilled water pump built in
*Elegant appeatance,small size
*Large cooling capacity
Quality assurance:
1. Our product components guarantee 100% new, never use any second-hand parts.
Product use:
In addition to the traditional industrial chiller air conditioning and refrigeration;Is also used in laser technology, welding plastic molding, injection molding, extrusion, blow bottles, hot LiSu type;Mechanical machining, the machining, casting;Surface treatment, electroplating, electrophoresis,Medical equipment, medicine production, electronics, circuit board production, electronic chip manufacturing;Chemical industry, papermaking, pharmaceutical industry, food processing industry;Aluminum, aluminum alloy, toughened glass, coated glass production.Ultrasonic erase, jewelry processing;Leather, fur processing, printing ink production;Aquaculture and other industries, etc.;You can see the figure of refrigeration units.
* We also supply the machine based on the specification provided by the customers.
Attention:
The above is only the partial parameters, the different parameter correspondence difference in price, the details please consult us .
Model
Type
Air Cooled
HNAC03
HNAC04
HNAC05
HNAC06
HNAC08
HNAC10
Cooling Capacity
BTU
29002
37873
48450
58345
77452
96901
kcal/hr
7310
9546
12212
14706
19522
24424
Kw
8.5
11.1
14.2
17.1
22.7
28.4
Compressor power
Kw
2.2
3
3.73
4.4
5.59
7.5
Cooling air
M3/H
3910
5270
6460
8670
11220
15130
CFM
2300
3100
3800
5100
6600
8900
Chilled water pump
Kw
0.37
0.37
0.75
0.75
0.75
0.75
Chilled water flow rate
M3/H
4.2
4.2
6
6
6
6
Water tank
LITER
40
40
85
85
85
85
Power input
V/Ph/Hz
380/3/50
Refrigerant
R22
Dimension
L(mm)
900
1150
1150
1150
1676
1676
W(mm)
690
700
700
761
761
761
H(mm)
1230
1260
1260
1778
1778
1778
Weight
Kg
130
140
160
230
330
410
Chilled water pipe
In
1-1/4"
1-1/4"
1-1/2"
1-1/2"
1-1/2"
1-1/2"
Safety pipe
In
1-1/2"
1-1/2"
1-1/2"
1-1/2"
1-1/2"
1-1/2"
Product components

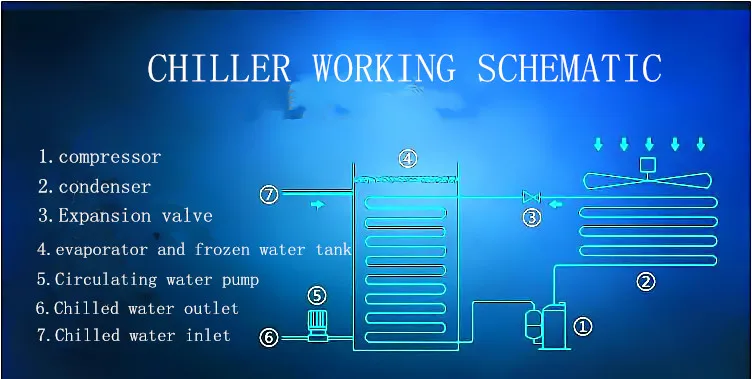

Schematic diagram of water chillers
Company Information
Dongguan Huani refrigerating equipment Co.Ltd
We has more than 20 years of experience in producing all kinds of central air conditioning host,and supporting the production of a variety of terminal equipment of central air conditioner,set comprehensive enterprise product design,manufacturing,installation and repair etc.
Main products:

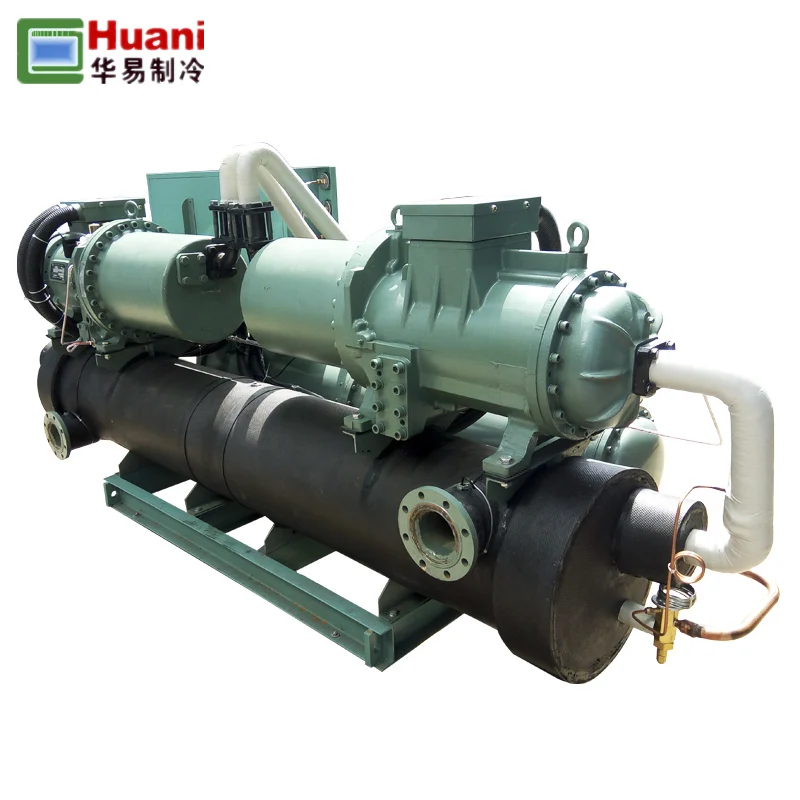

Chiller series:screw chiller,Low-temperature screw Chiller,compact water-cooled chiller,air-cooled heat pump chiller,air/water for industrial cooling water machince.

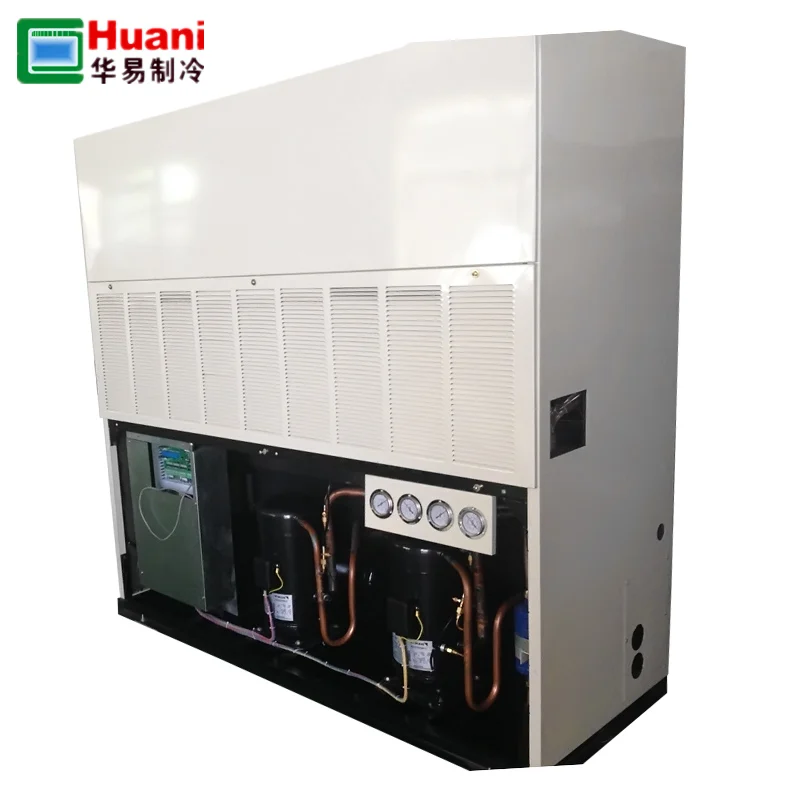

Conditioner series :floor type water cooled air conditioner,water-cooled cleaning air conditioning with constant temperature and humidity,remote air jet water cooling ceiling air conditioning machine, water source split air conditioning.
The cold wind ark series:floor-type chilled water air handing unit ,ceiling-type chilled water air handing unit etc.
Our company on every step of our progresses,there are the support and kindly help from our customers.We are sincerely expecting your cooperation to create resplendent future together.

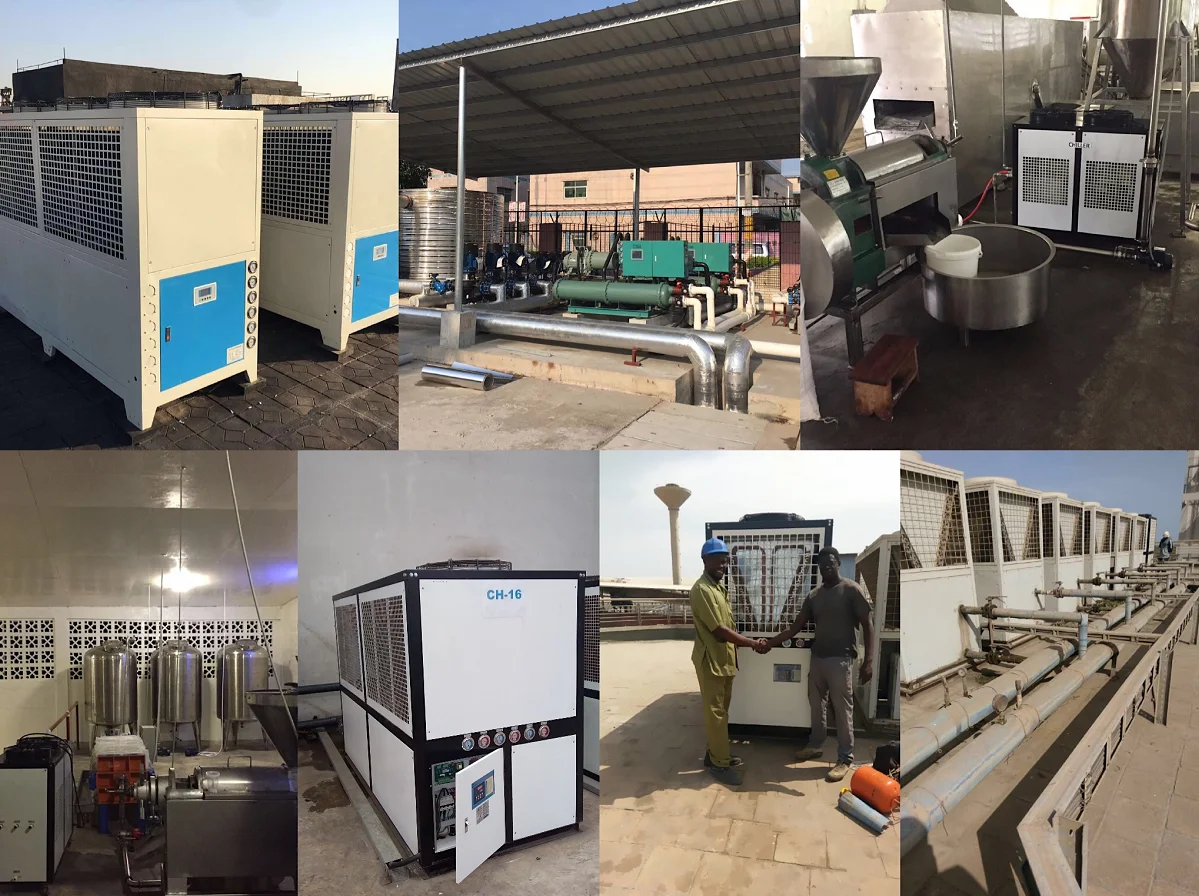

Customer case

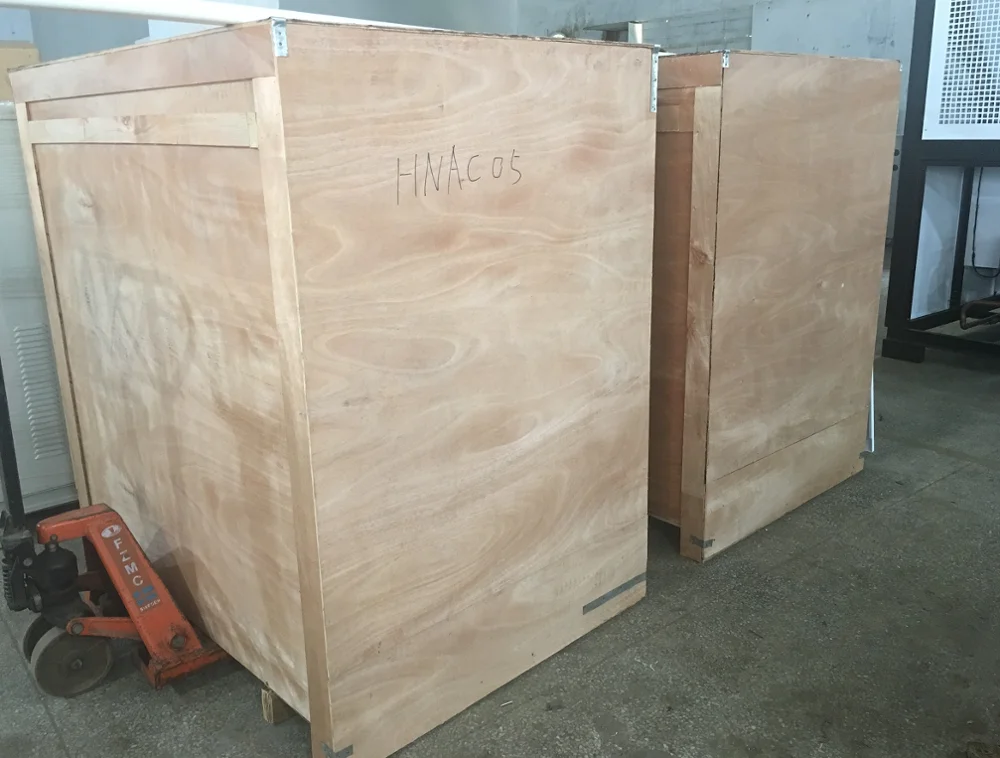

Packaging & Shipping
PACKAGE: Standard export carton packing.
DELIVERY TIME: 3-20 days after confirming order,
detail delivery date should be decided according to production season and order quantity.
