Diesel type Small Portable Concrete mixer Pump for sale



Product Description



concrete mixer pump 3_.jpg





Concrete Mixer pump, also known as concrete pump, composed of pump body and pipeline. Is a use of pressure, the concrete along the pipeline continuous conveyor machinery, mainly used in residence buildings, Bridges and the tunnel construction. At present mainly divided into concrete pump and gate valve valve S concrete pump





ItemHBTS30-10-85R
Max Theoretical Concrete Output (m³/h)30
Max Concrete outlet Pressure (Mpa)10
Concrete slump (mm)120-230
Aggregate Size (mm)  gravel≤30
Powder (KW)Diesel motor 85
Speed (r/min)2300
Conveying Cylinder Diameter (mm)110/1000
Concrete Cylinder Diameter (mm)160/1000
High-Low Pressure Switch Yes
Oil Tank Capacity (L)300
Hopper Capacity (m³)0.35
Fuel Tank Capacity (L)100
Filling Height (mm)1200
Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m)                          50/150m
Pipe Cleaning ModeWashing
Overall Dimension (mm)5800×2150×2600
Total Weight (kg)4500
Discharging capacity350L
 Feeding capacity560L
Production rate10-14m3/h
Mixing drum speed14R/min
Maximum aggregate particles60mm
Maximum towing speed20Km/h

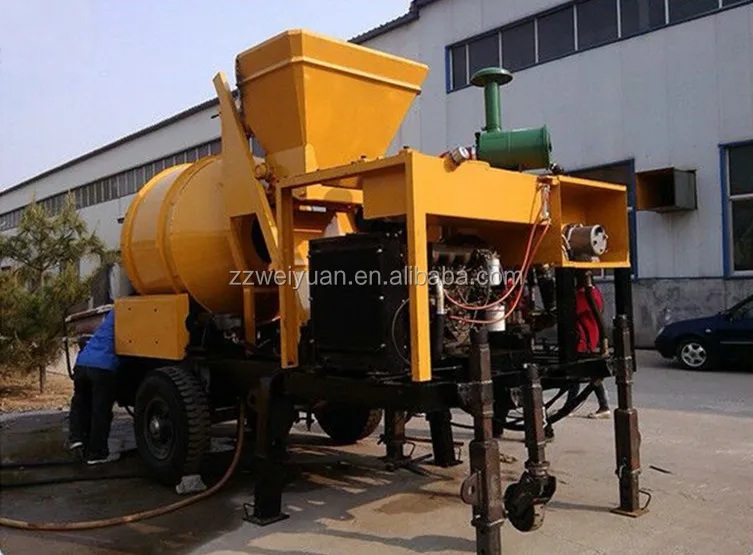

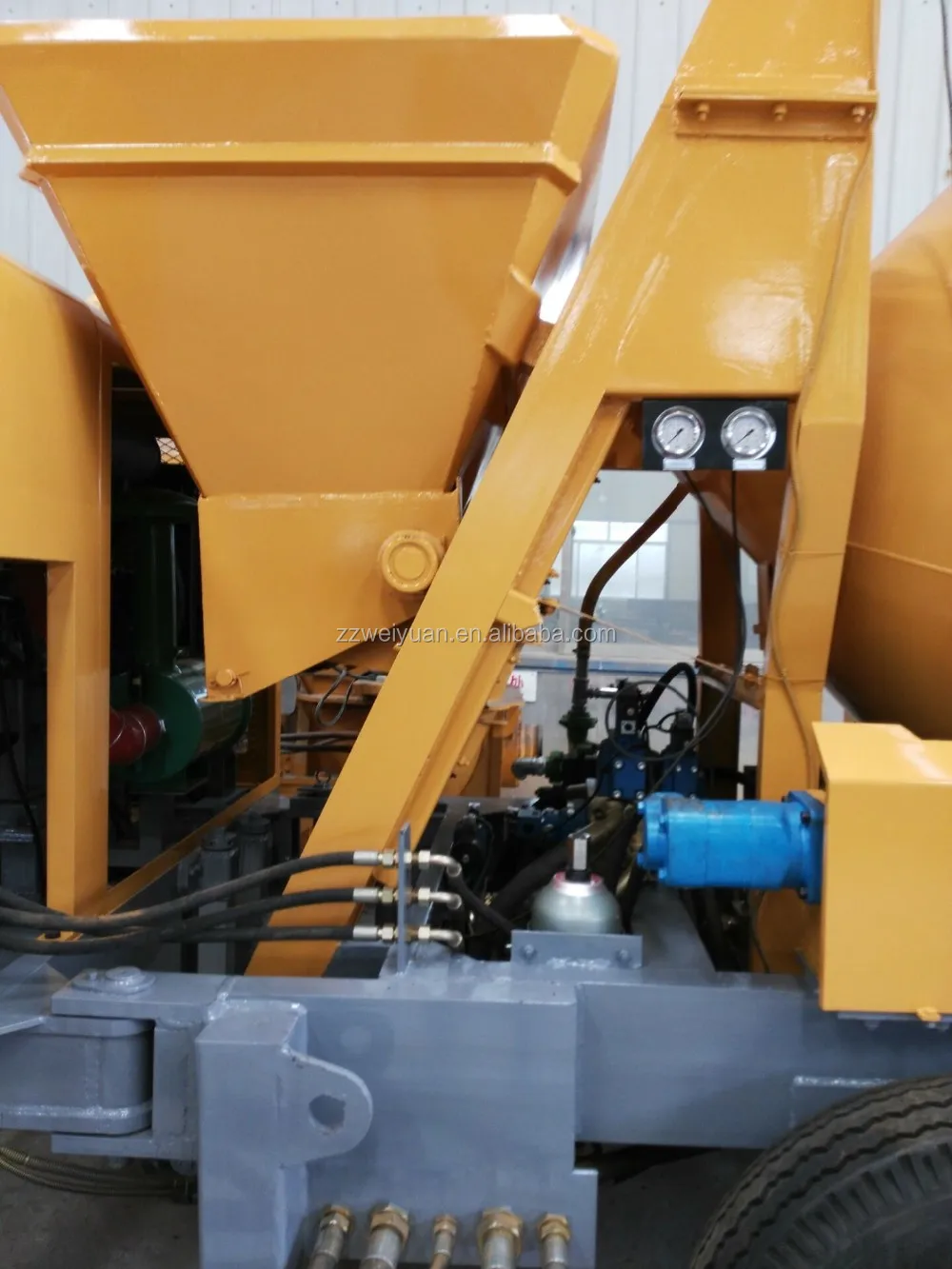

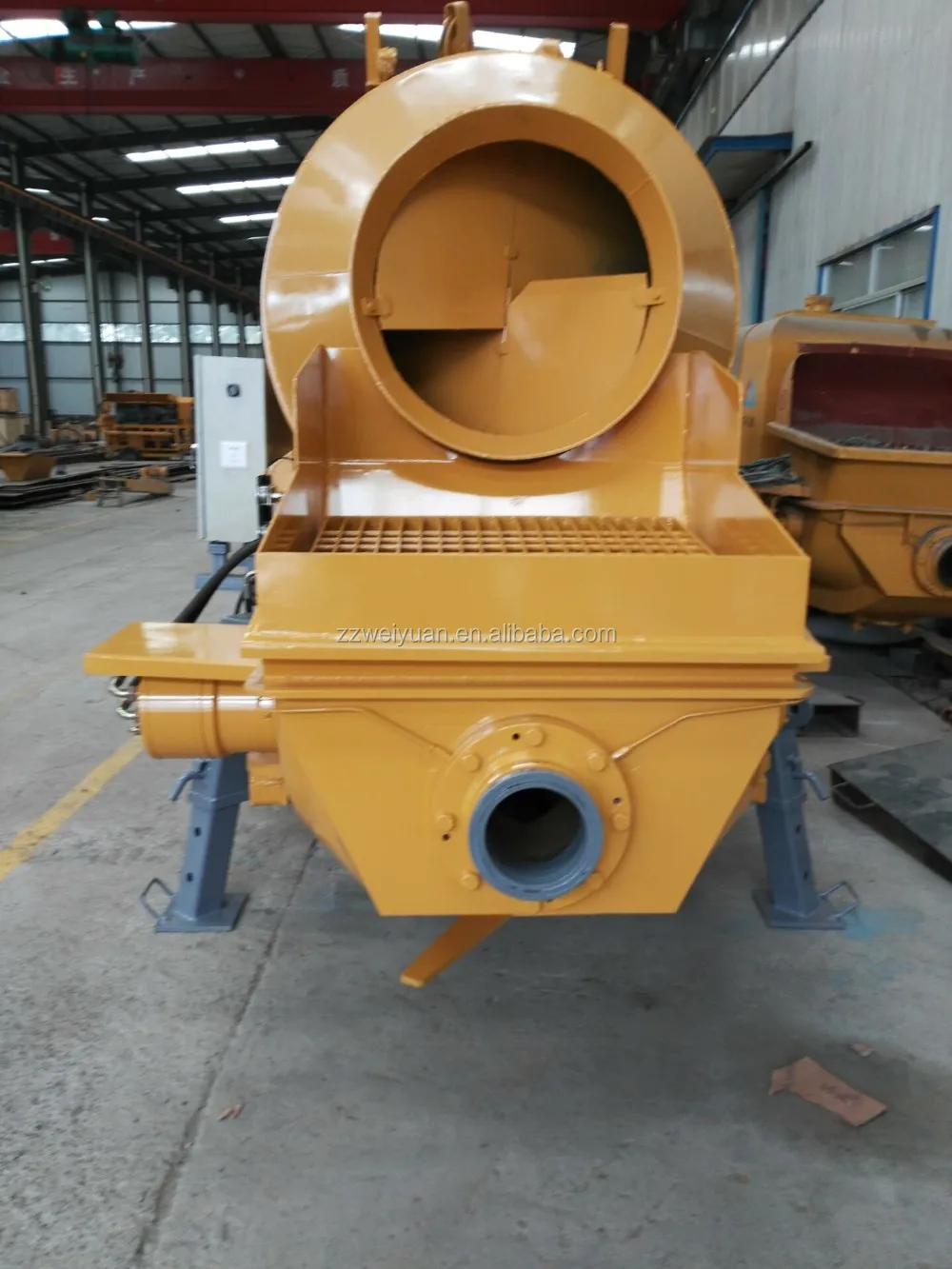

Detailed Images














Product Features

 1.Power system portable electric concrete pump mixer

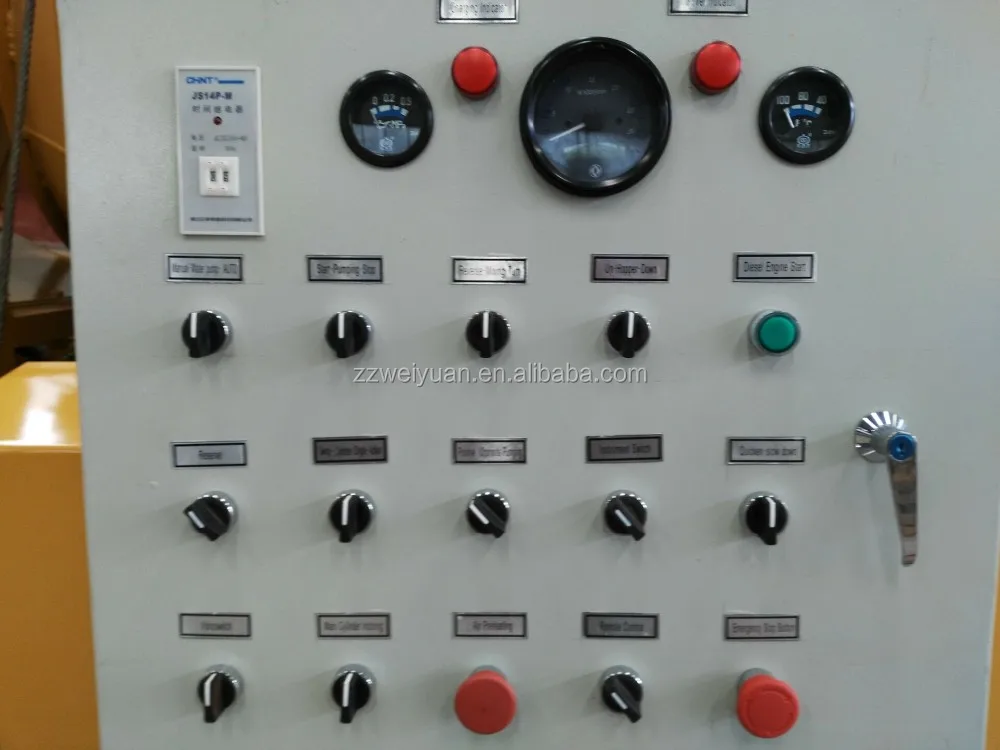

2.Electronic control system portable electric concrete pump mixer

3.Hydraulic system portable electric concrete pump mixer

4.Pumping system portable electric concrete pump mixer

5.Lubrication System portable electric concrete pump mixer

6.Cooling System portable electric concrete pump mixer
