Автоматическая машина для выдувного формования бутылок 5 галлонов цена


Поделиться:

Цена:25 000,00 $ - 45 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Main Features


1) Electrical control system: The machine works under the PLC control(made by the Mitsubishi Co. of Japan) via a man-and-machine interface(displayed in Chinese version or in English version).The machine is equipped with a modularized temperature controller and operated through a touch-type coloure screen.All the production data can be set up,modified,searched and monitored and the machine trouble diagnosis can be completed both on the touch-type screen.The electric elements work on the non-contact working principle,thus being durable in service life.

2) Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.

3) Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.

4) Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.

5) Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.

6) Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.

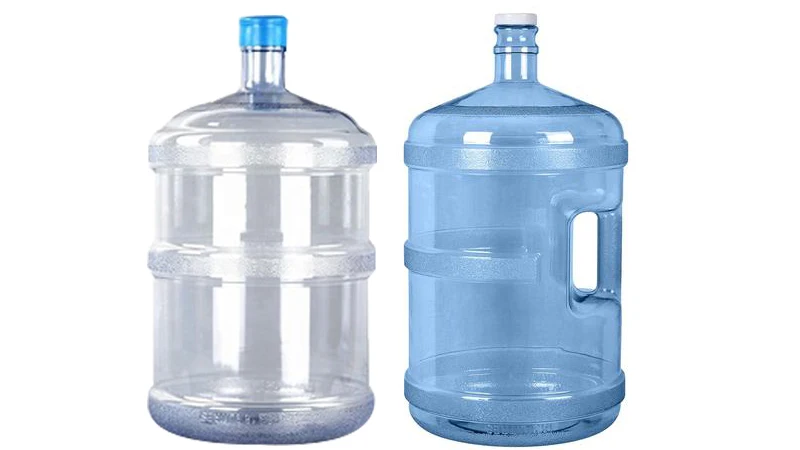

 Bottle Samples




technical parameters:


















































































































































ParametersUnitsBST90S-30LBST100D-30L
Max product volumeL3030
Screw Diametermm90100
Screw RPM(50HZ)r/min10-7010-60
Extrusion capacity per hour(PE)Kg/h160200
Opening stokemm900900
Platen Sizemm500*540500*540
Clamping stokemm450-950450-950
Clamping ForceKN170170
Dry cycle timeS69
Cooling water pressureMpa0.2-0.30.2-0.3
Cooling water consumptionL/min4060
Air pressureMpa0.80.8
Compressed air consumptionm³/min46
Machine Dimension(L*W*H)mm5000*2900*39005200*4700*4000
Machine net weightT9.516
Max die diametermm250250
Extrusion motorKW4555
Extruder heating powerKW2227
Power of die heating zoneKW1616
Hydraulic motorKW18.518.5
Parison thickness motorKW44
Total PowerKW106121




Packaging & Shipping







Our Services


Well-trained & experienced staff are to answer all your inquiries in English and Chinese


• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).


• 2 Years guarantee


• Your business relationship with us will be confidential to any third party.


• Good after-sale service offered, please get back to us if you got any questions.





Company Information


Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.


Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.

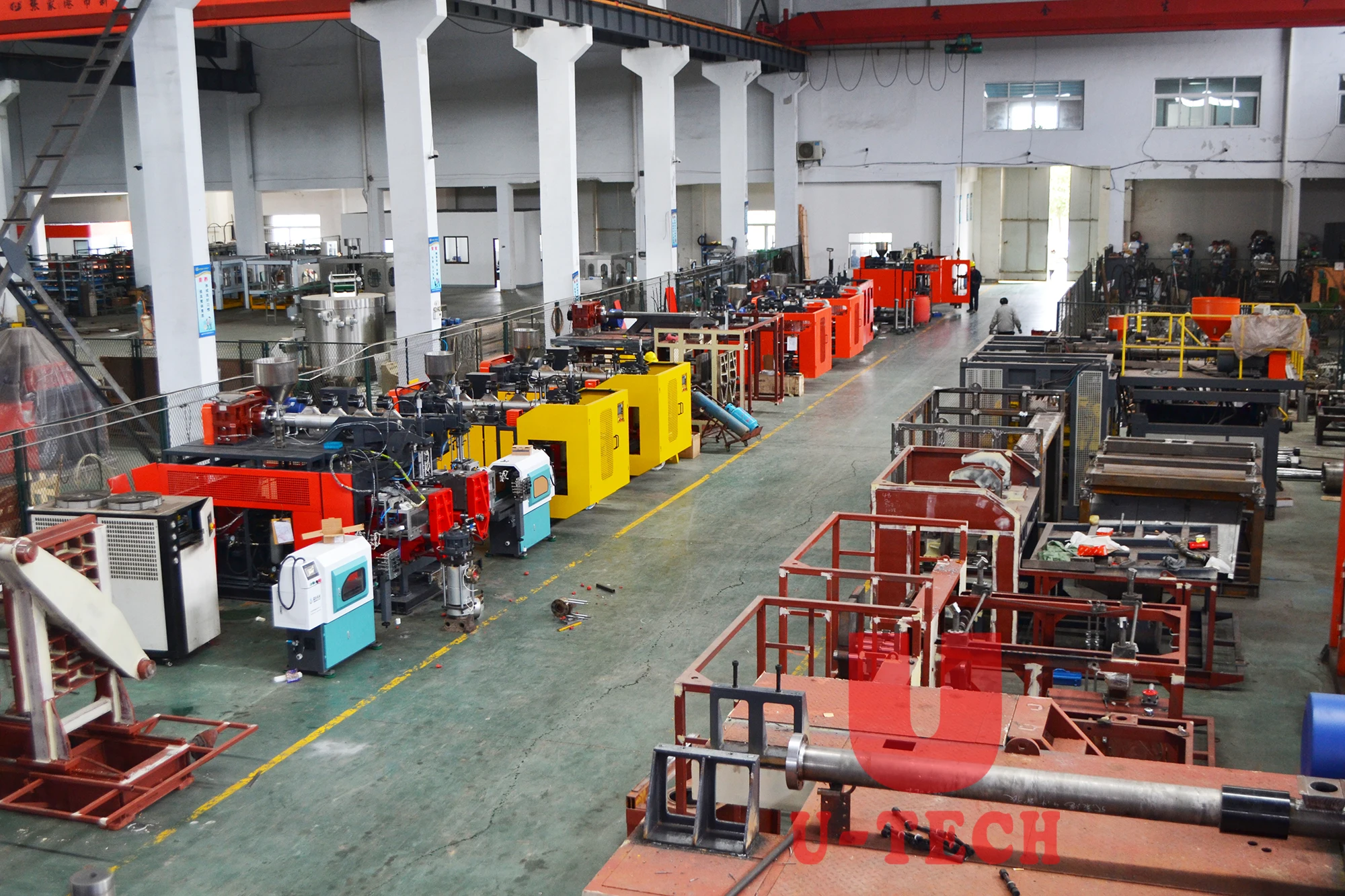

our factory




DSC_0075 (3).JPG


certification









FAQ


Q1:Are you a trading company or a manufactory?


A1:We are a manufactory,can give u best service .





Q2:What’s your guarantee or the warranty of the quality if we buy your machines?


A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years





Q3:When can I get my machine after I paid?


A3:We will deliver the machines on time as the date we agreed both side.





Q4:How can I install my machine when it arrives?


A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.





Q5:How about the spare parts?


A5:After we deal down all the things , we will offer you a spare parts list for your reference.
