Model List of Reverse Osmosis Membrane:
Model | A | B | C | D | E |
ZY-50/75 | 298.2mm (11.74'') | 22mm (0.87'') | 17mm (0.68'') | 44mm (1.7'') | 254mm(10'') |
ZY-100 | 298.2mm (11.74'') | 22mm (0.87'') | 17mm (0.68'') | 45.5mm (1.8'') | 254mm(10'') |
ZY-3020 | 510mm (20.8'') | 31.5mm (1.24'') | 18mm (0.71'') | 77mm (3.03'') | 458.5mm (18.05'') |
Model | ZY-50 | ZY-75 | ZY-100 | ZY-3020 | |
Performance parameters | Minimum desalination rate% | 98 | 98 | 98 | 98 |
Permeation (GPD) | 6L/H | 12L/H | 20L/H | 60L/H | |
Test Conditions | Pressure (PSI) | 65 | 65 | 65 | 65 |
Temperature (C) | 25 | 25 | 25 | 25 | |
PH of test solution | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 | |
NaCl solution (ppm) | 500 | 500 | 500 | 500 | |
Membrane element recovery rate(%) | 10 | 10 | 10 | 10 | |
Operating conditions | Maximum enter water temperature (C) | 45 | 45 | 45 | 45 |
PH range of enter water | 4-11 | 4-11 | 4-11 | 4-11 | |
Maximum turbidity (NTU) | 1 | 1 | 1 | 1 | |
Maximum SDI of enter water | 5 | 5 | 5 | 5 | |
Maximum residual chlorine concentration (PPM) | 0.1 | 0.1 | 0.1 | 0.1 | |
Single ro membrane element maximum pressure loss (PSI) | - | - | - | - | |
Winding way | TAPE (tape) | TAPE (tape) | TAPE (tape) | TAPE (tape) | |
Material | PA (polyamide) | PA (polyamide) | PA (polyamide) | PA (polyamide) |
Material of RO membrane material: polyamide composite film;
Construction: Spiral tape winding
Application: Making pure water.

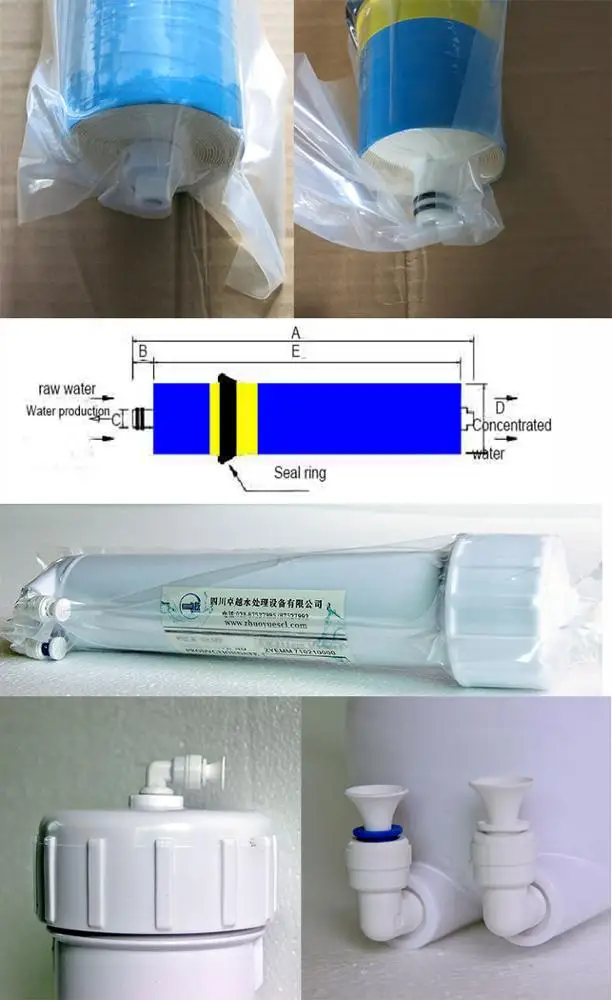

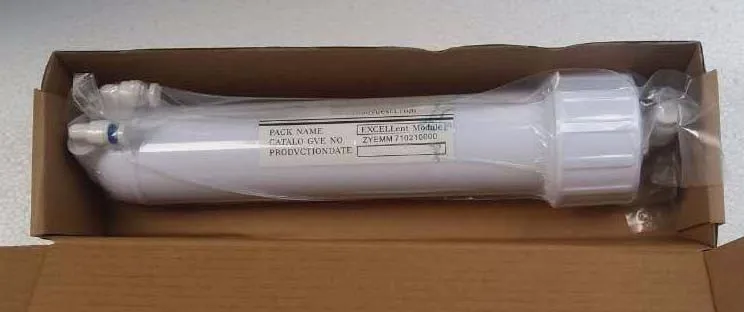

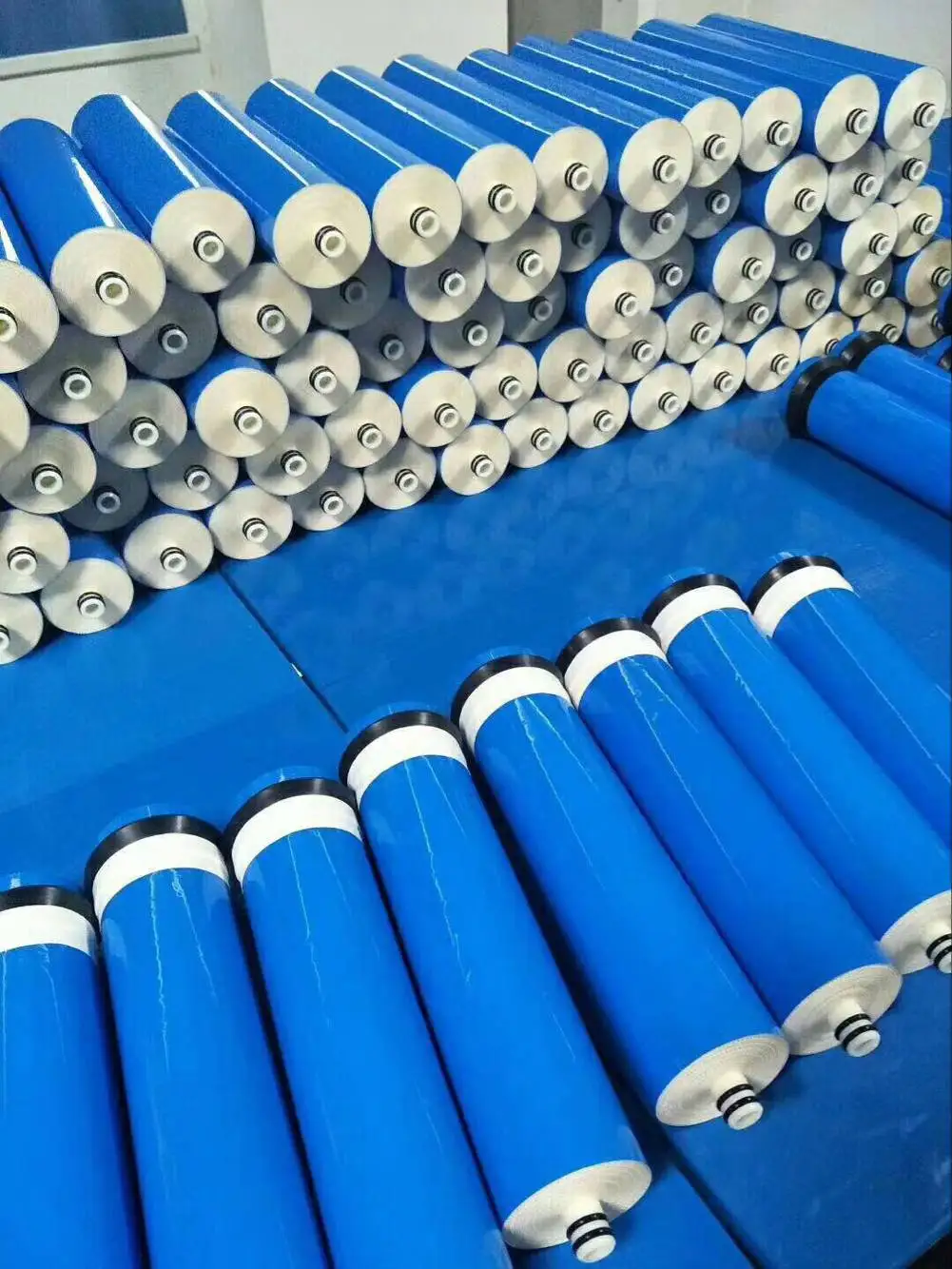

The Details of Reverse Osmosis Membrane:

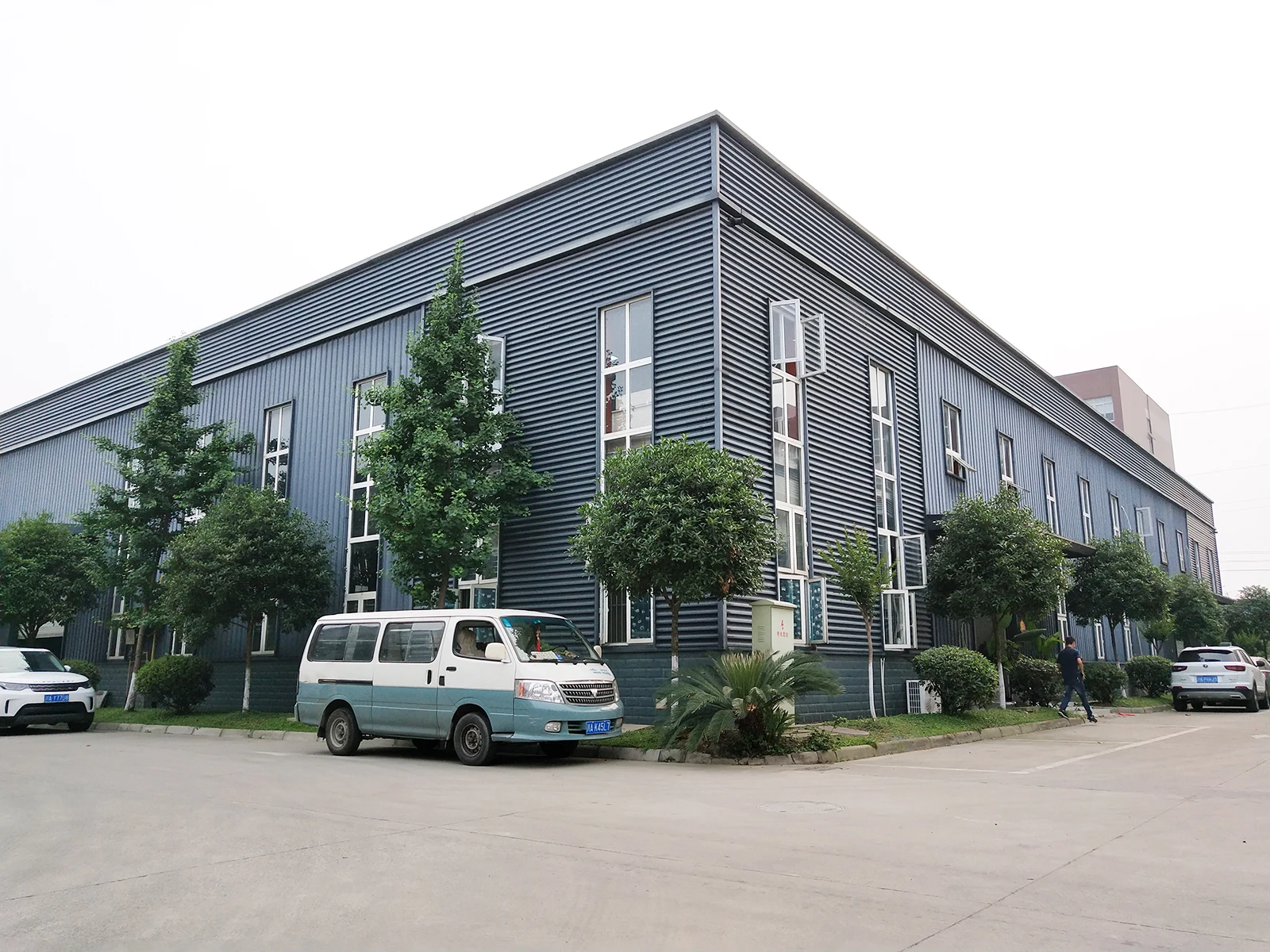

Sichuan Zhuoyue Water Treatment Equipment Co., Ltd.
Water Purifier Filter RO Membrane Water Treatment Parts
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.

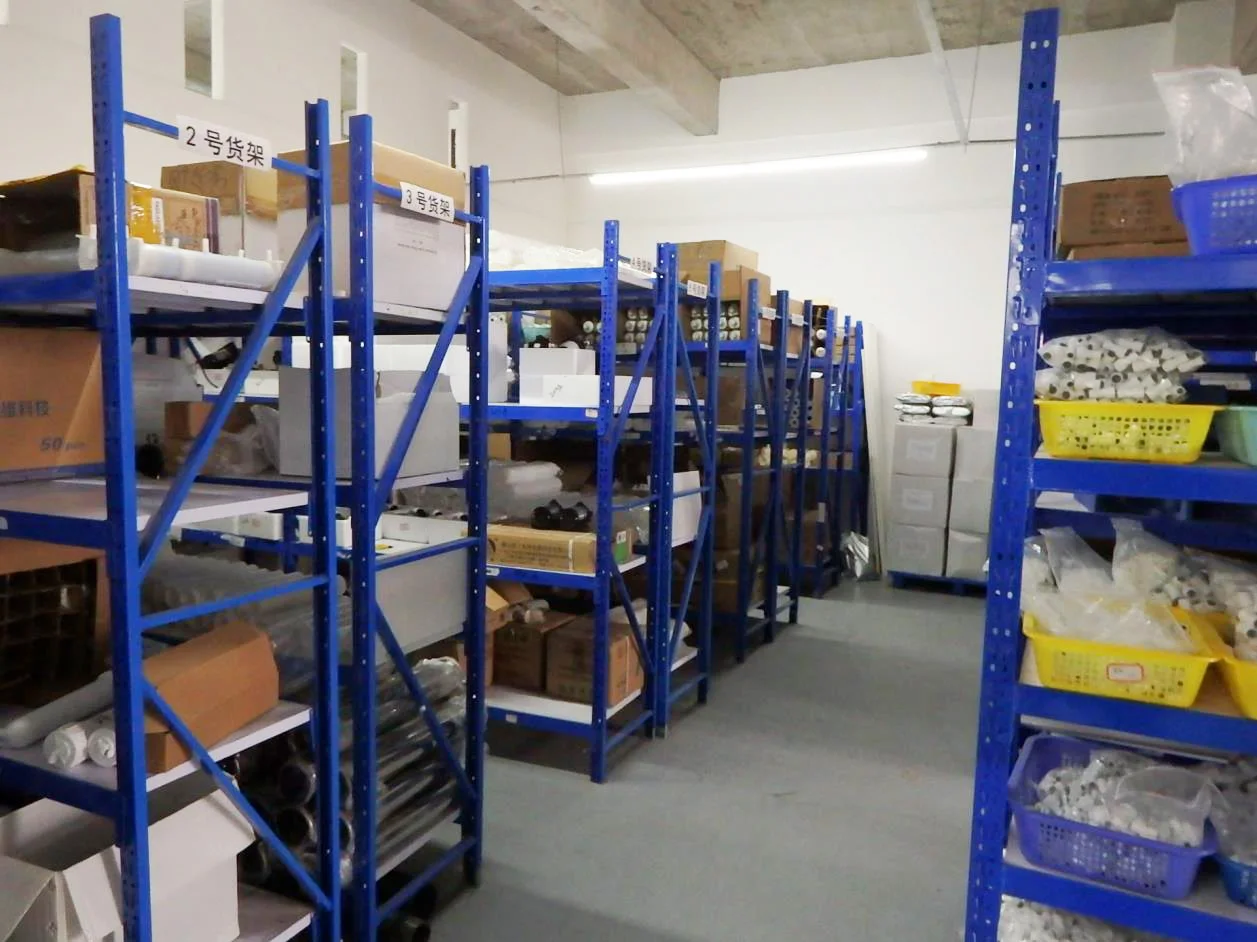

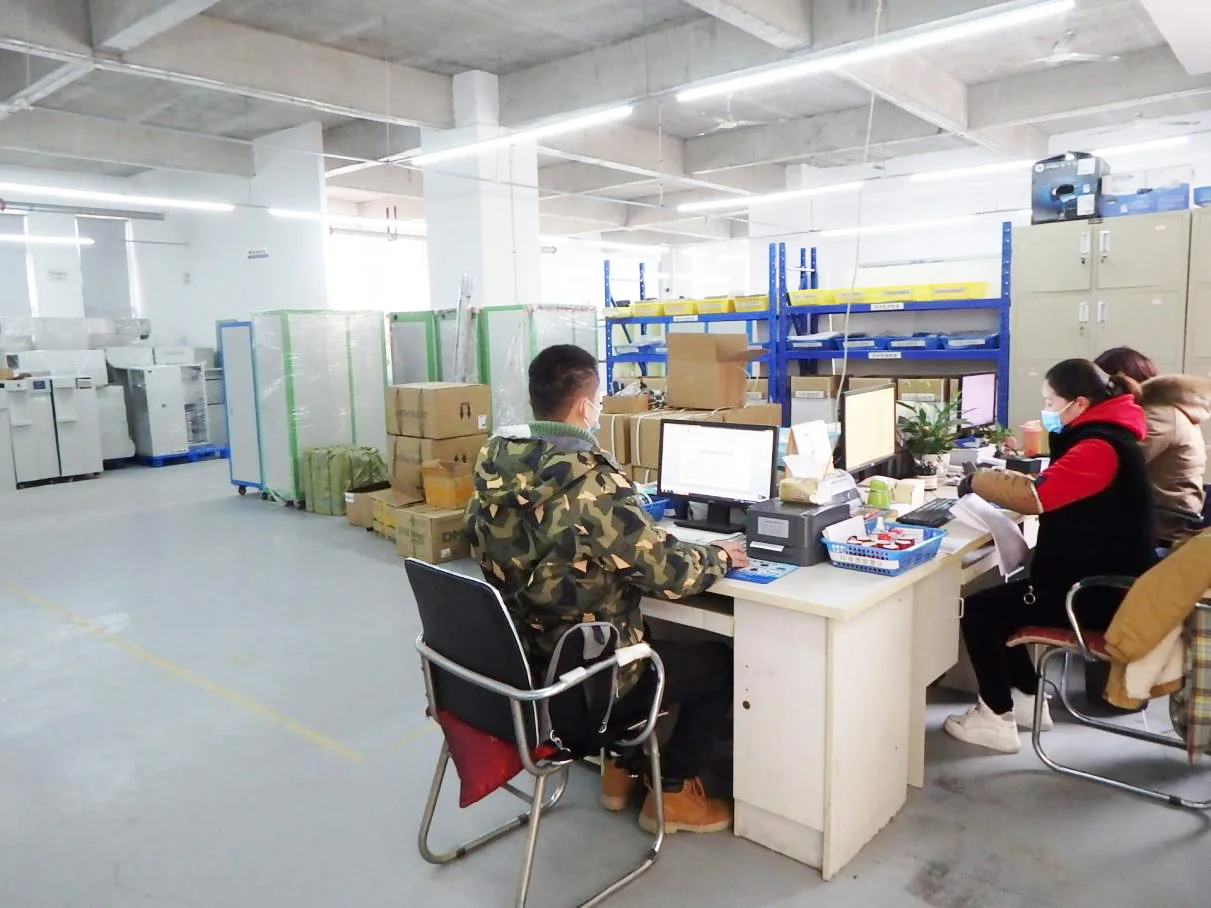

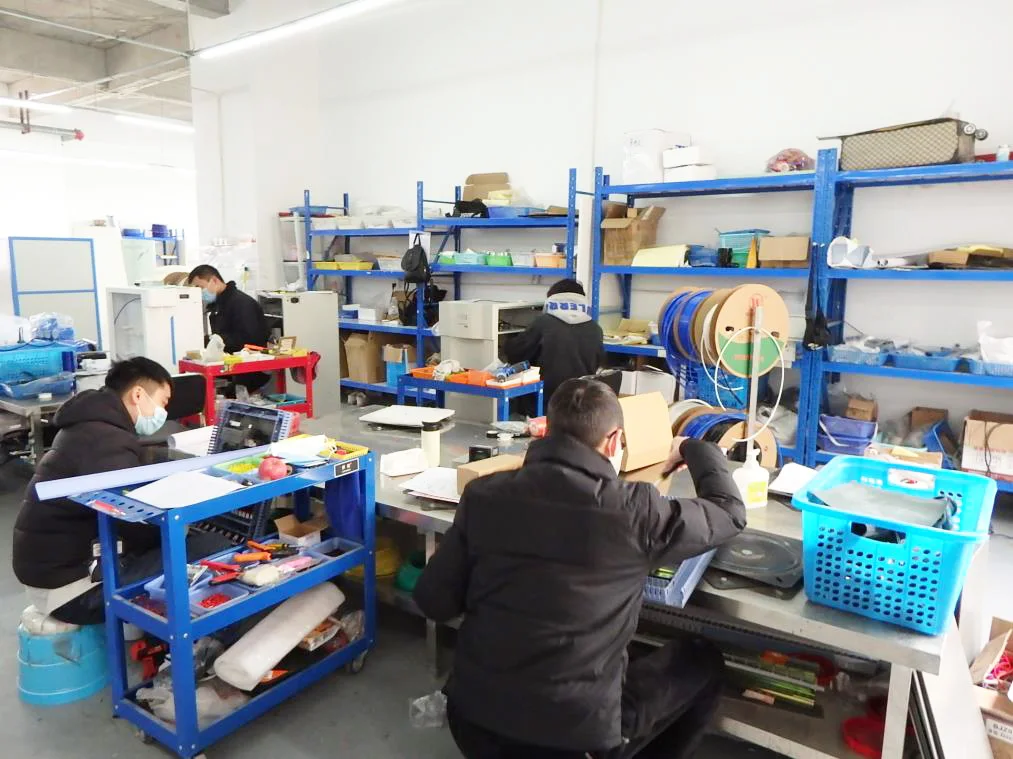

3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
