Product Description

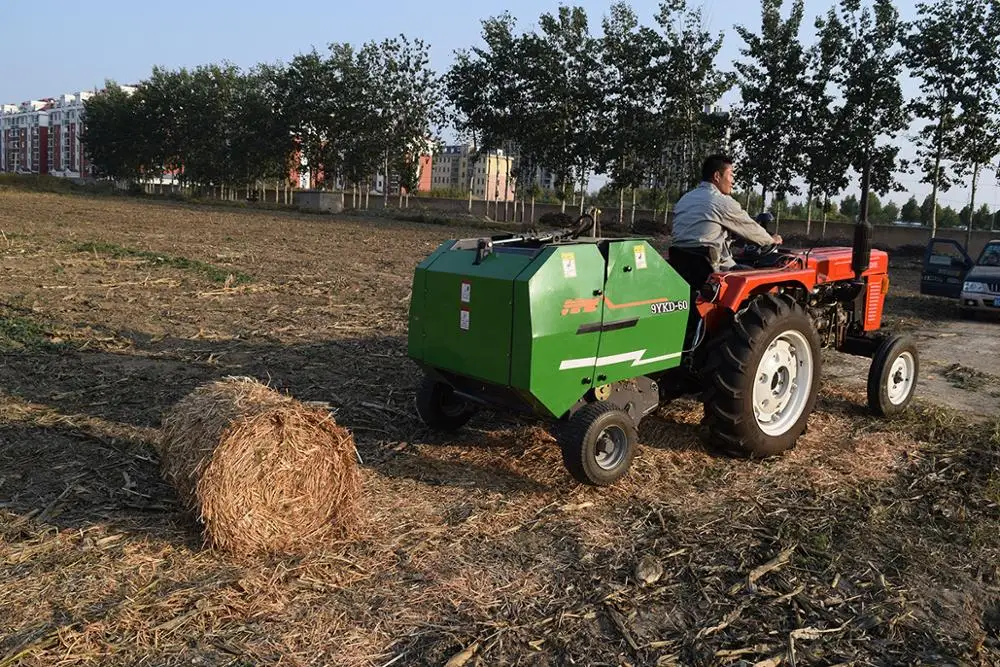

Guoan Mini round hay baler machine.

Weifang Guoan Engineering Machinery Co.,Ltd is a comprehensive technology company integrating scientific research, production, sales and services. We have 20 years' experiences of mechanical development and production. The 9YKD-60/870/890/1090 series round baler can be matched with 25-50hp tractor to go for the walking works in the field and is mainly used for collecting and bundling the dry green grass, straw, wheat-straw and cornstalk after their harvest.

Model
850
870/870F
1070/1070F
1090/1090F
Dimension (cm)
115*130*120
131*146*138
131*167*156
157*167*170
Pickup Width (cm)
70
80
100
100
Baler Size (dia*width) (cm)
50x70
60x70
70x100
90x100
Baler Weight (kg)
15-20kg
20-30kg
30kg
50kg
Drum Speed
200r/s
200r/s
200r/s
200r/s
Match Power
25-50hp
25-50hp
25-50hp
25-50hp
PTO Speed
540r/s
540r/s
540r/s
540r/s
Productivity
2-5km/h
2-5km/h
3-8km/h
3-8km/h
Efficiency
1500-3000kg/h
1500-3000kg/h
1950-3900kg/h
2550-5100kg/h
Weight (kg)
450
500
550
680
Density
≥115kg/m³
≥115kg/m³
≥115kg/m³
≥115kg/m³
Force Feeding
 /
870F have
1070F have
1090F have

Main Features.

1.3 point linkage, easy to lift and pass from one place to another place
2.High efficiency, make the picking and bundling up at one time.
3.buzzer warning after one bale finished,bale density adjustable.
4.natural hemp twine, harmless to animal.
5.Each bale weights about 25kg,one hour can bale about 80-120 bales.
6.Our baler can use tractor hydraulic system or hydraulic pump on itself, these are optional.
Certifications
Detailed Images

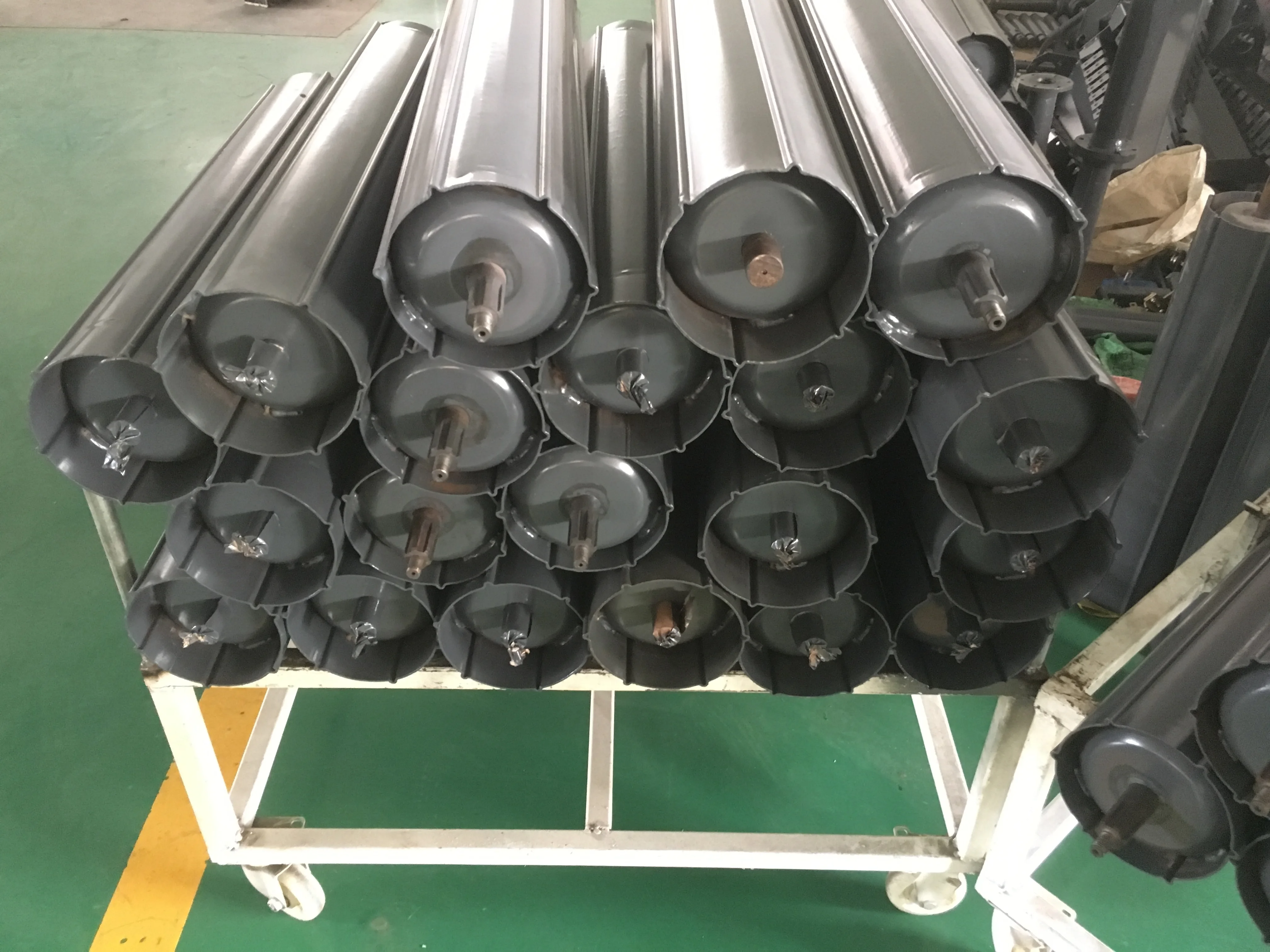

Molding Roller.

Ordinary machine roller is made of welding and roller life is short, welding parts easy to fall off when it is working. The equipment and the operator has hidden a huge safety trouble.

Our roller is made of molding technology, is not easy to wear and tear, no hidden dangers.

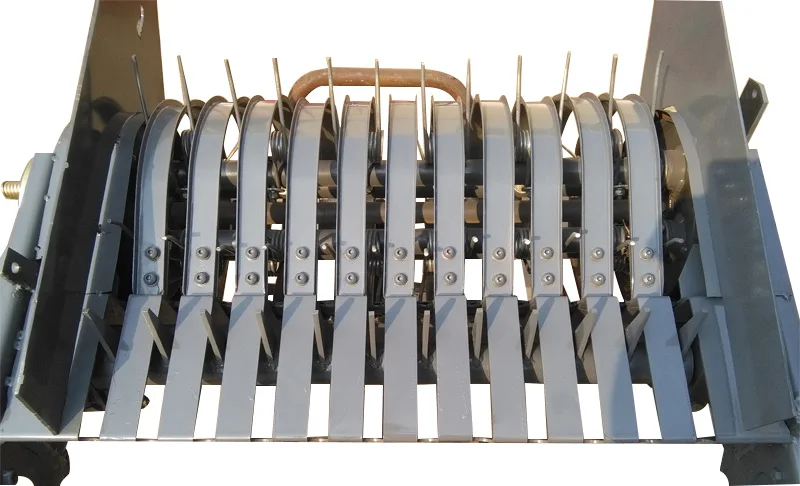

Force Feeding system.

Ordinary baling machine feeding system don't have mandatory, prone to congestion at work, usually caused machine malfunction, it will damage to the machine, affect work efficiency, causing inconvenience to users.

Forced feeding system will not produce congestion. At the same time, it can pick up hay of comb, make hay bale orderly and higher density, easy storage and transportation.

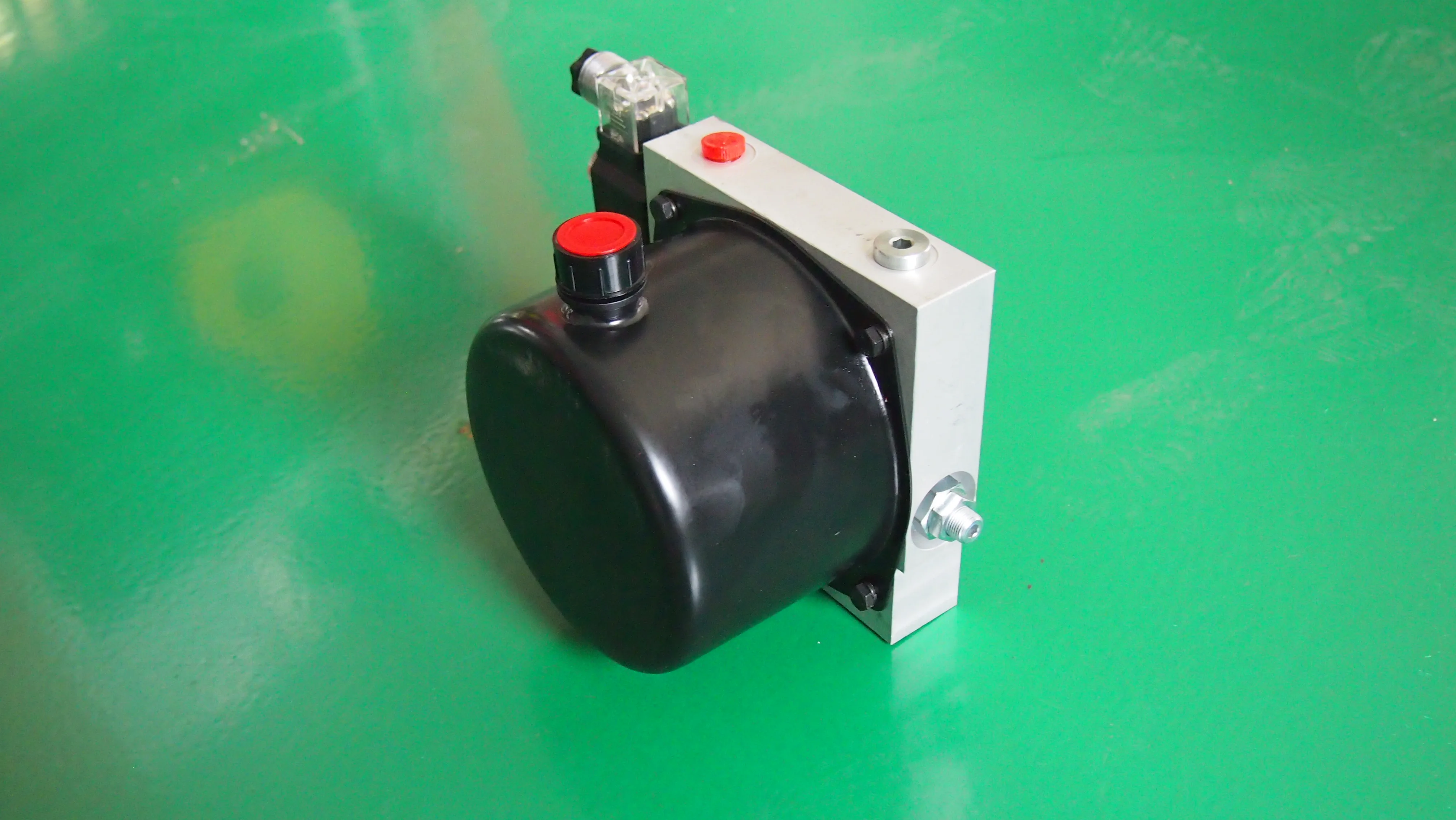

Automatic Solenoid Valve

Common machine is using the hydraulic valve, release the bale need to put the bundle, very inconvenient, using long time will leak, and the valve maybe rust.

Our latest Solenoid valve can automatic put the bale, and the main material is aluminium alloy, not easy to rust, can use many years.



High strengthen Chain.

Ordinary equipment chain is rough, the chain is thinner, not wear-resisting, east to fracture.

Our chain adopt high quality alloy, it is not easy to fracture. With long life and good transmission effect.

Packing & Delivery
Packaging
850
Size

1.16*1.15*1.15cm
Weight
450kg
Packaging Details
The normal package is Iron package with film cover.
870/870F      Size

1.3*1.14*1.15
   Weight
540kg
 Packaging
    Details
 The normal package is Iron package with film cover.
Packaging
1070/1070FSize

1.3*1.38*1.2cm
Weight
595kg
Packaging Details
The normal package is Iron package with film cover.
 1090/1090F
      Size

1.57*1.4*1.36m
    Weight

725kg
 Packaging
     Details
The normal package is Iron Package with film cover.
FAQ

Any questions maybe help you.

1. How much horsepower can suitable for this baler?

    The most suitable power is 25-50hp of the Tractor.

2. The weight of every bale?

    (850)15-20kg, (870/870F)20-30kg, (1070/1070F)30kg, (1090/1090F)50kg.

3. If you have any working videos of the baler?

    Yes. Please search this website on YouTube- https://www.youtube.com/channel/UCduQEB_K3u0bN4tZpibDyCw

4. What's the difference between the ordinary model and "F" model?

    The 870F/1070F/1090F model with the Forced feeding technology. Solved the jam problem of the baler.

    If the straw is Long or Wet, please choose this!

5. If you have other questions, please don't hesitate to contact me!
