Product Description

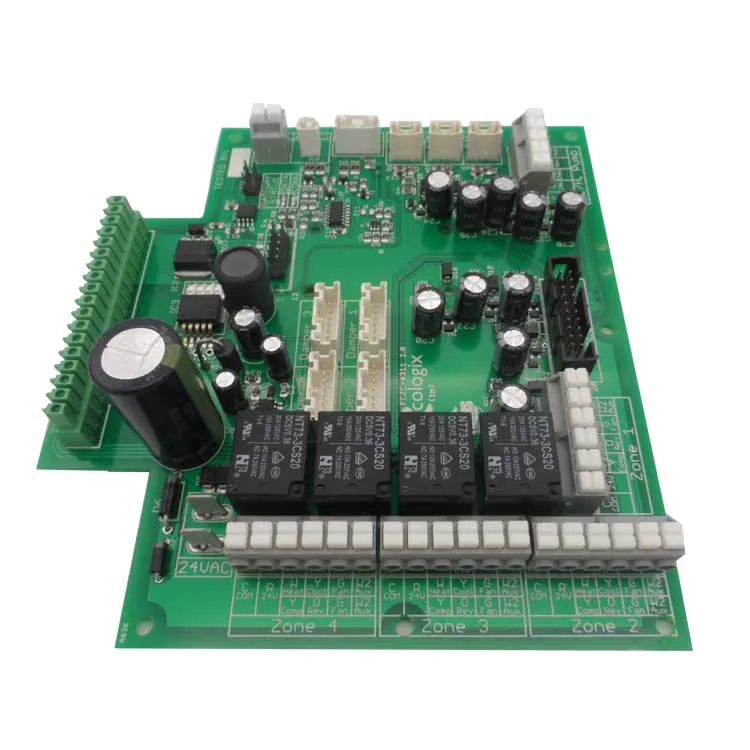

With years of OEM printed circuit board(PCB) and PCB assembly manufacturing experience along with excellent quality, advanced services and competitive prices, Sunsoar has won numerous customers' trust and support. This PCBA board is an OEM double-sided PCB with green solder mask and white silkscreen and with components.


PCBA (9).jpgPCBA (10).jpgPCBA (11).jpgPCBA (12).jpg








PCB Datasheet


























































































































SERIALITEMTECHNICAL DATA
1Product NameShenzhen Electronics Gold 3D Metal Detector High TG FR4 PCB Circuit Board
2Brandsunsoar
3Layer1-24 layers
4Max Board Size457x610mm
5Min Board Thickness4(layers)0.40mm/16mil
6(layers)0.80mm/32mil
8(layers)1.00mm/40mil
10(layers)1.20mm/48mil
6Min Line Width10.10mm/4mil
7MinLine Spacing0.10mm/4mil
8Min Hole Size0.20mm/8mil
9PTH Wall Thickness0.020mm/0.8mil
10PTH dia tolerance±0.05mm/±2mil
11NPTH hole dia tolerence±0.025mm/±1mil
12Outline Tolence±0.1mm/±4mil
13S/M Pitch0.08mm/3mil
14Aspect ratio10:1
15PCB Wrap and Twist≤0.7%
16Electric Strength>1.3KV/mm
17Peel Strength1.4N/mm
18Solder Mask Abrasion≥6H
19PCB Flammability94V-0
20Impedance Control±5%




PCBA Datasheet




















































PCBA Assembly General Manufacturing Capabilities
Type of AssemblyTHD(Thru-Hole Device),SMT(Surface-Mount Technology),SMT&THD mixd,Double-sided SMT and THD assembly.
Solder TypeWater Soluble Solder Paste,Leaded process and Lead-Free(RoHS)
Components

Passive parts,smallest size 0201


BGA,uBGA,QFN,POP,and Leadless chips


Fine Pitch to 0.8Mils;


BGA Repair and Reball;Part Removal and Replacement


Connectors and terminals


Bare Board Size

Smallest:0.25"x0.25"(6.35mmx6.35mm)


Largest:20"x20"(508mmx508mm)


Min.IC Pitch0.012"(0.3mm)
QFN Lead Pitch0.012"(0.3mm)
Max.BGA Size2.90"x2.90"(74mmx74mm)
Type of ServiceTurnkey,partial turn-key or consignment
Testing

X-ray Inspection


AOI(Automated Optical Inspection)


ICT(In-Citcuit Test)/Functional Testing


Turnaround TimeSame day service to 10 days service
Component PackagingReels,cut tape,Tube and tray,Loose parts and bulk







Packaging & Shipping


Packing


PCB fabrication and PCBA manufacturing service from Shenzhen.


Vacuum packing with anti-static red/white bubble.


Delivery


If PCB or PCB assembly  delivery is very urgent, you can choose to send by official DHL, FedEx or UPS etc..


If it is not so urgent, we can send by shipment forwarder, longer time but can save you some money.


pcb








Company Information


Welcome to Shenzhen Sunsoar Tech Co., Ltd.!


We can provide turnkey service for PCB ,PCB assembly and Components.


Best Products with Cheaper Price is our guarantee!








With years of OEM printed circuit board(PCB) and PCB assembly manufacturing experience along with excellent quality, advanced services and competitive prices, Sunsoar has won numerous customers' trust and support. Shenzhen Sunsoar Circuit is a professional printed circuit board manufacturer.


After years of continued innovation and development from year 2008, we now have set a PCB business unit and an FPC board business unit. We have ability to build PCB design, PCB manufacturing, PCB SMT assembly one-stop source.


There are professional engineers, salesman and good-quality waiting for you.


About Shenzhen Sunsoar Tech Co., Ltd.














Our Services


1. PCB Assembly on SMT and DIP


2. PCB schematic drawing/ layout /production


3. PCBA clone/change board


4. Components sourcing and purchasing


5. Enclosure design and plastic injection molding


6. Full range of testing services. Including: AOI, Fuction Testing , In Circuit Testing,  X-Ray For BGA Testing,  3D Paste Thickness Test



PCB





Certifications


pcb








How to get a quote


To give you an exact quote, we hope you can offer us listed infomation.


1. PCB:Gerber file and other PCB files.IMG_2358_.png


    We would appreciate if you can confirm listed PCB specification also.


    1).material  2).board thickness  3).copper thickness  4).surface finishing  5).soldermask color


    6).silkscreen color


2. PCBA:PCB files and BOM list.


3. If you don't have ready design files, you can send us a sample, then we will clone for you.


4. We also offer custom PCB design and modify service.








FAQ


Q1. Are you a manufacturer or a trading company?


We are a manufacturer, providing OEM & ODM service.


Q2. What's your main markets?
Japan, Germany, France, USA and Italy, etc.
Q3. What is the delivery date for a sample?
Usually about 1-3 days for items with general requirements.
Q4. Are your products conforming to our standards?
Yes, our products can pass the testings as you require, e.g.: CE, RoHS, PSE, ETL,FCC, etc.
