Wensui Высококачественная пластиковая дробилка/Пластиковая
- Категории: Оборудование для изготовления пластикового сырья >>>
- Поставщик: Wensui,Intelligent,Equipment,Inc.
Поделиться:
Описание и отзывы
Характеристики
Product Description

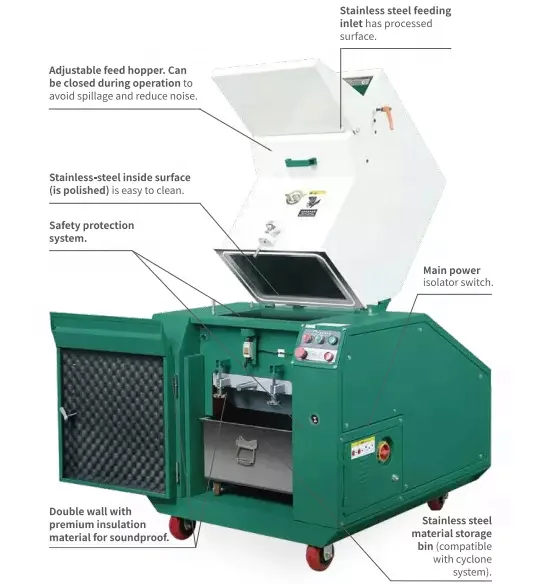

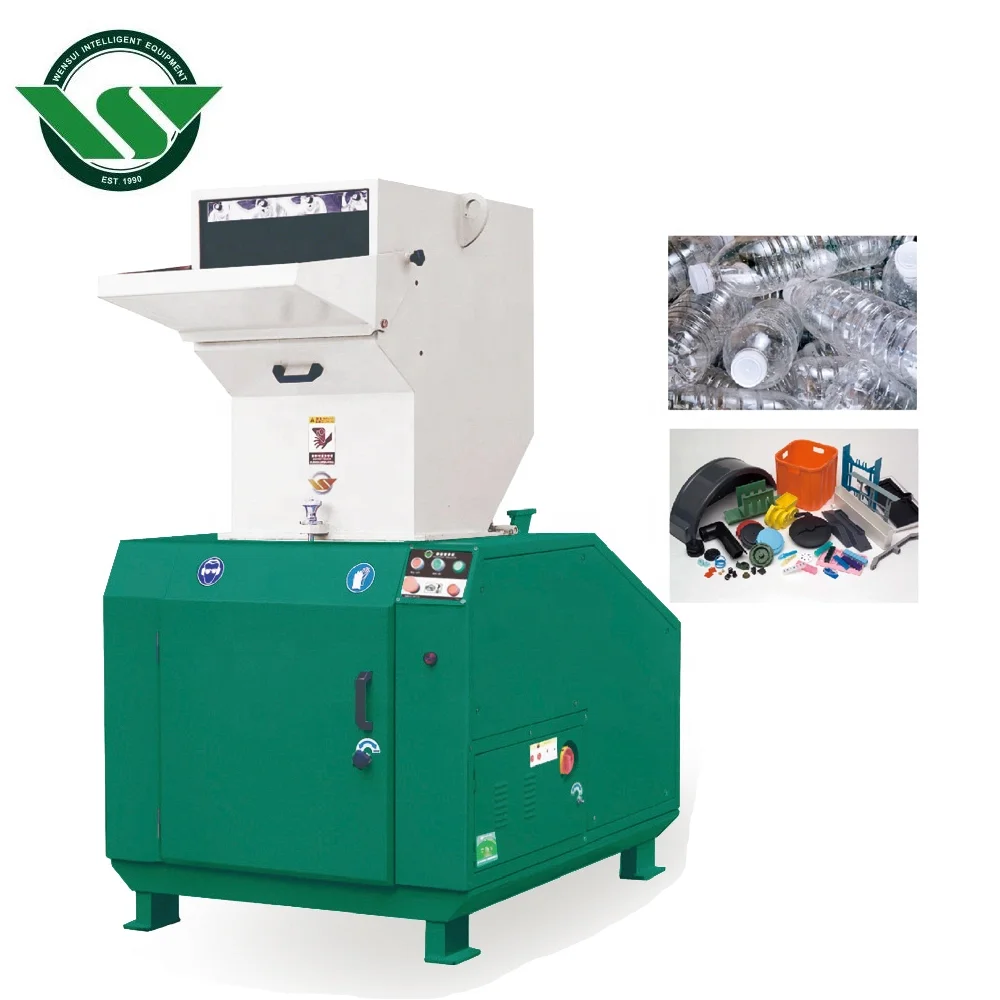

SOUNDPROOF GRANULATOR
WSGJ SERIES
> Upgrade to WSGP dramatically reduce noise.
> Fully enclosed construction realizes low noise(below 80db within 1 meter) and no dust.
> Installed with heat dissipation system to protect motor,ensuring motor to run for long time.
> Consisted of safety devices and CE certified electrical components to meet Eqropean safety standards.
> Adopted phase controller to prevent motor from rotating wrong direction.
> Installed with isolator switch for safer operation and maintenance.
> Storage trolley is standard configuration,while hopper and cyclone system are optional
> Fully enclosed construction realizes low noise(below 80db within 1 meter) and no dust.
> Installed with heat dissipation system to protect motor,ensuring motor to run for long time.
> Consisted of safety devices and CE certified electrical components to meet Eqropean safety standards.
> Adopted phase controller to prevent motor from rotating wrong direction.
> Installed with isolator switch for safer operation and maintenance.
> Storage trolley is standard configuration,while hopper and cyclone system are optional
Specification
Model | Crushing Chamber(mm) | Thoughput(kg/h) | Fixed Blade(pcs) | Rotary Blade (pcs) | Power | Screen Opening (mm) | Dimension (cm) L*W*H | Net Weight (kg) | ||
WSGJ230 | 230*215 | 100-150 | 2 | 6 | 4 | 5 | 8 | 100*72*149 | 500 | |
WSGJ400 | 410*270 | 200-250 | 2 | 12 | 7.5 | 10 | 8 | 118*93*170 | 800 | |
WSGJ500 | 520*320 | 300-350 | 2 | 15 | 11 | 15 | 8 | 130*106*196 | 1100 | |
WSGJ600 | 620*340 | 350-450 | 4 | 18 | 15 | 20 | 8 | 136*116*213 | 1350 | |
WSGJ800 | 815*480 | 450-600 | 4 | 24 | 22 | 30 | 10 | 185*154*268 | ||

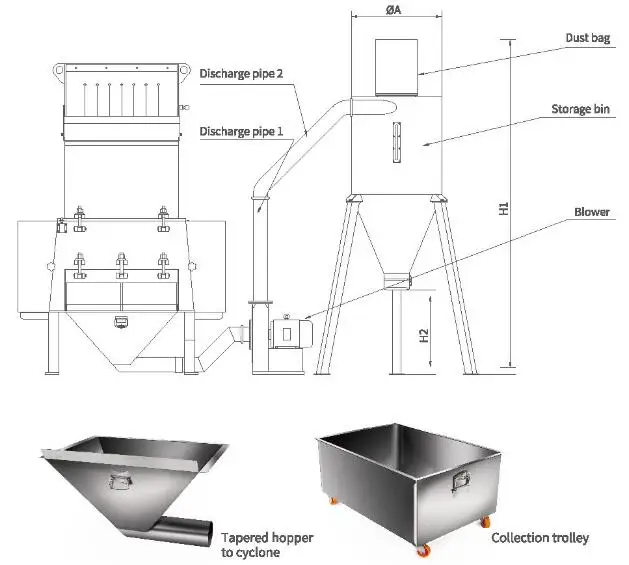

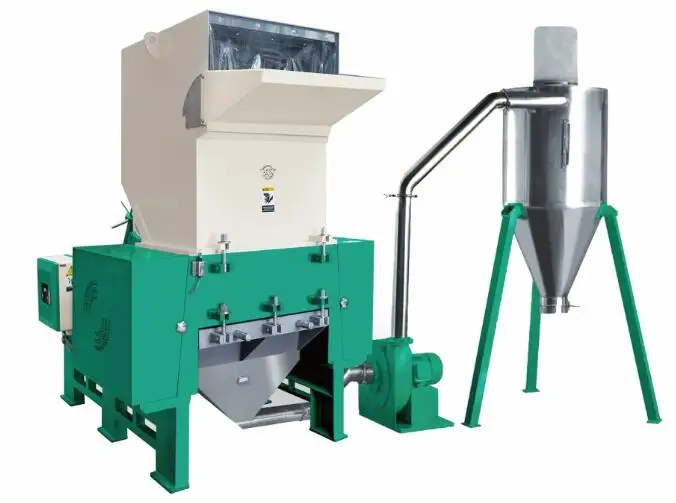

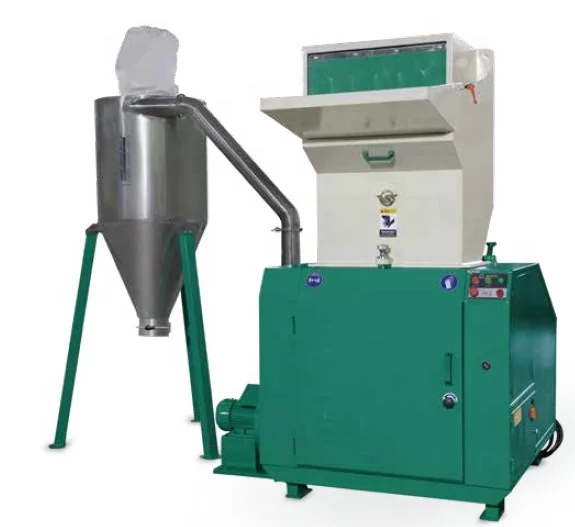

CYCLONE COLLECTION SYSTEM
RF SERIES
RF SERIES
>Collects regrind right after granulating.
>Compatible with all models of granulators.
>Material contact surface is made of stainless steel to keep materials pure.
>Removes some dust by dust collector bag at the top.
>Simple to install and maintain.
>Compatible with all models of granulators.
>Material contact surface is made of stainless steel to keep materials pure.
>Removes some dust by dust collector bag at the top.
>Simple to install and maintain.
Packing & Delivery
Company Profile
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
FAQ
Q: How many years have your factory been established?
A:Our factory established from 1990,
but most of our engineers are working in this industry over 30 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
A:Our factory established from 1990,
but most of our engineers are working in this industry over 30 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
