1.Price is so low that procurement cost is greatly reduced.
2.Labor-saving: less labor required because of high transportation efficiency.
3.Operation simplified: less effort and high returns can be achieved by our products.

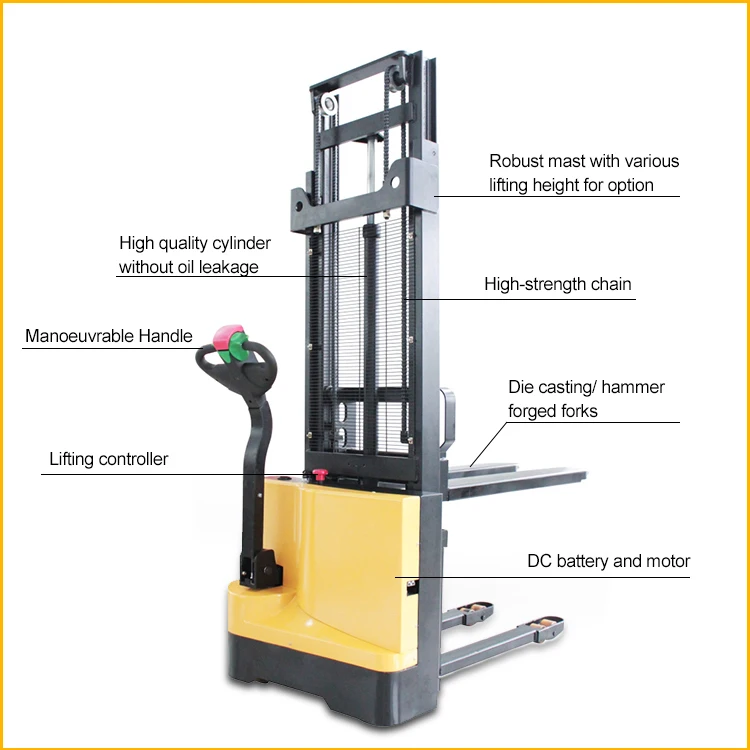

4.Mounted Forklift profile steel mast, different with Manual &Semi WS10s series mast are much stronger and straight when full loading.
5.Liftstar special design supporting leg ensure leg Non-deformation for years operation.
6.Driving controller: Curtis 1212 controller and can be regulated by Curtis Hand set easily.
7.Longer handle design: Very light and easy turning design which is very comfortable.
8.Low profile mast design: Lower height of mast is less than 2000mm/78inch suitable for most of doors.
Model | WS10S-16/20/25/30/33 | WS10SS-16/20/25/30/33 | |
Vechile type | light duty electric stacker | ||
Type of drive | full electric | ||
Capacity | kg | 1000 | |
Load center | mm | 600 | |
Operator type | walkie | ||
Wheel base | mm | 1208 | 1220 |
Self weight | kg | 530 | 550 |
Wheel type | PU | ||
Size of front wheels | mm | 78 | |
Size of drive wheel | mm | 220 | |
Size of balance wheels | mm | 124 | |
Wheels quantity | pcs | 4 front wheel+1 drive wheel+1 balance wheel | |
Mast lower height | mm | 1785/1975/1985/1995/2185 | |
Lifting height | mm | 1600/2000/2500/3000/3300 | |
Overall length | mm | 1716 | 1727 |
Fork length | mm | 1150 | 1070 |
Overall width | mm | 800 | |
Fork width | mm | 160 | 100 |
Straddle leg OD | mm | 1470/1270 | |
Straddle leg ID | mm | 1320/1120 | |
Outer width of th fork | mm | 560 | Adjustable Max.787mm |
Clearance | mm | 39 | 38 |
Turning radius | mm | <=1500 | |
Travel speed(laden/unladen) | km/h | 2.5/3 | |
Lift speed(laden/unladen) | m/s | 0.07 | |
Lower speed (laden/unladen) | m/s | 0.1 | |
Gradeability(laden/unladen) | % | 5%/7% | |
Drive motor | kw | 0.4 | |
Lift motor | kw | 1.6 | |
Battery voltage/capacity | V/Ah | (12V/80Ah)*2 | |
Battery size | mm | (269*169*215)*2 |
