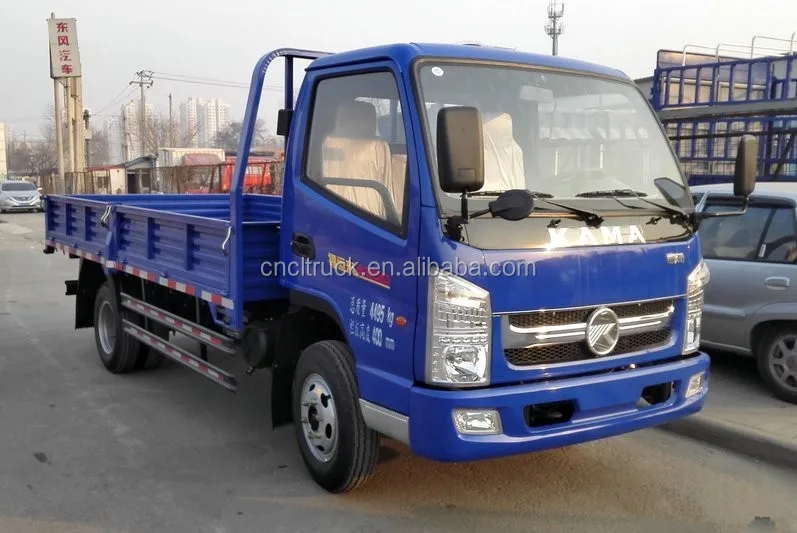

stake cargo truck for sale ,is also called stake cargo truck, is a kind of special cargo truck with the stake or box structure. This kind of truck can be used for transporting livestock and poultry, fruits and vegetables ,bottled drink ,beekeeping , barreled garbage,etc. It have some features: lighter deadweight, convenient and practical, safe and reliable,etc. The barrier can be removed partially or entirely, also can come up or down freely.
The specification for cargo truck
TYPE | KMC3080P3 4*4 |
Emission | E-III |
Suggested payload | 5T |

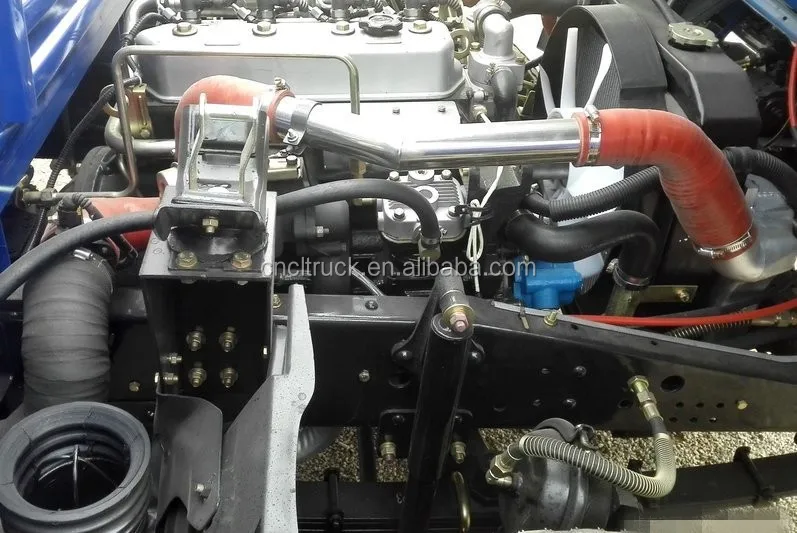

Engin Model | 4102ZLQ(WEICHAI) |
Bore/Stroke(mm) | 102*105 |
Displacement(litre) | 3660 |
Power(HP) | 110 |
Rated Rotate speed(r/min) | 3200 |
Cooling | WATER |
Overall dimensions(LxWxH)(mm) | 6000*2000*2500 |
Cargo Box Size(LxWxH-inner)(mm) | 3850*2100*790 |
Cabin | ONE CAB(1990) |
Drive Type | 4×4 |
Seats in cabin | 3 |
Transmission | 145 |
Curb Weight(Kg) | 4050 |
Load Weight(Kg) | 5000 |
G.V.W | 9050 |
Wheel Base(mm) | 3400 |
Track(mm) front | 1550 |
back | 1625 |
Max. Speed(Km/h) | 90 |
Min ground clearance(mm) | ≥180 |
Min turning circle dia(m) | ≤12 |
Maximum gradeablity | ≥30 |
Brake system | Air brake |
Parking brake | spring energy air cut brake |
Clutch model | Single plate, Dry type |
Gearshift | 5+1 speed, manually |
Gearshift ratio | 7.312;4.311;2.450;1.534;1;R,7.661 |
11.217;6.613;3.758;2.353;1.534;R,11.752 | |
Front axle | 2080 |
Rear axle | 1086 AIR BRAKE |
Final drive | 6.833 |
Front tire | 8.25-16 |
Rear tire | 8.25-16 |
Battery(V) | 24v (electric start) |
Power steering | WITH |
chengli factory supply diesel cargo van

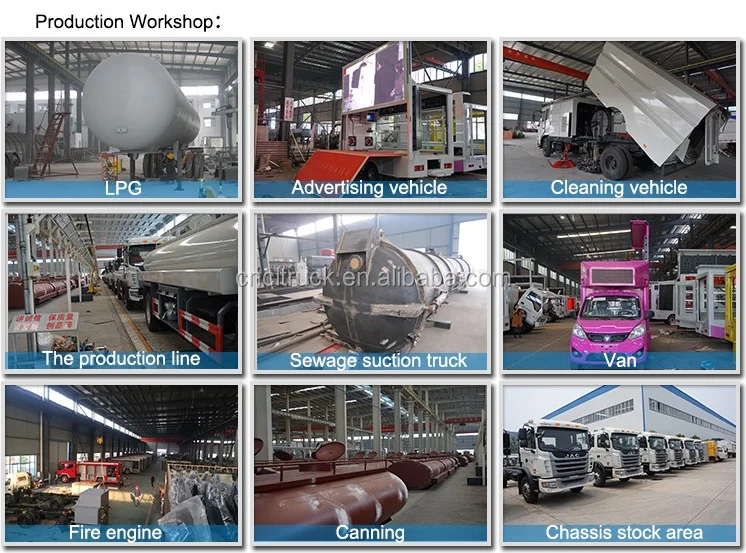

Production shop
Packaging Details: Nude packing by Ro-Ro ship or by land transportation
Delivery Detail: within 15-20 working days
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
Cheng Li Special Automobile (Manufactory) Corporation Limited, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW and SNJ. Our company has independent export right and has amount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
Certifications:
Customer order:
Our main products as below for your reference:
