China Manufacturers 4*2 Iveco Brand Fire Fighting Truck Fire Truck For SaleChina Manufacturers 4*2 Iveco Brand Fire Fighting Truck Fire Truck For Sale
Product Description
Description & application:
1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extinguish. It is specially suitable in petrochemical industry, power plants and valuable equipment instruments, it is the necessary fire truck for petrochemical enterprises, oil terminals, airport and city fire extinguish field.
3- There are Dry powder fire truck and Ladder fire truck optional
Competitive Advantage:
1- powerful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.
| Description | Parameter |
| Name of the truck | China Manufacturer IEVCO 4X2 7000 liters Fire Fighting Trucks Price |
| Drive type | 4*2 |
| Main dimension of the Chassis(L*W*H) | 8650 ×2500× 3480mm |
| GVW | 19000 kg |
| Curb weight | 11550 kg |
| Wheel base mm | 4600 |
| Wheel track(front/rear) mm | 2006/1850 |
| Overhang (front/rear) (mm) | 1510/2370 |
| Approach/Departure angle(°) | 24/15 |
| Engine model | SC8DK240Q3 |
| Engine type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse power | 240 hp |
| Output volume | 8270 ml |
| Emission standard | Euro III |
| Max. speed | 90 km/h |
| Gearbox | 8 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 120 |
| Tire | 10.00-20 , 7 pieces including one spare tire |
| Brakes | Service brake: dual circuit compressed air brake |
| Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake: engine exhaust valve brake | |
| Volume of the whole tank | 6.77 CBM |
| Volume of the water tank | 5 CBM |
| Volume of the foam tank | 1.77 CBM |
| Main dimension of the water tank | 2105*2380*1000 mm |
| Dimension of the foam tank | 748*1480*1000 mm |
| Equipment | water tanker:5000L Foam Tanker:177L |
| Middle and low pressure pump :CB10/30 | |
| Flow:middle pressure 15L/S low pressure 30L/S | |
| Pressure: middle pressure 2.0MPa low pressure 1.0MPa | |
| PL24 Fire Pump Flow: 48L/S | |
| Pressure: 1.0~1.2MPa | |
| Fire distance (water):≥45m | |
| Fire distance (foam):≥40m |

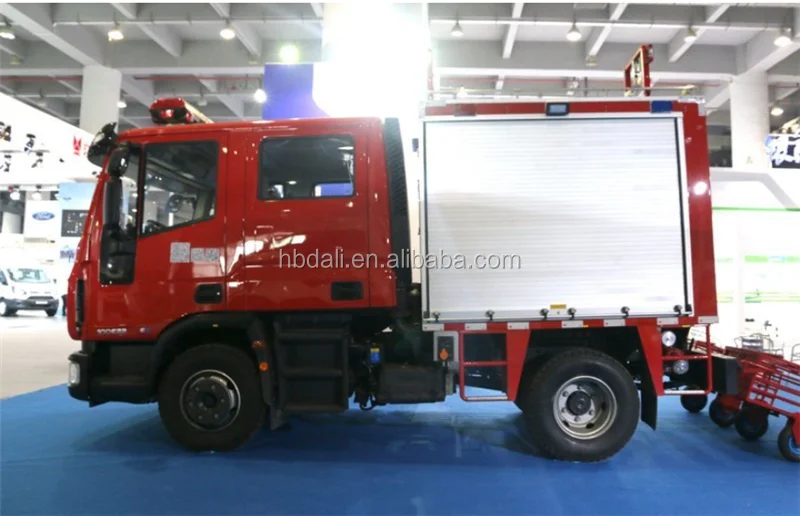

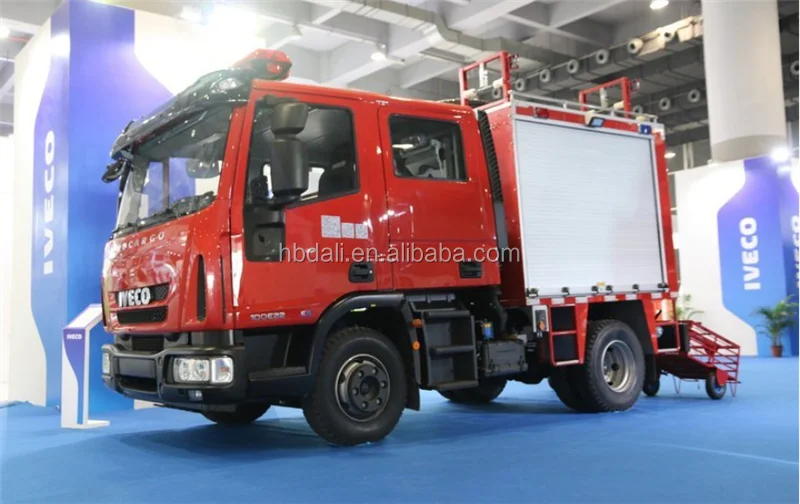

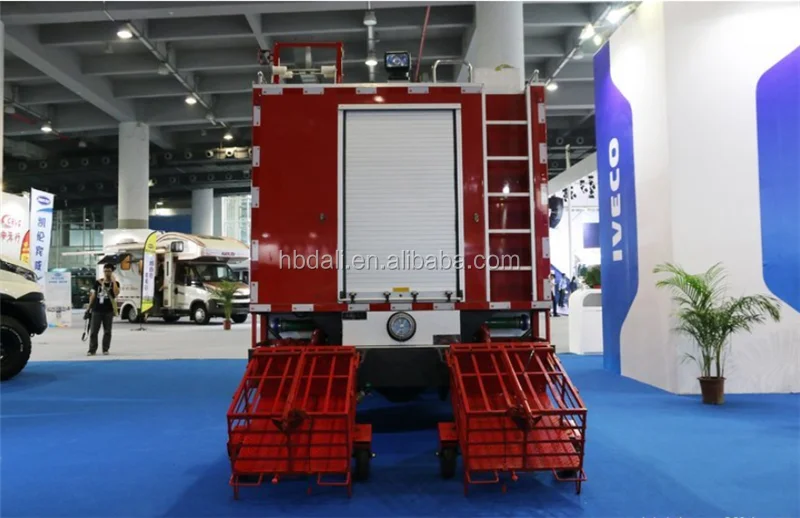

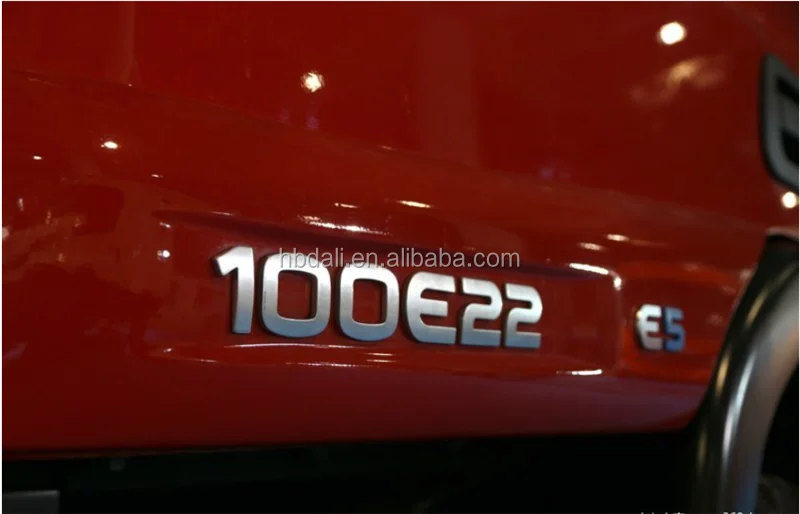

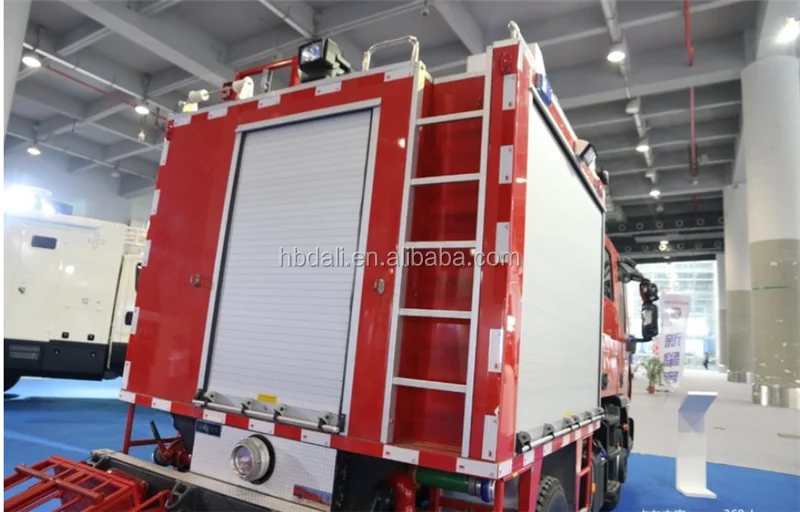

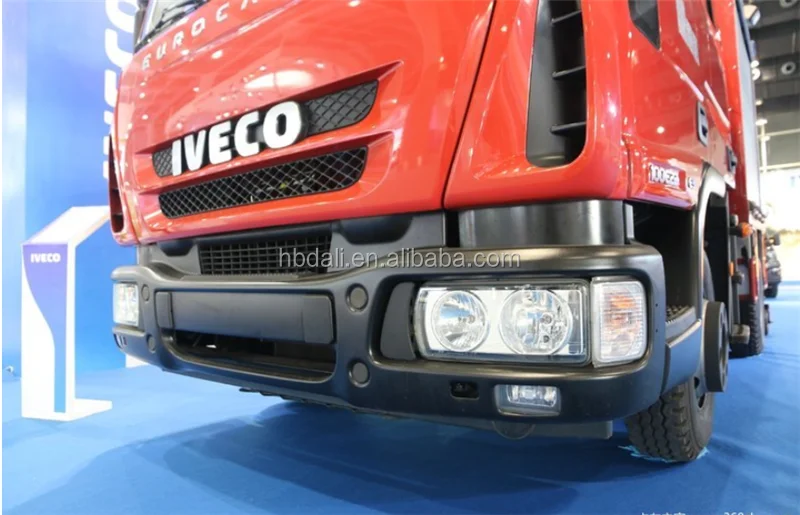

Detailed Images
Company information
Hubei Dali Special Automobile Manufacturing Co., Ltd. is appointed by the Ministry of Industry and Information Technology of China, The company covers an area of 166000 square meters, which is the first domestic private enterprise entering the special automobile industry. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service, two special automobile production lines of the company are five series and 300 products, which are municipal engineering truck series, oil field chemical truck series, multi-function rescue fire truck series, sanitation special automobile series, semi-trailer trucks. The company is also the first pressure tank vehicle manufacturing private enterprise which has got the quarantine license from General administration of quality supervision of China.Our trucks have popular in more than 30 countries. And has many years of manufacturing experience and passed the certification of ISO9001, ISO16949, GJB9001 ,CCC, ISO and BV factory audit.
With high quality, wonderful package, perfect service and fame. Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Philippine, Indonesia, , Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries. Our company has established good and long term relationships with many foreign customers in Africa, Asia, South America, Middle East, Etc.
Also, we are willing to provide the high quality reasonable price and perfect service to you.
So, we hope to hear good news from you soon. Please do not hesitate to contact with Doreen directly if you have any questons on our products.That will be my honor to assist you in future.
Other Products we can supply
We can produce 300kinds of different special vehicals as follow
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer
/ low bed trailer / van container trailer / warehouse trailer, etc. )
Certifications
Packaging&Shipping
Shipping by bulk ship or container or RORO ship or as per your requirement
Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container
Welcome to contact
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.Should you have any other questions or need any other information, pls feel free to contact Doreen. It would be my great pleasure to be on your service. Pls check my contact information as following:
