Прозрачная Водонепроницаемая Крышка для круглого переключателя kcd1
- Категории: Тумблеры >>>
- Поставщик: Yueqing,Anhe,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Category
Product Description
wholesale transparent waterproof cover for kcd1 round rocker switch
Manufacturer Supplier Different Models of rocker switch
Product details
| Product type | electric rocker switch |
| Function | ON OFF, ON ON, ON OFF ON |
| Certificate | CQC. Rohs. CE |
| Lamp color | Red,Yellow, Blue, Orange |
| Material | PA66/PC |
| Housing color | Black, White, Gary, Red,Yellow |
| Rating | 16A 250VAC / 20A 125VAC |
| Led color | Red, Green, Yellow, Orange |
| Pins | 2,3,4,6 |
| Life | ≥10,000 cycles |
| Product Keywords | transparent waterproof cover for kcd1 round rocker switch,tractor cover rocker switch,toy pushbutton rocker switch |
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
Product Specifications
| Specification of Rocker Switch | |||
| Rating | 6A/250V AC, 10A/125V AC; 16A/250V AC, 20A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 2/3/4/6 | ||
| Function | ON-OFF/ON-ON/ON-OFF-ON | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | |

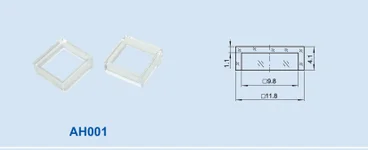

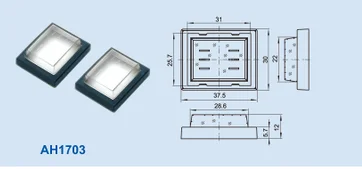

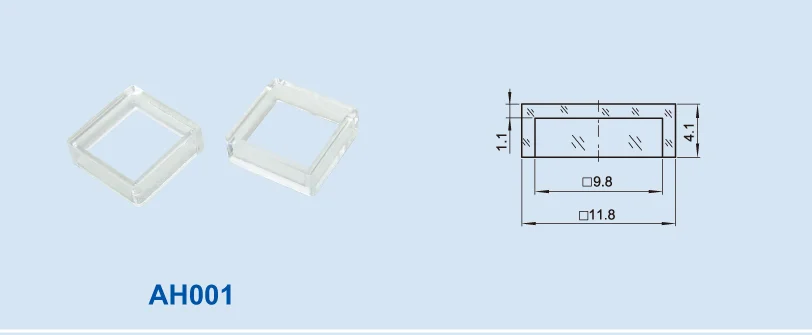

Detailed Images
| Part | Material |
| Base Plastic | Nylon |
| Button Plastic | PA66/ PC |
| Terminal | Brass(tin plated) |
| Contact | Compound silver/ Copper |
| Spring | Tungsten steel |
| Waterproof Cap | PVC ( If you required) |
| Mount | Snap in |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc | |
| Customized Specifications | ||||||||
| Series | Type | Functions | Illumination | Base Color | Actuator Color | Marking | ||
| KCD | 11 | 1 | ON-OFF | A | 22V Neon Lamp | Customized | Customized | Customized |
| 1 | 2 | ON-ON | B | No Illuminated | ||||
| 3 | 3 | ON-OFF-ON | C | LED | ||||
| 4 | 4 | (ON)-OFF | ||||||
| 5 | 5 | ON-(OFF) | ||||||
| 106 | 6 | ON-(ON) | ||||||
| 7 | (ON)-OFF-ON | |||||||
8 | (ON)-OFF-(ON) | |||||||
| Terminal Type | ||||||||
| A | 4.8*0.8 |  | G | 6.3*0.8 |  | M | 2.5*0.5 |  |
| B | 4.8*0.8 | H | 6*0.8 | N | 5.6*0.5 | |||
| C | 3*0.8 | I | 3.8*0.8 | P | 2.8*0.5 | |||
| D | PC | J | 2.7*0.5 | |||||
| E | PC | K | 6.3*0.8 | |||||
| F | 6.3*0.8 | L | ||||||

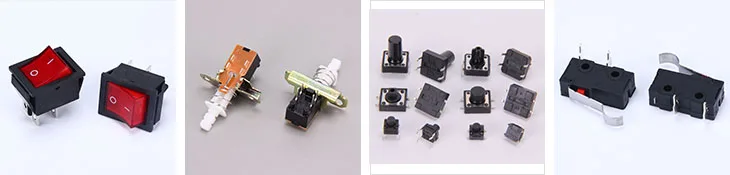

Hot Selling Products
Company Information
Our Advantages
Packaging & Shipping
PACKAGE:
Standard export carton as per items acking.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
