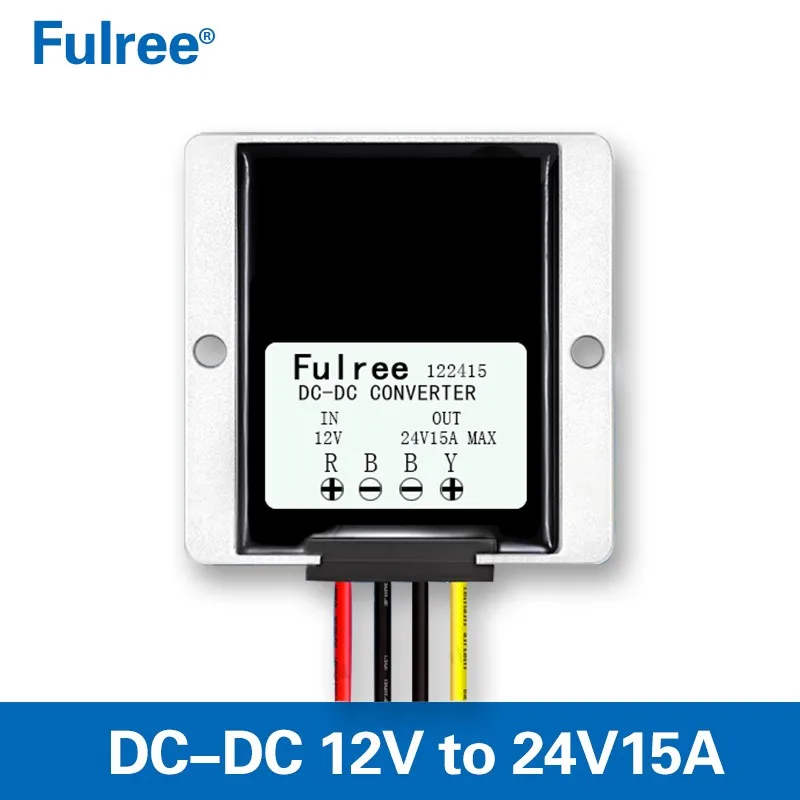

Product Name | 12V to 24V 15A 360W DC DC Step Up Converter |
Model | F12S24V15A5L (Old: 122415) |
Type | DC DC Converter |
Input rated voltage | DC 12V |
Input voltage range | DC 10-20V |
Efficiency | 96% |
Output voltage | DC 24V |
Output current | 15A Max |
Output rated power | 360W Max |
Voltage regulation | < 1% |
Load regulation | < 2% |
Working temperature | -25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
Module Properties | non-isolate module |
Rectification | synchronous rectification |
Waterproof rating | IP68 |
Full load temperature rise: | 45°c |
Protection | Over-current, Over-temperature protection |
Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
NW | approx 280G |
Product size | 74*74*32mm |
Other output current option for DC 12V to 24V | 2A/3A/5A/8A/10A/12A/20A(pls contact with our sales manager if need) |
Attention: |
