Электродвигатель переменного тока BringSmart 2M06GN-C 6 Вт реверсивная регулировка скорости 220 В Низкие обороты в минуту электродвигатель с высоким крутящим моментом и
- Категории: Двигатель переменного тока >>>
- Поставщик: Fuzhou,Bringsmart,Intelligent,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Brand Name | BringSmart |
Main Product | DC Motor, AC Motor, DC Linear Actuator view more |
OEM | Accepted |
Delivery Time | Within 15 days |
Specification

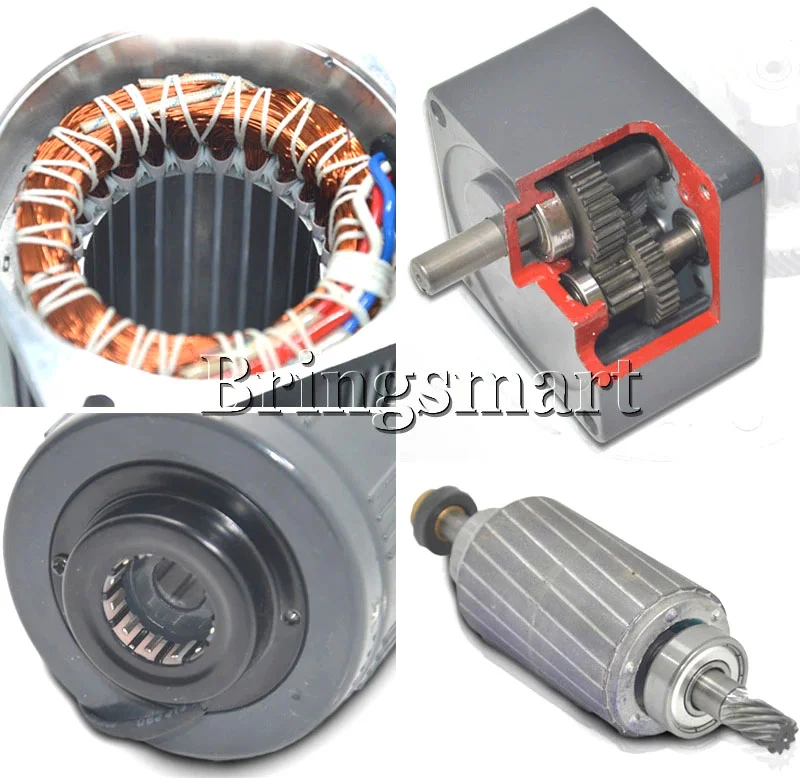

All metal gears: smooth transmission, wear resistance, large torque
Pure copper wire: high temperature resistance, life is 10 times that of ordinary materials
Imported butter: low friction, slower motor temperature rise, low noise and long life
(2) Advantages of the motor Long life, low noise, adjustable speed, CW/CCW control
(3)Applications Conveying equipment, textile machinery, automatic welding machine, elevator machinery, machine tool industry, automotive industry,etc.
1) Not all of our products are released in Alibaba. If you need other motors, you can contact us in the message area and tell us the specific parameters you need, we will recommend the most suitable motor for you.
2) If you have other requirements for this motor or you want to know the specific parameters, you can still contact us, we are very willing to help you,thanks!
Note: Pls leave message of Voltage and no load speed which you want, we have to delivery randomly according to storage if did not get your message within 6 hours after your payment. Thanks for your understand!
Pure copper wire: high temperature resistance, life is 10 times that of ordinary materials
Imported butter: low friction, slower motor temperature rise, low noise and long life
(2) Advantages of the motor Long life, low noise, adjustable speed, CW/CCW control
(3)Applications Conveying equipment, textile machinery, automatic welding machine, elevator machinery, machine tool industry, automotive industry,etc.
1) Not all of our products are released in Alibaba. If you need other motors, you can contact us in the message area and tell us the specific parameters you need, we will recommend the most suitable motor for you.
2) If you have other requirements for this motor or you want to know the specific parameters, you can still contact us, we are very willing to help you,thanks!
Note: Pls leave message of Voltage and no load speed which you want, we have to delivery randomly according to storage if did not get your message within 6 hours after your payment. Thanks for your understand!

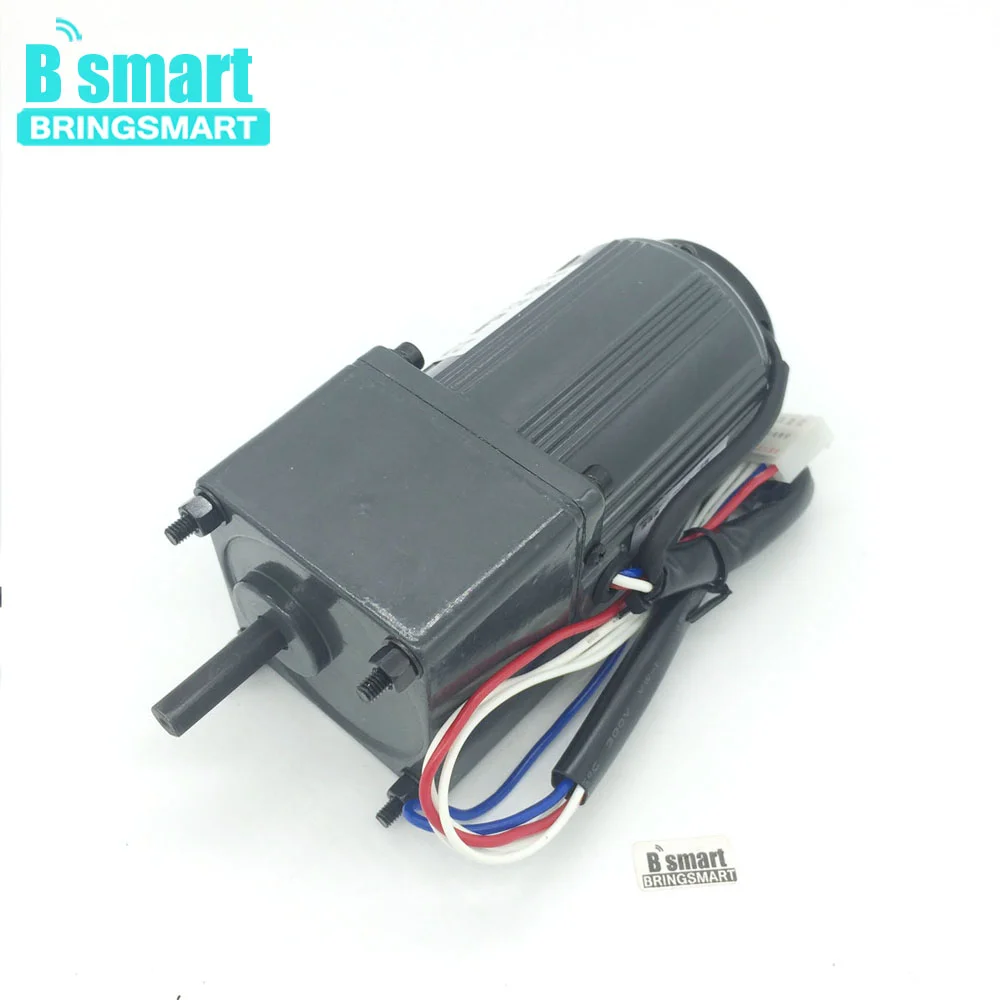

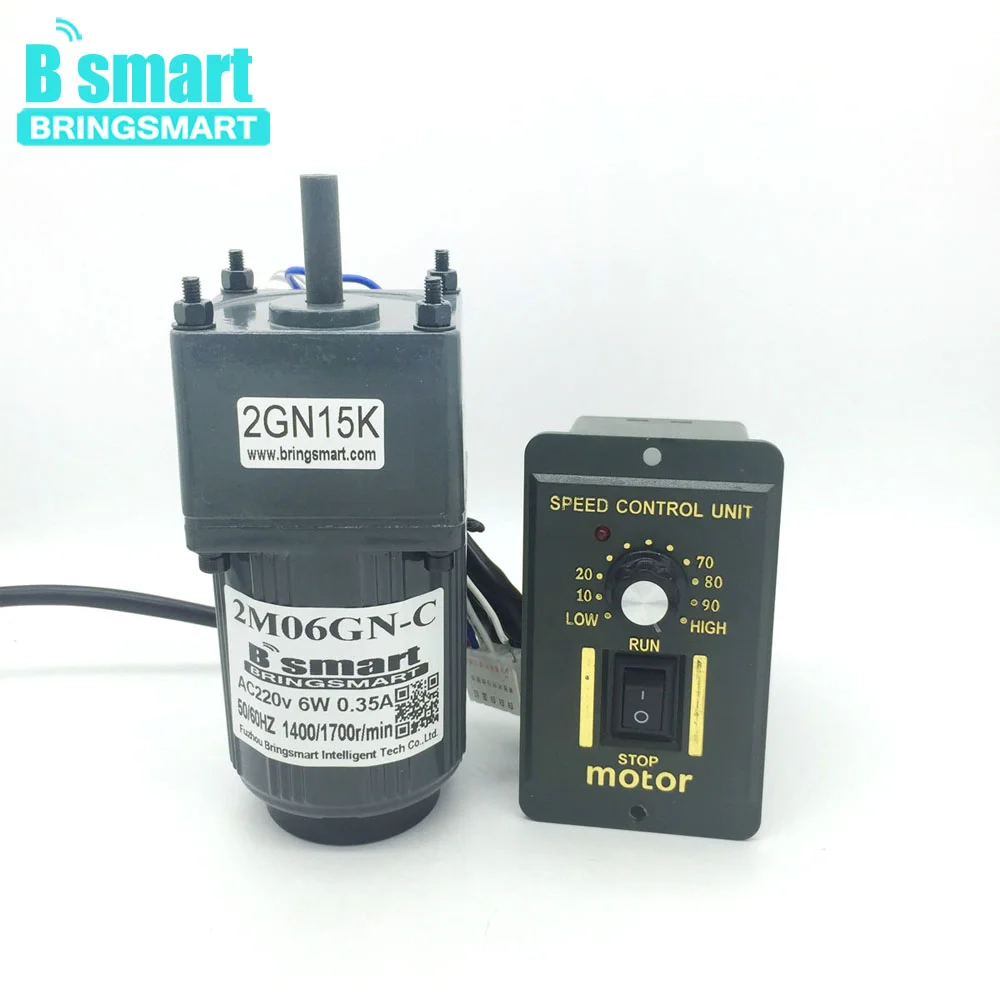

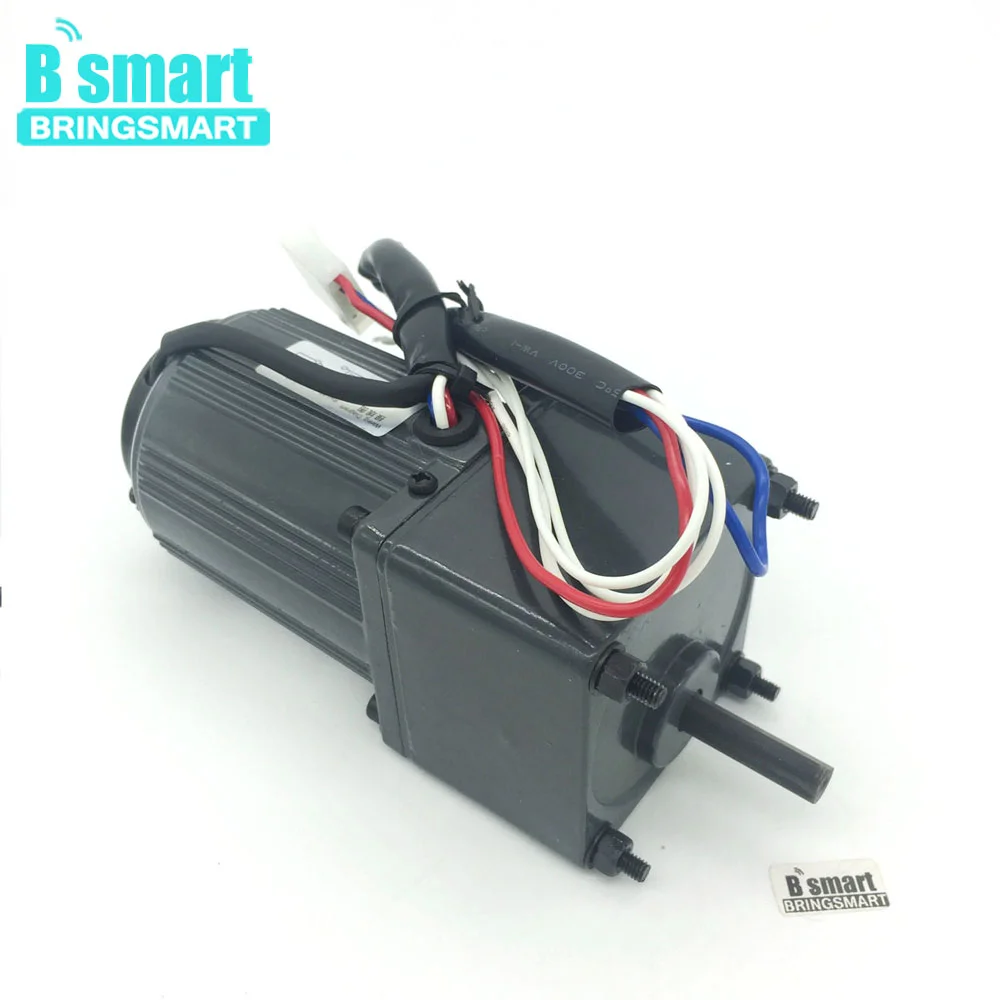

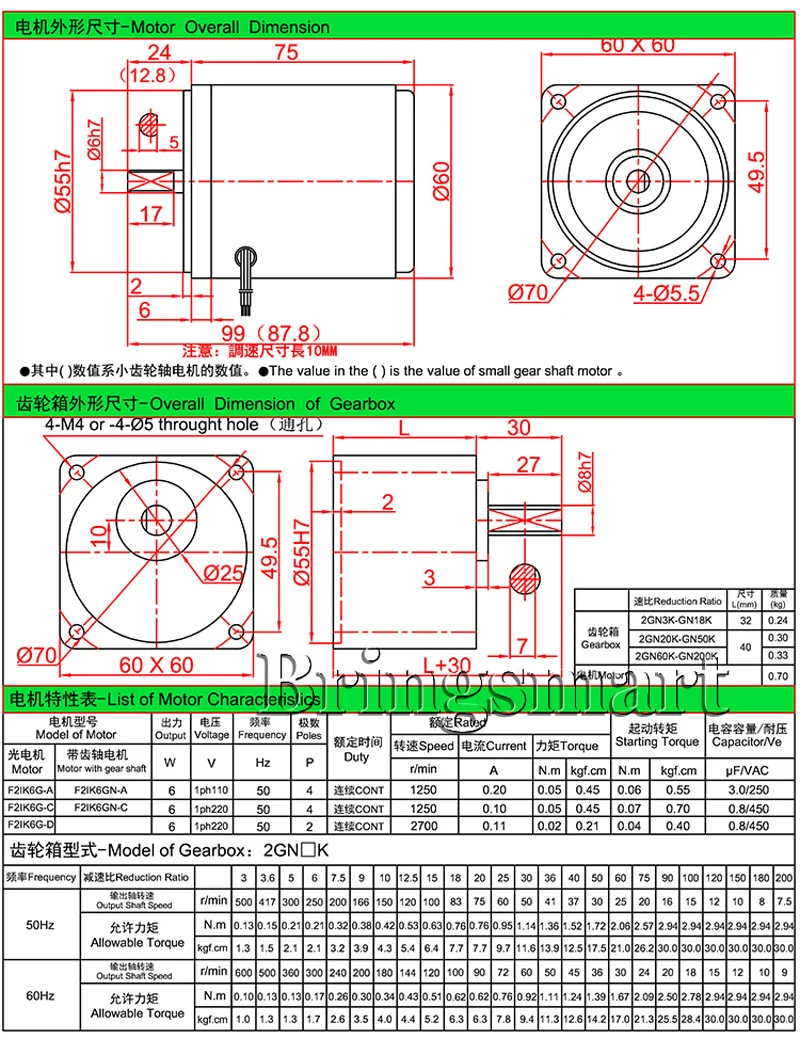

Product show & Drawing
Customized Service
We can customize various shafts, terminal , gearboxes, code discs, etc. according to your requirements. Please send an inquiry or TM to tell us.

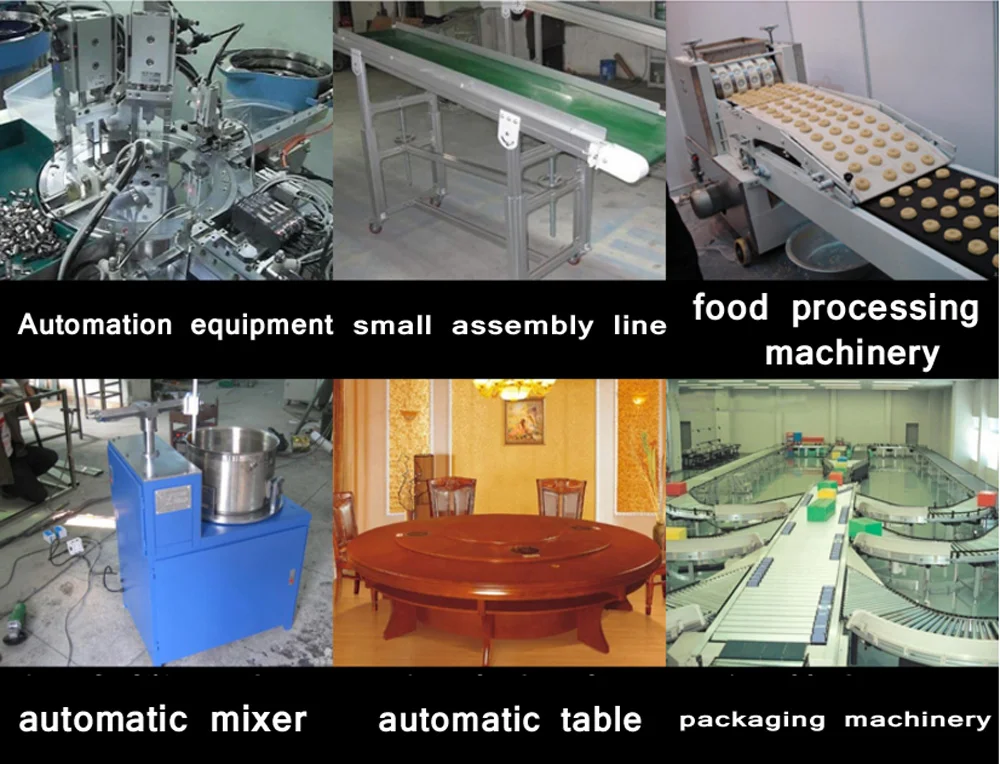

Application
Company Profile
FUZHOU BRINGSMART INTELLIGENT TEC.CO.,LTD. are one of the leading manufacturers and exportersin motor, linear actuator industry with 11 years experiences. Our relentlesscommitment to engaging in products innovation, recruiting knowledgeable andself motivated staff, and aims to serving the needs of the clients are important key elements all contributed to our success today. Bringsmart has set up a completely state of artworking system for CNC, R&D, and Q.C to ensure each and every of our product meets with the highest quality standard before shipping it to the clients. With 11 years experience, our R &D team is capable to develop OEM/ODM products according to customers requirements. Bringsmart advocates the concept of "Bright Future with Full Dedication"; We strive to apply advanced intelligent technologies, to improve power efficiency and lifespan of our products. We support and promote energy saving programs and environmental protectionglobally.
Certifications
Our Customer Feedback:
Excellent quality, better price, good service, and on time delivery.
Contact Us
FAQ
Q1: why still not receive my order?
A1: sometime, some cargo would be slightly delay on road. Please contact with us first, we will offer a good solution for you.
Q2: what is the material of the gear?
A2: The motor gears are made of metal. If you need other materials, you can contact us.
Q3: what is the torque mean?
A3: torque is the weight that the motor can load at a certain voltage and speed. If the motor you purchased is 12v 12rpm, its corresponding torque is 70kg.cm. This means that when the motor is at 12v and 12rpm, it can load 70kg objects with a diameter of 1cm. If the iameter of the load is 10cm, then the rated torque is 7kg. Please do not exceed the rated load during the use of the motor, otherwise the gear is prone to wear and tear.

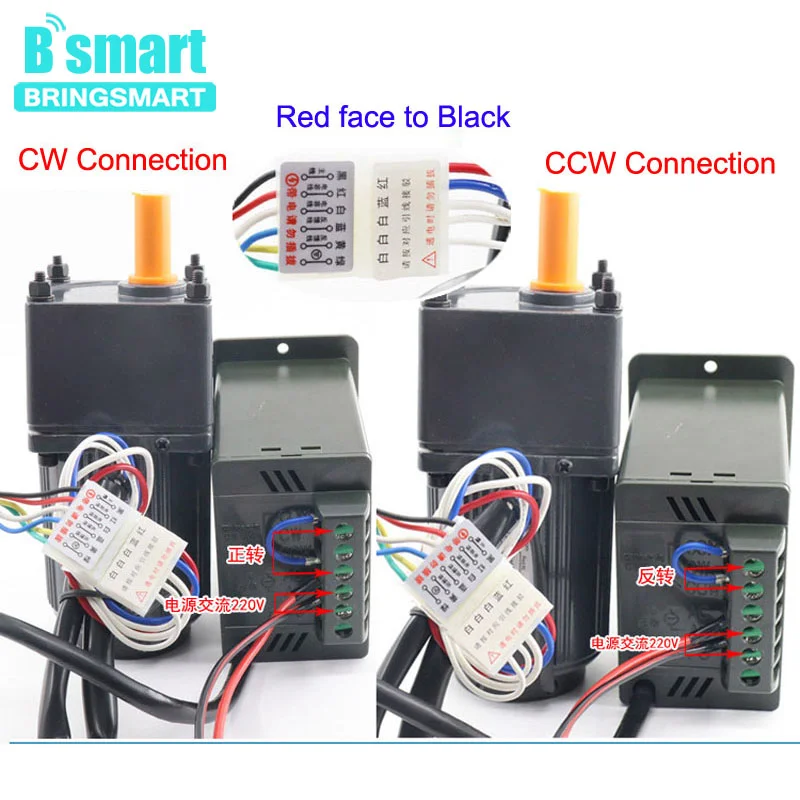

Q4: how to change rotation direction?
A4: please change wiring polarity to change rotation direction.
Q5: how to change speed?

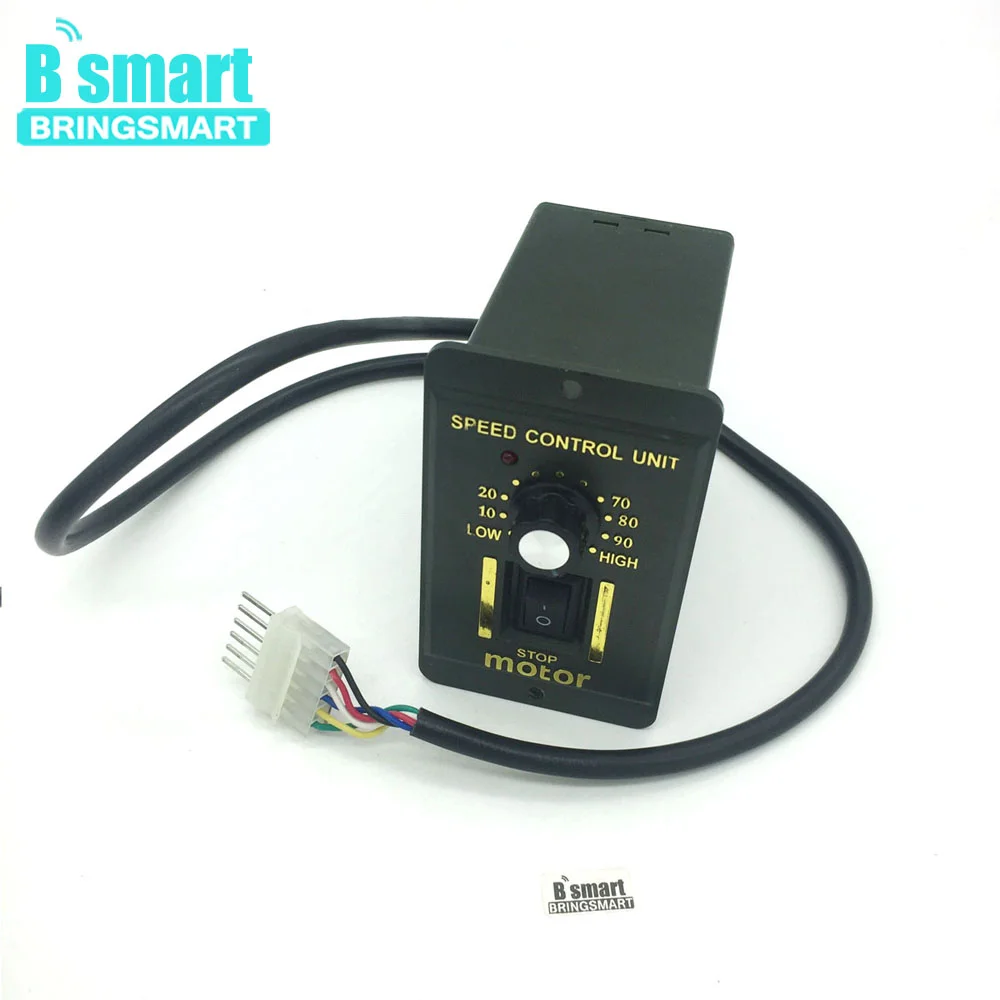

A5: you can buy our below speed controller, to change speed from 0-10rpm.
Q6: what do "self locking" mean?
A6: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.
Q7: what happens when a voltage of 18V is connected to a 12V motor or an 18V motor?
A7: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect his speed and torque, and will not even run.
If you have any question and problem in using, please contact us first. We will try our best to resolve the problem.
A1: sometime, some cargo would be slightly delay on road. Please contact with us first, we will offer a good solution for you.
Q2: what is the material of the gear?
A2: The motor gears are made of metal. If you need other materials, you can contact us.
Q3: what is the torque mean?
A3: torque is the weight that the motor can load at a certain voltage and speed. If the motor you purchased is 12v 12rpm, its corresponding torque is 70kg.cm. This means that when the motor is at 12v and 12rpm, it can load 70kg objects with a diameter of 1cm. If the iameter of the load is 10cm, then the rated torque is 7kg. Please do not exceed the rated load during the use of the motor, otherwise the gear is prone to wear and tear.
Q4: how to change rotation direction?
A4: please change wiring polarity to change rotation direction.
Q5: how to change speed?
A5: you can buy our below speed controller, to change speed from 0-10rpm.
Q6: what do "self locking" mean?
A6: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.
Q7: what happens when a voltage of 18V is connected to a 12V motor or an 18V motor?
A7: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect his speed and torque, and will not even run.
If you have any question and problem in using, please contact us first. We will try our best to resolve the problem.
