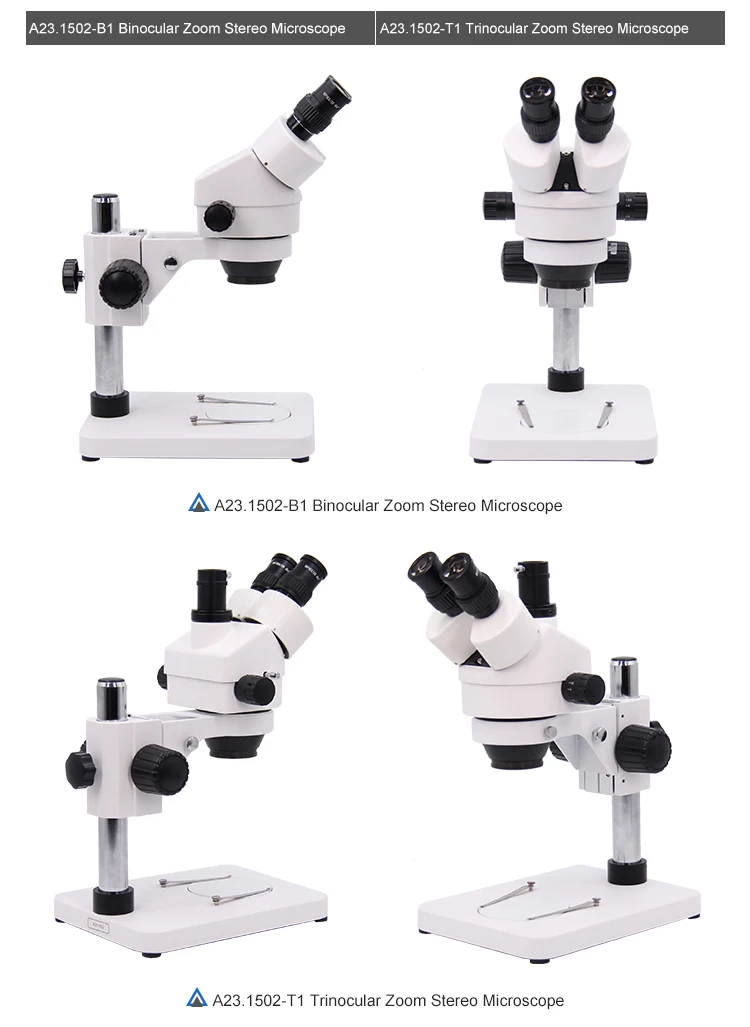

OPTO-EDU A23.1502-T1 Coarse Focusing Professional Optical Zoom Microscope
A23.1502 is a type of stereo microscope whose price is a litter bit higher than others, because it is a professional stereo microscope in teaching demonstration, biological engineering, IT testing and some other fields. With zoom lens 0.7-4.5x, you can get the continuous zoom image you need. A23.1502 has high eyepoint with WF10x/20mm eyepiece, and the field of view is 1~95.2mm.
Zoom stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A23.1502 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.
A23.1502 Zoom Stereo Microscope Specification | B1 | T1 | |

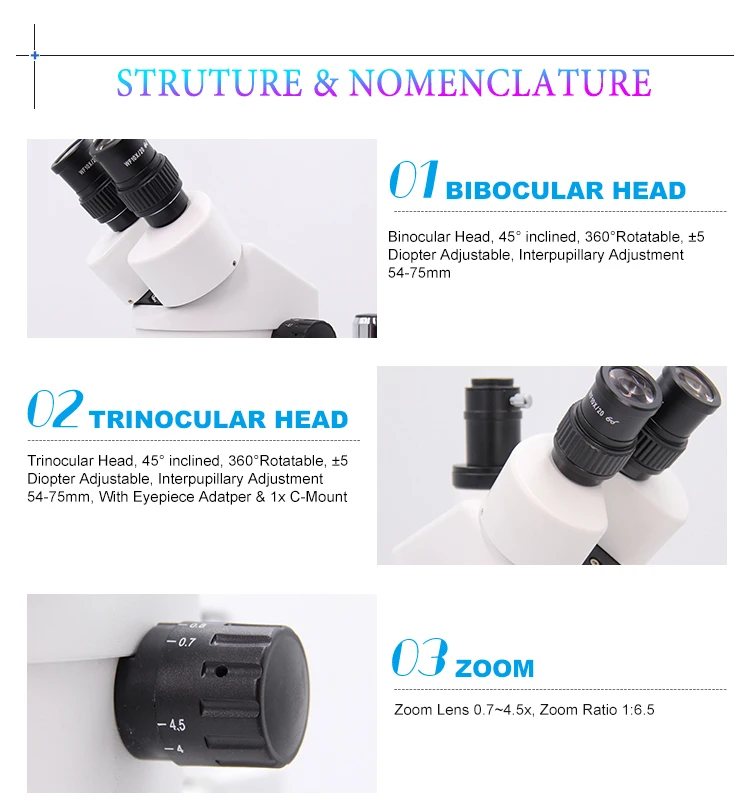

Head | Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | o | |
Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, With Eyepiece Adatper + 1x C-Mount | o | ||
Eyepiece | WF10x/20mm, High Eyepoint | ||
Zoom Lens | 0.7~4.5x | ||
Zoom Ratio | 1:6.5 | ||
Magnification | 7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives | ||
Working Distance | 100mm, With Auxiliary Objectives 30~177mm | ||
Field of View | 1~95.2mm | ||
Light Source | No Light Source | ||

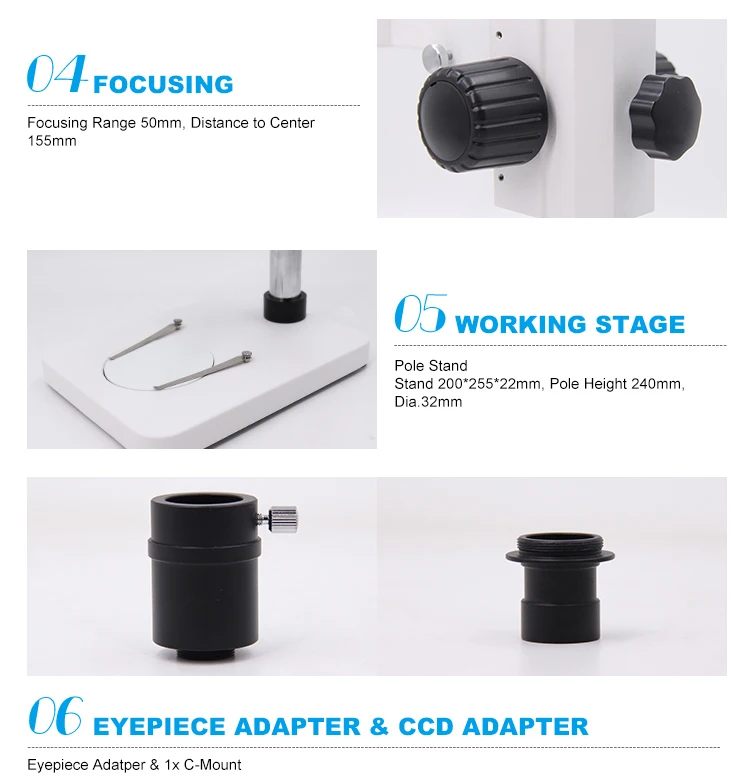

Stand | Pole Stand ST1, Height 248mm, Base 200*255*22mm |

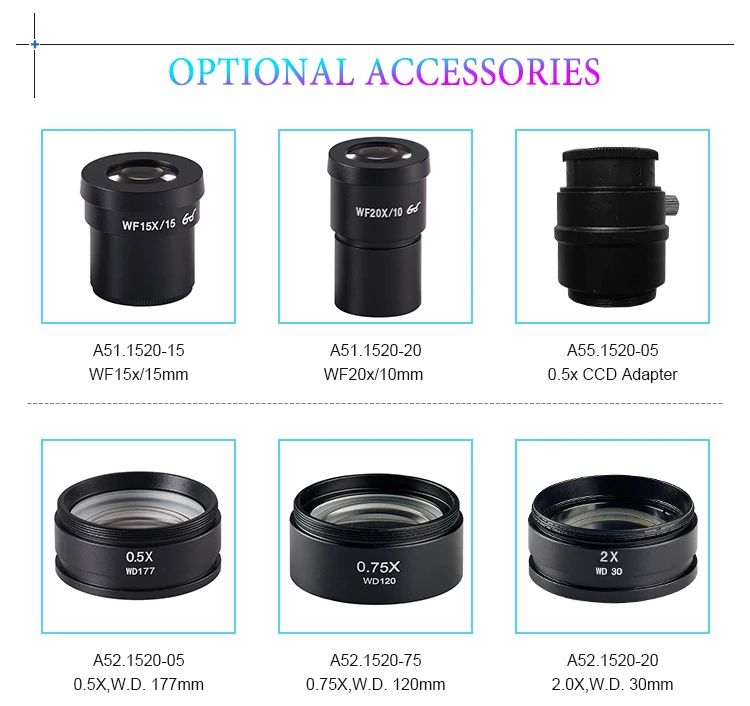

A23.1502 Zoom Stereo Microscope Optional Accessories | Cata. No. | ||
Eyepiece | WF15x/15mm, High-eyepoint | A51.1520-15 | |
WF20x/10mm, High-eyepoint | A51.1520-20 | ||
Auxiliary Lens | 0.5X,W.D. 177mm | A52.1520-05 | |
0.75X,W.D. 120mm | A52.1520-75 | ||
2.0X,W.D. 30mm | A52.1520-20 | ||
CCD Adapter | 0.5x | A55.1520-05 |
