Product description

TS-3X torque sensor is a teeth disc torque sensor, it is easy to install, general use for various standard bicycles and electric bicycles, especially for a variety of simple electric booster. In addition, it is a relatively independent component, independent of special motors and controllers, The users have more rights to choose their own motors and controllers.

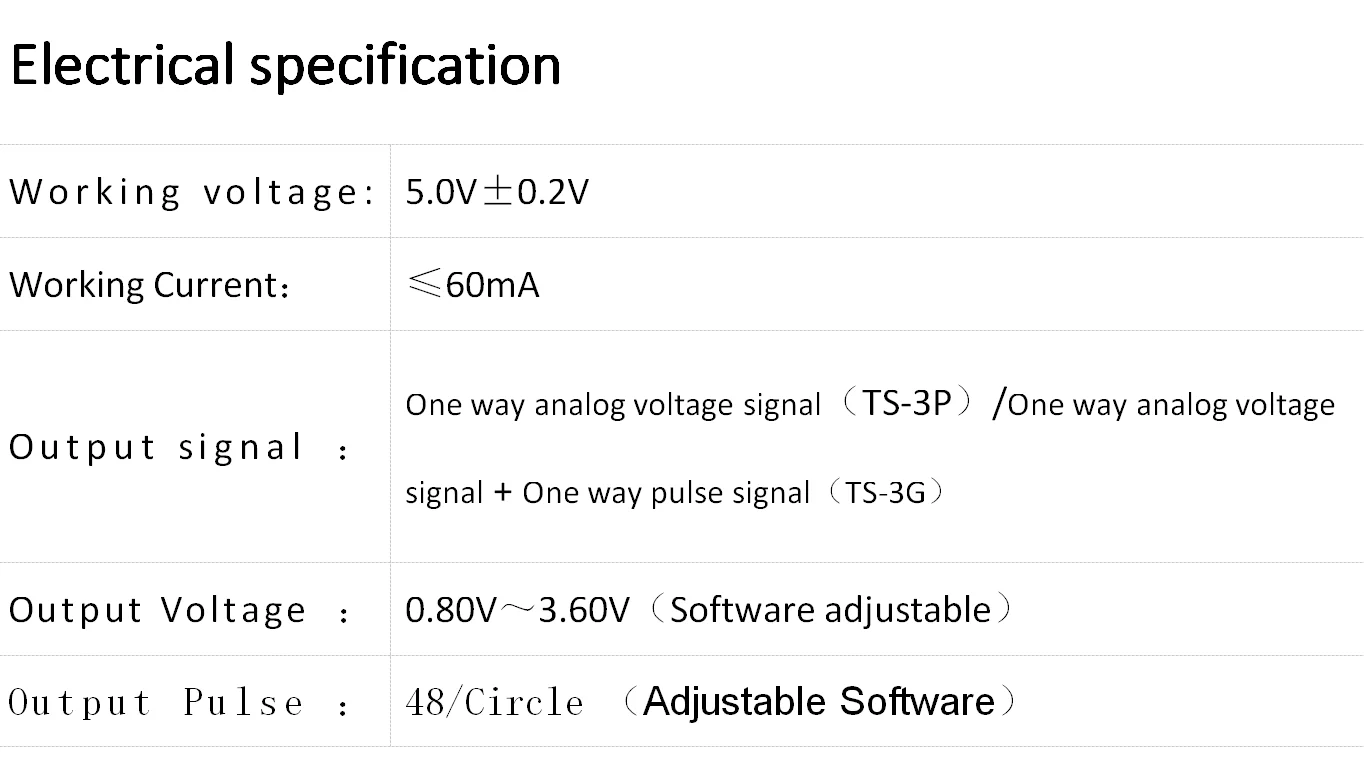

The output signal of TS-3X torque sensor is an analog voltage signal, which is similar to the handle signal. The output voltage of torque sensor is linearly related to actual effective torque,

U=kΓ+b  (Within the range).

The internal assist mode of the TS-3P torque sensor has three modes: strong, medium and weak ( with the instrument). The user can chose the current assist mode according to the needs..

The TS-3P torque sensor has ten parameters open to the user. The user can use an assist tool (The setter) to make appropriate adjustments to meet the corresponding standards (JIS standard, EN15194 standard, other country standards and personal riding feeling).

The TS-3G torque sensor is a universal torque sensor. The output voltage of the sensor is the original torque voltage signal, and the sensor does not do any processing inside. its output is real-time torque voltage signal, and another

speed pulse signal output. The Users can match the corresponding controllers , making it more convenient to use.

System naming:TS-3X-XX XX

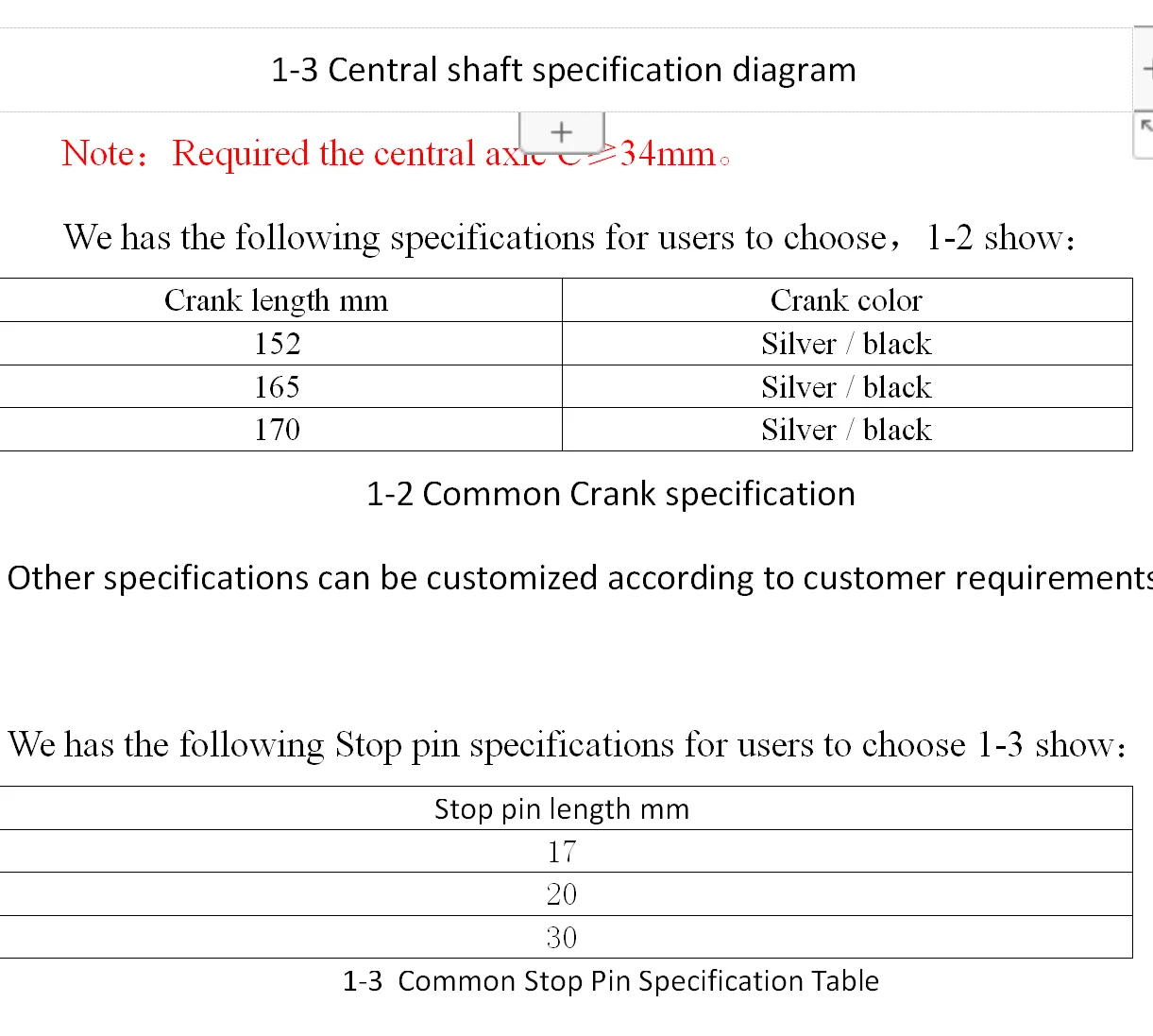

                 Crank length,52 show 152 the Crank Type

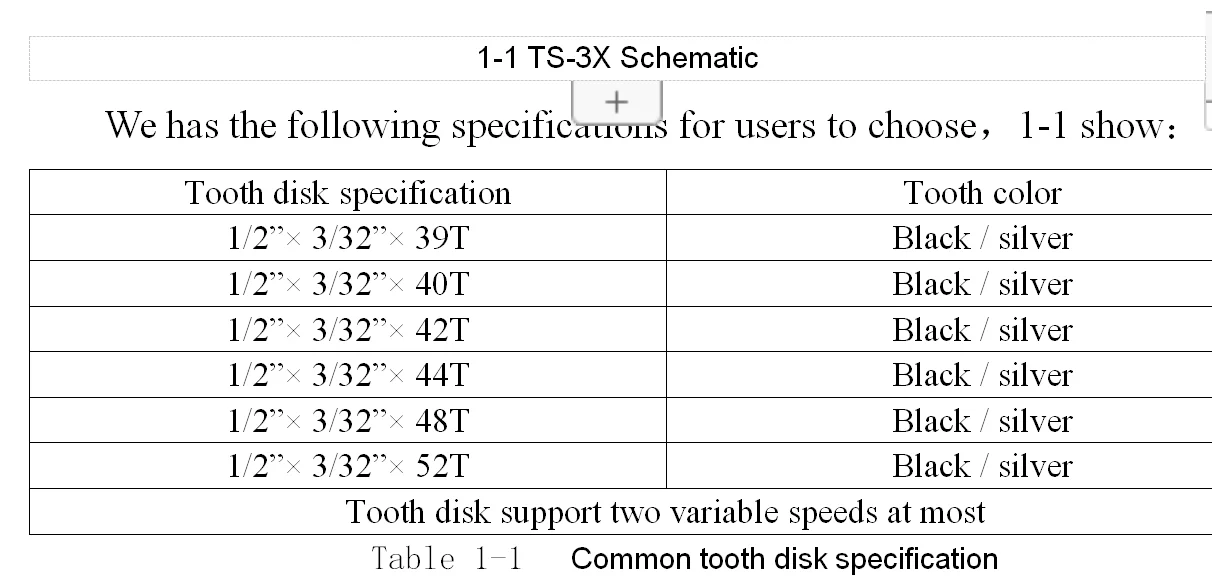

                 Disk tooth number

Serial number,P for special type,G for general type

                 Product name

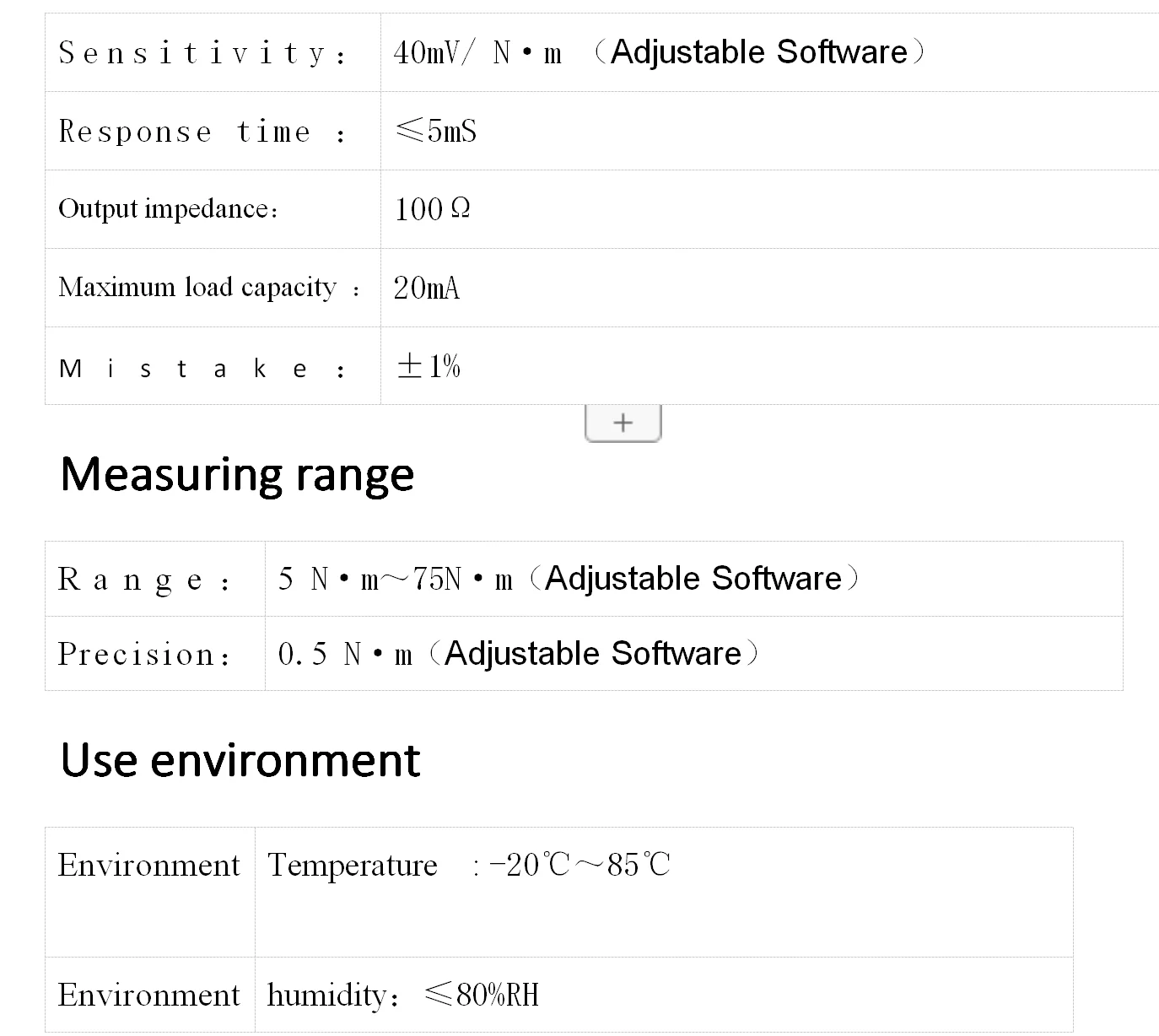

Product specifications

Standards

JIS D 9415:2008

JIS D 9207:2000

EN15194

IP66
