Беспроводная мини-ленточная пила для резки металла
US $409.00-$449.00
GZ4235 CE качественная ленточная пила с ЧПУ автоматическая машина для резки
- Категории: Band Saw Machines >>>
- Поставщик: Tianjin,Henghua,Pipeline,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

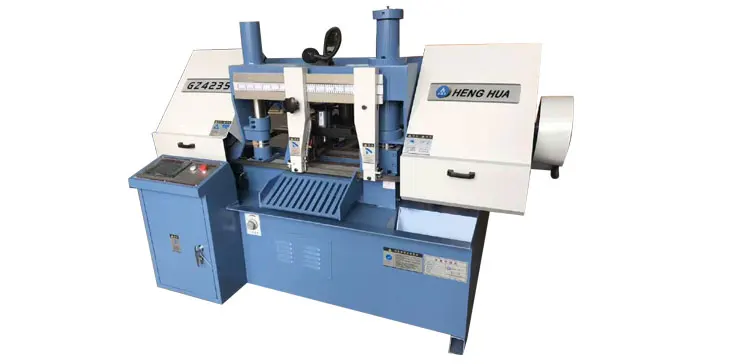

CNC Metal Band Sawing Machine
Product Description
| CNC Metal Band Sawing Machine | ||||
| Model | GZ4230 | GZ4235 | GZ4240 | GZ4250 |
Max.sawing range (mm) | 300*300*300 | 350-350*350 | 400*400*400 | 500*500*500 |
| Saw belt (mm) | 3505*27*0.9 | 4115*34*1.1 | 5000×41×1.3 | 5800*41*1.3 |
Sawing wire speed (mm/min) | 27,45,69 | 27,45,69 | 27,45,69 | 27,45,69 |
Working clamping method | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Main motor power (kW) | 3 | 3 | 4kw | 5.5KW |
| Voltage (V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Hydraulic motor powe r(kW) | 0.75 | 0.75 | 0.75kw | 1.5 KW |
Cooling pump power (kW) | 0.04 | 0.04 | 0.09kw | 0.125KW |
Feed speed adjustment mode | Hydraulic /stepless speed | Hydraulic /stepless speed | Hydraulic /stepless speed | Hydraulic /stepless speed |
Workbench height (mm) | 300 | 300 | 300mm | 300MM |
Dimension (mm) | 225*1850 *1550mm | 2300*2100 *1700mm | 2400*2350 *1800mm | 2800*2300 *2000mm |
| Main drive structure | Worm gear | Worm gear | Worm gear | Worm gear |
Tensioning method of band saw | Manual | Manual | Manual | Manual |
| clamping system | Hydraulic pressure | Hydraulic pressure | Hydraulic vice | Hydraulic vice |
| Cleaning of band saw | Wire brush and chip coolant | Wire brush and chip coolant | Wire brush and chip coolant | Wire brush and chip coolant |
Product Detail
Feature:
1.machine tools through mechanical, electrical, hydraulic coordination, with automatic clamping. automatic feeding, cutting finished, saw frame automatic rapid rise (ie retreat) function.
2. feed speed, within a given range, can be stepless adjustment.
3.The lifting and positioning of the saw frame is controlled by an ultraviolet proximity switch.
4.The length of feeding material is checked and fixed by grating ruler, and the grating ruler detects the effective range 500mm.
Product Application
automatic control system:
1.automatic control man-machine interface, through mechanical, electrical and hydraulic coordination, with automatic feeding, automatic cutting system to control the work cycle.
2.in the operating system is divided into manual and automatic work, man-machine interface conversion control.
3.in the band saw machine is equipped with two sets of vice, a group used for sawing when clamping, automatic feeding by another set of vice clamp,through the oil tank work to control feeding. The feeding length is controlled by an ultraviolet tight travel switch.
4.by PLC programmable controller, set sawing automatic process of the whole process.
5.feeding length is controlled by grating ruler. It is accurate in positioning, high in accuracy and less than 0.50mm in length.
6. Can be controlled by numerical control, one-way automatic feeding length 500mm.
Certification
Company Strength
 | |
We Are Factory We have strong flexibility as per production leadtime, delivery and most importantly the competitive price. | Professional Before-sales and After-sales Services We support customer to get satisfying high-quality products & meanwhiles serve with our technical supports professionally. |
 | |
Improvement & Innovation Keep Us Competitive We improve from aspects of production process, cost and service to spur mutual benefit and growth between our customers and HENGHUA. | Good Reputation from Global Customers HENGHUA strives to attain the best relationships, friendship and great reputation from global customers. |
 | |
Packing and Delivery
FAQ
1. What level of service do you provide?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience.
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos.
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
