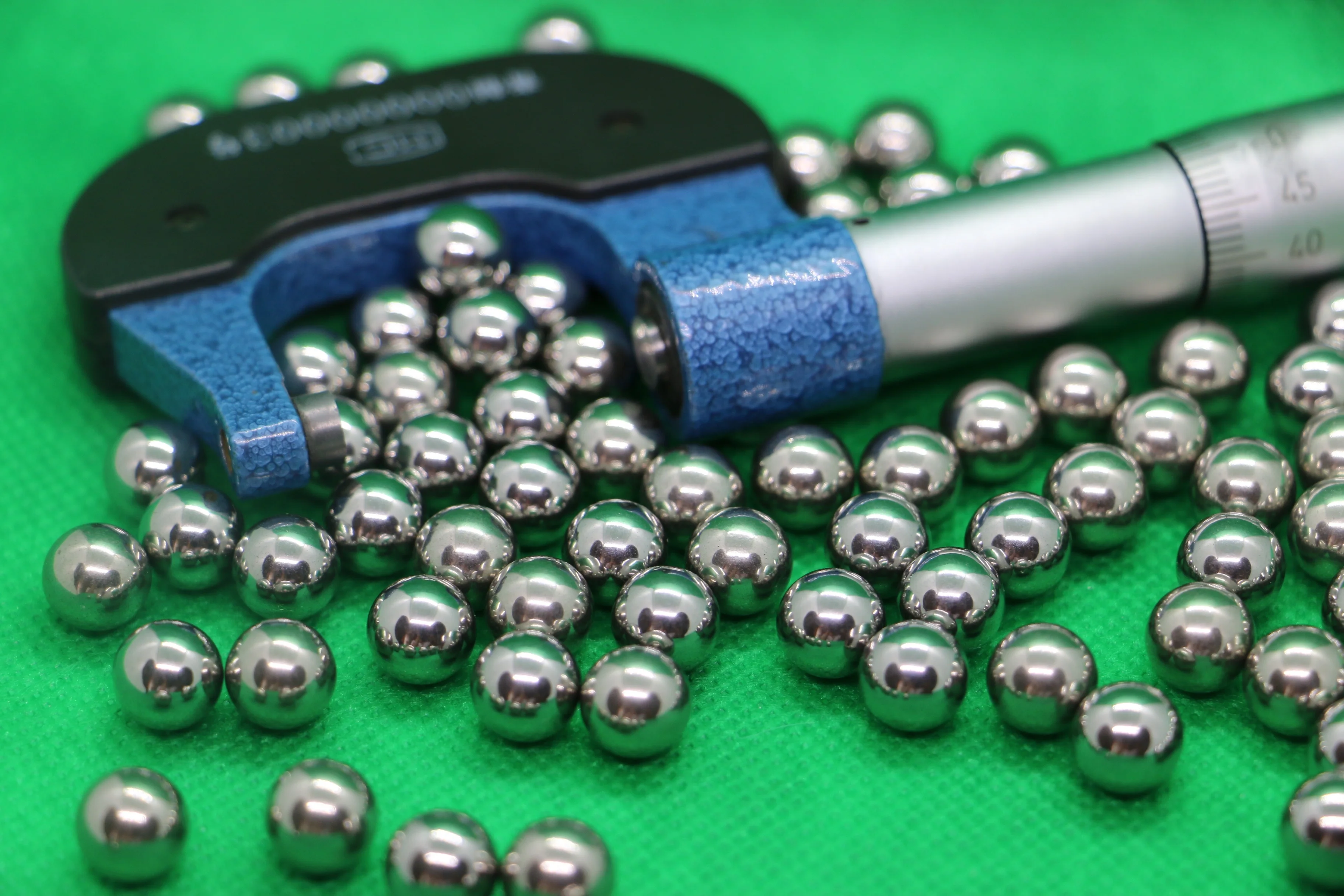

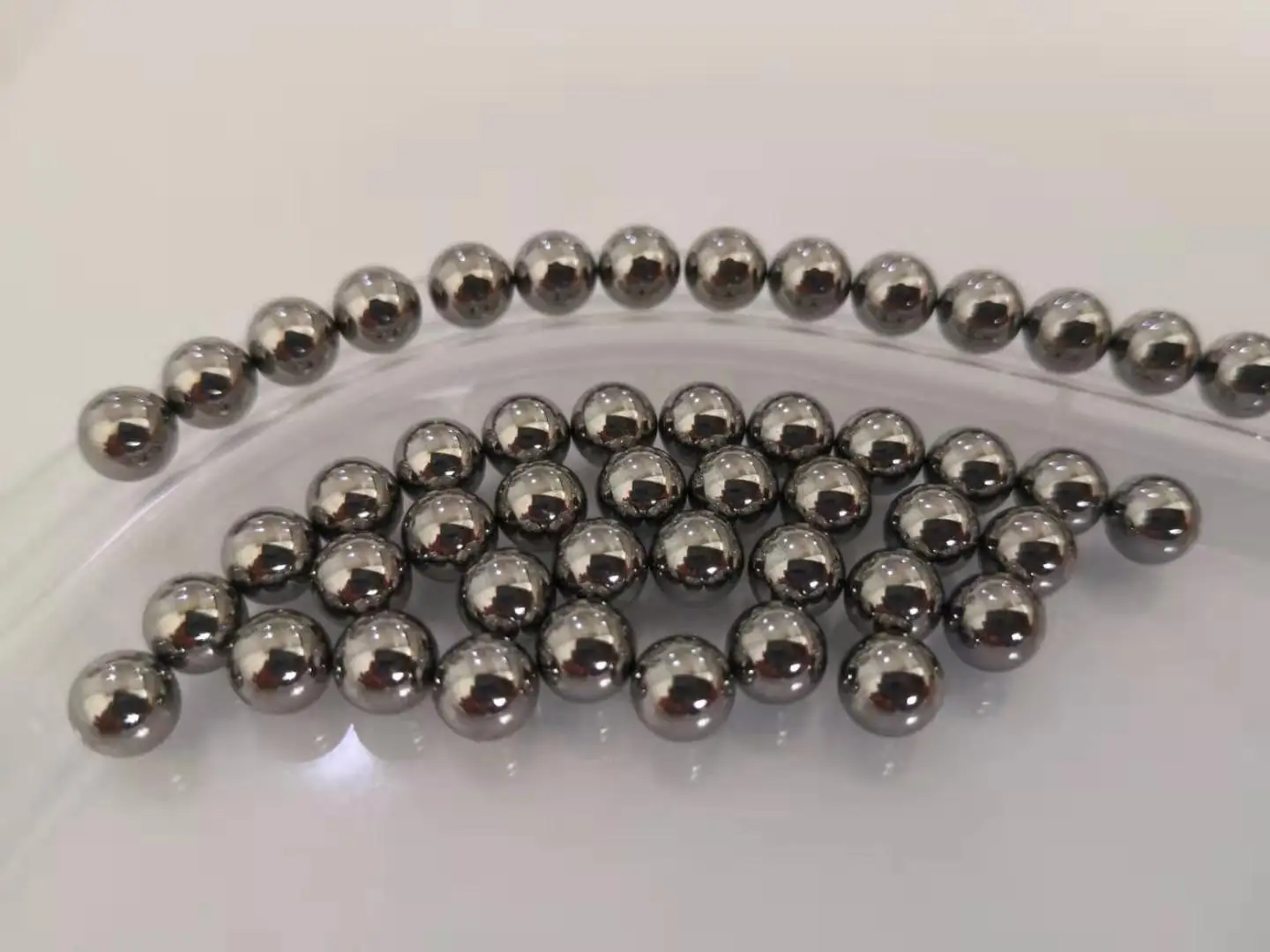

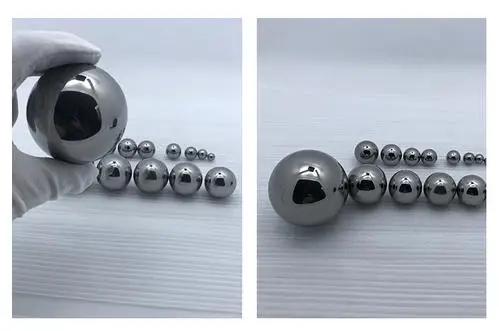

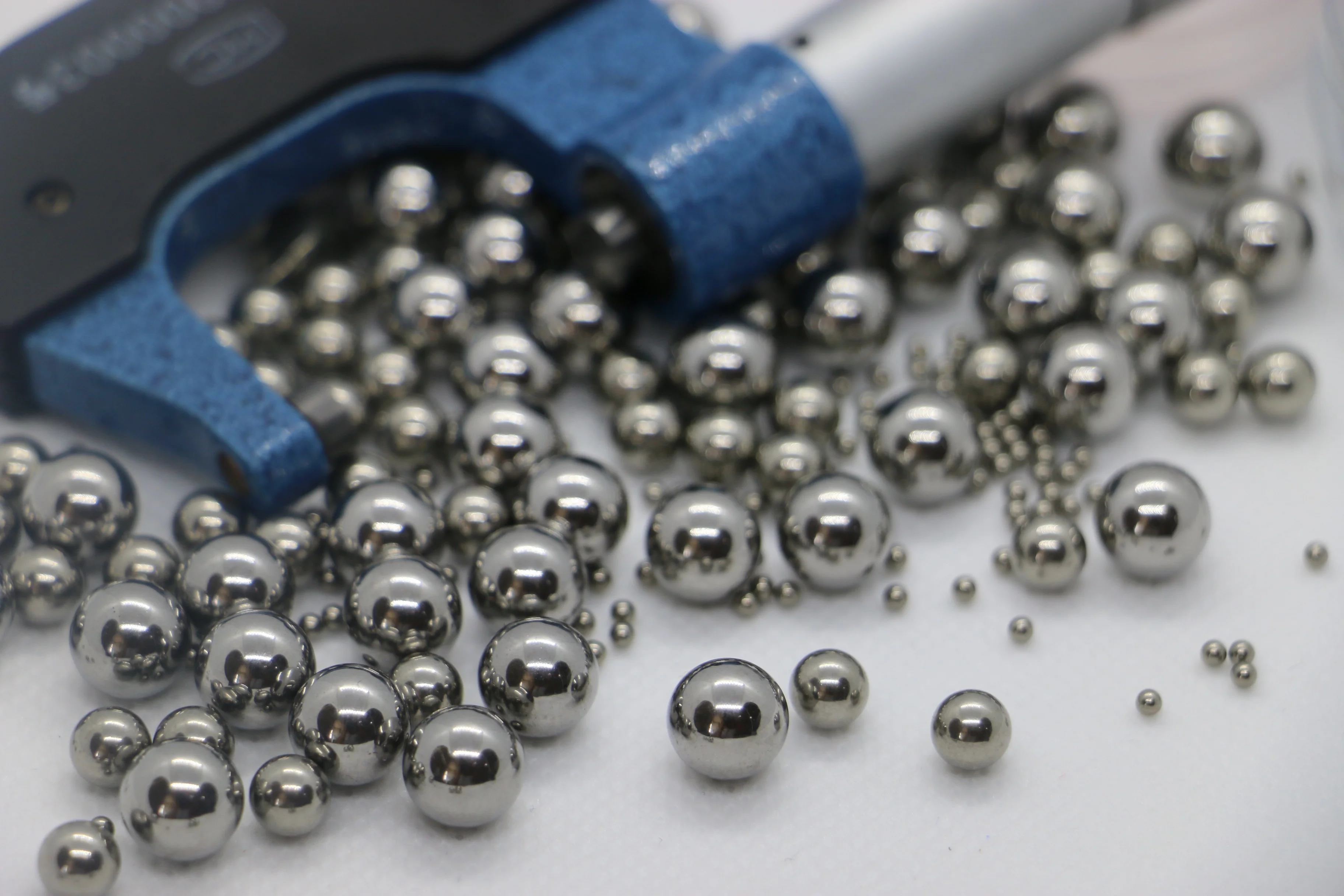

G100 3.5mm 3.8mm 4mm 4.5mm 4.763mm stainless steel ball
We are a professional stainless steel ball manufacturer with 20years history ! So we can give your best help !
SUS440C Stainless steel ballll
| Material Specification | C | Cr | Mn | Si | P | S | Mo |
| 0.95-1.20% | 16-18% | 1.0%Max | 1.0%Max | 0.04%Max | 0.03%Max | 0.75%Max | |
Mechancial Properties | Tensile Strength | 285,000 psi | |||||
| Yield Strength | 275,000 psi | ||||||
| Density | 0.277 Ibs/cu in | ||||||
Physical Property | Corrosion resistance | Fair | |||||
| Magnetic | Yes | ||||||
| Size Range | 0.8mm ( 1/32" ) to 63.5mm ( 2-1/2" ) | ||||||
| Hardness | HRC ≥ 58 | ||||||
| Grade | G10 - G1000 | ||||||
| Application | Type 440C balls are used in bearings , valves , locking mechanisms , fasteners and quick-disconnect couplings . | ||||||
Material Conversion | ASTM / AISI | YB | JIS | ||||
| 440C | 9Cr18Mo | SUS440C |
| ||||
SUS420 Stainlesss steel ball
| Material Specification | C | Cr | Mn | Si | P | S | |
| 0.15-0.36% | 12-14% | 1.0%Max | 1.0%Max | 0.04%Max | 0.03%Max | ||
Mechancial Properties | Tensile Strength | 275,000 psi | |||||
| Specific Weight | 0.280 Ibs/cu in | ||||||
Physical Property | Corrosion resistance | Fair | |||||
| Magnetic | Yes | ||||||
| Size Range | 0.8mm ( 1/32" ) to 63.5mm ( 2-1/2" ) | ||||||
| Hardness | HRC 50-55 | ||||||
| Grade | G10 - G1000 | ||||||
| Application | Type 420 balls are found in bearings, valves, lighters and writing instruments. | ||||||
Material Conversion | ASTM / AISI | YB | JIS | DIN | |||
| 420 | 3Cr13 | SUS420J2 | 1.4028 | ||||
SUS316 Stainless steel ball
| Material Specification | C | Cr | Mn | Si | P | S | Mo |
| 0.08%Max | 16-18% | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 2-3%Max | |
Mechancial Properties | Tensile Strength | 180,000 psi | |||||
| Yield Strength | 150,000 psi | ||||||
| Density | 0.290 Ibs/cu in | ||||||
Physical Property | Corrosion resistance | Excellent | |||||
| Magnetic | No | ||||||
| Size Range | 0.8mm ( 1/32" ) to 63.5mm ( 2-1/2" ) | ||||||
| Hardness | HRC ≤ 26 | ||||||
| Grade | G100 - G1000 | ||||||
| Application | Type 316L balls are used in trigger sprayers, bearings, dispenser valves, body jewelry, lotion pumps, quick-disconnect couplings and aerospace applications. | ||||||
Material Conversion | ASTM / AISI | YB | JIS | DIN | |||
| 316 | 0Cr17Ni12Mo2 | SUS316 | 1.4401 | ||||
SUS304 Stainless steel ball
| Material Specification | C | Cr | Mn | Si | P | S | Ni |
| 0.08%Max | 18-20% | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 8-10% | |
Mechancial Properties | Tensile Strength | 100,000 - 180,000 psi | |||||
| Yield Strength | 50,000 - 150,000 psi | ||||||
| Density | 0.286 Ibs/cu in | ||||||
Physical Property | Corrosion resistance | Good | |||||
| Magnetic | Slighty ( Demag process avaibalbe ) | ||||||
| Size Range | 0.8mm ( 1/32" ) to 63.5mm ( 2-1/2" ) | ||||||
| Hardness | HRC ≤ 26 | ||||||
| Grade | G40 - G1000 | ||||||
| Application | Type 304 balls are used in aerosol and dispenser valves , medical applications , animal feeders , trigger sprayers , finger pumps and food processing . | ||||||
Material Conversion | ASTM / AISI | YB | JIS | DIN | |||
| 304 | 0Cr19Ni9 | SUS304 | 1.430 | ||||
Heading:
In the first step, heading machines cut wire into short lengths and form it into spherical shapes between dies.
Deflashing:
The flash line, a ridge left by the forming dies, is removed as balls roll between heavy,cast iron plates.
Soft Grinding:
Similar to deflashing, except that a grinding stone is used to improve precision.
Heat-treating:
Carbon steel balls are next carburized and hardened. Heat treatment imparts the desired hardness and case depth.
Descaling:
This step removes the residues and by-products from the heat-treating process.
Hard Grinding:
Slow, meticulous grinding assures proper sizing and sphericity, with tolerances as closeas ±.0001".
Lapping:
Several proprietary lapping processes can bring balls to the requirements of ISO 3290 Grade10 - 48.
Finishing:
Proprietary chemical and mechanical processes give the balls their final micro-smoothed finish, for increased wear resistance and product longevity.
About us
Ningyang Xinxin Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in Henan province (10000 square meters ) .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and our products got ,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430). also produce chrome steel ball (AISI52100,100CR6,GCR15),carbon steel ball(1015,1010,1045,1085), copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm. The brand "XinXin" is trusted deeply by customers. Our products have been widely applied in the hardware goods form a complete set for the aviation and spaceflight industry, automobiles, sprayers, stainless steel bearings, and handicraft and precision instruments.
We have advanced production equipment and consummative instruments. We use perfect equipment to detect the roundness, libration size and the quality of the surface of steel balls.
Welcome to visit our factory and looking forwarder to cooperate with you !
Quality test :
1. Ball chose by people
2. Ball select by machine
3. Ball test by Vernier calipe
4. check ball surface by magnifying glass
5. Ball test by three needle gauge
6. Ball test hardness by hardness tester
Other products
Glass ball ,plastic ball ,Ballcone ,Brass ball,Ceramic ball
Certifications
Our factory already get ISO and our products already passed ROHS certificate as below :
Packaging details

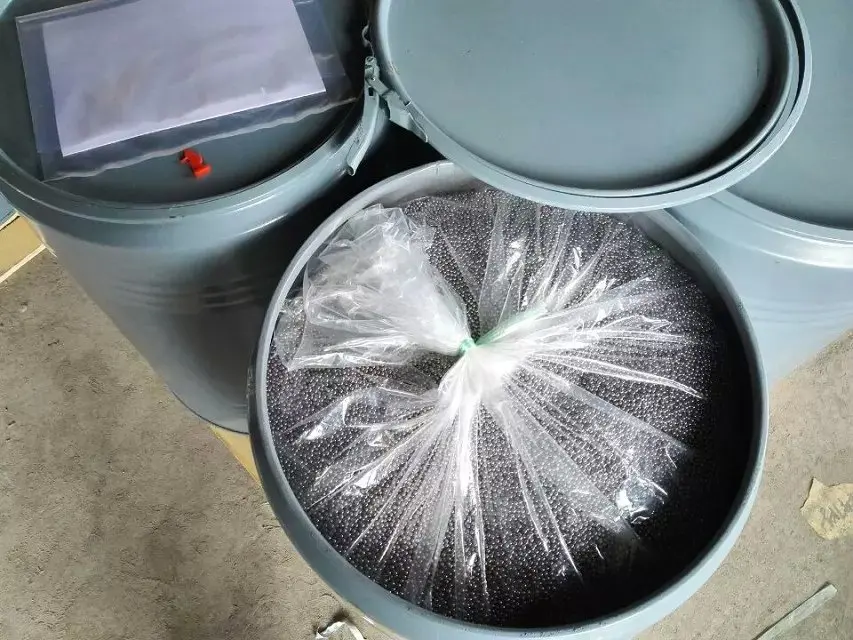

Package type : a, Steel drum packing
1) 250 kg per steel drum
2) Four steel drums on one pallet
3) Drum with pallet size: 75*75*65cm
b, Carton package
1) 25 kg per carton , 36 cartons on one pallet
2) Carton size: 30*20*17cm
