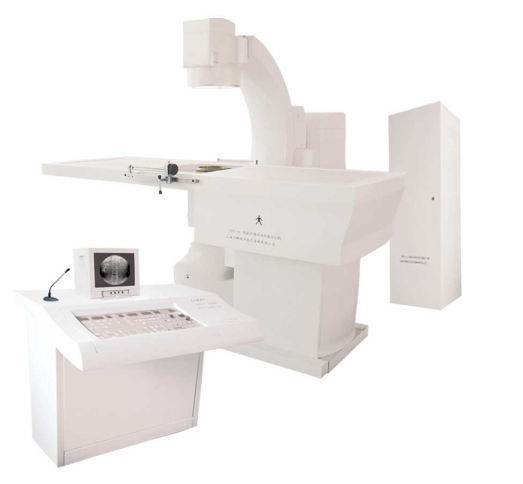

Extracorporeal Shock Wave Lithotripter ESWL-C

(C arm X-ray Positioning, Electromagnetic Source)

Extracorporeal Shock Wave Lithotripter ESWL-C adopts the design of Aluminum-alloy C arm, which can stretch or rotate, to position the X-ray. The deice can make a hemisphere movement on the C arm revolving around the second focus, easily use five locations on the hemisphere to clearly and accurately position the calculi and then smash the them.

For the exterior design, ESWL-C Model Lithotripter has broken through the traditional industrial design and adopted new-type ABS engineering plastics for its shell, featuring a fashionable & nice appearance. Its operating and control adopt original programmable logic controller (PLC) from Japanese Mitsubishi Company, ensuring its high stability and reliability.

FEATURES

1. Adopting cross positioning by X-ray.

2.The therapy bed can make a sphere movement, having five automatic positioning

3. Adopting a big-size focusing reflector imaging intensifier with long focal length

4.The therapy bed can make a three-dimensional motion in six directions.

5.Using Programmable Logic Controller(PLC) system

6.Image intensifier

7.Featuring with a function of image frozen.

8.X-ray generating system:

9.Instant energy can be continuously adjusted.



SPECIFICATIONS

1.Voltage: 3N~380V±10%

2.Power: 27KVA

3.Focus distance: 132mm

4.Focus pressure: 20-50Mpa

5.Lifetime of electrode(electro hydraulic type): ≥4000times

6.Range of electrode(electro hydraulic type): 50~100kv

7.Range of X-ray current: Fluoroscopy: 0~5mA

Snap-shooting: 50~100mA

8. Moving range of therapy bed:

Front/back: ≥120mm

Left/right: ≥120mm

Top/bottom: ≥80mm
