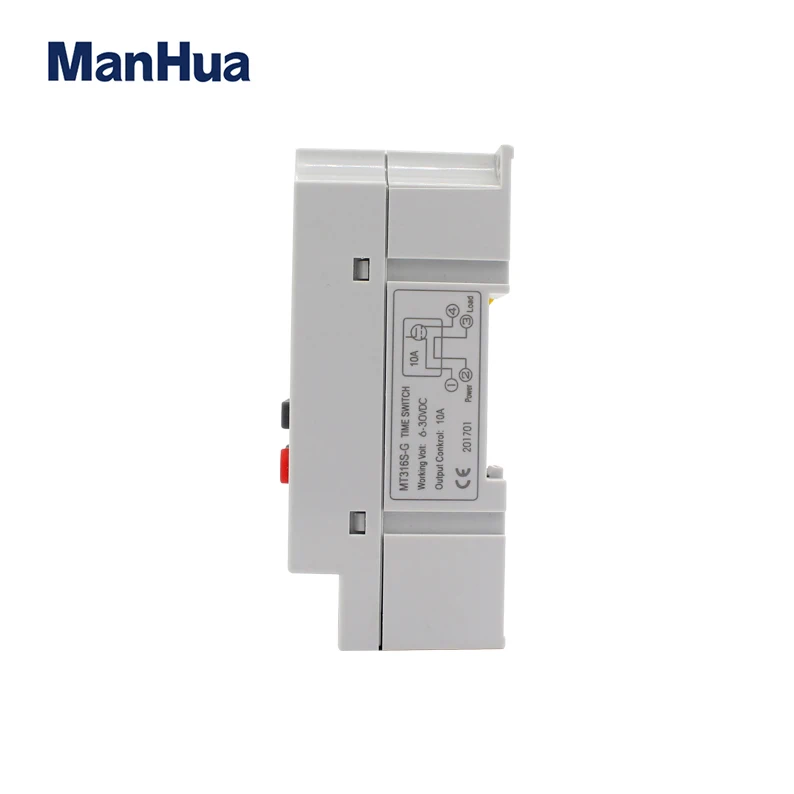

Manhua MT316S-G 12v dc 15A цифровой таймер

Manhua Hot Product 12v dc 15 amp Digital Timer switch

MT316S-G is the new DC timer , the advantages as follows:

1)6-30VDC, 10A, very suitable for outdoor working with solar panel.

2) It could adjust from one second

3)It could be batched to set the on/off time in the factory if customers need Battery power reserve for

4) Week-date could be set as the user request, e.g. Sun-Thu

5) Battery power reserve for 4 years once fully charged

6) It has 28 on/off

7)With the lock function

8) It could be switched off

9) The current only is 10A, small power consumption

10) it could work outdoor easily if be with the IP66 plastic enclosure outside,Model is MT316S-G

1- It widely applies to the time control of the equipments,streetlight,warehouse,

farming, heating and TV.

2- The battery inside, of the industrial clall chips, is precisely control,highly against disturb.Hongfa relay inside,the maximum current can reach up to 30A.

♦Characteristics

♦Opertion ways

1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time

2- Set on/off time

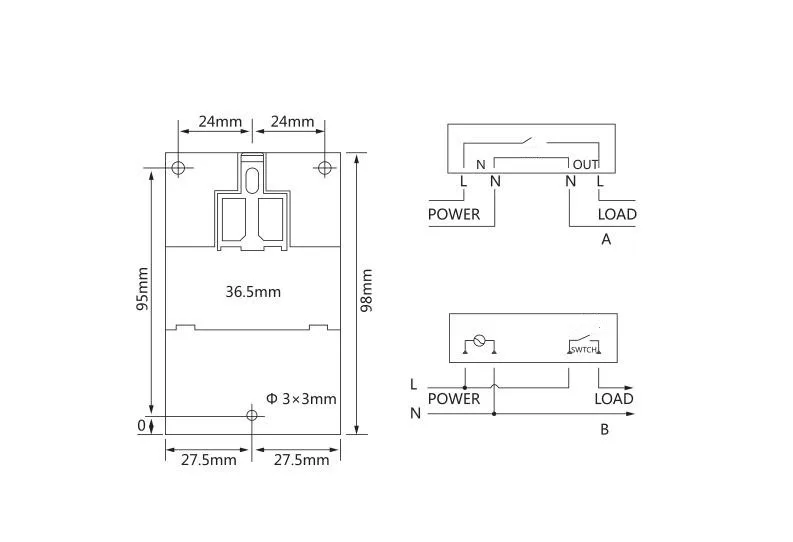

♦Wiring and Installations

♦Attention

1- It should tighten the screw, to against the contact heating when the big current.

2- Control input wires is 220VAC 50/60HZ,it could not work with the voltage of 380VAC.

3- The voltage 12V,24V,AC110V,380V, could be made.

4- The control is on red light when the electricty is on.Red light and green light is on the same time when the load has the eletricity output.

5- The time set, it could not be mixed to set.It should follow the time sequence.
