Product Description
VPSA Oxygen Generator
Purity: 90%-93%
Capacity: 200~20000Nm3/h
Pressure: Normal 0.4Mpa
Energy for Consumption Oxygen:0.36~0.42KWh/Nm
Capacity: 200~20000Nm3/h
Pressure: Normal 0.4Mpa
Energy for Consumption Oxygen:0.36~0.42KWh/Nm

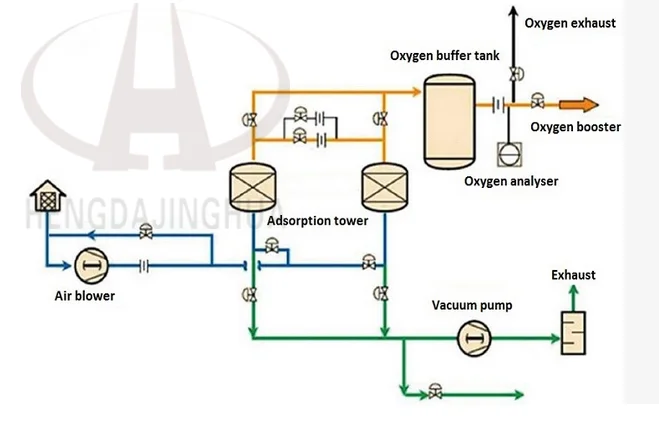

The VPSA precess is similar with PSA. VPSA oxygen generator use air blower to supply compressed air into a adsorption tower, adsorption in low pressure and adsorption in vacuum status. Under atmosphere or slightly abover atmosphere pressure, using mixed bed composed of VPSA special molecular sieve and dryer to absorb the N2,CO2.H2O and other impurities, making oxygen accumulated and collected at the end of bed .Saturation sorption of molecular sieve bed will be desorbed in vacuum status ,so as to circularly generate high purity Oxygen . (90~95%).
Compared with PSA process, VPSA has complex process equopment and higher investment but low power consumption, suitable for large scale oxygen production.
Compared with PSA process, VPSA has complex process equopment and higher investment but low power consumption, suitable for large scale oxygen production.
Technical Feature
Fully automatic control system.
The energy consumption is low,low Production Cost
Simple Process and Less Equipment
Quick Starting and Easy Stopping.
Suitable for middle and large scale oxygen production.
Low working pressure and more safety.
Long Life and low maintenance.
Our Company
Q: Are you trading company or factory?
A: We are OEM skid-mounted Oxygen Generator factory, founded in 2008.Welcome you to visit our company at anytime!
Q: What is the terms of payment?
A: T/T, L/C etc.
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A: 1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
4) Contract confirmation---provide correct contract details.
5) Payment terms--- T/T 30% in advanced, balanced before shipment.
6) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
7) Installation and commissioning.
