Высокочастотная машина для склеивания краев древесины производства Сага 20

Высокочастотная машина для склеивания краев древесины производства Сага 20

Категории: Press >>>
Поставщик: Shijiazhuang,Saga,Machinery,Co.,Ltd.

Цена:24 000,00 $ - 25 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

HF Joining Machine Wood Edge Gluing Press From SAGA 20KW

Description

High frequency edge gluer,also called radio frequency edge gluer,it combines high frequency heating with two direction press pressing,suitable for finger joint or edge glued board joining or gluing the rim of solid wood door or other wooden block gluing.

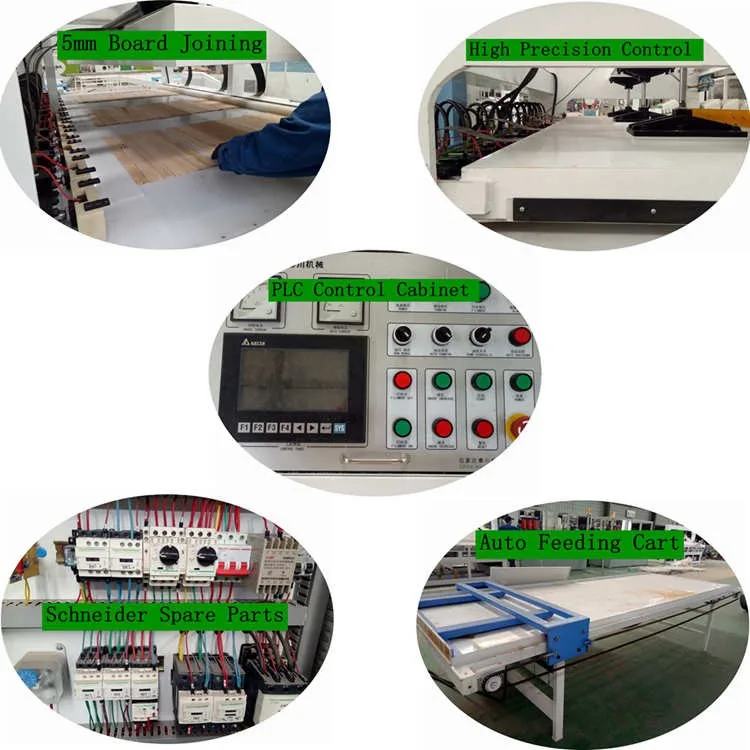

Features

High frequency heating,more fast and stable.

PLC automatic control with auto feeding cart.

Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working.

Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.

Model List

Model	SP15-SA	SP20-SA	SP30-SA
Power	15KW	20KW	30KW
Gluing size	1200*1400mm	1220*2440mm	1220*2440mm

Basic Technology Data

Model	SP20-SA /SP30-SA
Input Power	3Phase-380V-30KVA
Output Power	30KW
Gluing Size	1220(W)*2440(L)
Gluing Thickness	8mm~100mm
Horizontal Pressure	Cylinder Diameter	50mm
	Number of Cylinders	12PCS
	Total Pressure	36T
Vertical Pressure	Cylinder Diameter	50mm
	NO. Of Cylinders	3PCS
	Total Pressure	9T
Dimensions	L:2700mm,W:2100mm,H:2200mm
Gross Weight	5880KGS/6500KGS
