15 кВт промышленный водяной охладитель с воздушным охлаждением для системы
- Категории: Industrial Chiller >>>
- Поставщик: Dongguan,Huani,Refrigeration,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

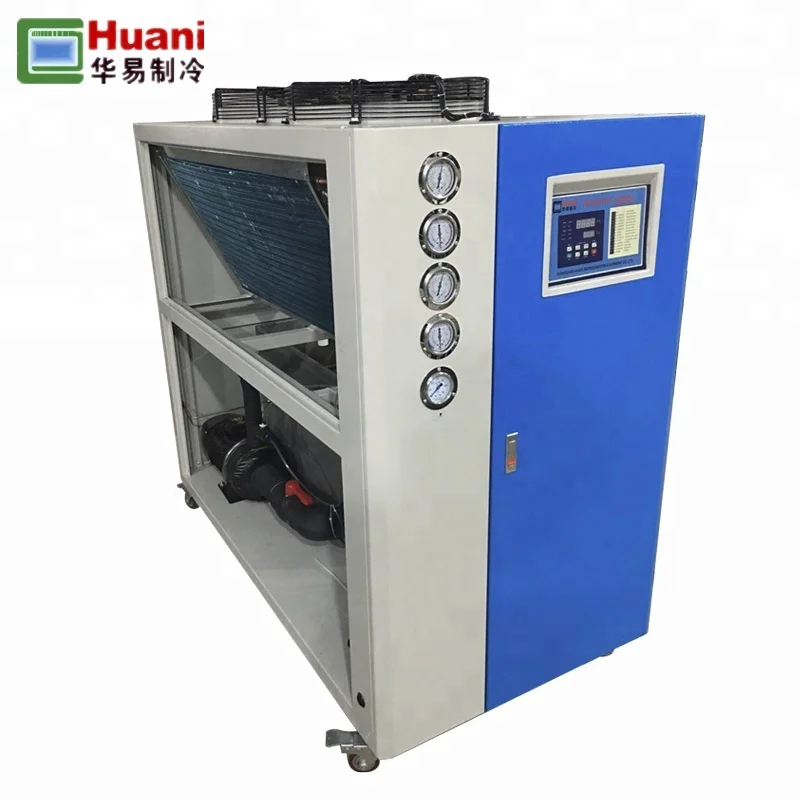

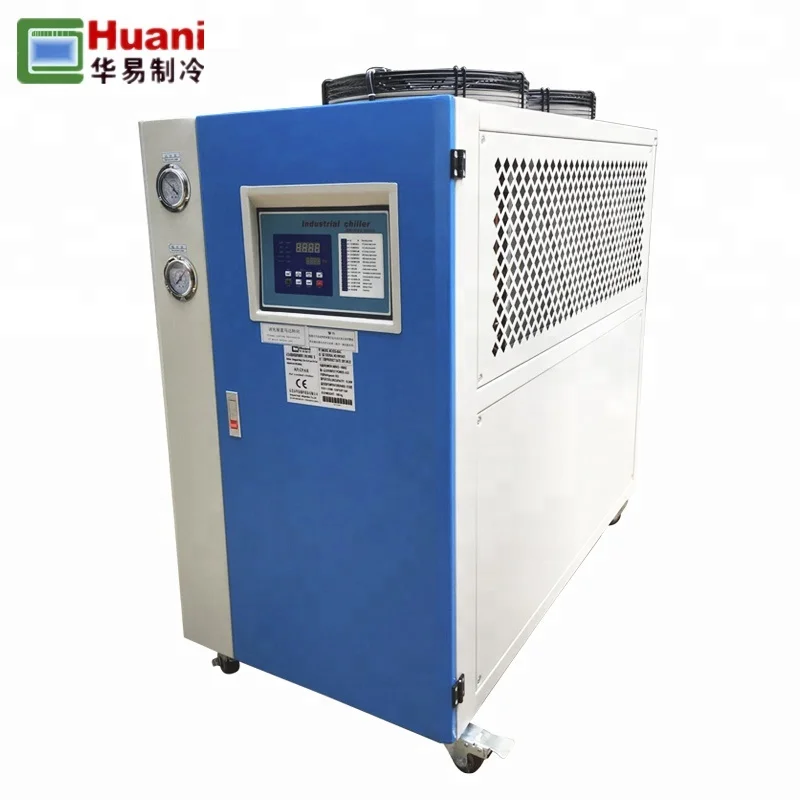

15KW Air Cooled Industrial Water Chiller For Cooling System
Our products from the factory directly to your hands, without any middle dealer, trading company. To ensure the customer's best interests
Product use :Cooling water

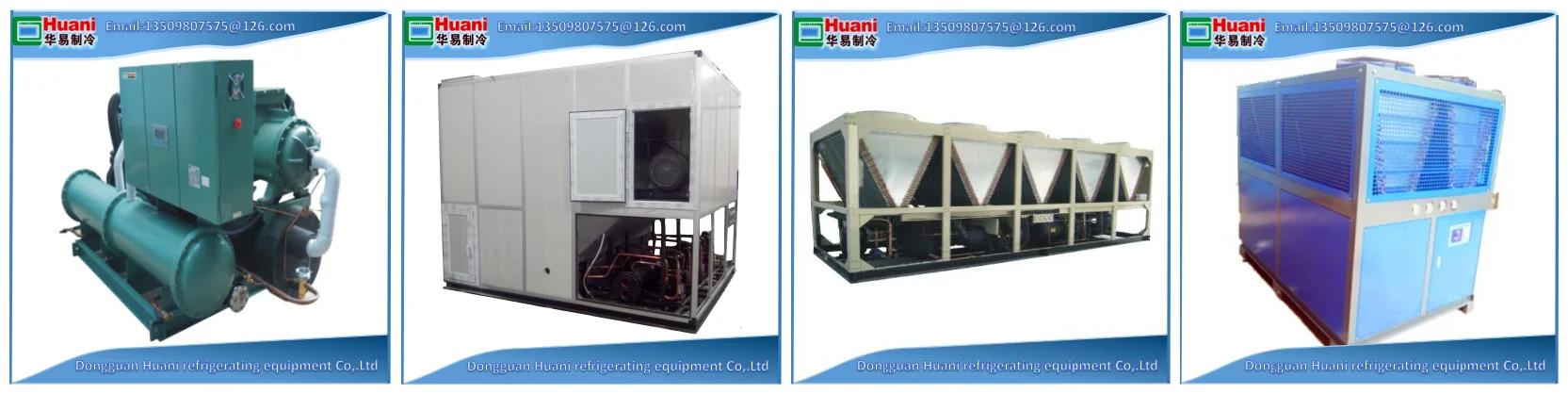

In addition to the traditional industrial chiller air conditioning and refrigeration;Is also used in laser technology, welding plastic molding, injection molding, extrusion, blow bottles, hot LiSu type;Mechanical machining, the machining, casting;Surface treatment, electroplating, electrophoresis,Medical equipment, medicine production, electronics, circuit board production, electronic chip manufacturing;Chemical industry, papermaking, pharmaceutical industry, food processing industry;Aluminum, aluminum alloy, toughened glass, coated glass production.Ultrasonic erase, jewelry processing;Leather, fur processing, printing ink production;Aquaculture and other industries, etc.;You can see the figure of refrigeration units.
Factory Direct Sales To Provide Ultra-low Prices!12 Years China Manufacturer!
Product Detail
| Screw Chiller | scroll compressor |
| Cooling form | air-Cooled |
| Use | Indutrial |
| Refrigerant | R22 or R404a |
| Compressor | Semi-hermetic screw |
| Compressor Brand | Daikin,copeland |
| Compressor power | 3.73kw |
| Flow control device | Thermal Expansion Vale |
| Compressor type | Semi-hermetic screw |
| Safety device | Overload,high/low cut,safety valve,frozen |
| Product Keywords | 15KW Air Cooled Water Chiller |
Features:
Unit Features (Air-cooled Type):
*Packaged design,cooling tower and pump are not needed.
*Machine room is not needed,chiller water is builtin,so it
Is suitable for outdoor installation to save space
*Large cooling capacity.
Applications:
*Widely applied to plastic,electroplating,hardware,
dyeing and finishing,injection molding,cold bath sauna etc.
Unit Features(Water-Cooled Type):
*Could be installed in machine room
*Chilled water pump built in
*Elegant appeatance,small size
*Large cooling capacity
Quality assurance:Our product components guarantee 100% new, never use any second-hand parts.
Product Data
Main Features
* We also supply the machine based on the specification provided by the customers.
|
Model |
Water/Air cooled |
A |
A |
A |
A |
A |
A |
A |
A |
A |
|
|
|
01HP |
02HP |
03HP |
04HP |
05HP |
08HP |
10HP |
20HP |
30HP |
|
Cooling capacity |
BTU |
9556 |
19112 |
29002 |
37873 |
48450 |
77452 |
96901 |
201990 |
286608 |
|
|
Kcal/hr |
2408 |
4816 |
7310 |
9546 |
12212 |
19552 |
24424 |
50912 |
72240 |
|
|
Kw |
2.8 |
5.6 |
8.5 |
11.1 |
14.2 |
22.7 |
28.4 |
59.2 |
84 |
|
Compressor power |
Kw |
0.75 |
1.5 |
2.2 |
3 |
3.73 |
5.59 |
7.5 |
15 |
22.5 |
|
Cooling air |
m³/h |
1800 |
2600 |
3910 |
5270 |
6460 |
11220 |
15130 |
30260 |
44200 |
|
|
CFM |
1058 |
1534 |
2300 |
3100 |
3800 |
6600 |
8900 |
17800 |
26000 |
|
Chilled water pump |
Kw |
0.37 |
0.37 |
0.37 |
0.37 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
|
Chilled water flow rate |
m³/h |
4.2 |
4.2 |
4.2 |
4.2 |
6 |
6 |
6 |
10.8 |
21 |
|
Water tank |
LITER |
40 |
40 |
40 |
40 |
85 |
85 |
160 |
300 |
410 |
|
Power input |
V/ph/Hz |
220/1/50 380/3/50 |
220/1/50 380/3/50 |
220/1/50 380/3/50 |
380/3/50 220/3/60 |
|||||
|
Refrigerant |
|
R22 |
||||||||
|
Dimension |
L(mm) |
680 |
720 |
900 |
1150 |
1150 |
1676 |
1676 |
2400 |
2400 |
|
|
W(mm) |
420 |
500 |
690 |
700 |
700 |
761 |
761 |
865 |
1100 |
|
|
H(mm) |
900 |
1100 |
1230 |
1260 |
1260 |
1270 |
1778 |
1778 |
2200 |
|
Weight |
Kg(W/A) |
100 |
115 |
130 |
140 |
160 |
330 |
410 |
720 |
900 |
|
Chilled water pipe |
In |
1-1/4" |
1-1/4" |
1-1/4" |
1-1/4" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2-1/2" |
|
Cooling water pipe |
In |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2-1/2" |
|
Drainage pine |
In |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
1" |
1" |
1" |
|
Safety device |
Overload,high/low cut,safety valve,frozen |
|||||||||
Attention:
The above is only the partial parameters, the different parameter correspondence difference in price, the details please consult us .
