45W 5V 2A/ 20V 2.25A USB type-c pd зарядное устройство для ноутбука ac адаптер питания
- Категории: Adapters >>>
- Поставщик: Shenzhen,Yidashun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

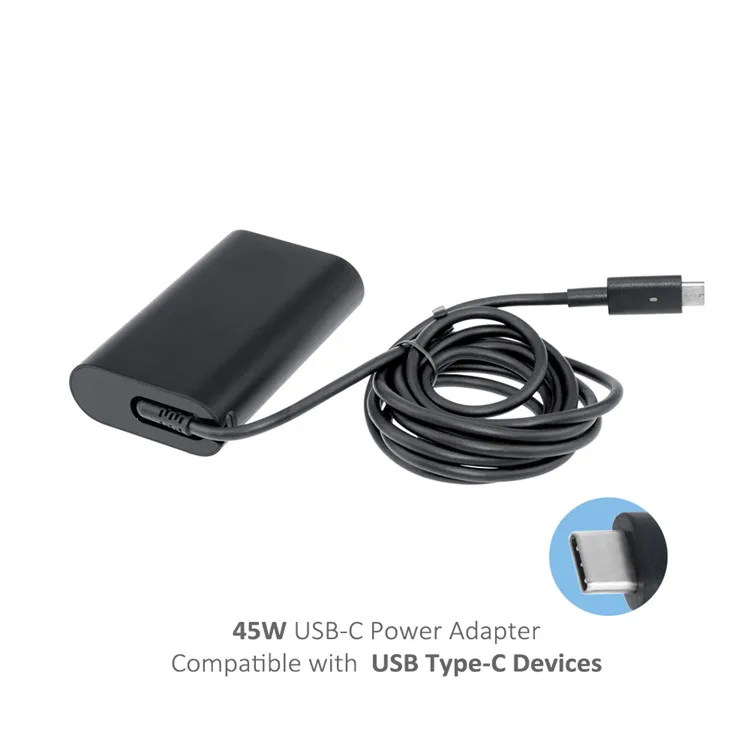

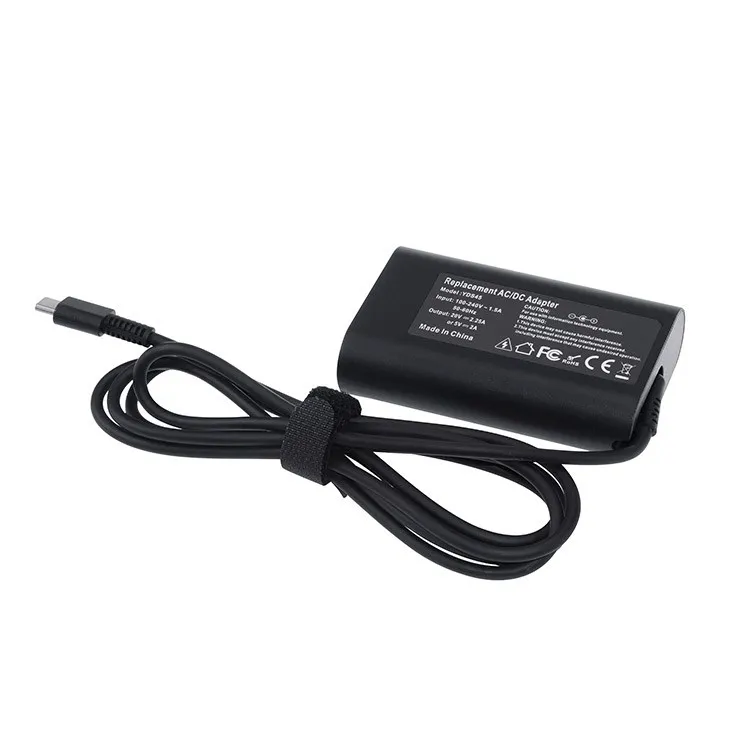

45W USB type-c charger laptop ac power adapter for DEL
Product Description
Specifications | |
Model No. | YD310 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage& current | 5V 2A/ 20V 2.25A |
Output Power | 45W |
DC Connector Size | TYPE-C |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.5mm2, OD 4.0mm Pure Copper |
Output Cable Length | 2m normally or customized requirement |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
Adapter Size | 8.7*5.5*2.2 CM |
Adapter Weight | 163G |
Inner Box Size | 19*13*4.7 CM |
Inner Box Weight | 40G |
PCS/CTN | 50PCS |
Outer Carton Size | 48.5*32*40 CM |
Outer Carton Weight | 860G |
GW/CTN | 11010 |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |
We have more models of type c charger for choose
| 45W USB TYPE-C charger for HP | Output:5V 9V 15V 3A/20V 2.25A |
| 45W USB TYPE-C charger for ASUS | Output:5V 2A/12V 2A/20V 2.25A |
| 45W USB TYPE-C charger for lenovo | Output:5V 2A/12V 3A/20V 2.25A |
| 30W USB TYPE-C charger for DELL | Output:5V 2A/12V 2A/20V 1.5A |
| 45W USB TYPE-C charger for DELL | Output:5V 2A/20V 2.25A |
| 65W USB TYPE-C charger for DELL | Ouput:20V 3.25A/15V 3A/9V 3A/5V 3A |
| 90W USB TYPE-C charger for DELL | Output:20V 4.5A/15V3A/9V3A/5V3A |
| 29W TYPE C charger for AP | output: 14.5V 2A |
| 61W TYPE C charger for AP | Output:20.3V 3A /14.5V 2A /9V 3A /5.2V 2.4A |
| 87W TYPE C charger for AP | Output:20V 4.3A /14.5V 2A /9V 3A /5.2V 2.4A |
Packaging & Shipping
>> Package information:
♦ Safe packing, brown box or color box packing can be customized
♦ Adapter Weight: 400g
♦ Inner box size: 19*13*4.7 cm
♦ Inner box weight: 40G
♦ PCS/CTN: 50PCS
♦ Carton Size: 48.5 x 32 x 40cm
♦ Gross Weight: 22.86kg
>> Shipping details:
♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;
♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
♦ Customers specifying freight forwarders or negotiable shipping methods;
♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.
Our Services
1.9 years focuson the AC DC power adapter Research and development, Production;

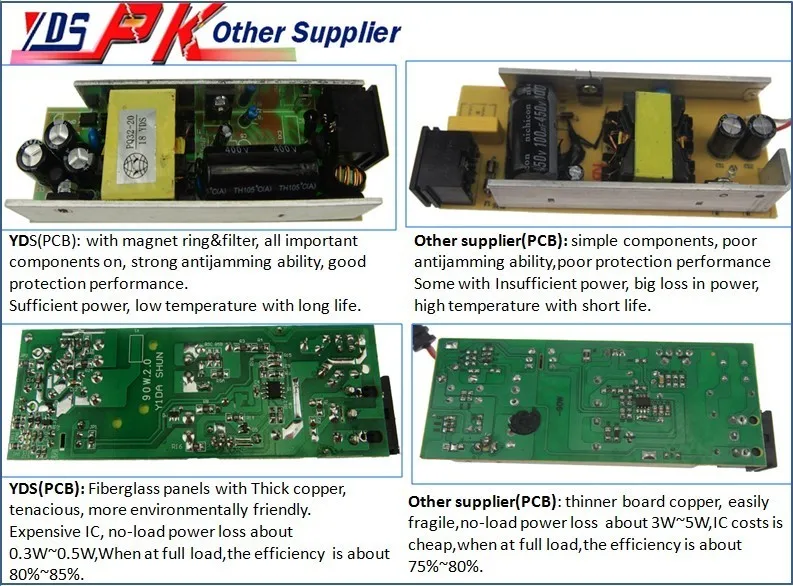

2.For control the quality ,we have professional test from the raw material to finished products to control the quality seriously;
3.can offer wholesale Factory prices, After-sale guaranteed;
4.Flexible and fast delivery, bulk orders usually delivery within one weeks, General small batch orders can be arranged delivery within 1-3 days,cause we usually have large quantity of PCB in stock;
5. All our high quality adapters with OCP/OVP/SCP/OTP protection;
6.Certificate:CE/FCC/ROHS
Company Information
 | Company introduction: Shenzhen Yidashun Technology Co.Ltd, founded in 2007, is a professional manufacturer dedicated to producing and sale of laptop adapter, universal laptop adapter, 12v 24V desktop adapter for LED/CCTV, AC DC power adapter, wall adapter, metal case switching power supply for LED/CCTV, USB charger, car charger ,usb wall socket,extension socket and so on.We Looking forward to be your friends and strategic partner forever!
|
Manufacturing process :
| ||
 |
Professional test: We have a series of professional test from raw material~unfinished products~finished products to control the quality seriously, each adapter make 100% check before delivery out. |
 |
Certifications
FAQ
 |
>>What is your warranty for adapters? We usually offer 1 year warranty >>What is your MOQ and sample term? our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs. >> How do you deal with defective rates? Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA. >> Can can accept OEM&ODM? yes,we can. We can customized the products,labels,package as your demands. >> What is your payment terms? we accept T/T,paypal, western union, L/C,cash...
|
