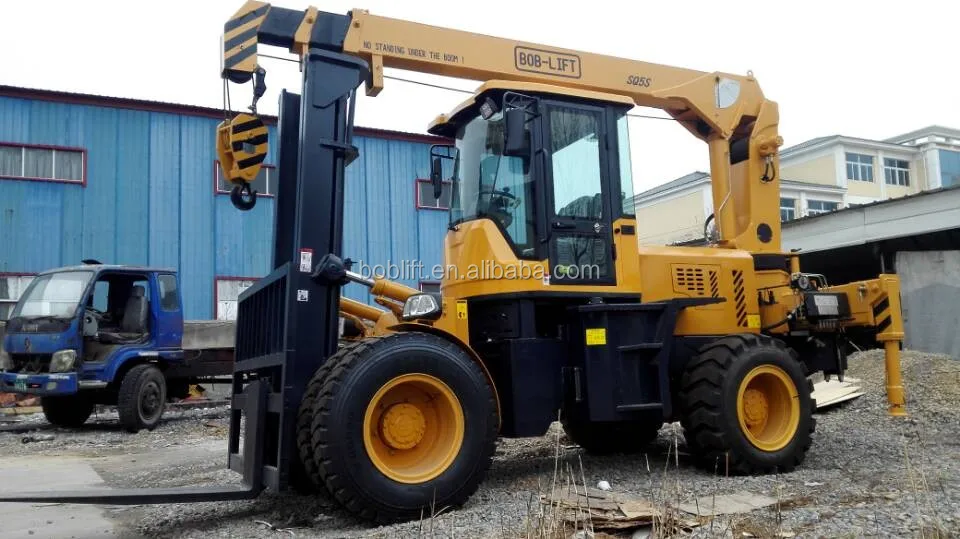

Forklift with mounted jib crane
Product Description

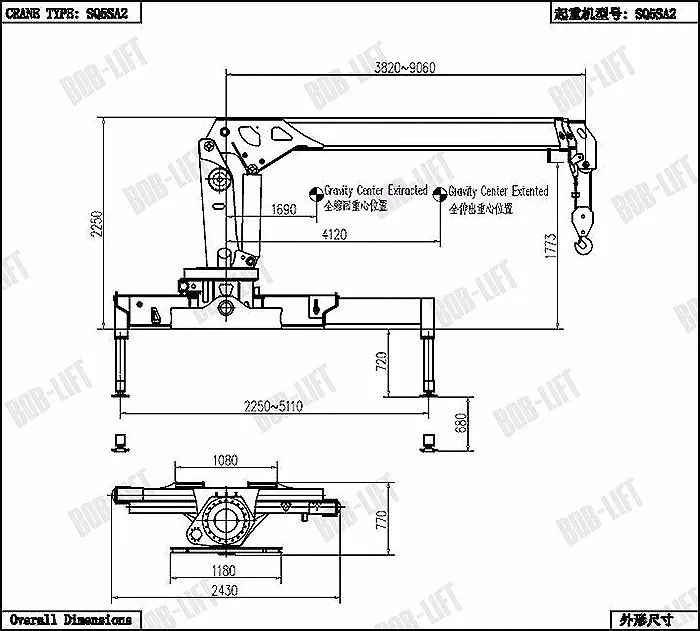

| SQ5SA2 forklift with crane | ||
| Max Lifting Capacity | Ton | 5 |
| Max Lifting Moment | Ton.m | 12.5 |
| Recommend Power | KW | 18 |
| Hydraulic System Flow | L/min | 32 |
| Hydraulic System Pressure | MPa | 20 |
| Oil Tank Capacity | L | 100 |
| Installation Space | mm | 850 |
| Self Weight | kg | 2050 |
| Rotation Angle | ° | 360 |
| YC50X11 forklift with crane | |||
| the rated load(kg) | 5000 | full-load max lifting speed(mm/s) | 600 |
| load centre(mm) | 500 | max speed(km/h) | 30 |
| max lifting height(mm) | 400 | max climbing degree(full load) | 30 |
| forward/rear tilting angle of mast | 6/12 | mini turning radius(mm) | 4500 |
| main parameters | |||
| vehicle size(mm) | 4060*1800*2750 | wheel tread | 1560 |
| Fork width | 1850 | Mini ground clearance | 270 |
| wheel base | 2250 | vehicle weight (kg) | 6300 |
| Painting | With sand blasting, painted with epoxy paint. Finished color | ||
T-Advantage
Packaging & Shipping
20'GP: 4 sets
40'GP: 8 sets
Waterproof anti-corrosion packaging
Crane Application
Company Information
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
Contact Us
If you are interested in the further details, just contact me please.
Thanks & all the best wishes for you.
