High voltage Zipper lock black color high quality heat shrink cable repair sleeve

Features and Benefits

• Quick and easy installation

• Maximum protection against mechanical stress

• Good bonding to standard cable jacket materials

• For insulation on low voltage cable up to 1000V and for

jacket repair on cable up to 35kV

• Excellent performance in harsh environmental conditions

• Hot melt adhesive forms a durable, moisture

resistant seal

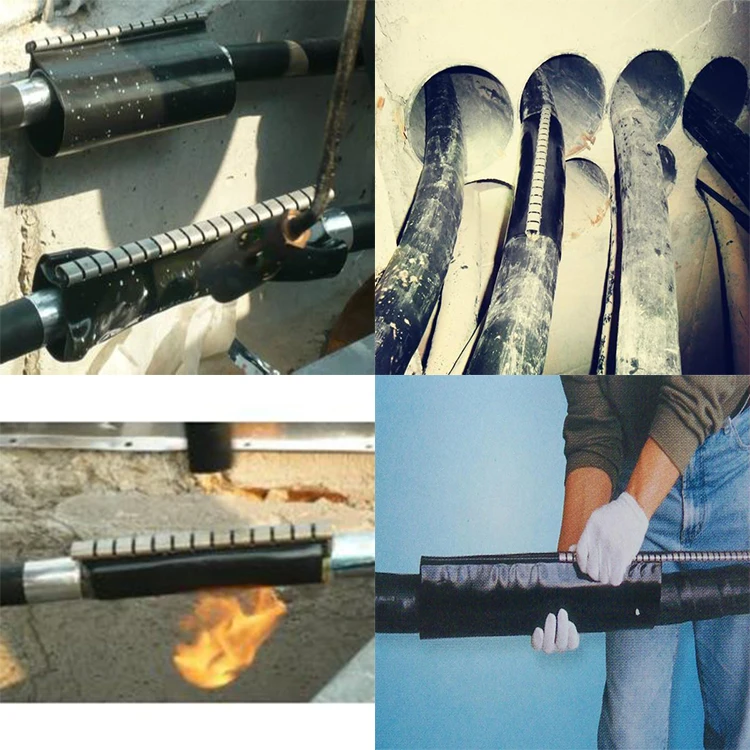

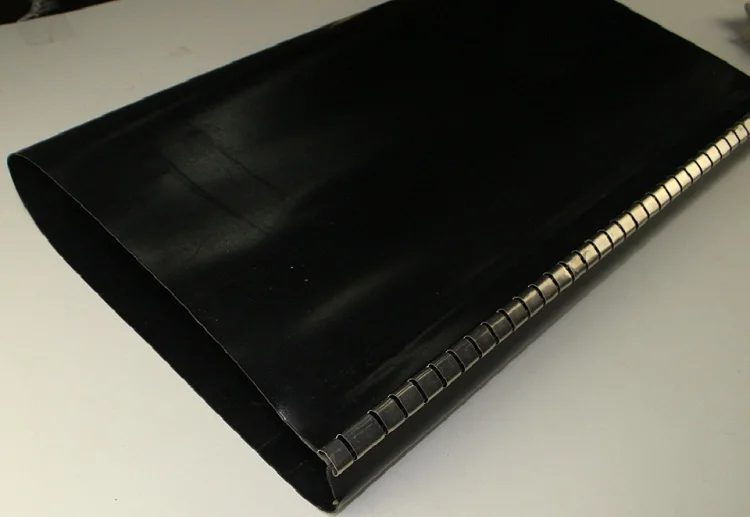

Cable repair sleeve is used to quickly repair the cable sheath layer damage, can simply and quickly damage the damaged cable jacket and insulation. It is a kind of covered sheath repair casing, simple construction, wide range of selectivity, all kinds of occasions are applicable, coated hot melt adhesive can solve the problem of sealing waterproof, insulation can achieve a complete cable insulation level.



Specification:

Type	Name	Size			Available Cable Size
		Original Diameter	Diameter after Shrink	Length
XBP 28/6-500	Heat Shrink Cable Repair Sleeve	28	6	500	7~15
XBP 36/10-500		36	10	500	12~20
XBP 50/15-600		50	15	600	20~40
XBP 60/18-700		60	18	700	30~50
XBP 70/22-800		70	22	800	35~60
XBP 80/25-900		80	25	900	40~70
XBP100/30-900		100	30	900	50~90
XBP 135/35-900		135	38	900	60~120
XBP 164/45-900		164	45	900	80~150
XBP 185/55-900		185	55	900	90~170
XBP 200/60-900		200	60	900	100~180
XBP 220/65-900		220	65	900	120~210
Can be custom design, supplied by the customer request.
