Ультратонкий 7-сегментный светодиодный дисплей JSTRONIC smd 3-значный 0
- Категории: >>>
- Поставщик: Ningbo,Junsheng,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant

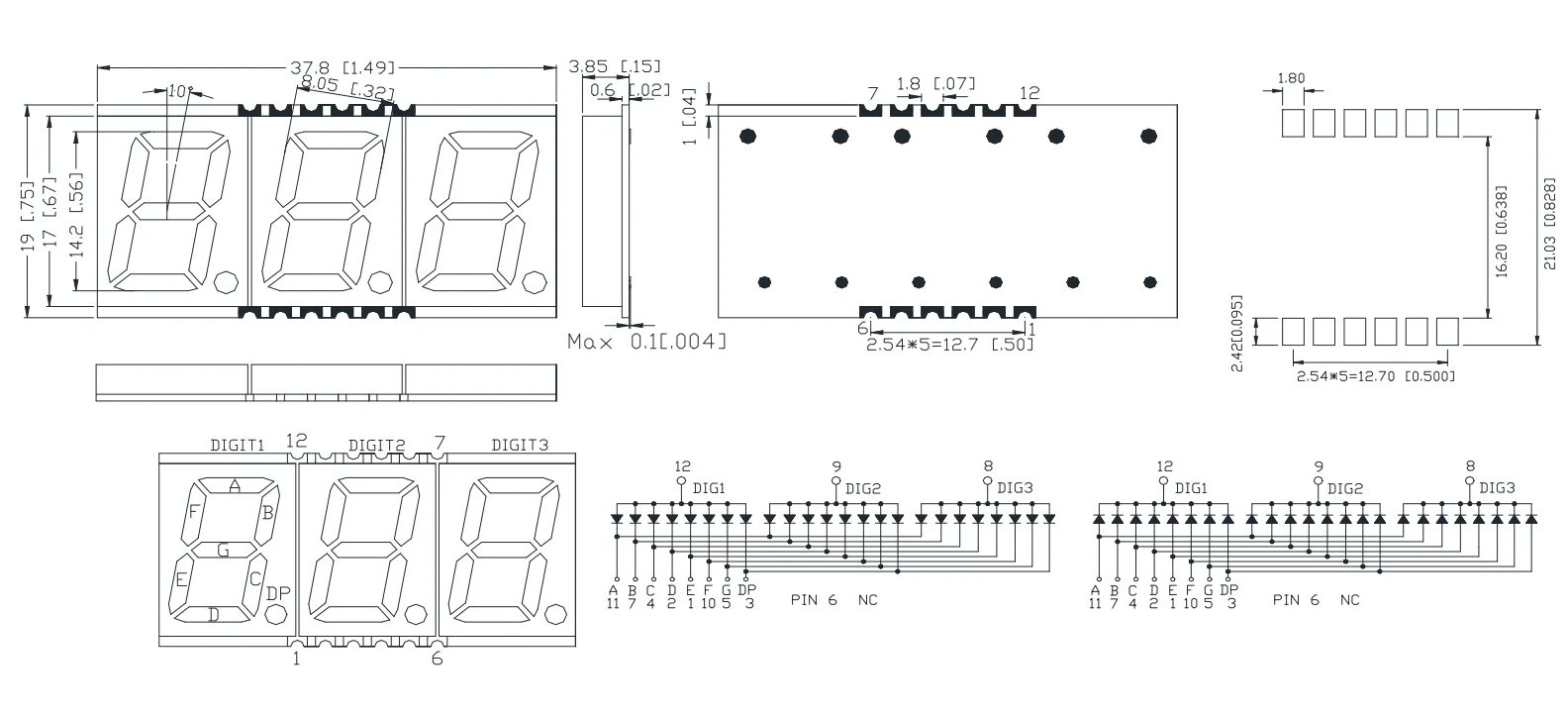

*0.56 inch 7 segment 3 digits smd display
Triple digit 0.56 inch 3 digit 7 segment led smd display full color available
Electro/Optical Characteristics If=20mA Ta=25 C
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*0.56 inch 7 segment 3 digits smd display
Triple digit 0.56 inch 3 digit 7 segment led smd display full color available
Electro/Optical Characteristics If=20mA Ta=25 C
Part Number | EMITTED COLOR | Peak Wavelength (mn) | Vf(V) | Iv(mcd) | ||||||
Common Cathode | Common Anode | Type | Max | Min | Typ | |||||
JSS-5630AUR | JSS-5630BUR | AlGaInP/GaAs Super red | 630 | 2.0 | 2.5 | 10 | 20 | |||
JSS-5630ASR | JSS-5630BSR | AlGaInP/GaAs Ultra red | 625 | 2.0 | 2.5 | 40 | 80 | |||
JSS-5630AUA | JSS-5630BUA | AlGaInP/GaAs Ultra Amber | 605 | 2.0 | 2.5 | 40 | 60 | |||
JSS-5630AUY | JSS-5630BUY | AlGaInP/GaAs Ultra Yellow | 590 | 2.0 | 2.5 | 40 | 60 | |||
JSS-5630AUG | JSS-5630BUG | AlGaInP/GaAs Yellow Green | 574 | 2.0 | 2.5 | 10 | 15 | |||
JSS-5630APG | JSS-5630BPG | InGaN/Sic Pure Green | 525 | 3.2 | 3.8 | 150 | 200 | |||
JSS-5630AUB | JSS-5630BUB | InGaN/Sic Ultra Blue | 470 | 3.2 | 3.8 | 40 | 50 | |||
JSS-5630AUW | JSS-5630BUW | InGaN/Sic Ultra White | ----- | 3.2 | 3.8 | 200 | 400 | |||

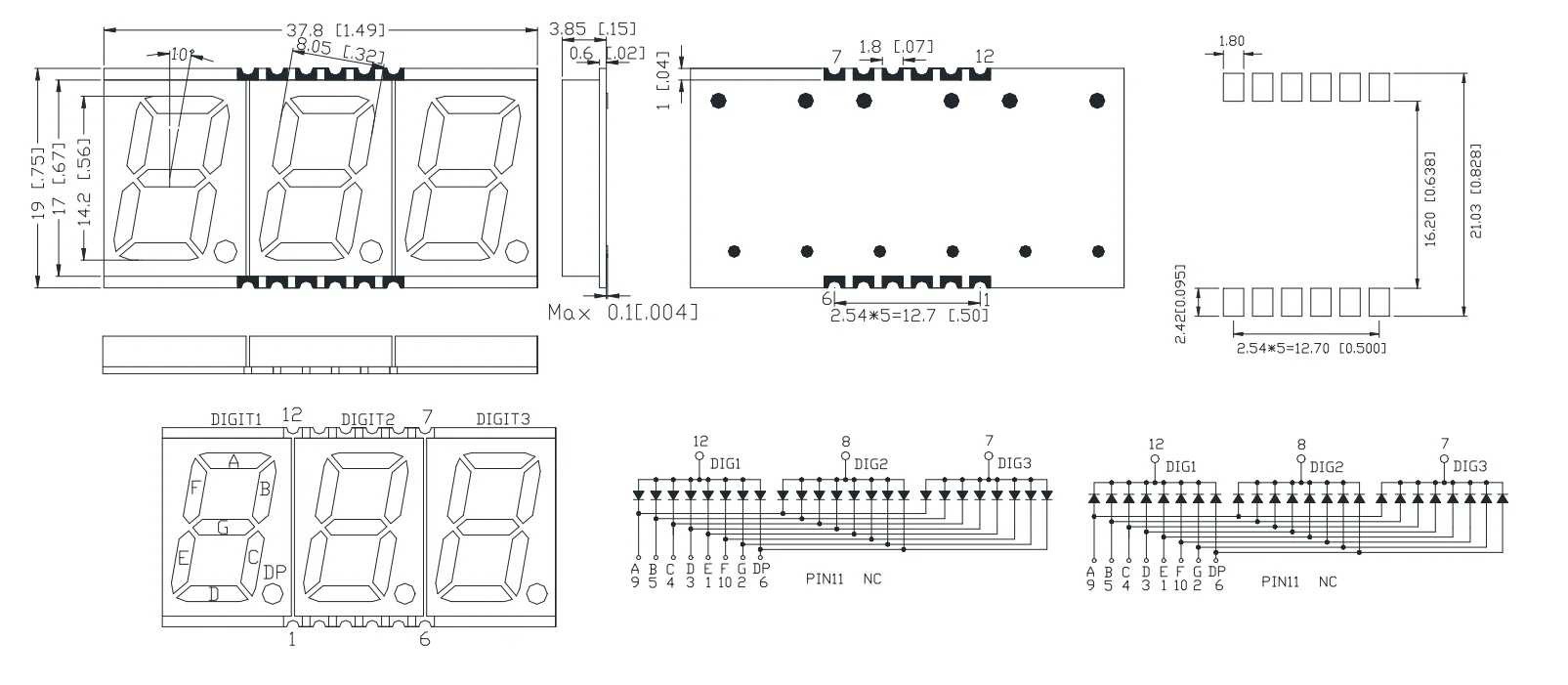

0.56 inch Triple digits 7 segment second Circuit(5632 Series):
Related Product
1.We can supply all kinds of SMD 7 segment led display from 0.2 inch to 0.8 inch
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused
Application & Delivery
Company Profile
FAQ
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now
Welcome to visit our factory.
For more details or free samples testing,please"send"now
