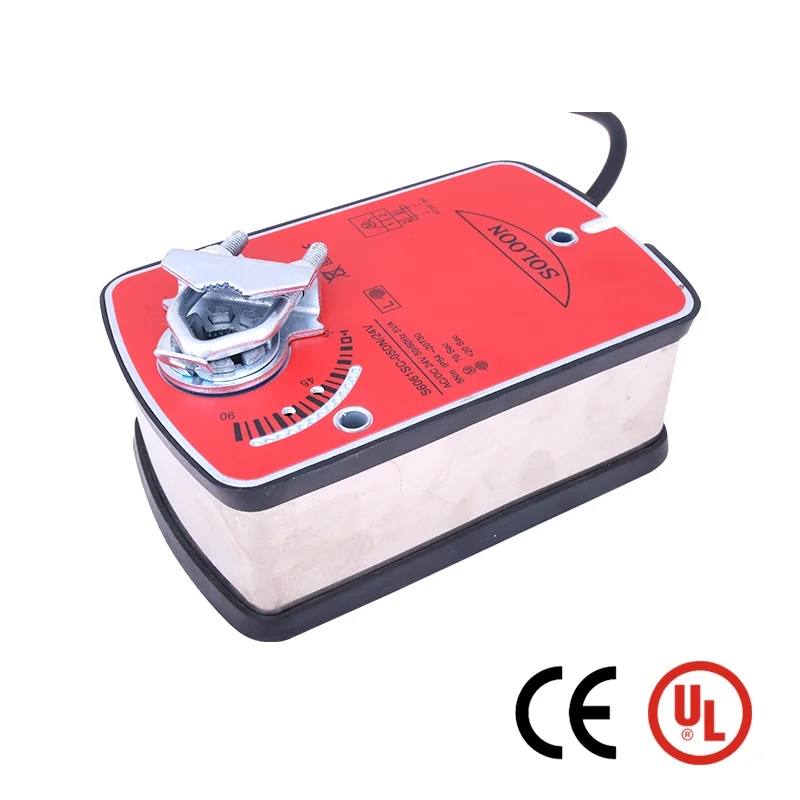

Системы ОВКВ 5 нм привод пружинного возвратного демпфера

Torque

Damper Area

1m²

Running Time

Motor 75S,Spring Return 20S

Power Supply

24VAC/DC 50/60Hz

90~250VAC 50/60Hz

Operating Power Consumption

  5W

Wire Size

10VA

Control Signal

On/off

Angle of Rotation

5~85º(Per step 5º)

Rotate Direction

0~90°(Max 93º)

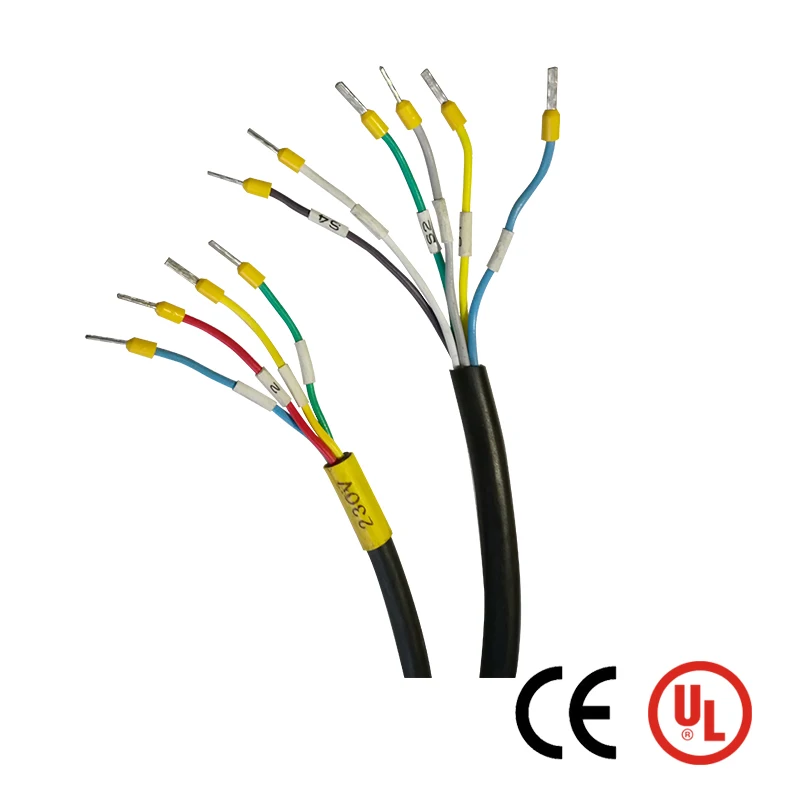

Connection Cable

1m cable 6*0.5 m² or 3*0.5 m²

Auxiliary switch (F):1m cable 6*0.5 m² or 3*0.5 m²

Life Cycle

Noise Level

50dB(A) and 62dB(A)

Electric level

Ⅲ

Ⅱ

IP Protection

IP54

Temperature

-20~+50℃

Humidity

Storage Temperature

Certificate
