Product Description

50tons heavy duty rotate wrecker for sale

heavy duty 40 tons to 60 tons

*360° ROTATION wrecker *

Type: the towing and the crane combined together .

Truck name	HOWO wrecker	Overall dimension	1131025003200mm
Total mass	31000kg	Curb weight	20770kg
Chassis model	ZZ1317N4667D1H	Max speed	102km/h
Front track	2022/2022,2041/2041	Rear track	1830/1830
Wheelbase	1800+4600+1350	Tyre size	315/80R22.5 16PR
Wheel load	6500/7000/17500	F/R hanging	1500/2060,1500/2180
Engine model	D10.34-40	Standard	Euro IV
Engine manufacture	HOWO	Horsepower	338hp

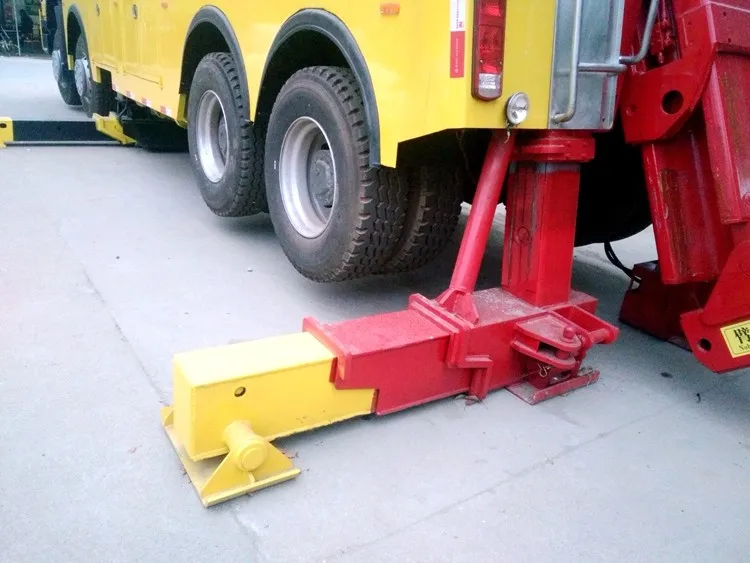

This truck can loading a 50tons car And the crane have 2 12.5tons winch . Configuration :Towing separate hanging tops can rotate 360 °, three hexagonal boom, three corbel, the maximum towing mass 48 tons , maximum hoisting capacity 25 tons, fully extended horizontal state is the largest lifting 12.5 tons, the largest crane lifting 40 tons, Fully extended the maximum lifting capacity is 4.5Tons, the maximum lifting height of 12070mm, split compartment, bilateral linkage operation, open front legs, telescopic rear leg. Bilateral linkage operation device with the remote operation device (remote control) front bumper assembly weight, rear three working lights, two 150KN hydraulic winch (15 tons) ,40m rope, a wash tank, U-shaped holding tire. Forks 5 pairs, one pair of yoke bracket, chain hook 2, a long row of engineering lights (LED) ,1 set assist lamp . 1 set of auxiliary brake pipe assembly.

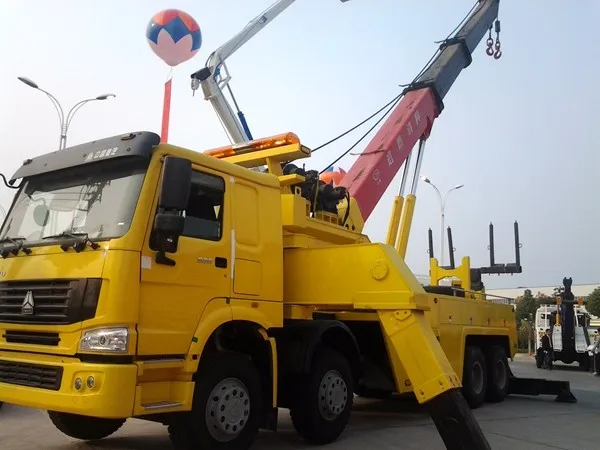

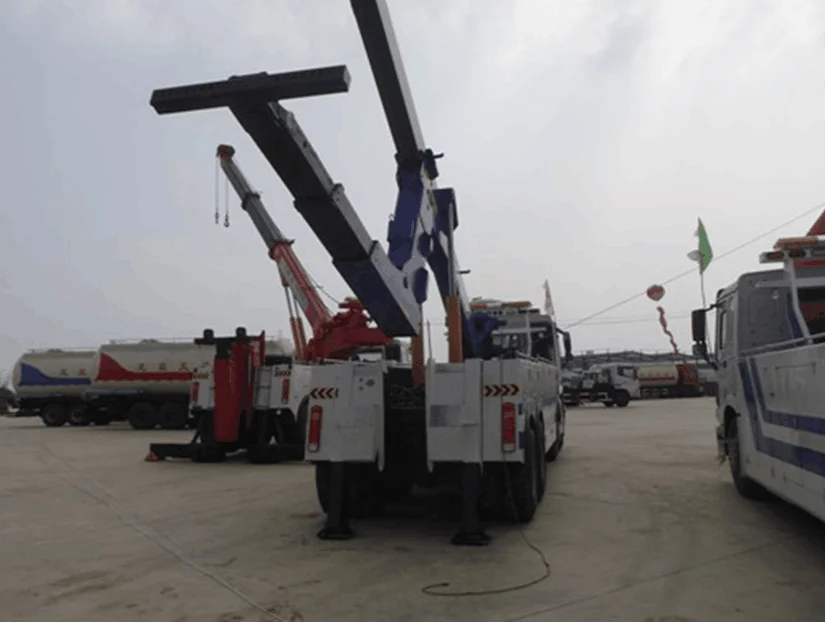

Detailed Images

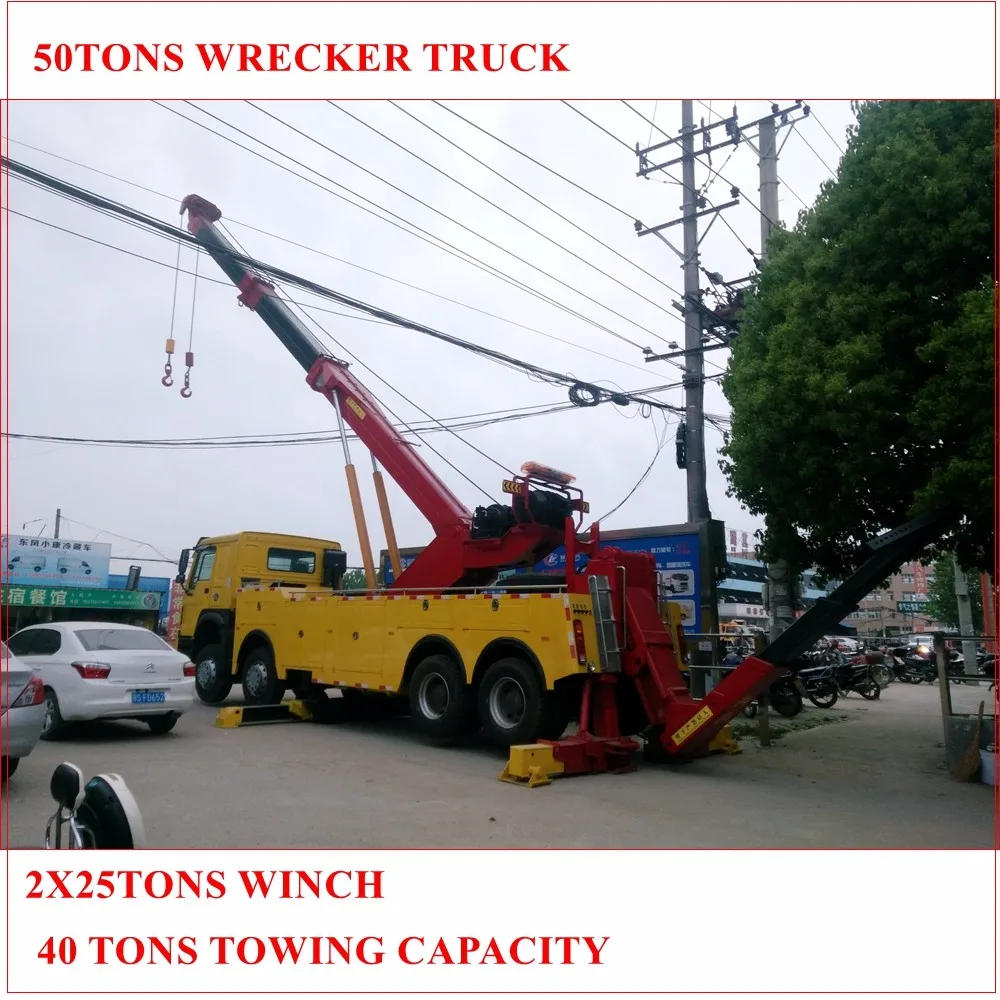

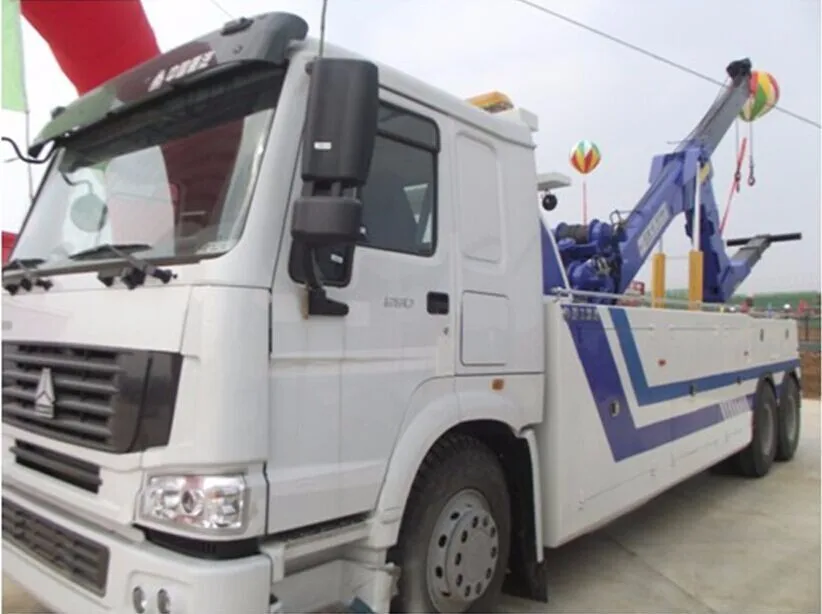

HEAVY DUTY WRECKER

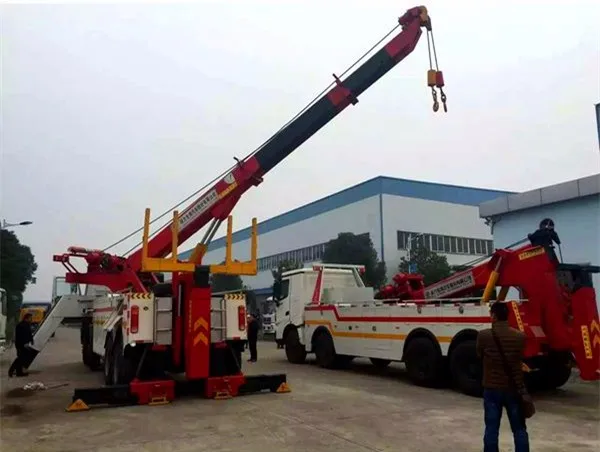

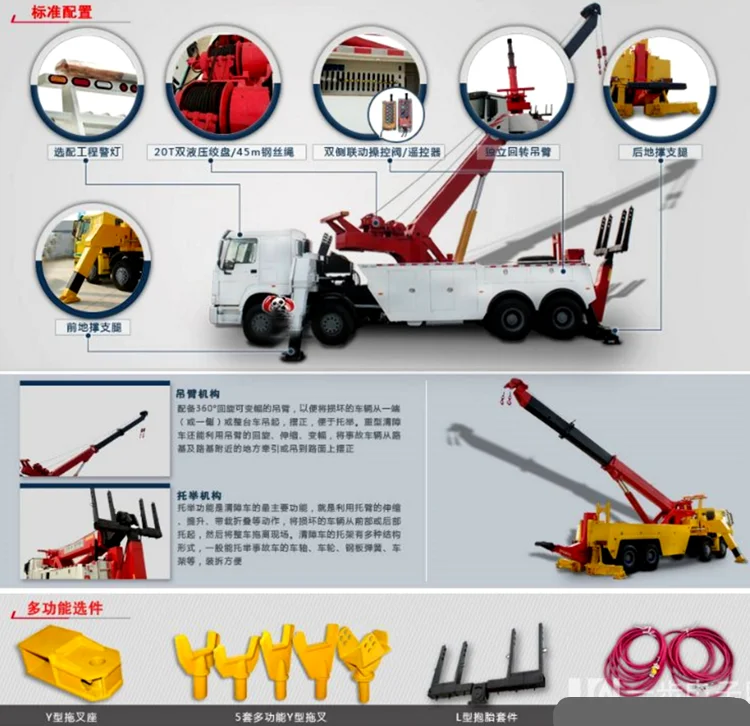

60tons heavy duty wrecker truck configuration

Packing & Delivery

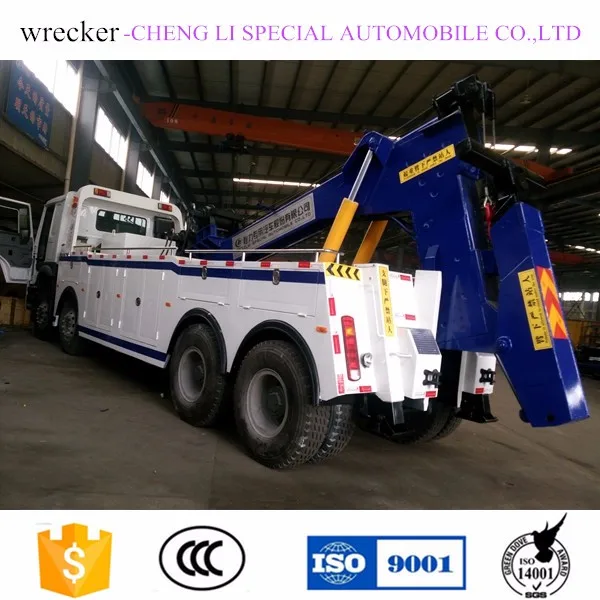

wrecker tow truck

WRECKER .

This truck can loading a 40 tons car
And the crane have 2 *10 tons winch .
Configuration :Two section type hexagonal boom,Three corbel,Split car box, bilateral linkage operation equipment, two 10 tons hydraulic winch, 45 m rope,diameter 18 mm, four sets iron Fork, 1 set Palette fork , 1 set steel lug forks, 1 warning light, 1 set assist lamp, 1 set assist tracha .
