Popular Solar Swimming Pool Pumps
DC Solar Pool Water Pump
( Solar Pumps | Solar pool Pumps | solar swimming pool pumps )
( Model :DLP15-14-48-500)
What is the advantage of solar water pump?
1) The whole system consists of solar panel array, controller and solar pump.
2) DC brushless motor, good quality.
3) IP65 water proof controller with MPPT, high efficiency.
4) Over voltage, over current, short circuit etc. protection.
5) water level sensors prevent dry pumping and tank full.
6) Star and stop automatically, soft start.
7) DC&AC input , (AC input optional, electricity or generator ).
8) Remote control system, (RMS optional ).
2) DC brushless motor, good quality.
3) IP65 water proof controller with MPPT, high efficiency.
4) Over voltage, over current, short circuit etc. protection.
5) water level sensors prevent dry pumping and tank full.
6) Star and stop automatically, soft start.
7) DC&AC input , (AC input optional, electricity or generator ).
8) Remote control system, (RMS optional ).

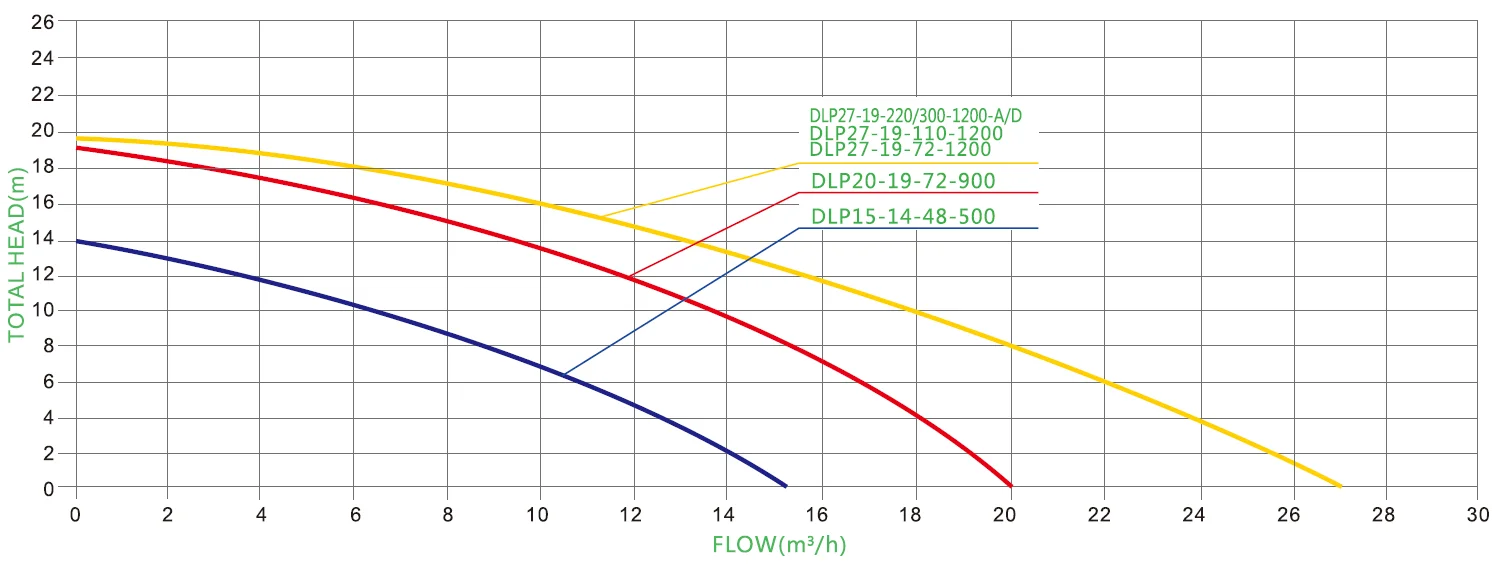

Parameter
500w dc pool pump solar water pump for swimming pools 17L pool pumps
Model | Power（w） | voltage(V) | max head(M) | max flow(M3/h) | outlet(inch) |
DLP15-14-48-500 | 500 | 48 | 14 | 15 | 2 |
DLP20-19-72-900 | 900 | 72 | 19 | 20 | 2 |
DLP27-19-72-1200 | 1200 | 72 | 19 | 27 | 3 |
DLP27-19-110-1200 | 1200 | 110 | 19 | 27 | 3 |
Products Description

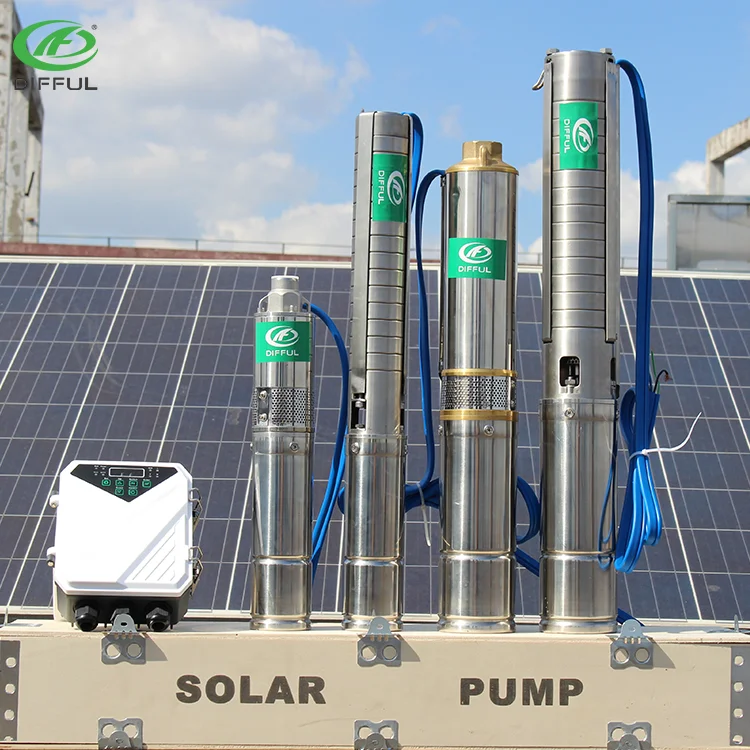

Solar Water Pump System Complete Set:
1. Intlet/ Outlet/ Pump Body/ Impeller:Brass
2. Motor Body: Die-cast Aluminum
3. Bear: NSK/ Screw: 316 stainless steel
4. Motor: Permanent Magnet Brushless DC Motor{Without Hall}
5. Controller: 32bit MCU/ FOC/ Sine Wave Current/ MPPT
6. Controller Shell: Die-cast Aluminum{IP67}
7. Time of warranty: 2 years
2. Motor Body: Die-cast Aluminum
3. Bear: NSK/ Screw: 316 stainless steel
4. Motor: Permanent Magnet Brushless DC Motor{Without Hall}
5. Controller: 32bit MCU/ FOC/ Sine Wave Current/ MPPT
6. Controller Shell: Die-cast Aluminum{IP67}
7. Time of warranty: 2 years

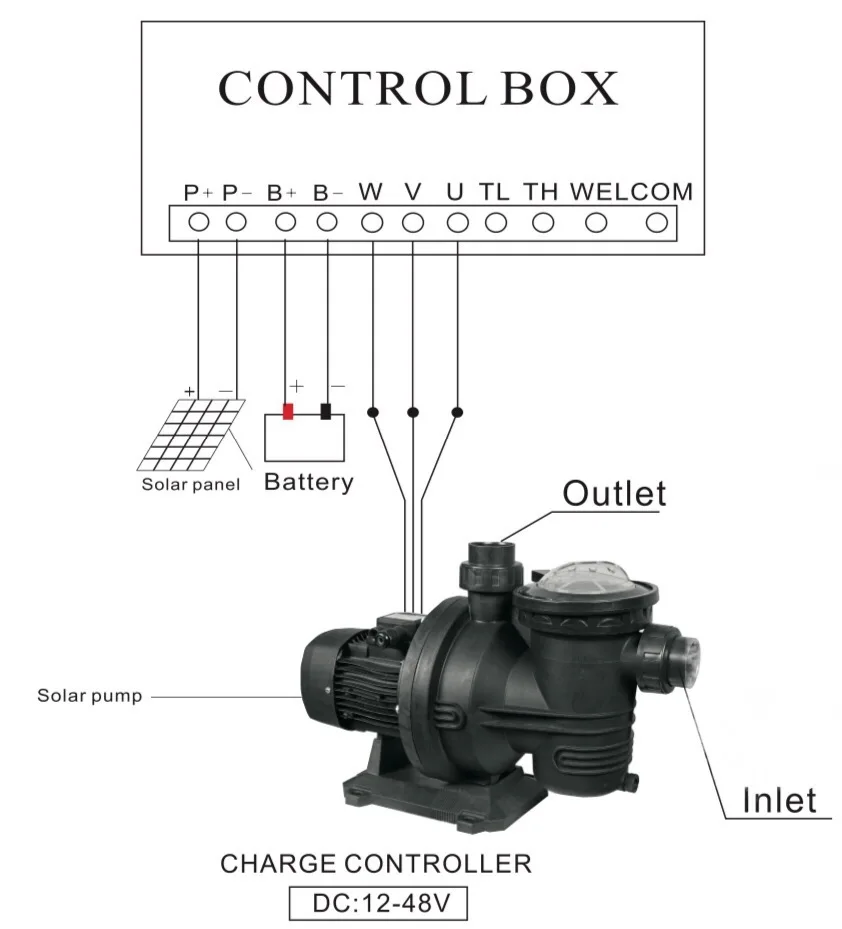

How to connect the solar pumps:
Solar panels connect P+ P-.
Pump connect U V W
Very simple connection.
Pump connect U V W
Very simple connection.
Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Tips2: Before you start wiring the controller box, switch must be in the off position
HOW TO CHOOSE AND CONNECT SOLAR PANEL:
The solar panels power should be more than 1.3times for the motor power
Motor voltage (V) | Motor power (w) | Solar panel (w) | Solar panels quantity(PCS) | Connection |
48v | 500 | 300 | 2 | series |
72v | 900 | 330 | 3 | parallel |
110v | 1200 | 330 | 4 | parallel |

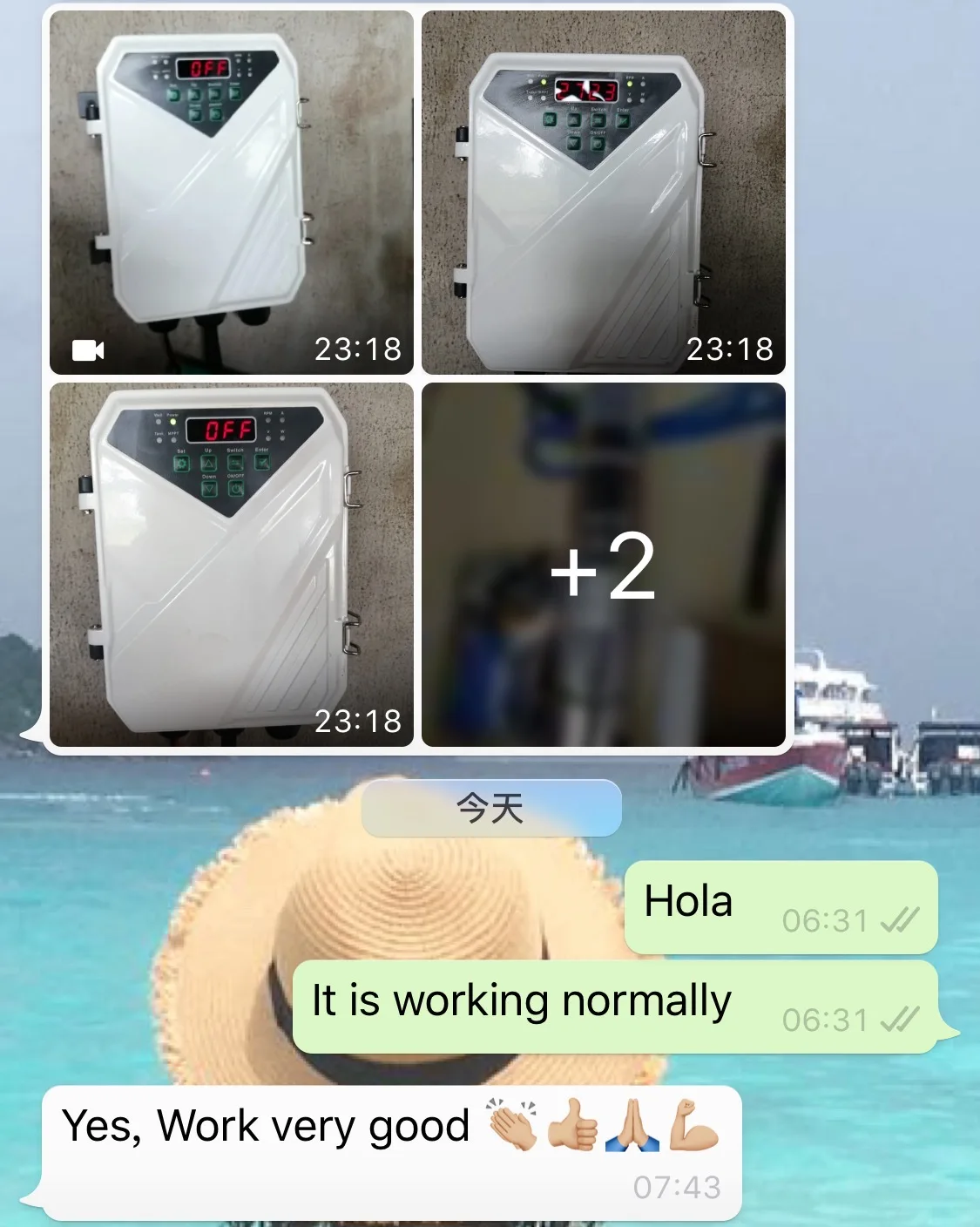

Customers feedback
500w dc pool pump solar water pump for swimming pools 17L pool pumps

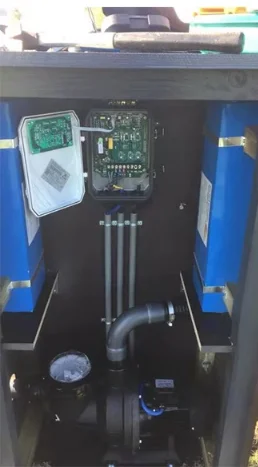

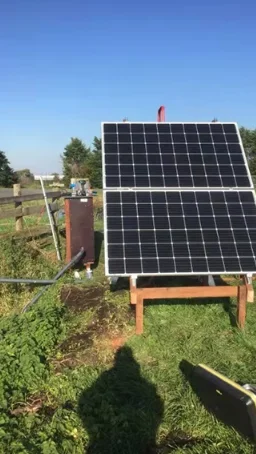

Dutch customers purchased a 500W solar pool pump for river irrigation. The solar pump of this model DLP15-14-48-500 has a maximum flow of 15m³/h and a maximum lift of 14m. Two 350W solar panels can be configured to work well. The Dutch customer owns a vegetable plot by the river and he hopes to set up a solar irrigation system to pump water from the river to water his vegetable field. This solar pool pump draws water from the river and filters out the sediment and impurities in the river through the filter. The system operates fully automatically, does not require grid and fuel, and has low operating costs. The customer was very satisfied with our solar pool pump and he told us that the pump works very well.

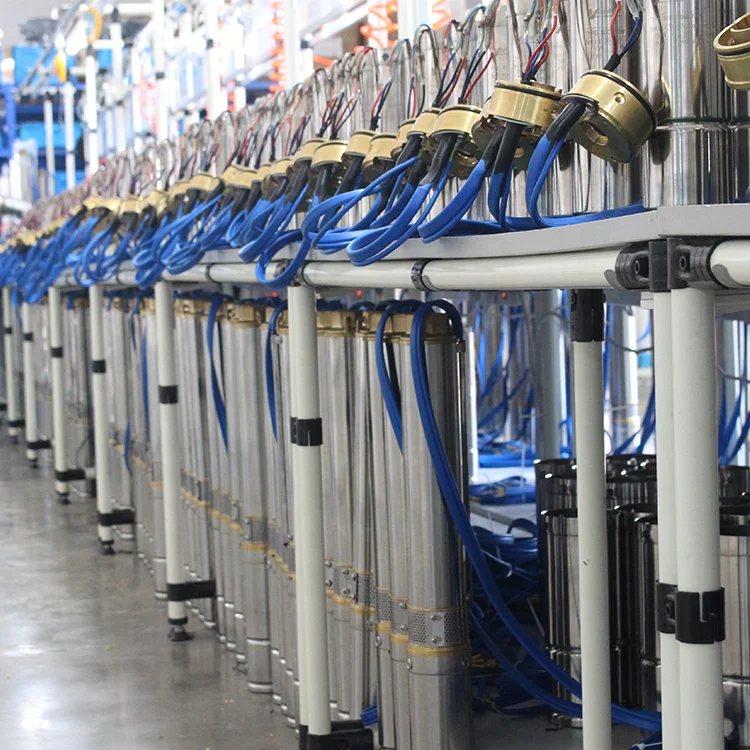

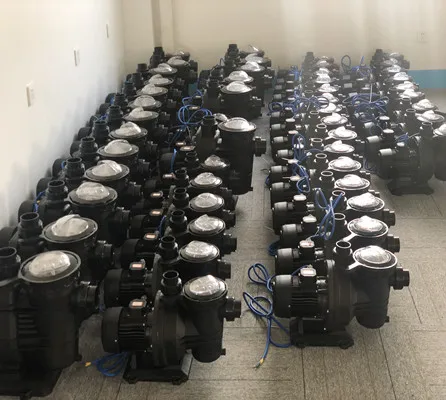

About us
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day
difful pump will exist in every corner of the world by means of its reliable quality and good reputation.By the way,DIFFULsincerely welcomes all the friend to visit our company and hopes to have a good communication and double-winpartnership with all
of you cause dingfeng pump is always on the way to be better! Your views are the driving forces of DIFFUL! I hereby on behalf of
all the members of Dingfeng, thank all of you for the long-term supporting and concerning of our growth.

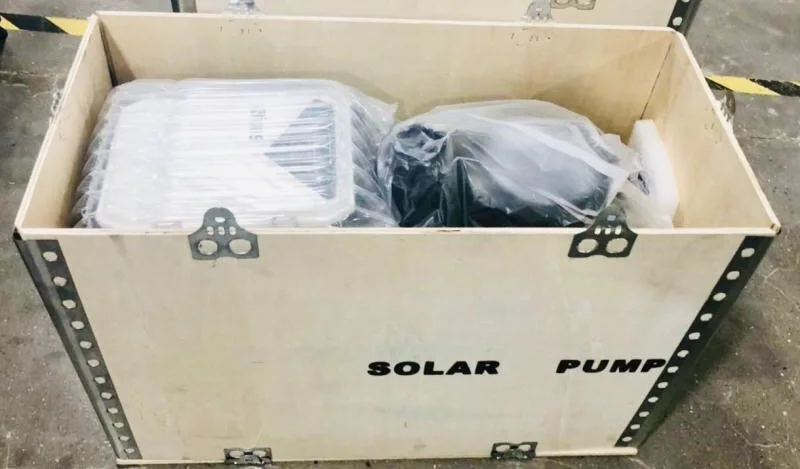

Packing
Packages of swimming pool pumps water pump
1. All of our solar powered water pump for swimming pool s are packed by the standards wooden box complied with the exportation
requirement; 2. The wooden box more than 50 pcs of solar powered water pump for swimming pool can also packed by wooden pallet; We
have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also
cooperate with many scientific research institutions and universities to ensure the new products researchment.
requirement; 2. The wooden box more than 50 pcs of solar powered water pump for swimming pool can also packed by wooden pallet; We
have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also
cooperate with many scientific research institutions and universities to ensure the new products researchment.
FAQ
1.Q: Are you a manufacturer or trading company?
A:We are a manufacturer that specialized in water pump. our products have abtained the CE and CQC,CCC certificate.
2.Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing can be deducted in your first large order.
3.Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation
4.Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
5.Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
