FFU Inline Duct Inverter Hepa Fan Filter Units

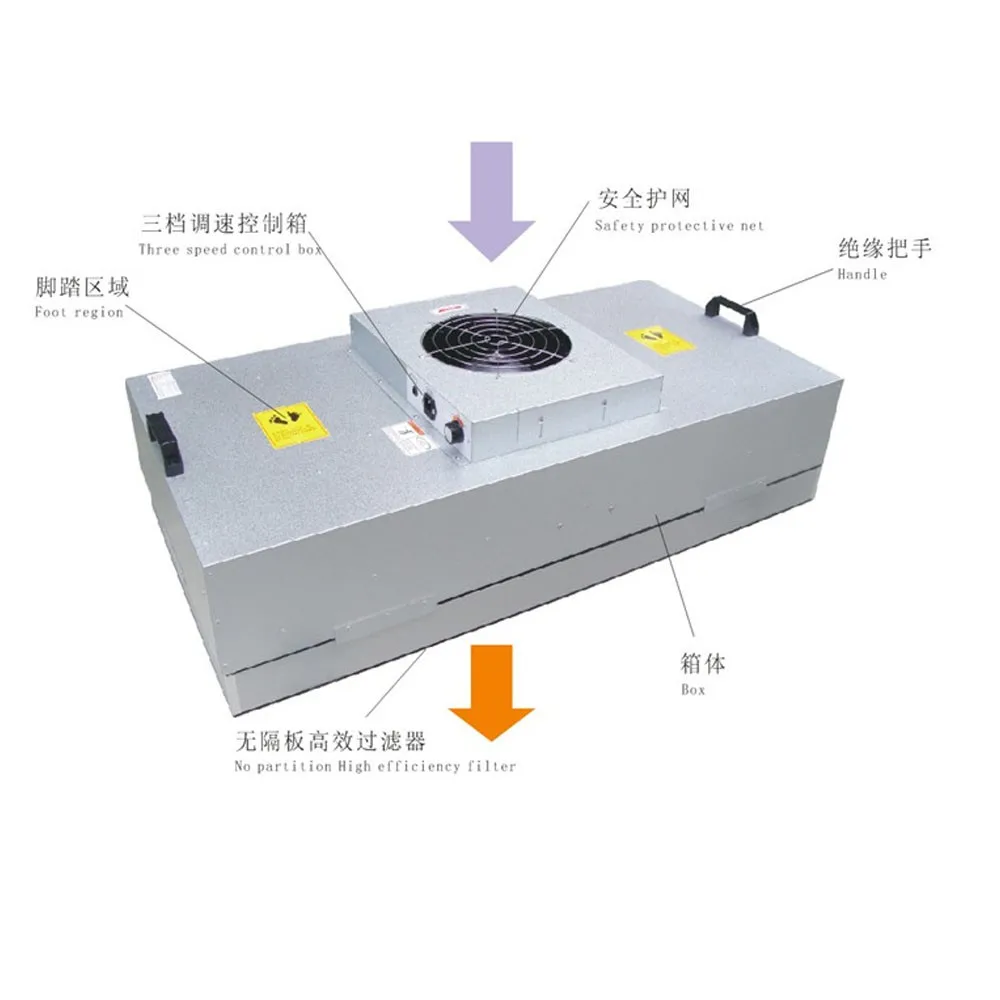

Hepa Fan Filter Unit which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.



Application

FFU’s are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…



Features

• Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.


• High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.


• Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.


• Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...


• Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.


• Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.




Hepa Fan Filter Unit Specification and technical parameters

Model			FFU-1175		FFU-575	FFU-615
Dimension		mm	575*1175*320		575*575*320	615*615*320
air filter size		mm	575*1170*69		570*570*69	610*610*69
air Volume		m³/h	700-1800		350-900	350-950
External static pressure		Pa	98		98	98
Main body		-	Standard	cold rolled steel plate with powder coated
			Option	Stainless steel Galvanized steel Aluminum coated zinc plate SUPER GALUM
Power supply	Standard	V/Hz	220V 50Hz
	Option	V/Hz	Pls contact us if you have any other requirement about the power.
	Output poewr	W	140-150
Filter	Efficiency	-	HEPA Over 99.99% @ 0.3um
		-	ULPA Over 99.9995% @ 0.1um
	Frame	-	Aluminum
Shock		m/s2	≤0.4
Noise		Db(a)	≤55
Option		-	Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter
Speed Control: Stepless Speed Control /Three Speed Control



Special size can be customized.

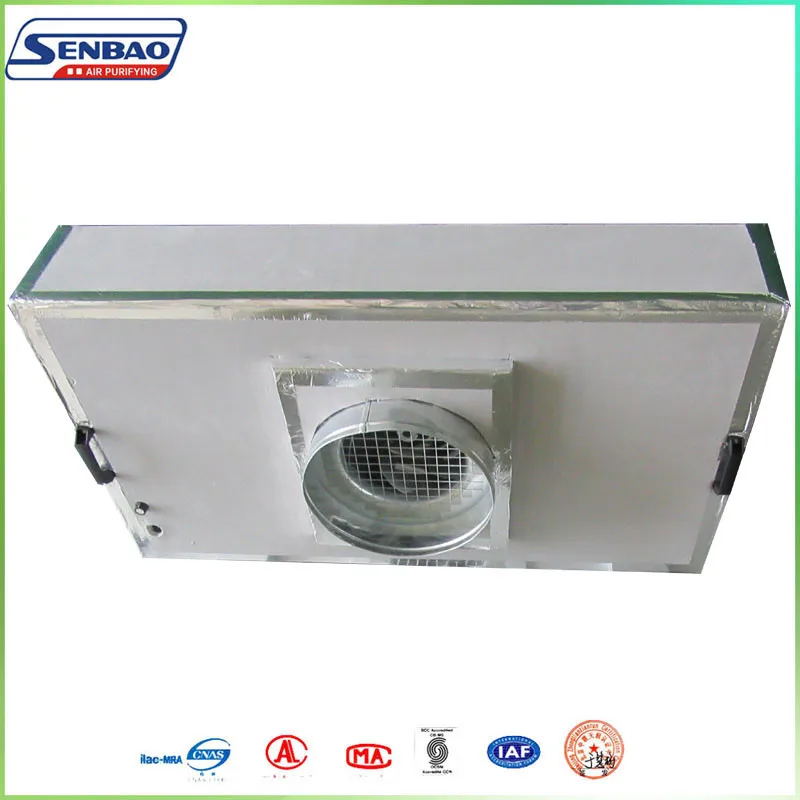

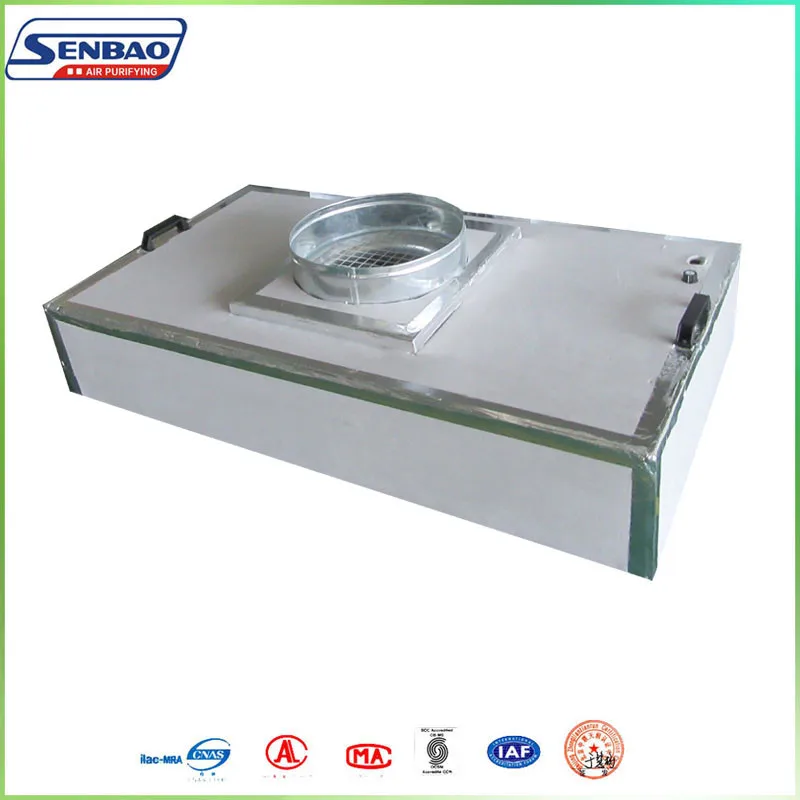

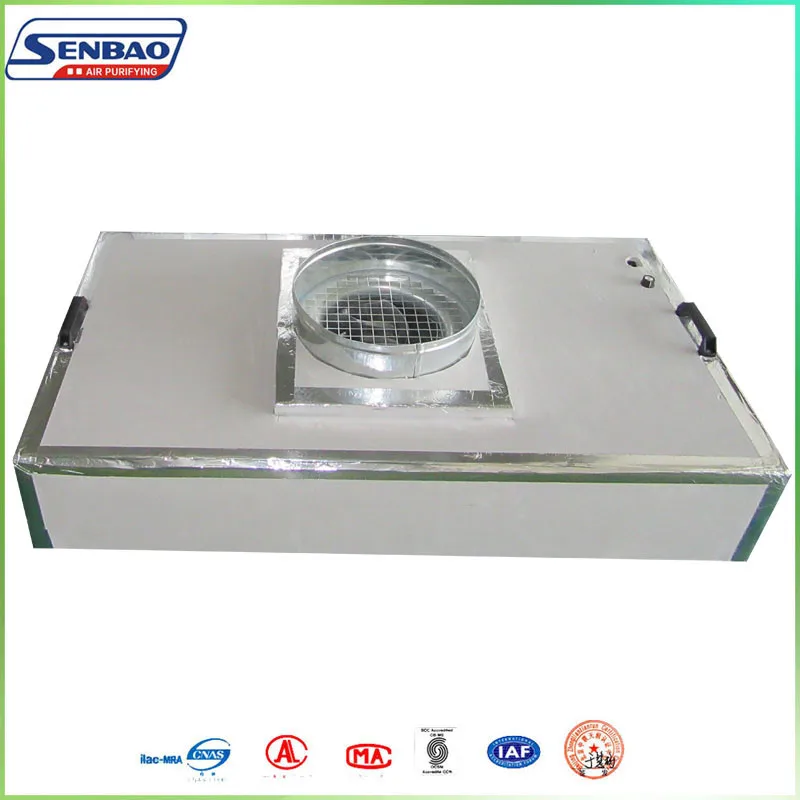

Product show

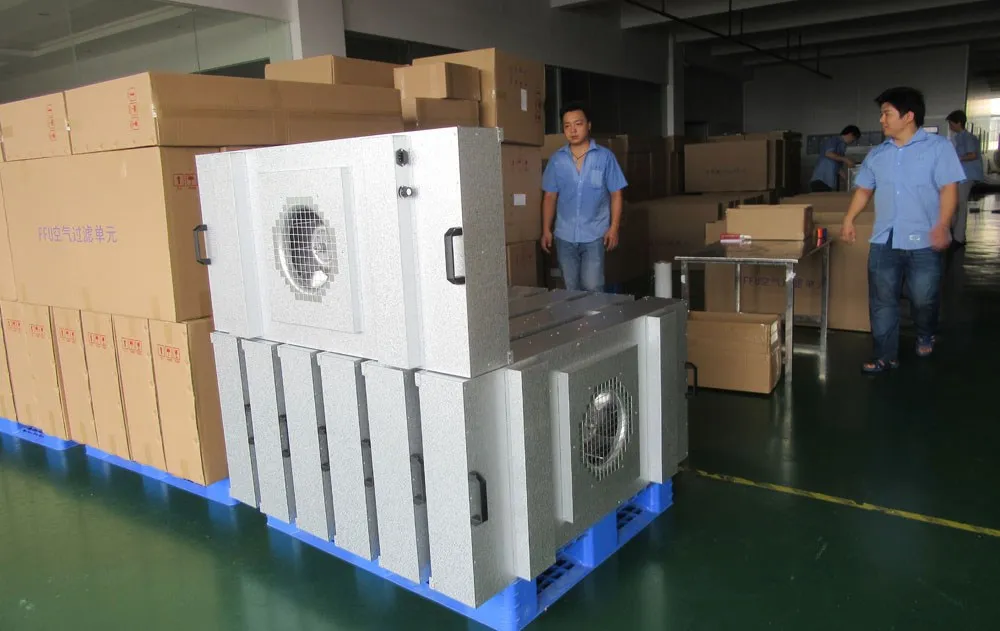

 We have advanced air filter production equipment, testing equipment and excellent quality control to guarantee the high quality.
