Flexible stainless steel bellow tube /hose/pipe with high temperature~
Product Description
Size range: DN6 till DN600
Material: ss304, ss321,ss316L, etc.
Application: water, gas and steam
Hose type: annular corrugated
Construction: Annular / Close Pitch
Profile: Medium Flexibility / Medium Pressure
Braided mesh layer: single layer or double layers
Connect type: flange/thread/quick coupling
Thread Standard: NPT/BSP, Flange standard: ANSI,JIS,DIN,GOST etc.SP
Flange material: stainless steel or carbon steel
Material: ss304, ss321,ss316L, etc.
Application: water, gas and steam
Hose type: annular corrugated
Construction: Annular / Close Pitch
Profile: Medium Flexibility / Medium Pressure
Braided mesh layer: single layer or double layers
Connect type: flange/thread/quick coupling
Thread Standard: NPT/BSP, Flange standard: ANSI,JIS,DIN,GOST etc.SP
Flange material: stainless steel or carbon steel
No. | Description | Size | Material | Working pressure | Layer of braids | Flange Standard | Total of Length |
1 | Braided flexible metal hose with flanges | DN150 | ss304 | 16bar | 2 | DN150-DIN PN16 one side is fixed Flange,the other side is movable | 10000mm |
2 | Braided flexible metal hose with flanges | DN200 | ss304 | 40bar | 3 | DN200-DIN PN40 one side is fixed Flange,the other side is movable | 8000mm |
Production Process
Stainless steel strip

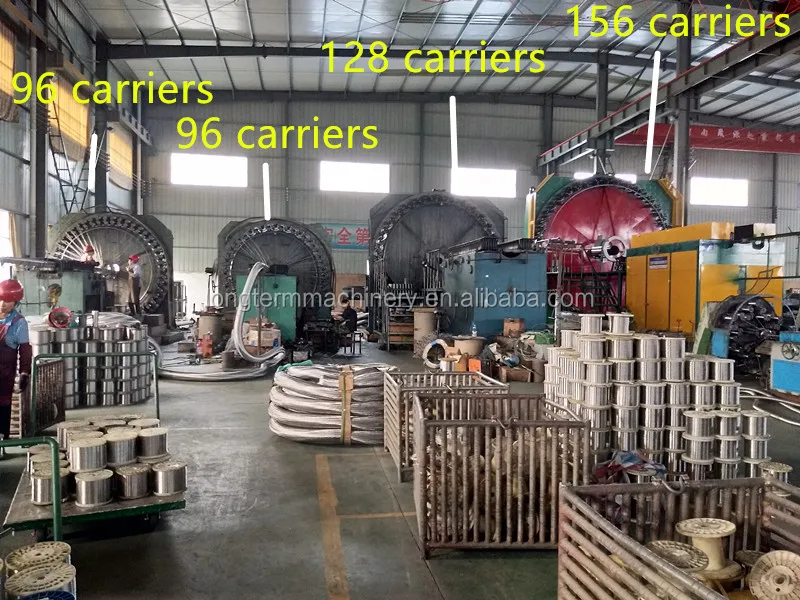

Tube making
Convolution Forming
Braiding
Welding
Testing
Specification
DN | ID(mm) | OD(mm) | Pitch distance(mm) | Wall thickness(mm) | Weight(KG/M) |
6 | 6 | 8.8 | 0.2 | 0.08 | |
8 | 7.80 | 11.3 | 3 | 0.2 | 0.09 |
10 | 11.00 | 15.7 | 3 | 0.2 | 0.1 |
12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |
40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
65 | 64.4 | 81 | 9 | 0.3 | 1.2 |
80 | 79.2 | 98 | 10.5 | 0.4 | 2 |
100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
125 | 124 | 150 | 14.5 | 0.5 | 3.9 |
150 | 149 | 180 | 17.5 | 0.5 | 4.3 |
200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
250 | 248.4 | 300 | 28 | 0.8 | 11 |
300 | 298 | 355 | 33.5 | 1 | 17.5 |
350 | 348 | 410 | 35 | 1 | 20 |
Construction of Flexible Metal Hose
Inner Core: Corrugated Stainless Steel
•Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
• Stainless steel tubing formed into corrugations parallel to one another
•Helical / Convoluted option available upon request
Outer Core: Braided Stainless Steel Layers
•Purchase corrugated core hose with no layers, single or double braided
•Flexible metal hose outer braid layers made from 304 stainless steel
•See braid layer code key at the bottom of this table
Benefits of Flexible Metal Hose
•All metal hose - corrugated stainless steel core, sold standalone or with braided steel layers
•Pressure tolerances include full vacuum to those listed in the spec table below
•Application Temperature ratings from Cryogenic to 1500° F
•Meets or exceeds ISO 10380 at the maximum working pressure
•Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
• Stainless steel tubing formed into corrugations parallel to one another
•Helical / Convoluted option available upon request
Outer Core: Braided Stainless Steel Layers
•Purchase corrugated core hose with no layers, single or double braided
•Flexible metal hose outer braid layers made from 304 stainless steel
•See braid layer code key at the bottom of this table
Benefits of Flexible Metal Hose
•All metal hose - corrugated stainless steel core, sold standalone or with braided steel layers
•Pressure tolerances include full vacuum to those listed in the spec table below
•Application Temperature ratings from Cryogenic to 1500° F
•Meets or exceeds ISO 10380 at the maximum working pressure
Details Images
Corrugated metal hose welding lines
Flange joint welding line
Braiding details
Packing & Delivery

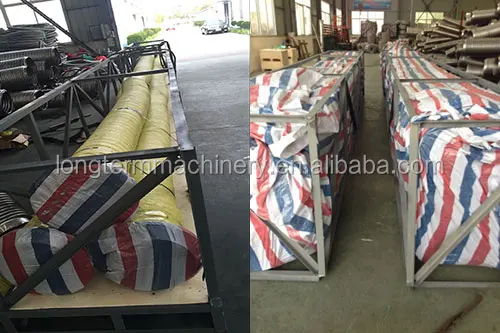

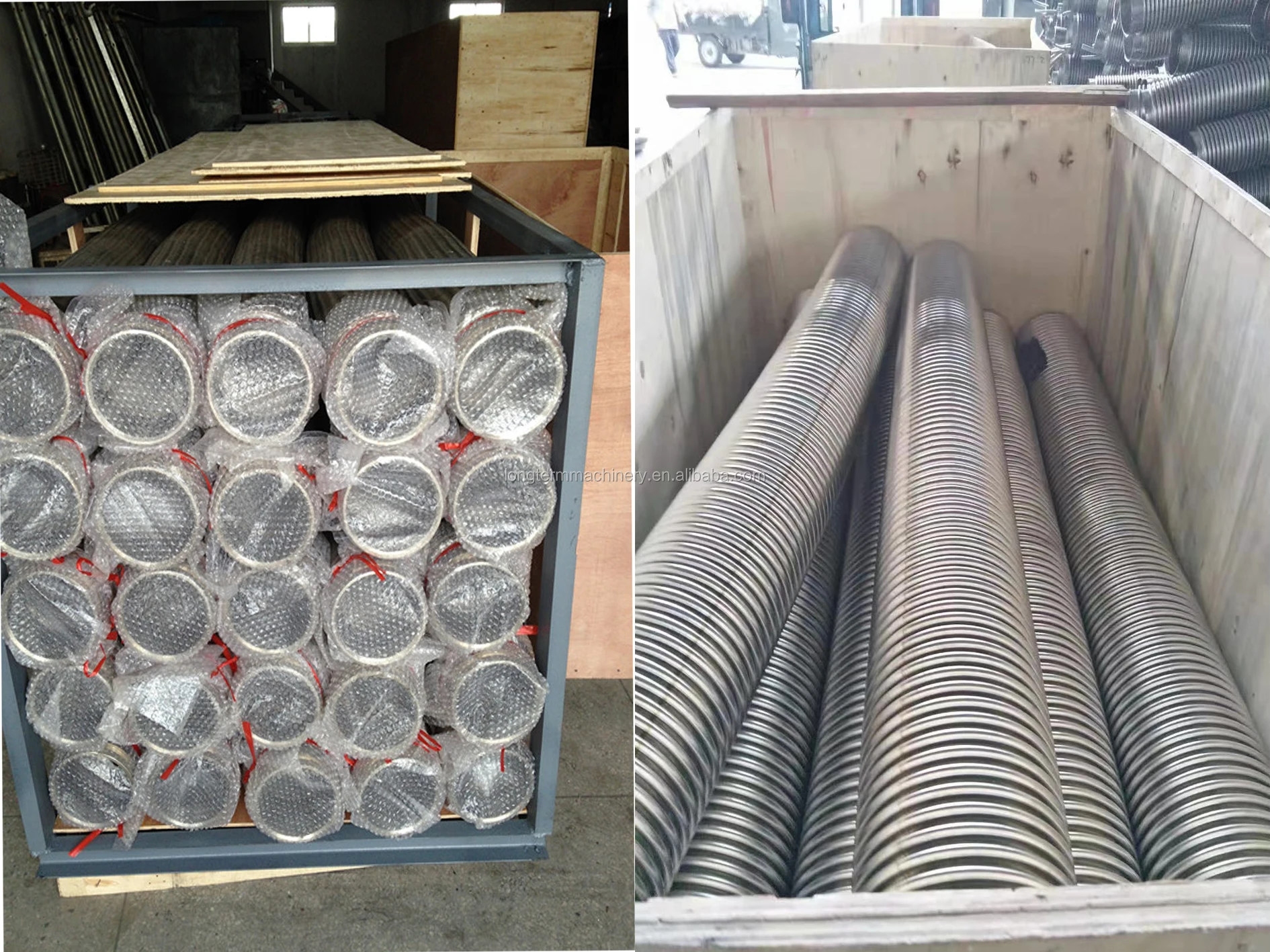

Flexible metal hose container package
Package for the flexible metal hose with flange

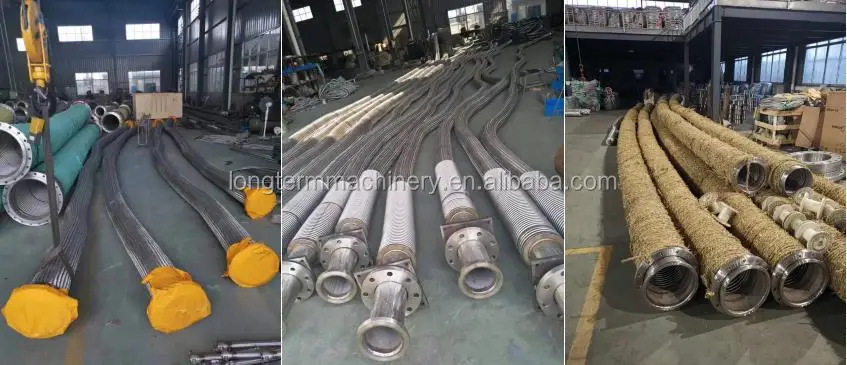

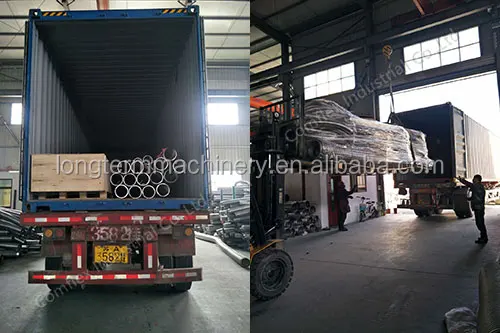

Flexible metal hose in container
Company Introduction
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 25 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, PTFE hose, hose making machine, etc...The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power,cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline,construction, Central air conditioning, aerospace and other industries. Our products have exported to many countries such as Russia, Ukraine, USA, Australia, New Zealand, Poland, etc..
Our customers from all over the country came to visit our factory.
Certifications
ISO
304 mill certificate
EN certificate for steel strip
FAQ
Q: Why so many suppliers choose us?
A: Because we are one of the most professional manufacturers of the metal hose with more than 25 years of experience.
Q: What sizes can you make?
A: All sizes from DN6 up to DN600
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customize our hose according to your requirement
A: Because we are one of the most professional manufacturers of the metal hose with more than 25 years of experience.
Q: What sizes can you make?
A: All sizes from DN6 up to DN600
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customize our hose according to your requirement
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer free samples but courier costs covered by the customer.
A: Yes, we can offer free samples but courier costs covered by the customer.
Q: How long is your delivery time?
A: Depends on the quatity, but normally with 2 weeks.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
We need to know the following information to give you our best quotation for the hoses:
A: Size range
B: Material of the hose: sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D: Working pressure, we can know how many layers of braids you need?
E: Length & Quantity
F: Application of the hose
A: Depends on the quatity, but normally with 2 weeks.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
We need to know the following information to give you our best quotation for the hoses:
A: Size range
B: Material of the hose: sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D: Working pressure, we can know how many layers of braids you need?
E: Length & Quantity
F: Application of the hose
