Product Description

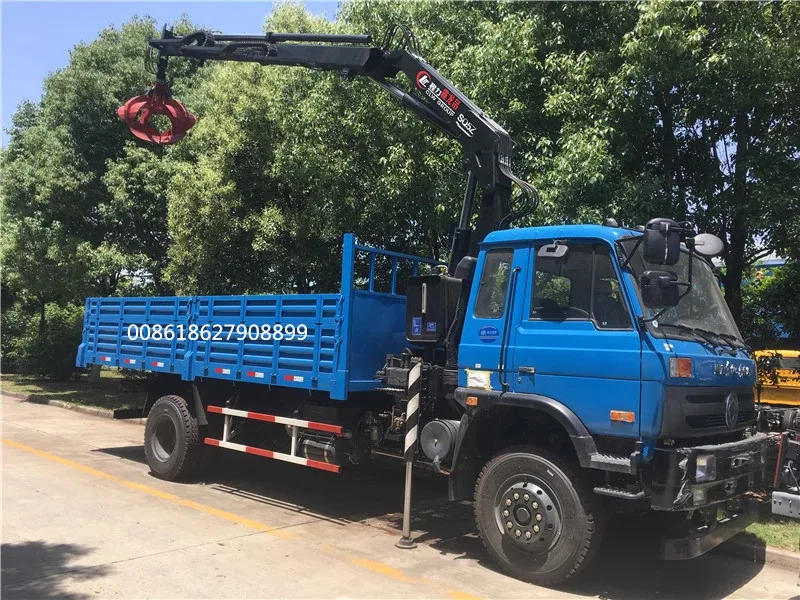

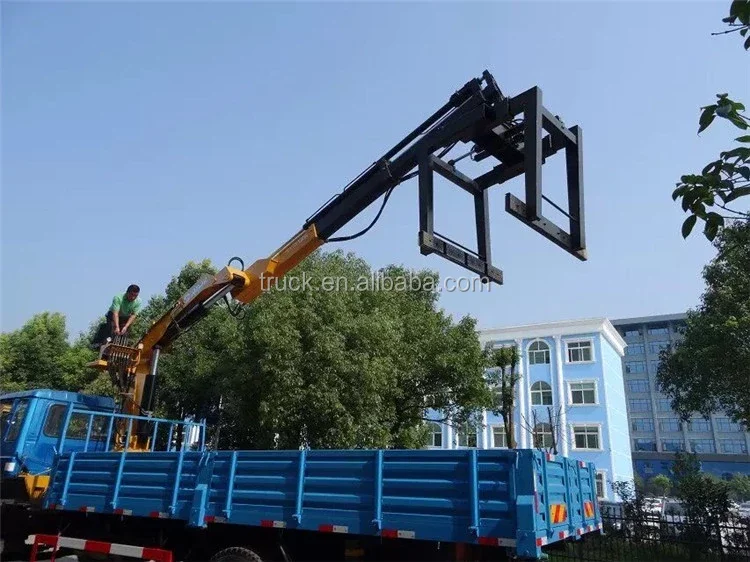

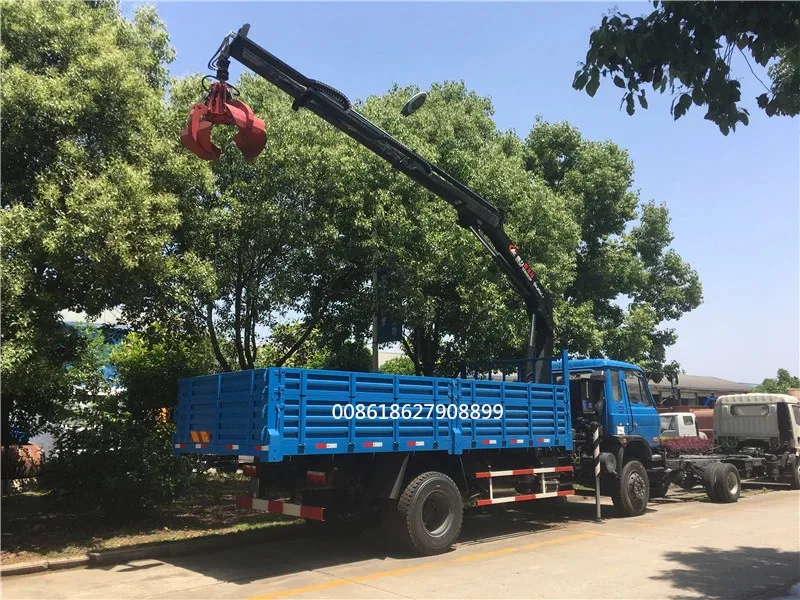

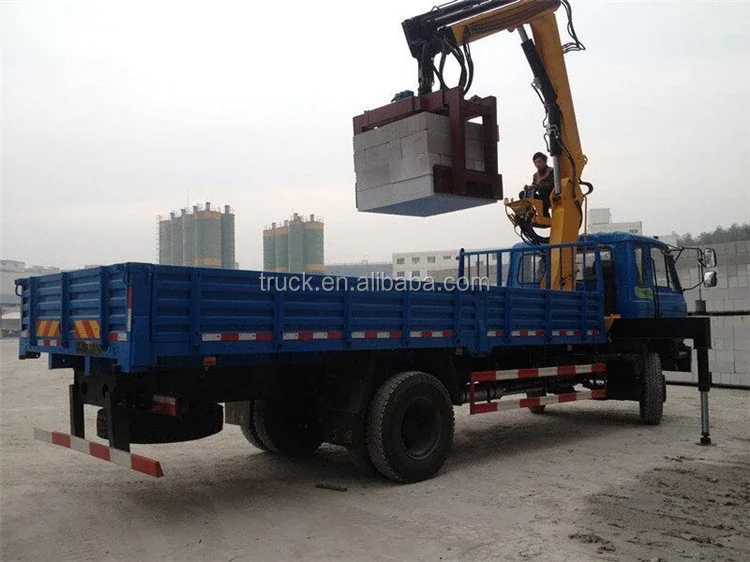

3.2 ton Folding Arm Mobile Hydraulic Truck Crane
Technical Parameters
3.2 ton Folding Arm Mobile Hydraulic Truck Crane
Technical Parameters
Overall
Vehicle name
CLW DONGFENG 3.2tons Folding Arm Crane Truck
Vehicle model
CLWEQ5040XF
GVW
11950kg
Total net weight
5800kg
Loading capacity
6150kg
Overall dimensions
5990×2500×3550mm
Cargo body dimension
3500×2294×550mm
Max Speed
95 Km/h
Passenger
2~3
Fuel tyype
Diesel
Chassis
Chassis brand
Dongfeng
Chassis model
EQ1121GLJ2
Chassis dimension
5880*2300*2350 mm
Chassis net weight
3120 kg
Driving Type
4*2 ; LHD
Number of axles
2 pcs
Wheel base
3800 mm
F/R track
1320/1370 mm
Front/ Rear Suspension
1085/1120 mm
Axis load
3400/8550 kg
Approach/departure angle
22/14 °
Tire specification
7.50-16, 6+1pieces
Leaf Spring Number
11/9+7
Transmission
5 speeds; Manual
Operation control system
Electrically hydraulic system
Engine
Engine brand/model
Chaochai brand; CY4102-C3F
Power
120 hp
Exhaust
3856 ml
Emission standard
Euro 2
Cylinder
4 in line

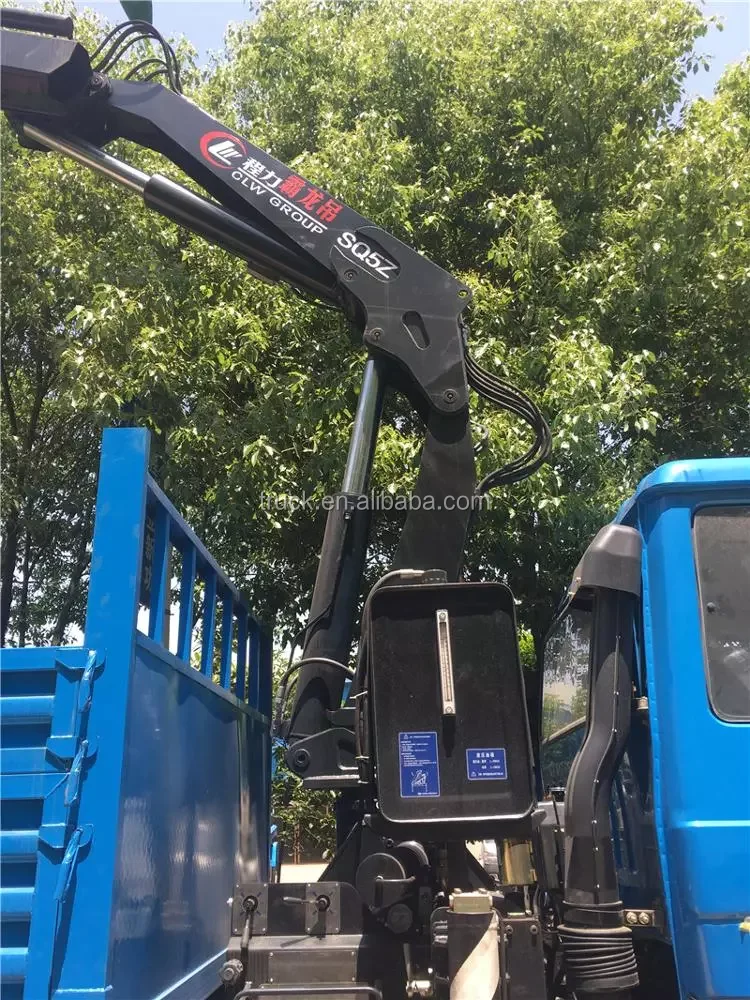

Crane
Optional crane models
SQ3.2ZA1/SQ3.2ZA2
Crane brand
CLW
Crane type
Folding arm
Crane weight
1050/1120 kg
Max. lifting capacity
3200 kg
Max lifting moment
6.4 T.m
Crane arm quantity
3 arms/4 arms
Recommended power
15 kw
Recommended hydraulic flow
25 L/min
Rated hydraulic pressure
28 Mpa
Oil tank capacity
60 L
Slewing angle
400 °
Max workinng radius
5850/7550 mm
Dimension in working status
Min length:4224/4304 mm;
Max length: 5850/7550 mm;
Height: 2250mm
Dimension in transportation status
Length: 2270/3540 mm; Height: 2045 mm
Installation space(L*W*H)
850 mm
Lifting performance curve:SQ3.2ZA1
Working radius
Load capacity
2500 mm
3200 kg
4100 mm
1400 kg
5800 mm
1000 kg
7500 mm
750 kg
Lifting performance curve:SQ3.2ZA2
Working radius
Load capacity
2500 mm
3200 kg
4200 mm
1400 kg
5900 mm
1000 kg
7500 mm
750 kg
9100 mm
550 kg
