Product Description
Mars USB3.0 Cameras
Mars series USB industrial cameras, with USB3.0 high-speed data transmission bus, have a extremely high frame rate on the condition of high image quality and stability. The cameras follow USB3.0 data bus standard; support GenICam , USB3 Vision®; can seamlessly connect with other third-party platform . Mars series USB industrial cameras support Plug-and-Play, also could work stably in a variety of harsh environment. It’s distinguished itself by high reliability and high cost-performance.
Features
- USB 3.0 backwards compatible with USB2.0, and provides 5Gpbs bandwidth with power supply.
- Mechanical Dimension:20*29*29 mm.
- 128MB on-board frame buffer for image data transmission
- support software.
- Support API trigger / External trigger / Free Run mode and other trigger mode.
- Support sharpness, noise reduction, gamma correction, LUT and other ISP functions.
- Supports several image data formats output, ROI, binning, decimation, mirror etc.
- Conforms to USB3 Vision protocol and GenICam standard.
Model Table
Model | Max Resolution | Sensor Type | Format |
Mars640-815UM Mars640-815UC | 640×480 | PYTHON 300 | 1/4'' |
Mars800-545UM Mars800-545UC | 800×600 | PYTHON 500 | 1/3.6'' |
Mars1300-210UM Mars1300-210UC | 1280×1024 | PYTHON 1300 | 1/2'' |
Mars2000–150UM Mars2000–150UC | 1920 × 1200 | PYTHON 2000 | 2/3'' |
Mars5000–60UM Mars5000–60UC | 2592 × 2048 | PYTHON 5000 | 1'' |
Pixel Size(μm) | 4.8×4.8 |
Color Catagory | Mono/Color |
Data Bits | 8bit / 10bit |
Exposure Mode | Global Shutter |
Output Interface | USB3.0 |
Exposure Time | 1μs~1s |
Dynamic Range | >60dB |
Lens Mount | Standard C-Mount |
Power Input | USB |
Power Consumption | 3.5W |
Hardware Control | I/O input (external trigger), I/O output, Opto-couplers Isolation |
Programmable Control | Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw,LUT,Black Level Correction |
Operating System | Support Windows 2000/ XP/7/8/ 10; Support 32-bit and 64-bit Arm/Linux |
Operating Temperature | -30~80℃(Storage), -30~50℃(Working) |
Dimension | 29.0 mm × 29.0 mm × 29.0 mm (60g) |

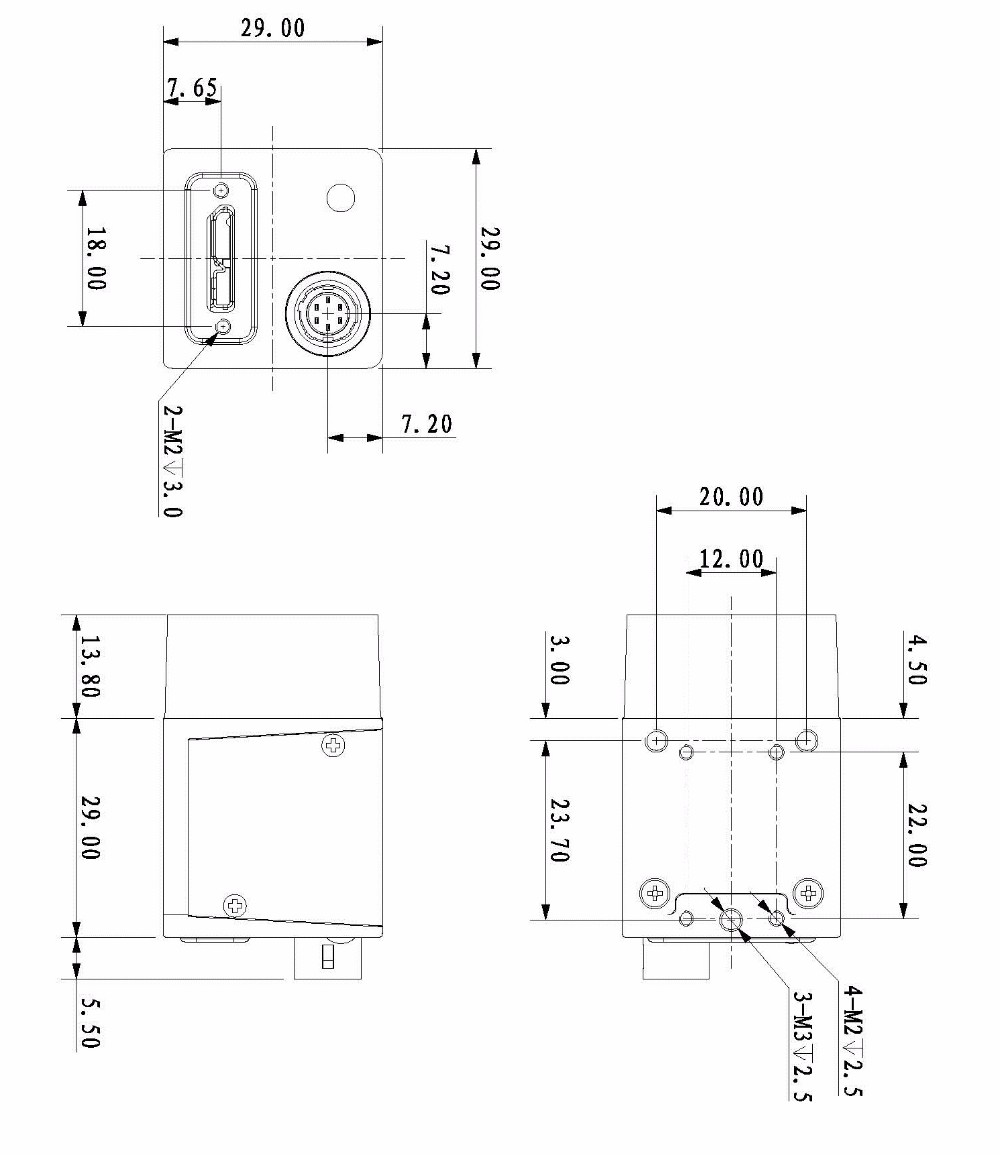

Product Dimension
Our Company
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, and the major products include industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lens, telecentric lens, machine vision lights and image processing software. The Engineering Dept. of Contrastech have lots of mature and successful machine vision solutions based on automatic industrial inspection, high precision measuring and module distinguishing.
