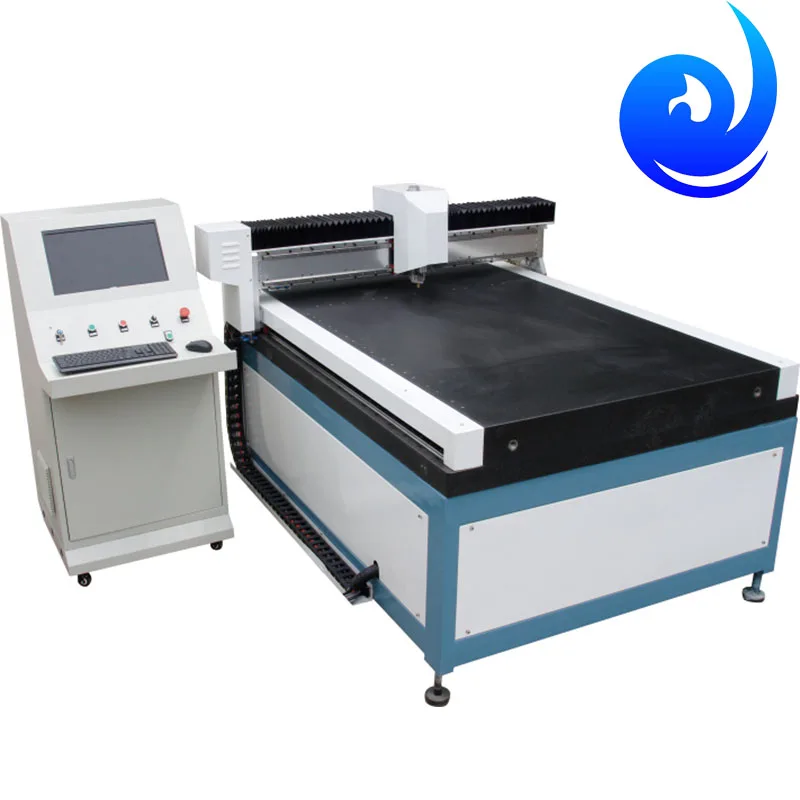

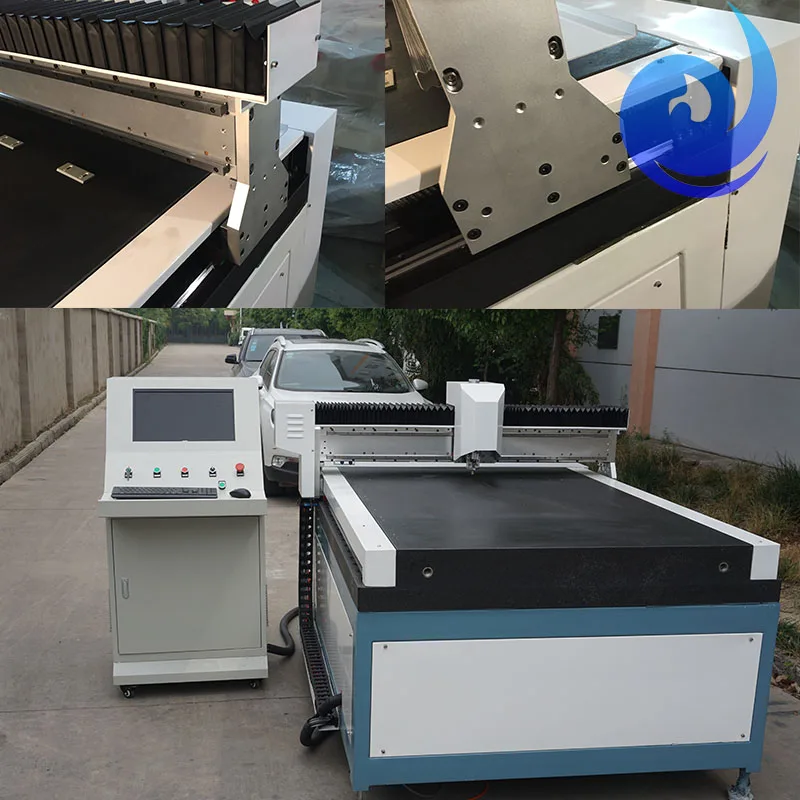

SY-1311 CNC Automatic Glass Cutting Machine for Ultra Thin Glass

This automatic ultra thin glass cutting machine is used for cutting ultra thin glass,. Suitable for OLED glass, optical glass, crystal glass, display glass, mobile phone touch screen glass, glass, cutting process of OGS ultra-thin glass, high cutting efficiency, good accuracy, high yield and simple and convenient operation, no technical requirements for operators.

Basic performance

1.  Secification of Equipment

Maximum cutting size:  1300*1100mm

The height of table: 900±30mm.

Equipment weight: 1800KG.

Cutting thickness: 0.2~8mm

 2 . Cutting patameters

Straight line parallelism:  ≤±0.05mm/300mm

Diagonal accuarcy : ≤±0.15mm/m(Above accuracy data is basic on before breaking acutting accuarcy)

Cutting bridge speed: 0~80m/min.(adjustable)

Cutting bridge acceleration ≥3.0m/s²

Tool head speed ≥80m/min

Tool head acceleration ≥6.0m/s²

Cutting head positioning accuracy error ≤±0.001 mm

3.  Voltage/Power

Installed Power requirements:  380V/50HZ

The actual power of the equipment: 5.5KW

Compressed air: 0.6MPA

   4. Equipment Characteristic

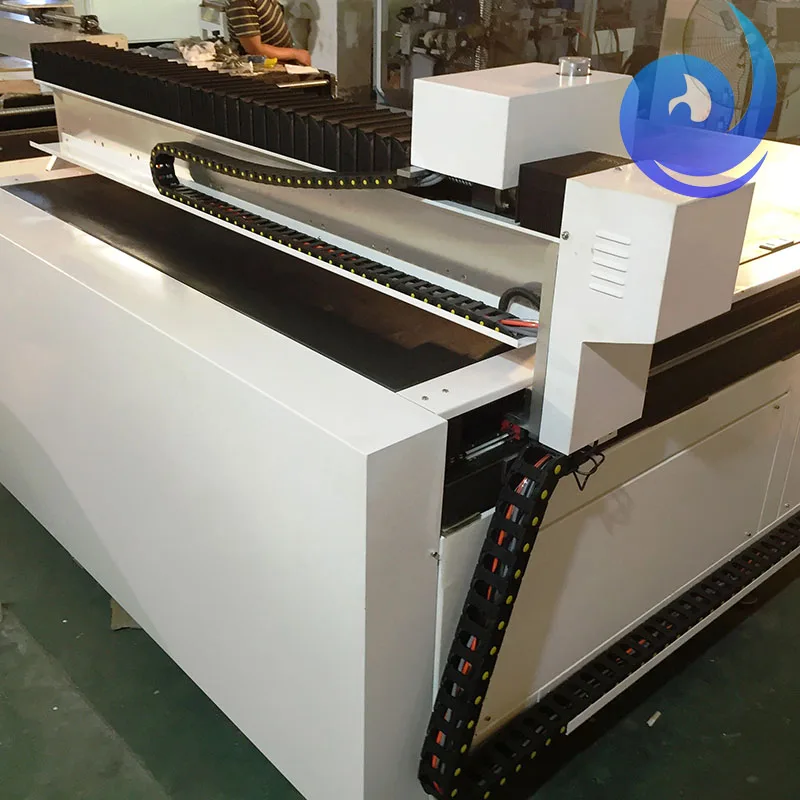

Equipment frame: GB square tube welding, Enquipment after aging treatment to ensure that no deformation, as well as keep accuracy of parallelism.

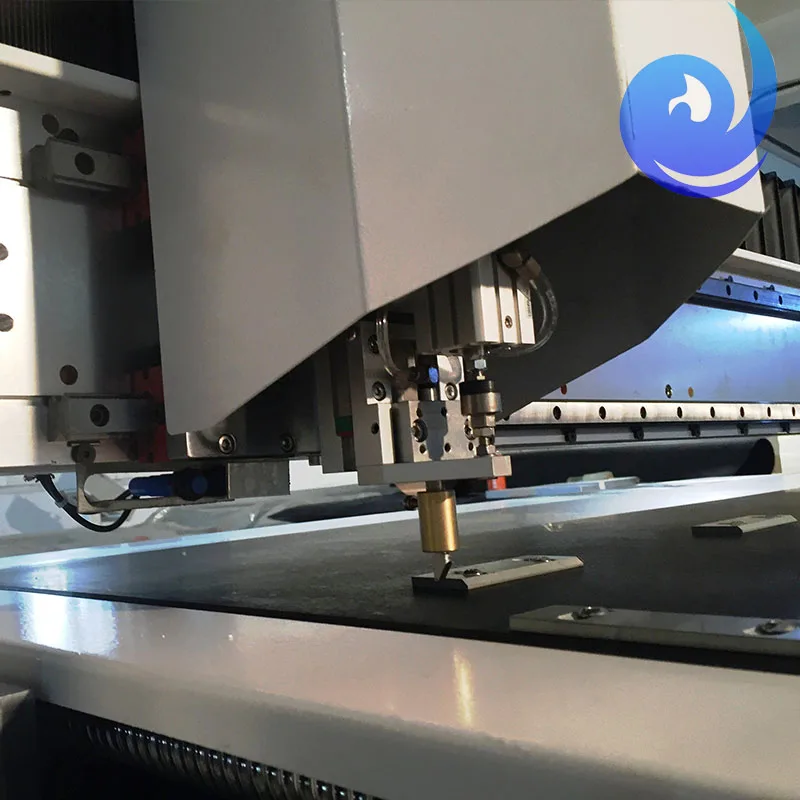

Cutting knife seat: Aluminum black produced by automatic processing center, Surface with oxidation treatment. The knife can be rotated 360 degrees,  uppler and lower catting( which can accuratly cut any straight line and a variety of shaped glass)

Countertops: 0 grade marble. Thickness200mm

Oil supply: Penenmatic automatic oiling, and synchronize with down knife.

Converyor:  Air flotation  With the inhalation function.

5.Mechanical parts

Sheet metal: metal spray paint processing

Screw rails:  Grinding level. HIWIN

Cutter wheel/ wheel clip: Japan. NIKKEN;Service life time is 3-50 ,000m/piece (straight line)

Bearing: Japan NSK

 6.Electrical part

It adopts branded computer into the joint control, Microsoft Windows interface.
Voltage:  380V/50HZ. Equipment with 380V variable three-phase 220V transformer device.

Motor:  Japan Yaskawa ervo motor , 1300W;850W

Proximity Switch:  Imported Insul-en

Control card: Imported from America,Galil This Card have serial number, it can be authenticated online

Control software: Americal Galil

Major electrical component: Relay IDEC,AC contactor was imported from France

Pneumatic proportional valve: Japan SMC, Control cutting output of the uniform pressure effectively

Pneumatic knife box: Driven by the servo motor, Cutting pressure uniform, accurate rotation angle.

Positioning system: fiexed plate positioning, positioning board edge by the cutting machine to complet, to ensure the accuracy of the origin of the glass ositioning

7. Software

With the combination of motion contol software(America Gaili)

With down knife limit protection fuction

Can automatically calculate the capacity cunction

With more than 2000 kinds of cutting gallery. ( Can facilitate the drawing and opperation)

AUTOCAD graphics software compatible.

Optimization software is directly compatible with cutting software


With automatic correction function. To ensure cutting accuracy.
With cuting path selection function, to ensure the best cutting speed.

Automatic debugging cutting knife pressure, fast and accurate and stable.

Shaped cutting automatic pressure, can quickly and effectively ensure the cutting effect.

Origin correction function. The origin can be set twice.

Operation input: Keyboard and mouse. Chinese/ English dialogue interface.

With special cutting knife pressure automatic mediation fuction, to ensure the best cutting effect.


Optimize the pressure and speed: according to the figure, straight line, arc, bending, outside the bend staring point, the end point, acceleration section, deceleration section and other automatic optimization to adjust the output the most appropriate pressure and speed.

Aline Gallery: Contains more than 300 kinds of special-shaped software library, this library can meet all the needs of possibility.

English/Chinese user interface: man-machine dialogue should use English/Chinese menu.

Drilling positioning: profiled library to provide pre-positioning function puch .

Knife protection: with mechanical protection, to eliminate the possibility of all the collision

Shaped out: the equipment can automatically cut any straight line, slash or aliens

Stroke protection: The maximum stroke of the machine hase both mechanical and electrical protection

Cutting prssure adjustament function: any cutting pressure adjustment can be directly by keyboard, without manual operation

  Anhui Ruilong glass machinery co.,ltd focus on intelligent glass machinery and relevant automatic machinery . we are also one of the comprehensive new enterprises that provide the research and development,production,sale , technology service and  After-sale maintenance and other services .The company covers an area of 40000 square metres  , total investment more than 200 million yuan(31 million dollar), existing staff 80 people.

  So far Ruilong has been won the recognition award in Anhui province industrial design competition ,Bengbu city first sets of major technical equipment certification enterprise specialization, arts and new certification enterprises, Bengbu city Internet and information fusion development demonstration and many kinds of honorary certificate .

   Our company research and development design ,production and sales of main products are: loading and uploading for all kinds of glass machine, CNC glass cutting machine ,Semi-automatic glass cutting machine, double or single sides glass grinding machine, various types of ultra-thin glass cutting machine and  grinding machine, normal ,convex ,ultra-thin glass cleaning machine, glass rod,brick,tube, bottle and optical material cutting machine, glass transmission table, glass drilling machine, Top level intelligent cold glass processing line and all kinds of non-standard automation equipment and  etc .

   As a key investment enterprise in the Longzihu area, we trying to business development as well as positive response One Belt And One Road ; 4.0 industrial ,power industrial ,manufacturing strong province of  various national and provincial strategyUnder the keen concern of the party and government, under the support of relevant functional departments, the Ruilong is through continuous efforts and enterprising, explaining the belongs to own heart spirit and Chinese craftsmen to make new style. In the future we will make persistent efforts continued ascension, establish a sound and efforts to improve the business process, in order to succeed at an early date to build industry leading brand, become the industry standard makers and guidance in the development of industry Inheritance, The century-old foundation begins with the first step, and the day progresses into perfection, Ruilong people are on a mission to get the final glory and let the dream come true .

What are we supply?

Q: Do you supply overseas engineers service for cnc glass cutting?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for cnc glass cutting?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for cnc glass cutting ?
A: Yes, we will provide some additional loss of accessories.
