Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
Экономичный маленький Вертикальный Станок VMC550 сделано в
- Категории: >>>
- Поставщик: Shandong,Weili,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
economic small vertical machine center made in China VMC550
Standard Configuration
1.upmost to 8000 rpm spindle unit
2.spinlde center below
3.automatic pine broach
4.lead screw and guide rial automatic centralized lubrication
5.high pressure water cooling
6.air cooled
7.manual chip removal

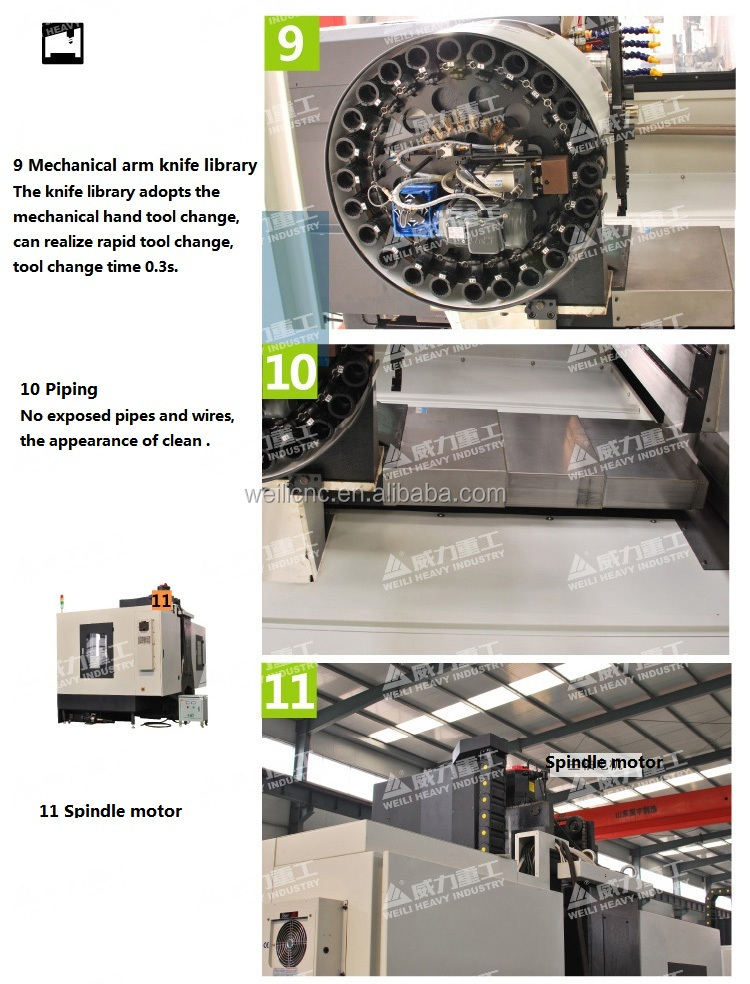

8.20 disc type knife library
9.fanuc Oi mate MD numerial control system

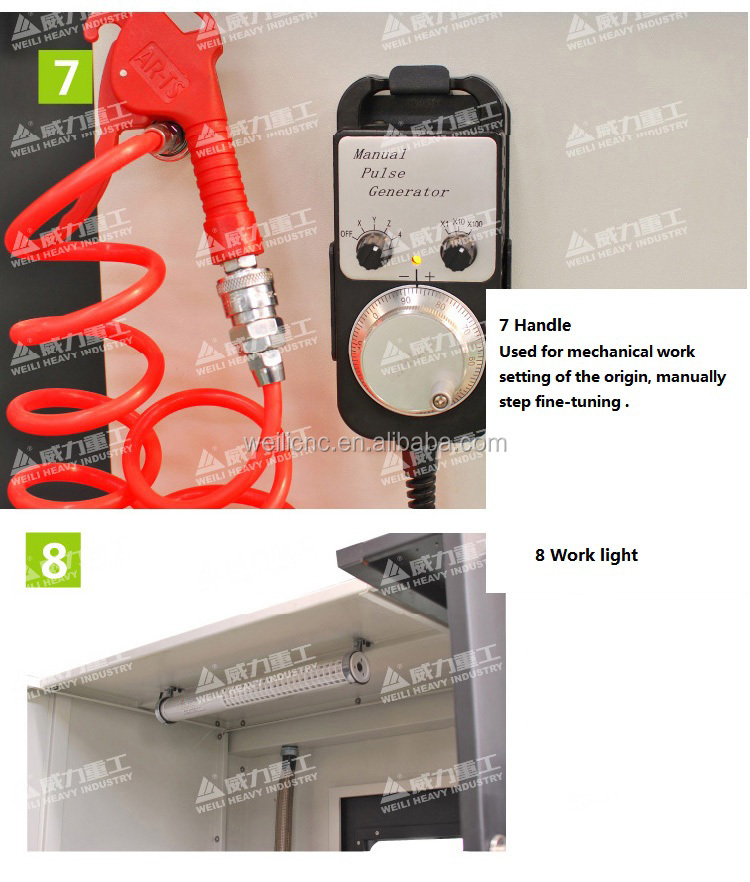

10.portable hand pulse generating unit
11.RS232 interface
Technical Specifications
| model number | vmc550 |
| X axis travel | 550mm |
| Y axis travel | 350mm |
| Z axis travel | 500mm |
| Distance from spindle to work table | 100-600mm |
| Distance from spindle center to column guide rail | 419mm |
| Rapid movement of X axis | 20m/min |
| Rapid movement of Y axis | 20m/min |
| Rapid movement of Z axis | 20m/min |
| Cutting feed | 1-10m/min |
| Work table size | 700×350mm |
| Max. load | 300kg |
| Working surface height from the ground | 800mm |
| T slot | 3×18×105mm |
| Spindle speed | 8000rpm |
| Taper of spindle | BT40 |
| Spindle motor | 5.5kw |
| Positioning accuracy | ±0.005/300mm |
| Repeated positioning accuracy | ±0.003mm |
| ATC | 16 hat type |
| Weight | 3300kg |
| Machine size | 2100×1700×2300 |
Function
The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered,magazine capacity of 20. Can achieve a variety of disc-type, plate type, shell, Cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping,etc., suitable for many varieties, small batch production of complex, high-precision machining
of parts to better show its superiority.
Packaging & Shipping
| Package | antirust oil+plastic wrap+plywood case |
| payment & shipment | 30% deposit by TT before production+70%balance by TT before dilivery |

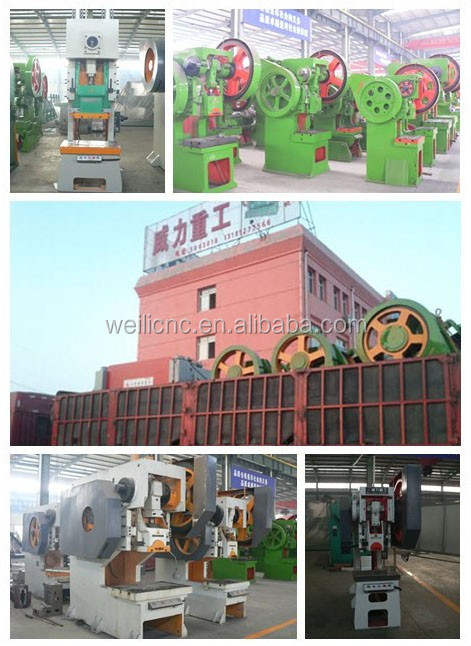

Company Information
Shandong Weili Heavy Industry Machine Tool Co.,Ltd is a professional manufacturer of mechanical tools. In 2013, our company integrate the other two companies and expand our operation scales.
Our main products include milling mchaine, drilling machine,bending machine, shearing machine, punching machine,hydraulic presses,lathe machine, cnc milling machine, cnc lathe machine, cnc machine center and etc.
By now, we have 30,00o acres factory and more than 200 emplyees, among which there are over 30 engineers and over 100 senior mechanic graduated assembly staff.
We also provide OEM and customize service.
FAQ
Q:1.Will your packing be strong enough for the transportation?
A: We still insist sealing plywood case which will guarantee the safety of machine during any transportation.
Q:2.I like the baisc machine , but I need some special parameters and configurations to fit my production, can you customzize for me?
A: We are very good at custom-made products, No matter what configuration and parameter you need, all can be custom-made according to your requirements, what you need to do is to tell us your requests details or show us the design.
Q:3.If my goods is broken when I get it, what should I do?
A: Please take several photos of the packing before you open it. If the packing is okay, but goods are broken, it is our responsibility. On the contrary, if the packing and good are both broken, it is the logistic company’s responsibility.
We promise no matter whose responsibility it is, as long as the goods is broken, we will try our best to make up for the broken part in the shortest time.
We are confident that we shall be able to give you the best service and products. Please feel free to inquire us at any of your convenience.
