Functions and Features

1.Car Frame And Bottom Design

In order to satisfy different requirements under various goods transport conditions, car frame and bottom of Shandong FUJIZY goods elevator have the advantages of large bearing capacity, fine rigidity, big loading range. Its excellent loading capacity ensures the goods safety.

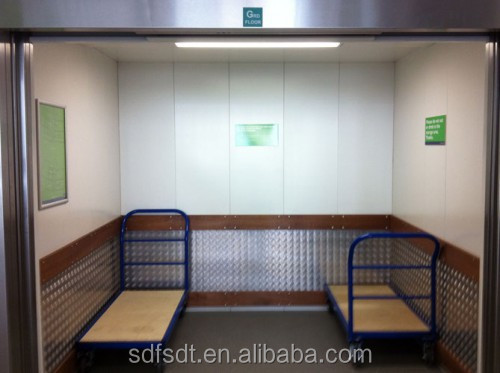

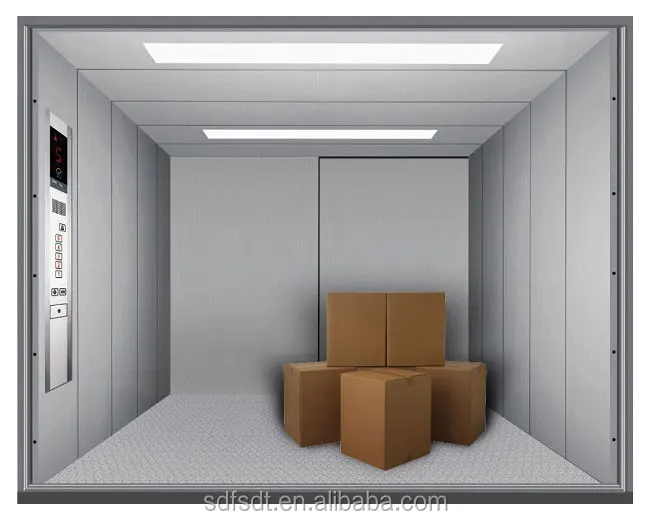

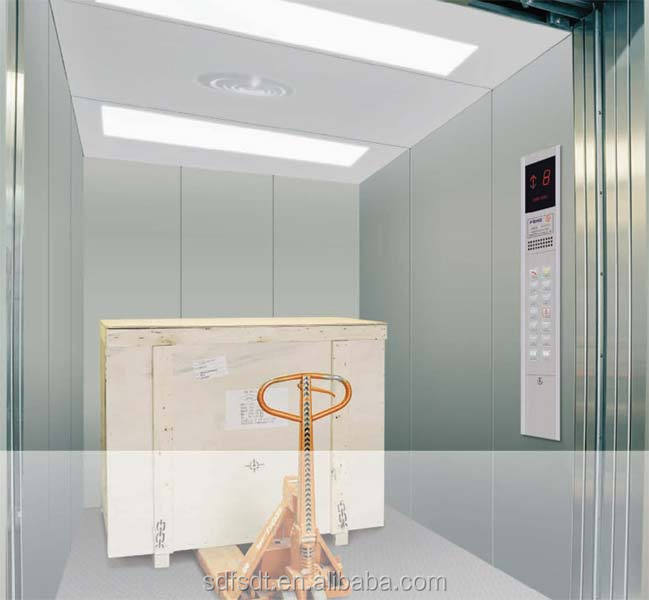

2.Special Car And Door

The car and car door of Shandong FUJIZY goods elevator are specially designed according to the goods transport functions. Choosing painted steel plate or stainless steel plate. It can install collision-resistant guard rail.



3.Vector VVVF Frequency Converter

Shandong FUJIZY goods elevator applies vector controlled digital closed-loop VVVF frequency converter from Japan FUJIZY. It adjusts the current and phase according to actual load of the car, up/down speed. It implements accurate real-time control to the host rotating torque. It ensures smooth elevator running, transport safety of both the passengers and the goods.



Parameter and specification table



Load	Speed	Cabin Size(W*D)	Door Opening	Shaft Size(W*D)	Machineroom Size(W*D)	Overhead Height	Pit Depth
KG	m/s	mm	mm	mm	mm	mm	mm
2000	0.5	1800*2300	1500*2200	2700*2900	3800*5000	≥4500	≥1600
3000	0.5	2200*2600	1800*2200	3200*3200	4500*5000	≥4600	≥1600
5000	0.5	2500*3600	2000*2200	3900*4400	4500*6000	≥4800	≥1800



Drawings & Quotation:

1) Customize.d design is welcomed.

2) As long as you like, we can design and provide drawings for you.

3) In order to give you an exactly quotation and drawings, please let us know load,speed,cabin size,pit depth, We will quote for you promptly.

Payment Terms:

1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)

2) Delivery time: 15~40 days, usually as customers' order

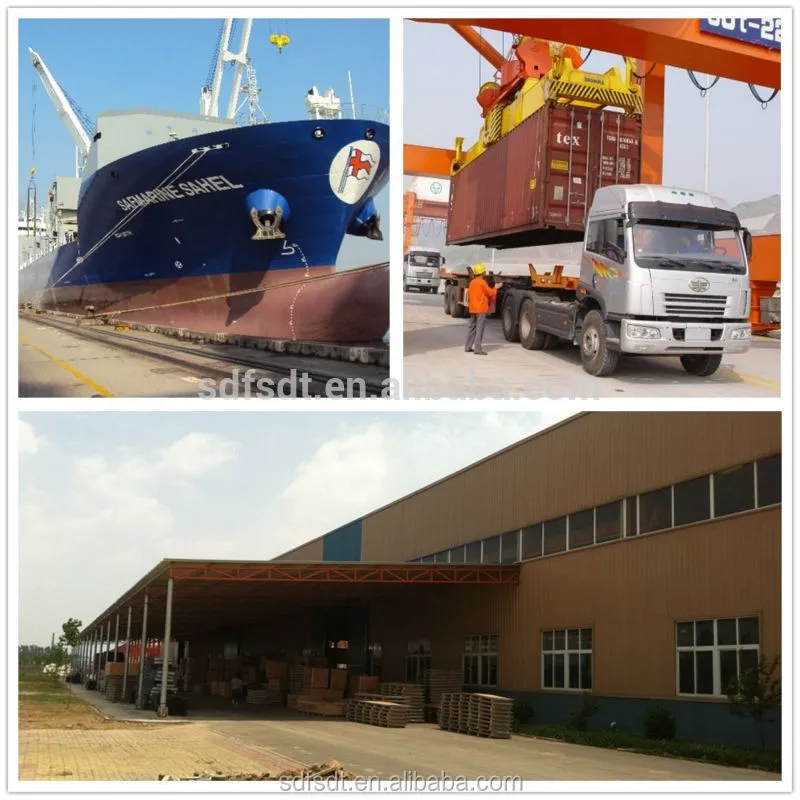

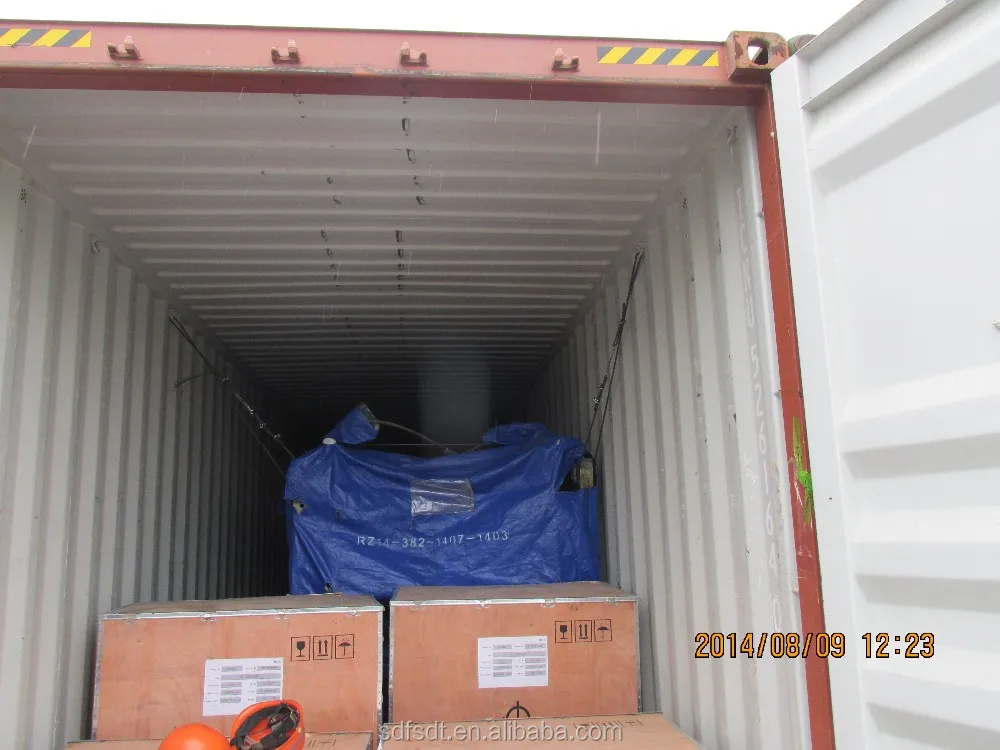

3) Shipment: 20”GP, 40”GP, 40”HQ, 40”OT

Engineering Design Software:

CAD, AutoCAD, .etc

Market:

Products have been exported to Europe, North America, the Middle East, Africa, Asia, and other countries and regions
