Product Description
SPECIFICATION
Blow is standard data (other option available) of this collection for your reference
CASTER WHEEL SIZE | WHEEL DIMENSION | OVERALL HEIGHT | LOADING CAPACITY |
8 inches | 200x50 mm | 235 mm | 250 kg |
6 inches | 160x40 mm (150x40 mm) | 195 mm | 200 kg |
5 inches | 125x38 mm | 155 mm | 150 kg |
4 inches | 100x30 mm | 128 mm | 100 kg |
3-1/2 inches | 80x25 mm (85x25 mm) | 105 mm | 80 kg |
3 inches | 75x22 mm | 95 mm | 60 kg |
Additional Data | ||||||
Mounting Type | top plate (105x75/80 mm or 72x52/80x60 mm) | |||||
Brake Type | swivel (rotating/revolving), total lock brake, fixed (rigid) | |||||
Fork Finishing Type | zinc plated, yellow galvanized, balck electrophoresis, chrome plating | |||||
Bearing Type | straight roller bearing | |||||
Wheel Tread Material | gray rubber | |||||
Wheel Core Material | steel, PP (polypropylene/polyolefin), PA (nylon/polyamide) | |||||
Detailed Images

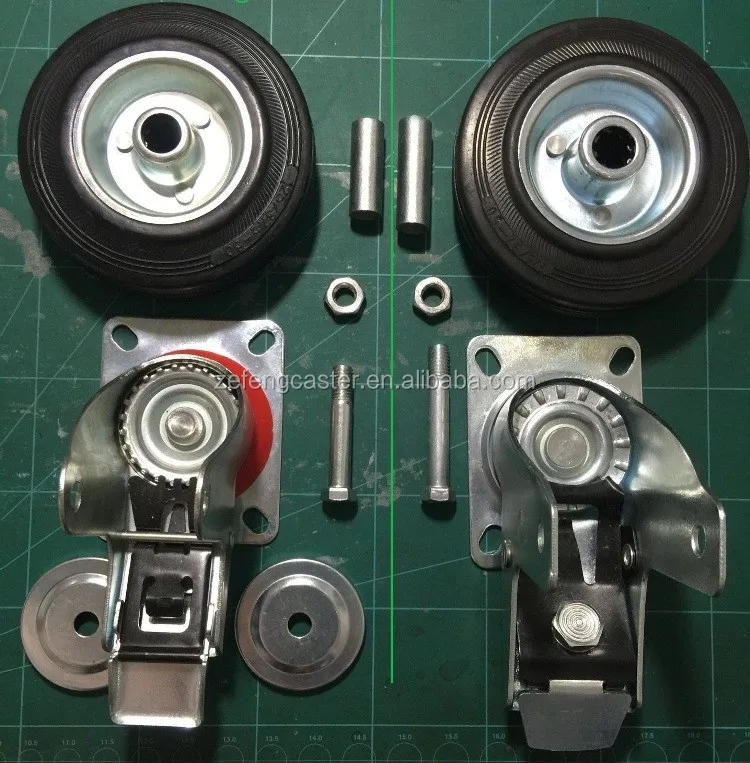

Low-price industrial caster series (left one)
wheel brake system is with general one-point-locking (un-adjustable), and it need to be replaced when the wheel wears away or become smaller
narrow fork and wheel hub to meet cheaper choice at acceptable quality level
High-quality industrial caster series (right one)
wheel brake system is with adjust-able contact point to assure perfect locking whatever the wheel wears away or become smaller
wider fork with longer wheel hub to acheive more stable and safer

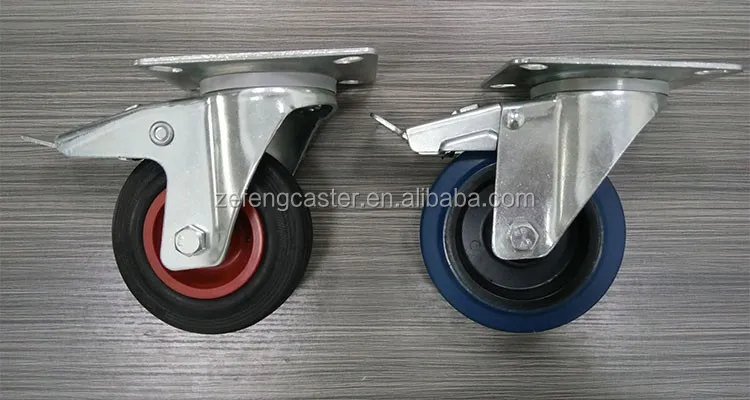

Product Comparison
maybe other factory make it, but we make it better

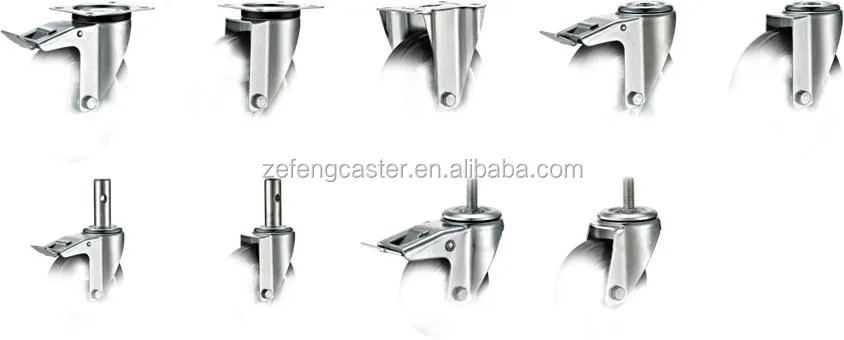

Fork Selection
For G1 European industrial castor wheel series, various types of fork component are available for different configuration of equipment, we can work together to find optimal caster solution for you applicantion
What's more, unique split type design of fork (right one) is also available, please refer to below image for reference
Wheel Selection
For G1 European industrial castor wheel series, a wide variety of rubber wheels are available for different operation environment, let's work closely with our experts to select proper caster wheel for your unique application needs

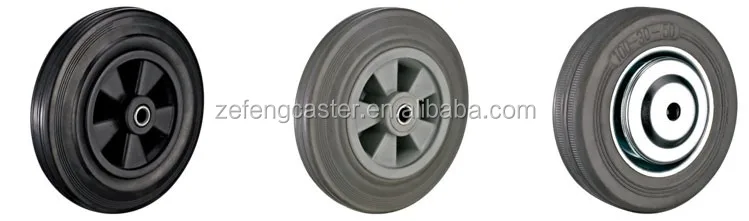

black rubber wheel (PP core)
75/80/100/125/160/200/250 mm
gray rubber wheel (PP core)
75/80/100/125/160/200/250 mm
gray rubber wheel (steel core)
75/80/100/125/160/200 mm

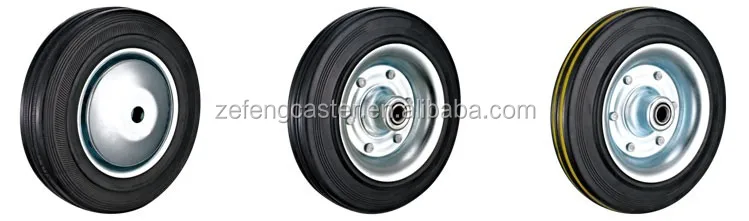

black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
hub is covered with threadguard
black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
hub is covered w/o threadguard
black rubber wheel (steel core)
75/80/100/125/160/200/250 mm
tread is marked with yellow line

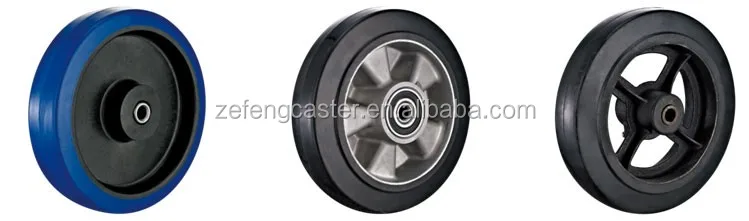

blue elastic rubber wheel (PP core)
75/80/100/125/160/200/250 mm
elastic rubber wheel (aluminium core)
100/125/160/200/250 mm
rubber wheel (cast iron core)
100/125/150/200 mm
What's more, the optional wheel with other material is also available, please refer to below image for reference

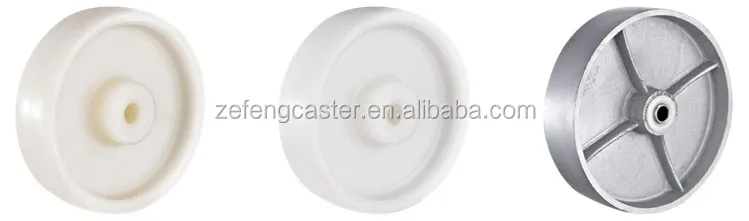

PP (polypropylene/polyolefin) wheel
75/80/100/125/160/200 mm
PA (nylon/polyamide) wheel
75/80/100/125/160/200 mm
cast iron wheel
75/80/100/125/160/200 mm
Related Products
Title goes here.
Left one is recommended similar product which under the same series with total locking brake system
3 inches (75 mm) to 10 inches (250 mm) are available
waste bin caster with black rubber wheel
Left one is recommended similar products which suitable for waste bin container
6 inches (160 mm) to 8 inches (200 mm) are available
scaffolding caster with black rubber wheel
Left one is recommended similar products which suitable for scaffold and mobile ladder
6 inches (160 mm) to 8 inches (200 mm) are available
Our Service
Not find your needs?
It just shows standard casters in this shop, other wide array of casters are available in our factory, if you do not find information you need, pls contact me directly.
We also provide custom casters, let's closely work with design engineers to find the right caster and wheel to meet your specific application requirements.
Things to Note: OEM and ODM, WE DO BOTH!
Certifications
EN 1004 certification for scaffolding castor wheel
EN 840 certification for waste bin castor wheel
EN 12530 certification for European castor wheel
ANSI MHI ICWM certification for American style caster wheel
Engineering
Manufacturing
Testing
Why the choice is Zefeng casters? | ||||||
Customization | customization casters upon flexible production, add your logo on caster or wheel | |||||
Tooling | 3000+ existing die and mould, new mold is free if you place mass-production order | |||||
Sample | free for review purpose | |||||
Production Line | 100% owned start of art manufacturing, we are always factory | |||||
Human Resource | 98% experienced and dedicated worker, we are always professional | |||||
Technology | 10+ patent and unique material formulation | |||||
Management System | comply with ISO9001:2015, with ERP information management system | |||||
Service | quickly response to marketing demand, 1-year warranty and free to replacement | |||||
Quality | containul improvement upon craftsmanship spirit of striving for the best | |||||
Price | very competitive under the same quality level | |||||
What’s the same?
Most of suppliers make this type of caster wheel, but we make it better because we’re focusing manufacture with full range of caster models for various equipments and achieve the same quality level with lower price
What’s the different?
Most of suppliers provide caster only, but we provide caster solution because we have accumulated expertise and technology to identify different industries and ergonomic needs with different caster solution
Time is money and time cost is expensive, no need spend too many time for souring and comparing, we can provide the most suitable caster wheel with one-stop solution to save your time cost
