Short Description
OPB with big hole plastic conveyor belt applicable for high hollow requirements and good drainage effect conveyor. It is the first recommended conveyor belt for cleaning industry.

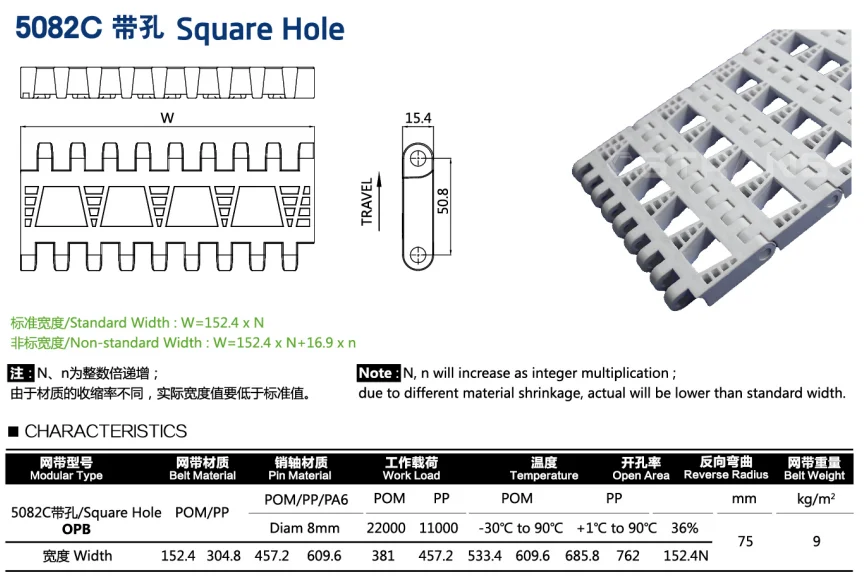

Product Parameters
Modular Type | OPB | ||
Standard Width(mm) | 152.4 304.8 457.2 609.6 685.8 762 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) | |
Non-standard Width | W=152.4*N+16.9*n | ||
Pitch(mm) | 50.8 | ||
Belt Material | POM/PP | ||
Pin Material | POM/PP/PA6 | ||
Pin Diameter | 8mm | ||
Work Load | POM:22000 PP:11000 | ||
Temperature | POM:-30°~ 90° PP:+1°~90° | ||
Open Area | 36% | ||
Reverse Radius(mm) | 75 | ||
Belt Weight(kg/㎡) | 9 | ||

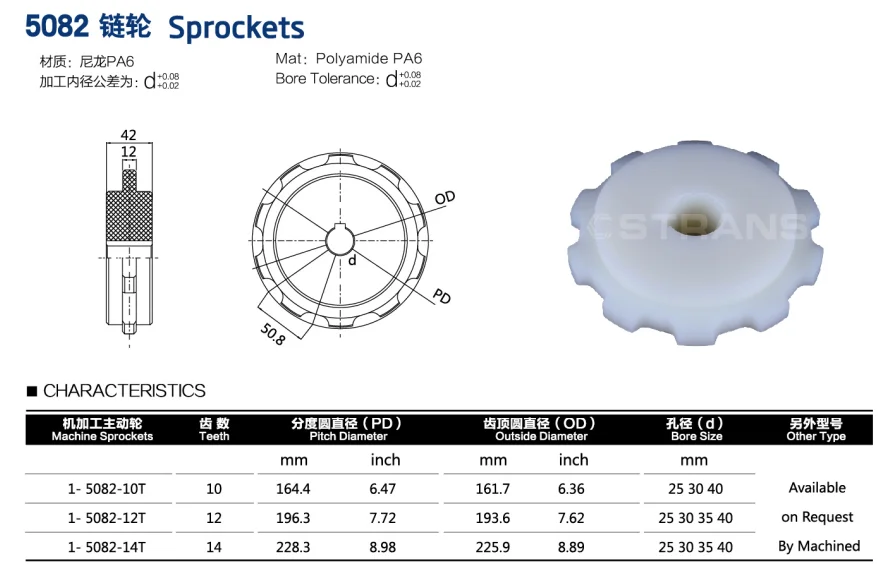

Machined Sprockets
Machine Sprockets | Teeth | Pitch Diameter | Outside Diamter(mm) | Bore Size | Other Type | ||||
mm | inch | mm | inch | mm | Available on Request By Machined | ||||
1-5082-10T | 10 | 164.4 | 6.36 | 161.7 | 6.36 | 25 30 40 | |||
1-5082-12T | 12 | 196.3 | 7.62 | 193.6 | 7.62 | 25 30 35 40 | |||
1-5082-14T | 14 | 225.9 | 8.89 | 225.9 | 8.89 | 25 30 35 40 | |||
Application Industries
1. Pig, sheep, chicken, duck, slaughter cutting processing.
2. Puffed food production line
3. fruit sorting
4.Packaging line
5. Aquatic processing production line
6. f.Quick-frozen food production line
7. Battery production.
8.Beverage production.
9.Can Conveying
10. Agricultural processing industry
11.Chemical industry
12.Electronic industry
13. Rubber and plastic manufacturing industry
14. n.Cosmetics industry
15. General conveying operation
2. Puffed food production line
3. fruit sorting
4.Packaging line
5. Aquatic processing production line
6. f.Quick-frozen food production line
7. Battery production.
8.Beverage production.
9.Can Conveying
10. Agricultural processing industry
11.Chemical industry
12.Electronic industry
13. Rubber and plastic manufacturing industry
14. n.Cosmetics industry
15. General conveying operation
Advantage
Overcoming pollution problems
It will not move like snake,not easy to deflect
Withstand cutting, collision, oil and water
Easy and simple belt replacement
Compliance with health standards
Conveyor belt surface will not absorb any impurities
It will not move like snake,not easy to deflect
Withstand cutting, collision, oil and water
Easy and simple belt replacement
Compliance with health standards
Conveyor belt surface will not absorb any impurities
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
ABOUT US
What we do
With 17 years of production and R&D experience in the conveyor industry, We have 10 R&D teams and nearly 500 existing molds set.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
History of the company
exhibition
Cooperative enterprise
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
