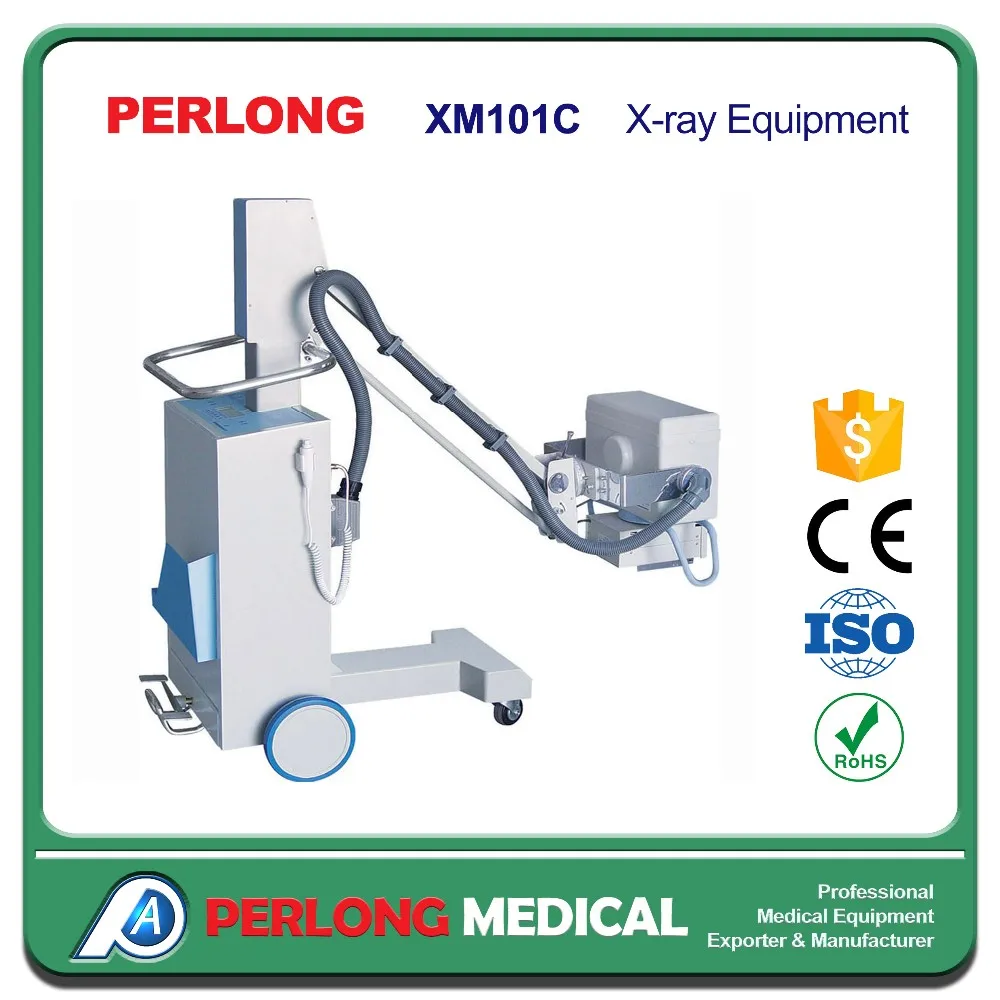

XM101C High Frequency Mobile X-ray Equipment





















Performance Specifications



Model	XM101C
Power Output	5kW
Frequency	50kHz
X-ray Tube	1.5
Tube Voltage	40~100kV (interval 1kV)
Tube Current	40~49kV, 100mA, 1~180mAs; 50~59kV, 77mA, 1~140mAs; 60~69kV, 64mA, 1~125mAs; 70~79kV, 55mA, 1~110mAs; 80~89kV, 49mA, 1~100mAs; 90~100kV, 44mA, 1~80mAs; 100~109kV, 32mA, 1~63mAs; 110~120kV, 25mA, 1~50mAs;
mAs	1.0~180mAs (46 steps)
Power Supply	220V±10% 50Hz   inner-resistance: ≤1.0Ω
Operation Method	Wire & Wireless control







Features

1. Equipped with high frequency inverter able to emit high quality X-rays at minimal doses, enabling excellent image definition and contrast



2. Comes with kV analog closed loop control, mAs digital closed loop control & micro-processing real-time control radiography techniques for consistent and replicable radiation doses



3. High quality knockdown X-ray generator minimizes excess radiation, improves safety for the environment, patient and operator



4. 50 exposure presets, completely modifiable for user convenience or preference



5. Features two button kV & mAs adjustment, LCD display



6. Symmetrical beam applicator for X-ray field adjustment and collimator lamp for field location and precise radiography



7. 20 meters microwave exposure remote control





Exclusive Features

1. Patented X-ray arm technology, self balancing unique single arm support structure ensures straight and effortless positioning of X-ray tube for phenomenal, elegant and convenient operation.

2. Patented auto-trim technology surrounding the rotational limb in conjunction with the power unit means the device will automatically calibrate its center of gravity according to the current rotation angle of the support arm
