ПИД + Mini DP 4 к ЖК дисплей Поддержка плата контроллера 28 дюймов 4K ЖК-панель 3840*2160 M280DGJ-L30
- Категории: LCD Boards & Accessories >>>
- Поставщик: Shenzhen,Caison,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1. GENERAL DESCRIPTION

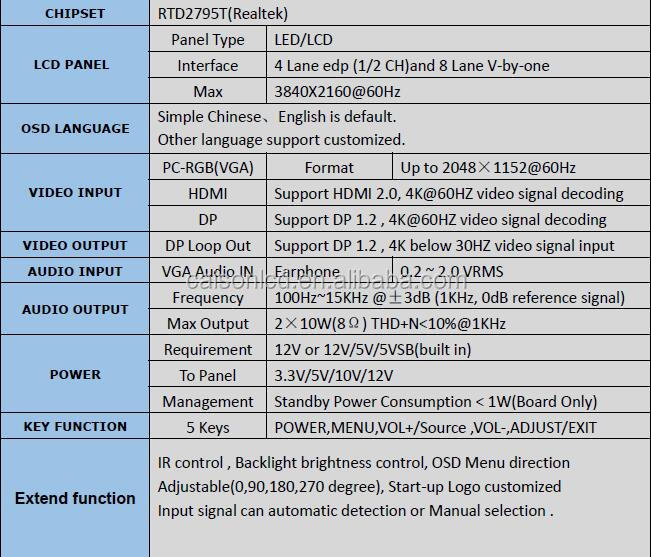

RTD2795T is a multi-purpose LCD controller board which support 4K UHD resolution LCD panel . The input signal have : 2+DP+VGA . The output signal have one DP loop out* +Single channel 4 Lane eDP +Dual channel 4 Lane eDP+8 Lane V-by-One .
RTD2795T support 2X10W(8Ω) speaker output . Also support VGA Audio input and Earphone output .
RTD2795Tsupport single 12V input or 12V/5V/5VSB which support standby mode .
2. FEATURES
3. FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.

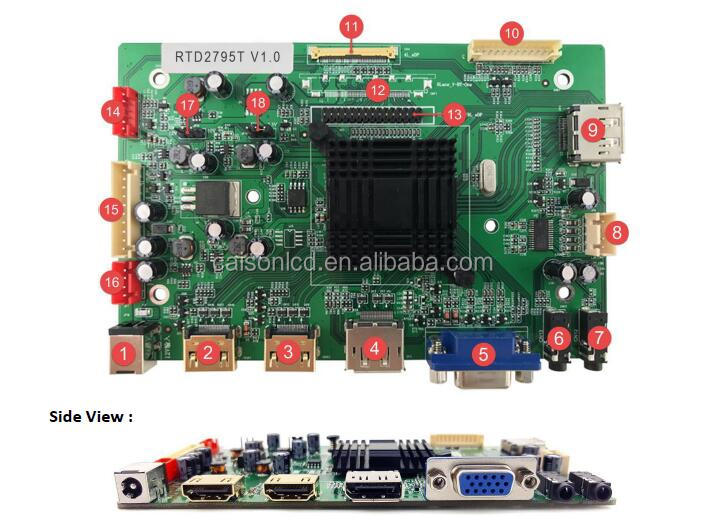

4. Interface function description(The optional connectors are marked with “*”)
No. | Description | No. | Description |
1 | DC Power Input(+12V) | 2 | #1 Signal Input |
3 | #2 Signal Input | 4 | DP Signal Input |
5 | VGA Signal Input | 6 | VGA Audio Input |
7 | Earphone Output | 8 | Speaker Output |
9 | *DP Output | 10 | Keypad Interface |
11 | 4 Lane eDP Output Interface | 12 | * 8 Lane V-by-one Output Interface |
13 | 2-CH 4Lane eDP Output Interface OR 8 Lane V-by-one Output Interface | 14 | FPD Brightness Connector |
15 | EXT-Power Input(+12V/5V/5VSB) | 16 | EXT-Power Input(+12V) |
17 | Flat Panel Voltage Selection(10/12V) | 18 | Flat Panel Voltage Selection(3.3V/5V) |

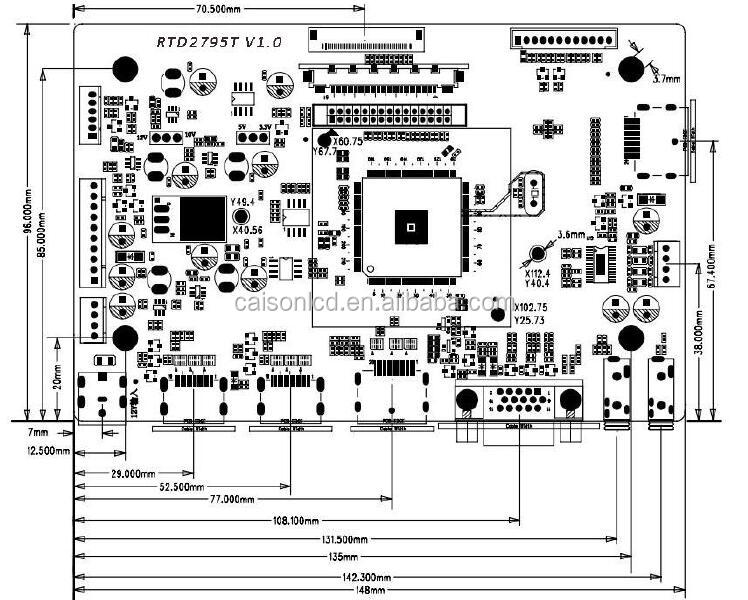

5. PCB MECHANICAL DIMENSION
Dimension : 148mm(L)*96mm(W)*15mm(H)
Screw Holes Size: Φ3.5mm

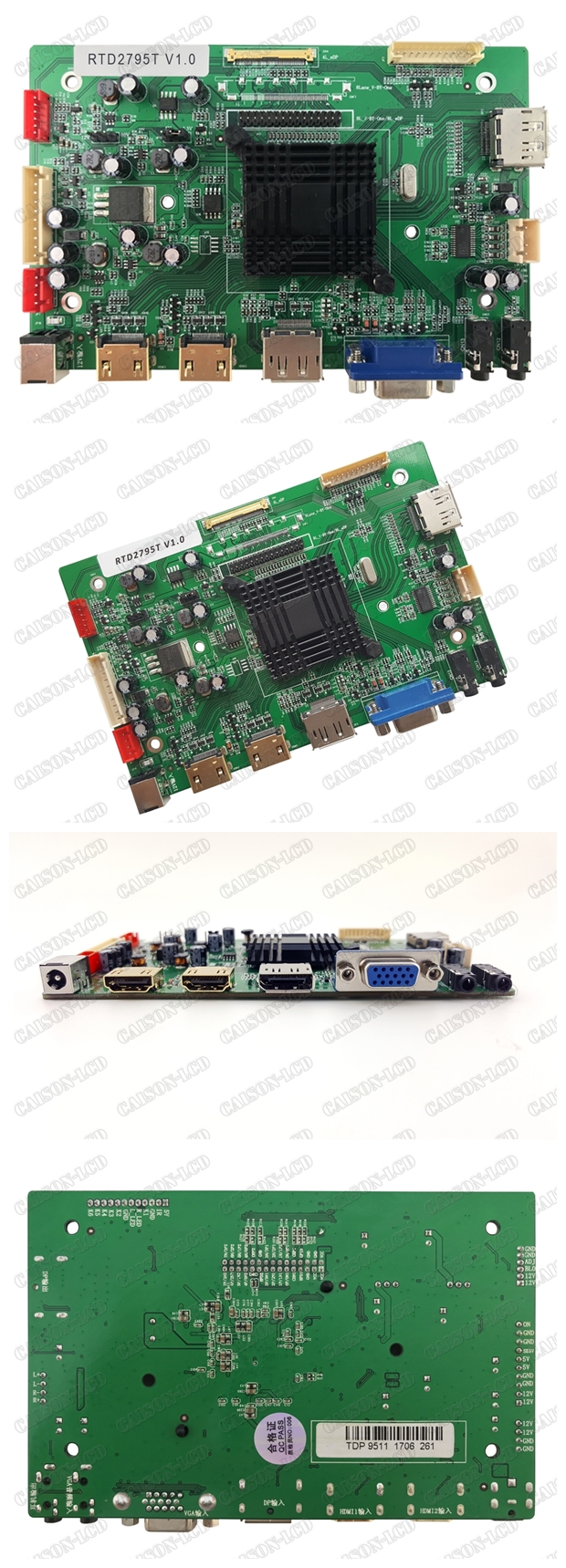

6.Real Picture :
8.Application Field
We also can offer other size LCD controller kit for various 4K LCD panel :
If you want to buy there products , Please click below link with related product name :
