Заводская цена воздушный компрессор Atlas Copco сушилка конденсаторный теплообменник FXe12 FXe13 FXe14 FXe15
- Категории: Industrial Compressors >>>
- Поставщик: Wuxi,Cooltech,Heat,Exchanger,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Description (COOLTECH) | Compressed air enters the heat exchanger and is cooled down in the heat exchanger in two stages, first by reheating the exiting air, then by heat exchange to evaporating refrigerant. |
| The condensate should be drained as efficiently as possible. Finally the air is reheated by the entering air to be cooled down, thus leaving dried compressed air. | |
| The evaporating refrigerant will extract heat from the air to be cooled. During this process the liquid refrigerant will be evaporating and at the exit of the heat exchanger all refrigerant is in gaseous form. | |
| The sizing of the refrigerant channels should be as such to allow sufficiently high speeds for the refrigerant to make sure that the oil, that is always present in the refrigerant will be carried along to the exit of the heat exchanger along with the refrigerant gas. | |
| Application (COOLTECH) | Cooled medium : air Refrigerant : R410a or R22 etc. Design pressure at air side : 13 bar Design pressure at refrigerant side : 28 bar Design temperature : 70°C Working pressure : 7 bar |
Our Services

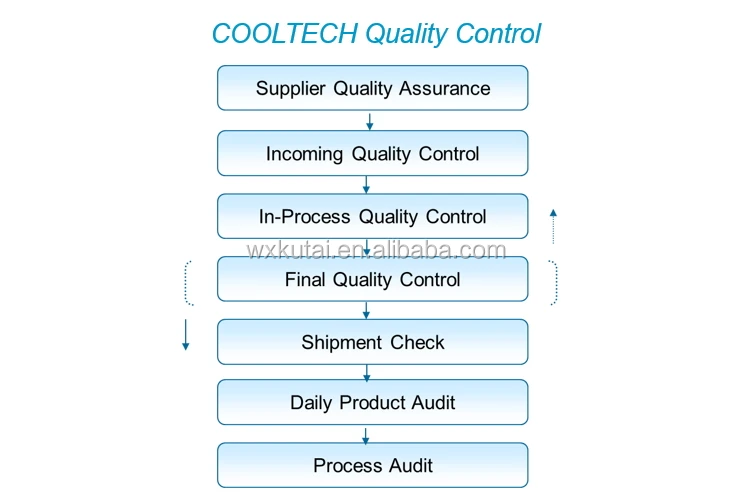

Quality
Company Information
Packaging & Shipping
FAQ
Buying Guides
Contact Us
