CDMA факс фиксированный беспроводной терминал для факсимильного

Описание и отзывы

Характеристики



ZTE WF833F CDMA 800MHZ FAX FWT









Brand: ZTE
Model no.: WF833F
Product name: CDMA FAX Fixed Wireless Terminal
Frequencies: CDMA800Mhz



General features:
1) Bell signal;

2) DTMF Dialing;

3) Polarity reversal;

4) IP Presetting;

5) Caller ID display;

6) SIM card supported (1.8V, 3V);

7) Origninal ZTE product

8) CDMA fax terminal supports voice and fax function

9) Can adjust voice volume by setting up from telephone set;

10) Working status and Signal Strength by LED indicator;

11) Can send and receive fax by connectiong to an analogue fax machine

12) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. ;

13) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

14) The RJ-11 socket which connect the phone or billing system for metering purpose;
15) back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.





External in interface:

Hanging voltage: 45V

Sensitivity:<-104DBM
Transmitting power<3W
Dialing tone Frequency: 450Hz

Outside phone interface: RJ-11(PHONE)

Outside fax interfaxe:RJ-11(FAX)
Picking off voltage: 30mA / 41Ma

Antenna interface: Antenna amplifying>2.5db
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional

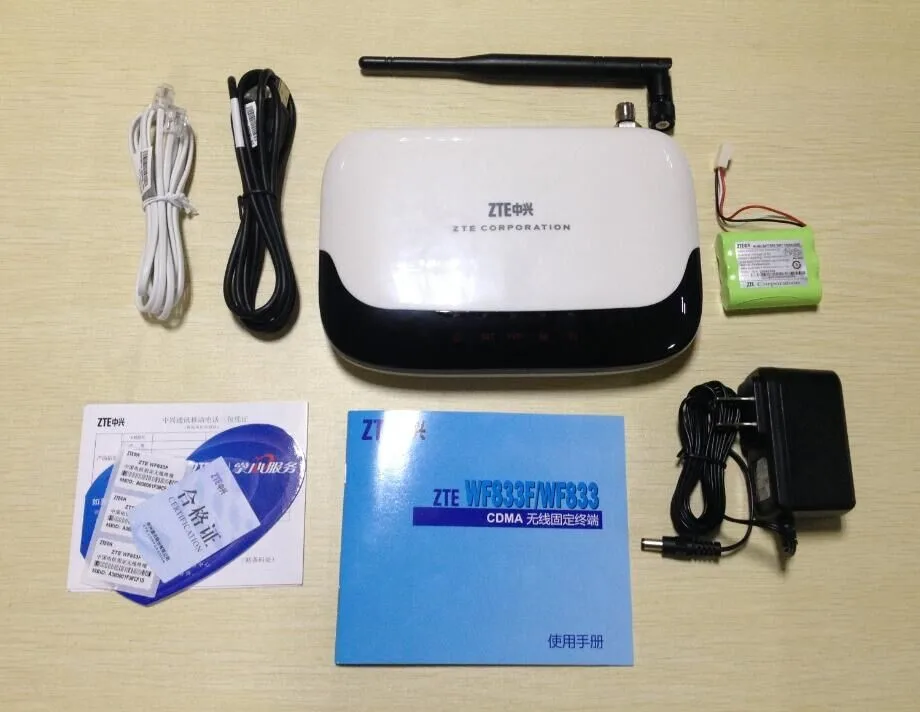

Package:

Name	Quantity	Remark
WF833F	1pcs	Quad band
Ac- adapter	1pcs	AC-110-240V, DC12V/1A
Antenna	1pcs	Short antenna
User's Manual	1pcs	English
