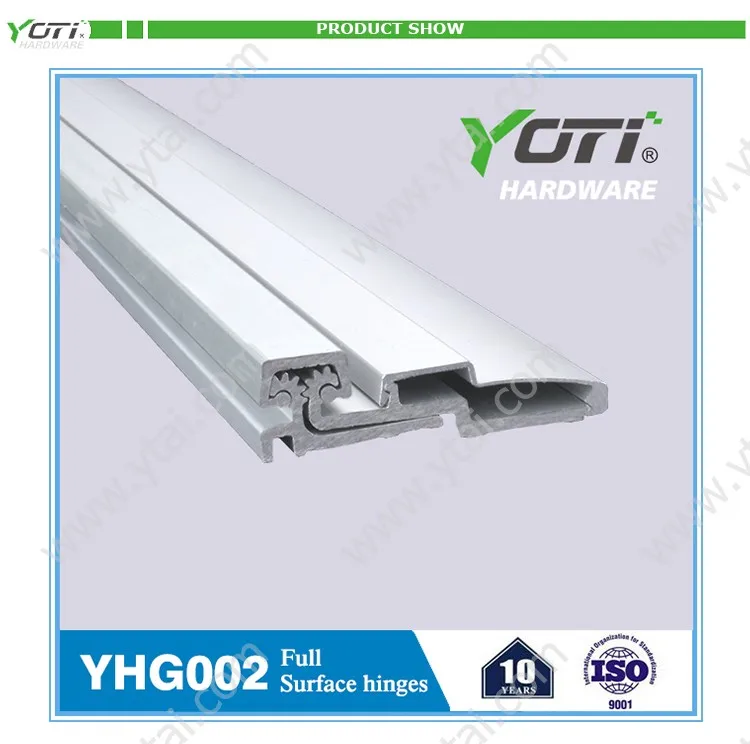

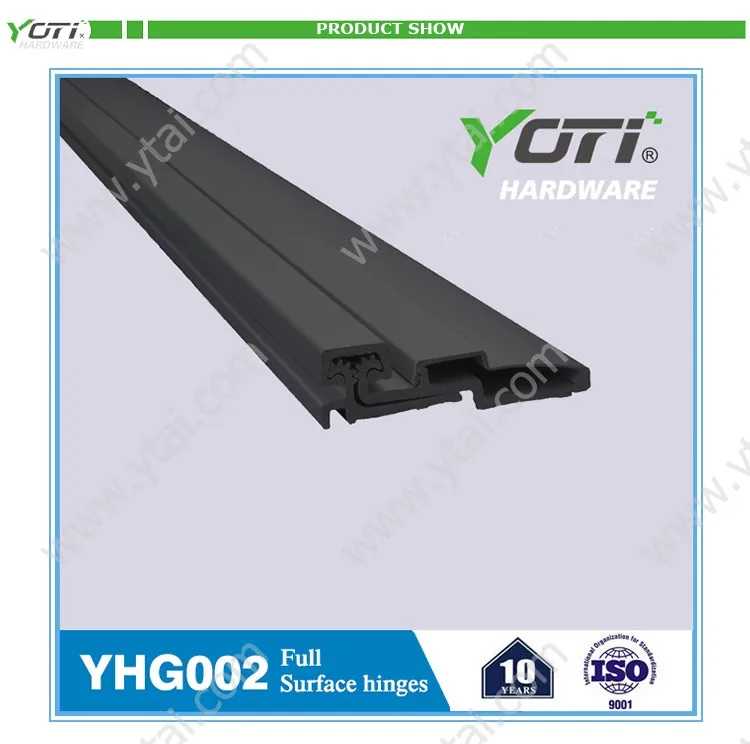

Китайские сверхмощные полноповерхностные непрерывные петли YHG002
- Категории: Door & Window Hinges >>>
- Поставщик: Wenzhou,Yongtai,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
Length (inches) | Length (mm) | Sex Bolts (Door) | Pan Head (Door) | Screws (Jamb) |
83 | 2108 | 8 | 19 | 19 |
95 | 2413 | 9 | 19 | 19 |
119 | 3023 | 10 | 23 | 23 |

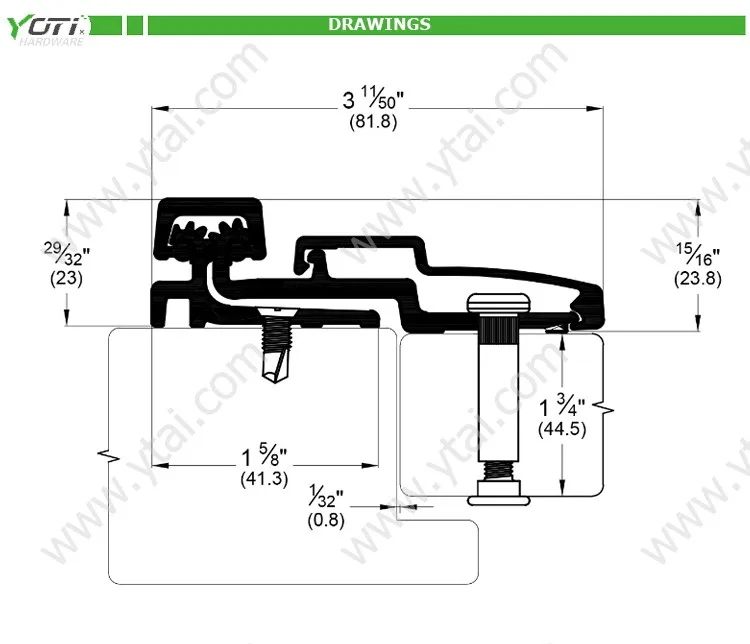

◇CLEARANCE: 1/32" (1 mm) minimum recommended for hinge side
Plus standard lockside clearance
1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
◇FASTENERS: 1/4-20 x 1-1/4" Sexbolt (Screw + Post)
#12-24 X 11/16" Flat Head Self-Drill ScrewsPlus standard lockside clearance
1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
◇LENGTH OPTIONS: 83" & 95" & 119" & Custom
◇DOOR REINFORCEMENT: None needed
◇FRAME REINFORCEMENT: None needed to 200 lbs.
Use 16 gauge channel over 200 lbs
◇FIRERATING: Up to 3 hours.
◇SPECIAL FEATURES: Replacement for existing doors and frames
7/8" minimum frame
1/16" inset
