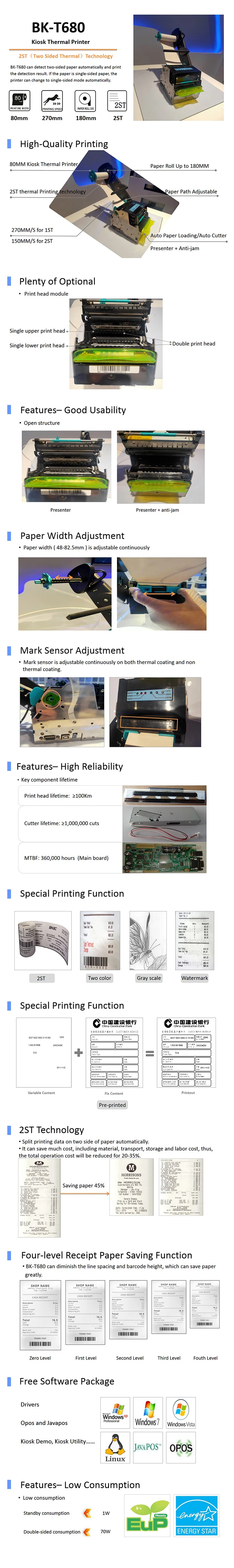

SNBC BK-T680 Kiosk принтер с авторезкой высокоскоростной большой рулон бумаги 2ST

Item

Parameters

Print

Print method

Direct thermal line printing

Resolution

203 DPI

Print width

Max.80mm

Print speed

Single sided printing: Max.270mm/s

Duplex printing: Max.150mm/s

Memory

SDRAM:8MB/32MB, FLASH:2MB/4MB

Interface

USB+Serial; USB+Ethernet

Barcode & Font

Barcode

1D:UPC-A,UPC-E,EAN8,EAN13,CODE39,CODE93,CODE128,ITF,CODABAR

2D:PDF417,QR,GS1-DataBar

Font

Font A(12×24), Font B(9×17), Kanji Font(24×24)

Character modification

Rotate(0°, 90°, 180°, 270°), enlarge(1-6X), emphasize, underline, reverse

Paper

Paper type

Continuous paper, Marked paper, 2ST paper

Paper width

48~82.5±0.5mm, adjustable continuously

Paper thickness

0.055~0.1mm

Paper roll OD

Max.180mm

Paper roll ID

10~60mm

Paper cut

Full cut, Particial cut

Power supply

Input

110~240V AC,50~60Hz

Output

24±5%V DC, 2.5A

Reliability

Print head lifetime

≥100Km

MTBF

590,000 hours

Cutter lifetime

≥1,500,000 cuts

Presenter

Paper out mode

Retract/ hold paper/ spit out paper / close

Paper retraction speed

1000 mm/s

Paper out speed

600-1000 mm/s

Environment

Operation condition

0~50ºC,20~90%RH(40ºC)

Storage condition

-40~60ºC,20~93% RH(40ºC)

Physics Spec.

Dimensions

123.2(W)×161(L)×120.9(H)mm(Without paper holder)

Weight

Approx.2.0Kg(Without paper holder)

Standards

Standards

CE, CB, FCC
