Advantages

•Can be used both for suction and delivery

Because of the excellent moulding technique combined with tough chemical fibres it may be used at a bursting

pressure of over 850 p.s.i. and within a normal internal pressure of 225 p.s.i. In addition, since it can satisfacto

rily withstand the force for creating a vacuum it may be used on both the delivery and the suction sides. Also, si

nce its carcass is of special spherical type, and it will not come in contact with the connecting bolt head even if

it expands, this connector may be used with a sense of security even when subjected to high pressures.

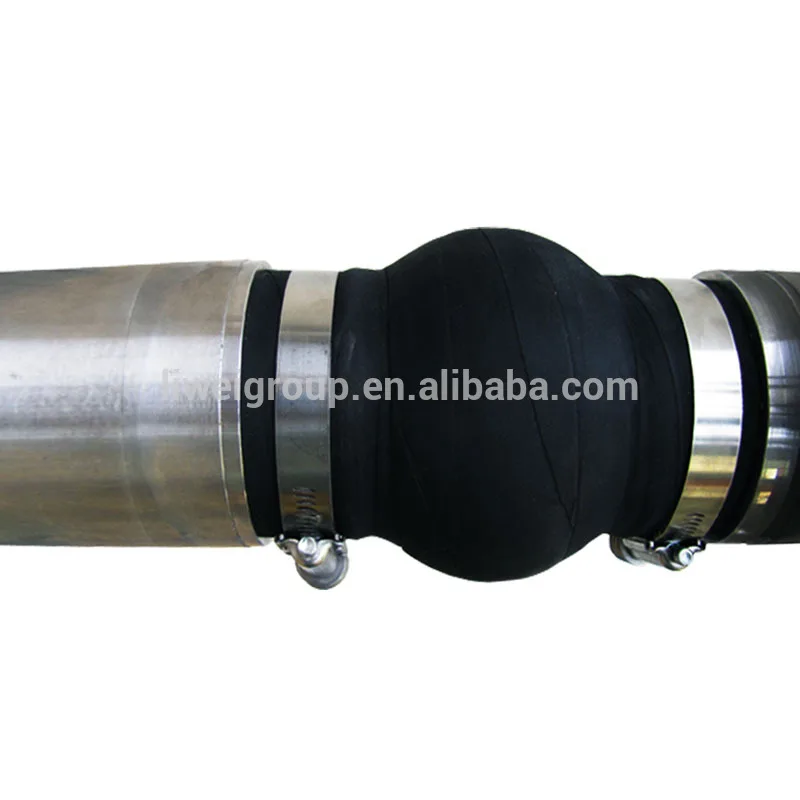

•Easy installation on pipeline

Since its carcass is soft and can be readily deformed, pipe connections can be quickly and readily completed

despite some misalignment.

•Excellent ability to isolate sound and vibration

The highly soft carcass isolates vibration and solid sound in all directions and prevents the production of noise



Materials

Material of Rubber Expansion Joint
No	Name	Materials
1	Internal rubber layer	IIR, CR, EPDM, NR, NBR
2	External rubber layer	IIR, CR, EPDM, NR, NBR
3	Casing ply	Polyester cord fabricate
4	Flange	Q235A, stainless steel
5	Strengthening ring	Q235A
6	Limit block	Q235A, stainless steel
7	Limited bar	Q235A, 35#, stainless steel
8	Nut	Q235A, 35#, stainless steel
