800 кг/1000 кг/1500 кг/2000 кг/2500 кг беспроводной автоматический Открыватель раздвижных ворот/оператор мотор


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Description

800kg/1000kg/1500kg/2000kg/2500kg wireless automatic sliding gate opener/operator,sliding door motor

\t
Model
\t
BW-JY
\t
Special Function
\t
Bluetooth control sliding door motor with smartphone
\t
Max. Gate Weight
\t
800/1200/1500/2000/2500kg
\t
Application
\t
SmartDoor
\t
Motor Power
\t
370W/550W/750W/1200W/1500W
\t
Protection Class
\t
IP44
\t
Power Supply
\t
AC220V/110V
\t
Gate Speed
\t
12m/min
\t
Environment Temperature
\t
-45℃~+65℃

Specifications for different powers

\t
Model
\t
JY-370
\t
JY-550
\t
JY-750
\t
JY-1200
\t
Power
\t
370W
\t
550W
\t
750W
\t
1200W
\t
Power Supply
\t
AC220V 50Hz
\t
AC220V 50Hz
\t
AC220V 50Hz
\t
AC220V 50Hz
\t
Output Torque
\t
22N.m
\t
27N.m
\t
35N.m
\t
45N.m
\t
Max Gate Weight
\t
800KG
\t
1000KG
\t
1500KG
\t
2000KG
\t
Motor Speed
\t
1400r/min
\t
1400r/min
\t
1400r/min
\t
1400r/min
\t
Gate Speed
\t
12m/min
\t
12m/min
\t
12m/min
\t
12m/min
\t
Limit Switch
\t
Spring/Magnetic(NC/NO)
\t
Spring/Magnetic(NC/NO)
\t
Spring/Magnetic(NC/NO)
\t
Spring/Magnetic(NC/NO)
\t
Noise
\t
<=56dB
\t
<=56dB
\t
<=56dB
\t
<=56dB
\t
Temperature
\t
-45℃~+65℃
\t
-45℃~+65℃
\t
-45℃~+65℃
\t
-45℃~+65℃
\t
Protection Class
\t
IP44
\t
IP44
\t
IP44
\t
IP44
\t
Certification
\t
CCC,CE
\t
CCC,CE
\t
CCC,CE
\t
CCC,CE
\t
App
\t
smartdoor

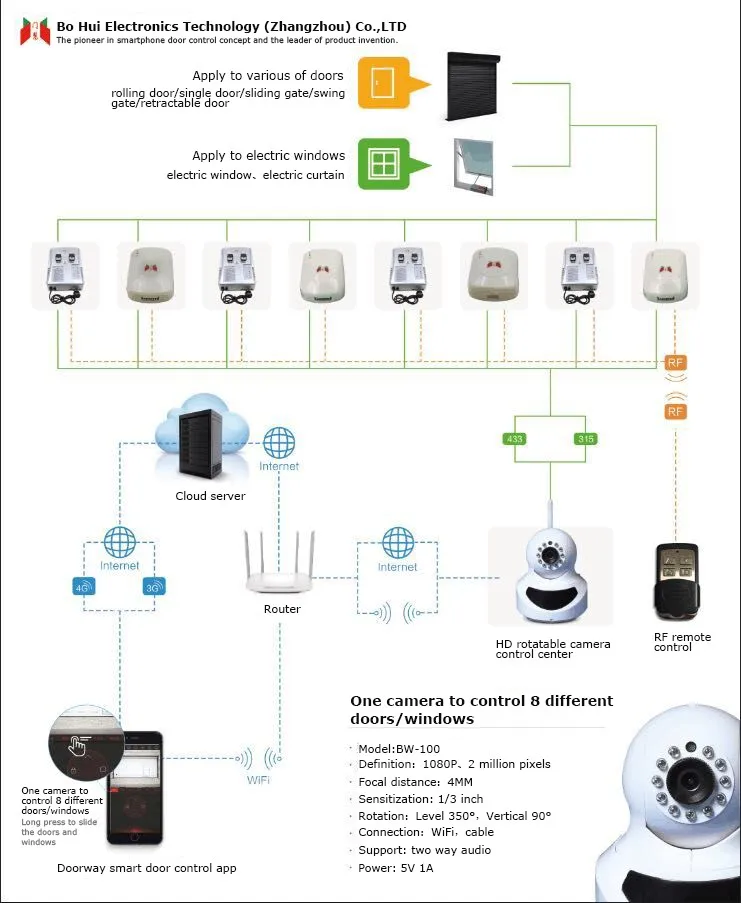

Work principle

Note: The sliding door motor has mobile bluetooth control function already, but only for short range.

            If you want to achieve long range control through WIFI/Internet, please purchase our control camera.

            There are two types of control camera: Dome camera control central (for indoor) and Bullet camera control central (for outdoor).

Detailed Images
Packing & Delivery

Package: Carton
Delivery:2-10 days

Our Company

Profile

BoHui Electronics Technology (Zhangzhou) Co., Ltd Located in High-tech Zone, Jiuhu Town, Zhangzhou City, was found in 2012 by a technical team whose key members are R&D engineers from Huawei and Microsoft corporation, those people own rich experience in the field of developing networking, communication, WIFI on SOC system and BLE. After three years since the team established, our R&D team members have developed backend server, P2P transfer protocol, human image recognition technology, smartphone door control system, smart electric windows and security camera control system with independent intellectual property rights. Our team also develops a series of electric door controls, electric windows controls and human image recognition IP camera.
In 2015, BoHui Electronics Technology Co., Ltd gained the title of “Fujian Technological Enterprise”. Our R&D team also attends “The Third Fujian Innovation Contest” and has won the third rank. What’s more, our company has gained the title of “The Outstanding Enterprise” in “The Fourth China Innovation Contest”. We also have many national invention patents, utility model patents and software copyrights.
More details, please check: www.doorway.net.cn

We have attended the following Exhibitions:

1. The 22th China (Beijing) International Building Decoration & Building Material Exposition
2. The 13th China Cross-Straits Technology and Projects Fair(CSTPF)
3. The 17th International Building Decoration Exposition
4. The 12th China International & Medium Enterprises Fair
5. The 23th China (Beijing) International Building Decoration & Building Material Exposition
6. The 6th Guangzhou Sunshade Door & Windows Exposition

Certifications

Patents

https://bhdzzz.en.alibaba.com/company_profile/trademarks_patents.html

Enterprise Honor

https://bhdzzz.en.alibaba.com/company_profile/award_certification.html

Contact Us

If you are interested in our products, please don't hesitate to contact Matthew.
Your enquiries are always welcome!
The contact information as follows:

Email:smartdoor2 @foxmail.com

Tel:+86 0596 6626664
Mobile:+86 15159669216(Wechat/Whatsapp)

Skype: smartdoor2 @foxmail.com

FAQ

Q:How can I get some samples?
A:We are honored to offer you samples. New clients are expected to pay for the courier and sample cost, sample charge could be returned when you place a mass order.
Q: What is your term of payment ?
A:T/T would be better with quick transfer and few bank fees. L/C could also be accepted, but the procedure is complex and the fee is high. You can also use Alibaba trade assurance or secure payment. Alibaba trade assurance can protect your deal and protect your money secure. For large quantity, sea shipping can be provided.

T/T: 30% deposit before production, 70% balance will be after copy B/L
Q: What is your delivery time?
A: Generally speaking, 2-3 working days for sample and within 2-10 days if the goods are in stock or 30-40 days if the goods are not in stock. It depends on your quantity.
