Product Description
SUS ASTM JIS stainless steel 310S 316l Angle bar
- Delivery 5 or 7 workdays in Stock
- Material Grade:310s 316l
- Length:6M,9M12M;Thickness:3-24mm; Size:20-200mm
- Original :Tisco
- Payment:T/T, L/C, D/P,D/A
1.Specifications about stainless steel angle
| ITEM | Stainless Steel Angle bar |
| Original | RONSCO,BAOSTEEL, JISCO, TISCO, etc. |
| Tolarence | Weight tolarance: -4% TO -10%;Width +/-0.8mm;Thickness +/-0.4mm;Length:4-12mm |
| Surface | Mill finish. Galvanized.Forged.Hot Rolled.Cold Drawn.Peeled |
| Material | 201.202.301.302.304.304L.310S.316.316L.321.430.420, 309S.2205.2507.2520.410. 420.904L,630,631 ect. Or Customized |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Equal Angle | Type: 2#-20#;Size: 20-200mm;Thickness: 3.0-24mm; Weight: 0.597-71.168kg/m |
Unequal Angle | Type: 2.5*1.6-20*12.5#;Size:25*16-200*125mm;Long Side: 25-200mm Short Side: 16-125mm;Thickness: 3.0-18mm;Weight: 1.687-43.588kg/m |
| Application | widely used in a variety of architectural and enginee ring structures,such as a.) beams, bridges, ship; b.) transmission tower, reaction tower; c.) lifting transportation machinery; d.) industrial furnace; e.)container frame, warehouse goods shelves, etc |
| Package | Standard export sea-worthy packing or customized |
| Sample | Offer the sample for free charge but do not pay the cost of freight |
2. Chemical Composition about stainless steel Angle Bar
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |

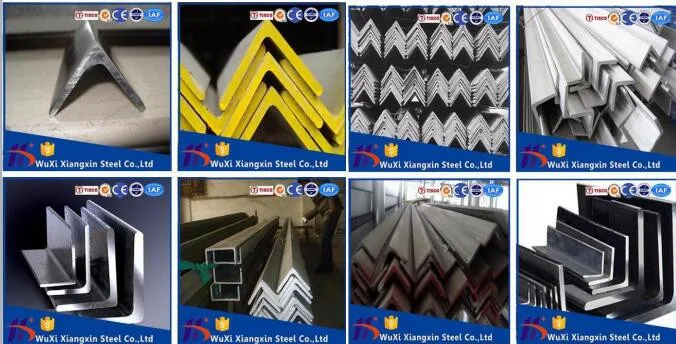

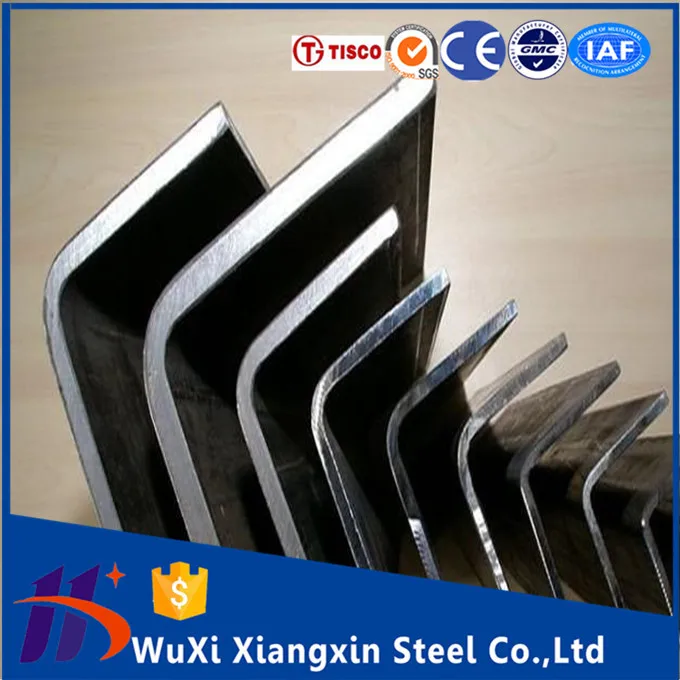

3.Product Picture
4.Application Area
Packaging & Shipping
1.with plastic cap to protect both ends
2.weaving bag wrapped outside the pipe
3.then pack into wooden case.
delivery detail:3or 5workdays since received the deposit of L/C draft.
Our Services
2.Related Products
200 Series 300 Series 400 series 900series 2000 Series
Main Product
| Stainless steel round square rectangular pipe | ||||
| Stainless Steel circle | stainless steel strips | |||
Available Surface
3.Stainless steel maintenance:
(1) Regular cleaning and maintenance
(2) Pay attention to prevent the occurrence of the phenomenon of surface scratches
(3) Use soap, weak detergent or warm water to remove surface dust, dirt
(4) In addition to the surface of the binder with alcohol or an organic solvent (ether, benzene)
(5) Use neutral detergent or ammonia solution in addition to surface oil
(6) With 10% nitric acid or abrasive detergent in addition to the surface of the embroider caused by the dirt.
4. Related certificate
Company Information
WuXi XiangXin Steel Import and Export Co.,Ltd.
Our Comapny began to domestic trade since 70S,now we also sell stainless steel aborad.
1.Brand:We are the agent of TISCO,BAOSTEEL,LISCO,JISCO,ZPSS.
2.Our main products are stainless steel inox sheet/plate,coil/roll,strip,bar,angle,pipe and tube .
3.Grades are 201,202,304,304L,316,316L,310S,309S,301,321,904L,410,420,430,409.2205,2520,2507;
4.Surface--we have 2B,BA,No.4/HL/Hairline/brushed/satin,8K/No.8/mirror,SB,gold,etch,No.1,polish,etc.
5.Thickness--0.2-6mm for cold rolled; 3-150mm for hot rolled.
6.Standard size--1000×2000mm,1219×2438mm=4ft×8ft=1220×2440mm,
1250×2500mm,1500×3000/6000mm,1524×6096mm.
7.Certificate--ISO,BV,SGS,TUV,IQI or other third inspections.
8.Our Market
These years we established a large customers .We've exported to dubai,USA,Peru,Vietnam,Hungary,Algeria,Romania,Blivia,Chile,Ukrain,Russia,India,Mauritius,
Ecuador,Tunisia,France,Pakistan,Thailand,Austrialia,Poland,Bangladesh and so on.
FAQ
Q: HOW DO YOU CONTROL THE QUALITY?
A:We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard
A:We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard
stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and
wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
Q: CAN YOU ACCEPT THE CUSTOMIZATION?
A:Yes. If you have special requirements on products or packages, we can do customization for you.
Q: CAN YOU ACCEPT TRIAL ORDERS?
A:Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist.Surely we will have further and longer partnership after the beginning.
Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and test and DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
