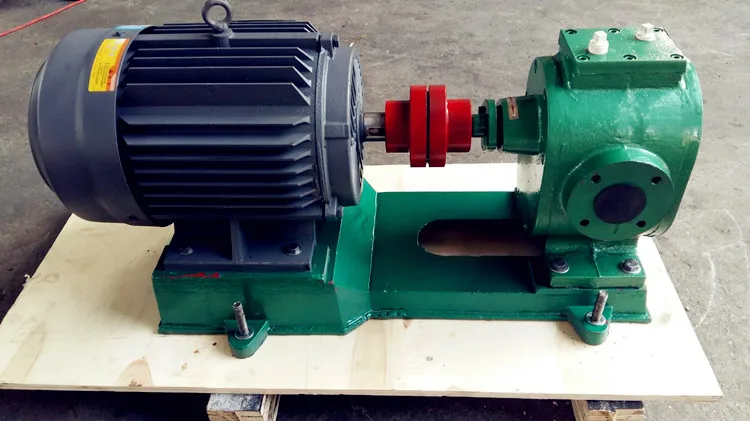

Низкая цена перекачивающий асфальтовый Шестеренчатый насос с нагревательной

Описание и отзывы

Характеристики



It is good choice for medium wihtout solid particles which is easy to solidify at normal temperature .Such as Bitumen/Glue/Resin/Rosin/Paraffin Wax/Detergent ...



Advantage: With Heating Jacket



Type	Capacity		working pressure	heigh of suction vacuum	Inlet/outlet size	Motor Power
	L/m	m3/h	Mpa	m	mm	kw
LCB-1	16.6	1	0.36 0.6	5	φ25	1.5 1.5
LCB-2	33.3	2	0.36 0.6		φ25	1.5 2.2
LCB-3	50	3	0.36 0.6		φ25	1.5 2.2
LCB-5	83.3	5	0.36 0.6		φ40	2.2 3.0
LCB-6	100	6	0.36 0.6		φ40	2.2 3.0
LCB-7	116	7	0.6 1.0		φ50	3.0 4.0
LCB-10	167	10	0.6		φ50	4.0
LCB-12	200	12	0.36 0.6		φ55	4.0 5.5
LCB-18	300	18	0.36 0.6		φ70	5.5 7.5
LCB-30	500	30	0.6		φ80	7.5
LCB-29	483.3	29	0.36 0.6		φ70	7.5 11
LCB-38	633	38	0.28 0.6		φ100	11 15
LCB-50	833	50	0.6		φ125	22
LCB-58	960	58	0.28 0.6		φ100	18.5 30
LCB-60	1000	60	0.6		φ125	30
